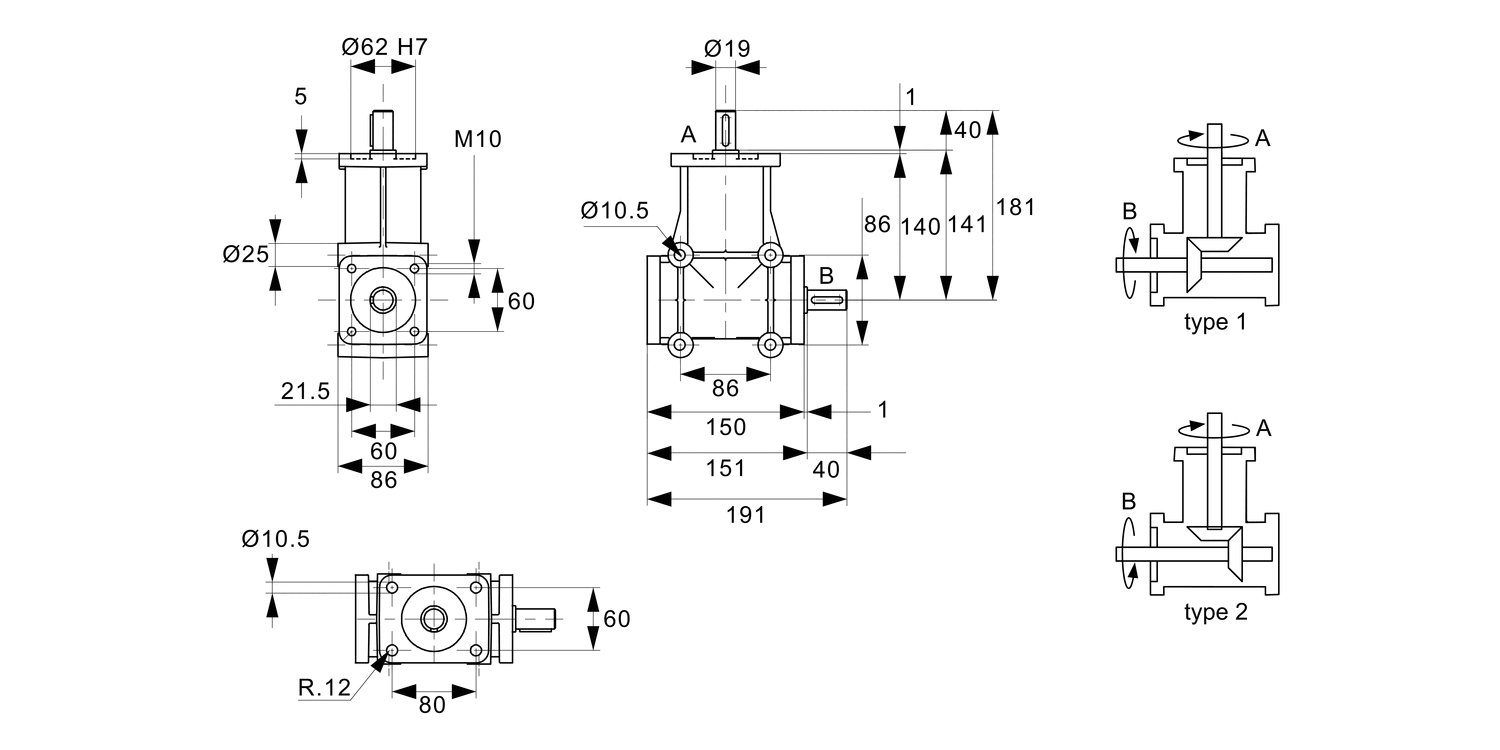

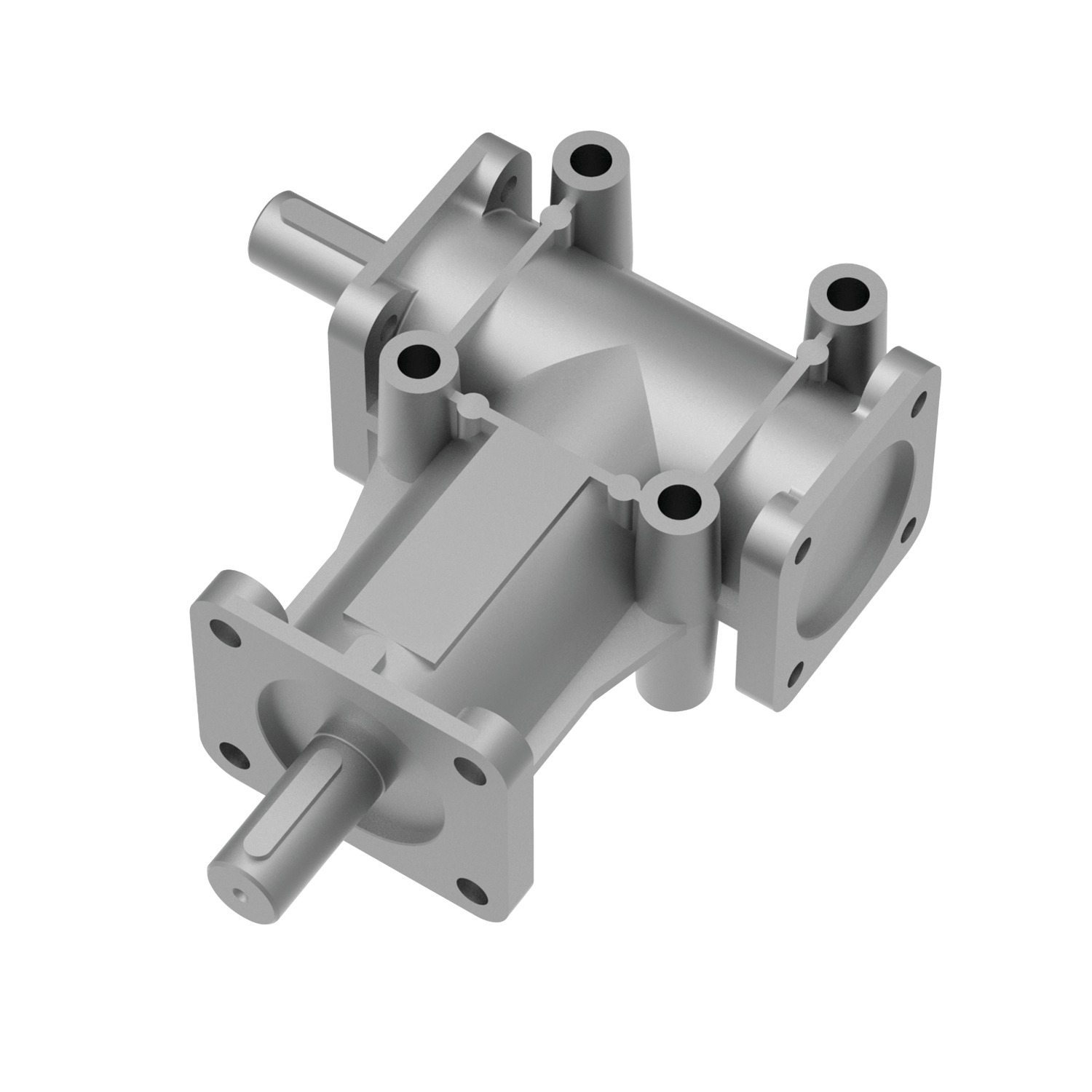

R2330 Right Angle Drives - 2 Shafts

Name: R2330.1-3
Brand: WC
SKU: R2330.1-3
Price: 492.5 EUR
Availability: OutOfStock

Ø19 shafts, material: Aluminium

Article properties

Order No.

R2330.1-3

Shaft dia. tol. f7

Type

Ratio

3:1

Input shaft A max. kW

1.57

Output shaft B max. Nm

16.0

Weight kg

4.40

See full product selection

£ 492.50 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 492.50	0%
10-14	£ 443.25	10%
15-24	£ 418.63	15%
25-49	£ 394.00	20%
50+	£ 344.75	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Lightweight aluminium alloy housing.
Case-hardened steel gears and shafts.

Technical Notes

Normally used as speed reducers.
Shaft A is the input shaft. Optimum performance based on max. 1400 rpm input.
Provides on average 10,000 hours trouble-free life.
Where ratio geared units are used as speed increasers the optimum input speed is 750 rpm for 1:2 ratios.
Very low operating noise levels. Temperature range is -20°C to +80°C.
