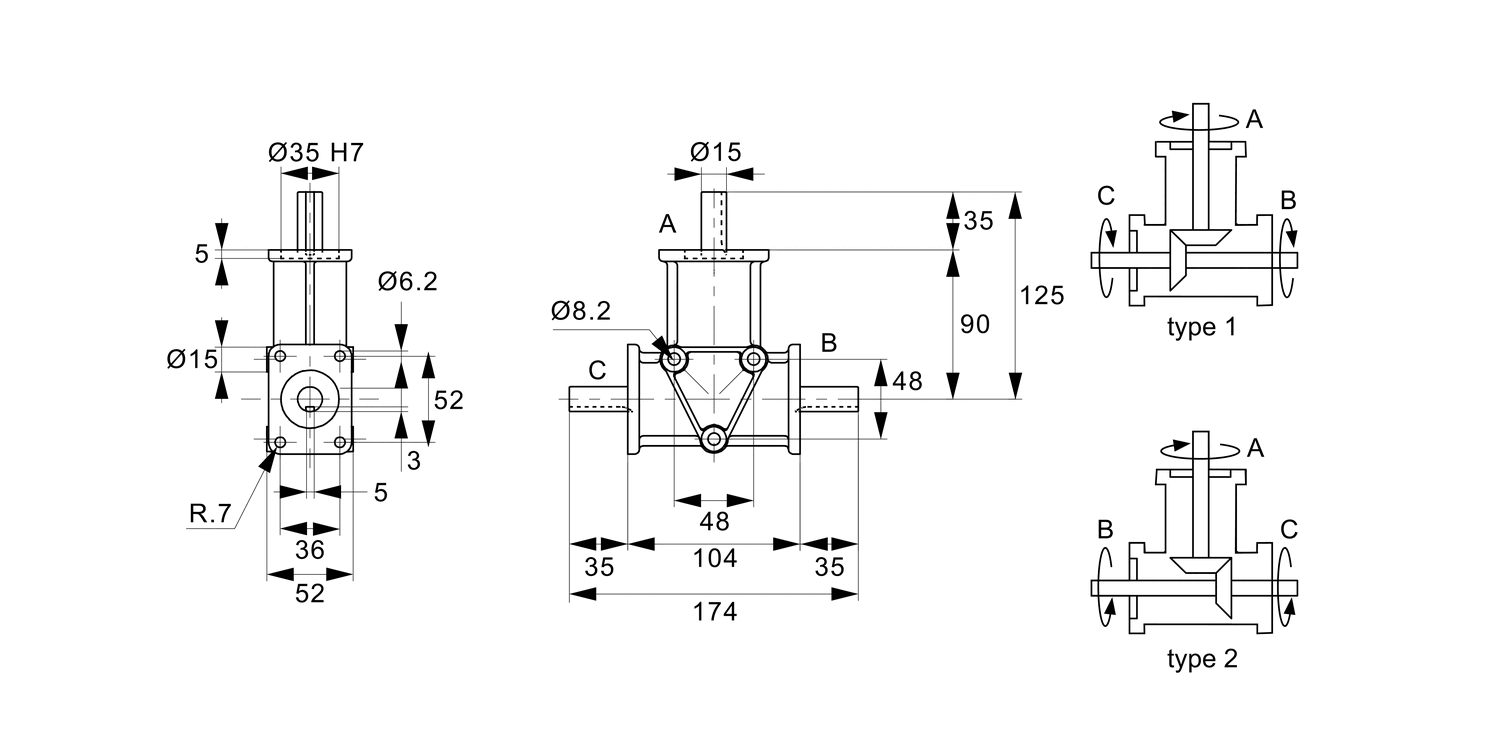

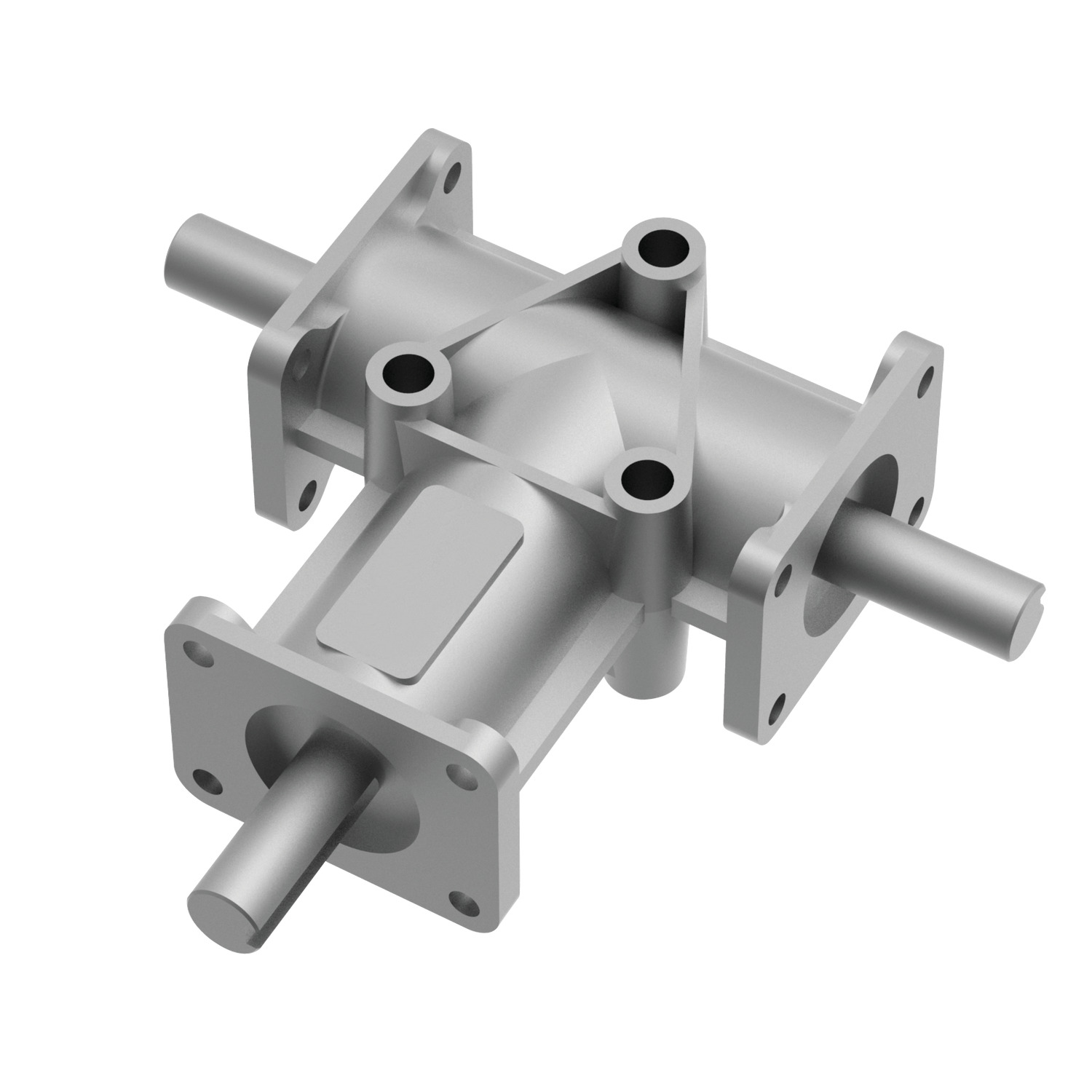

R2307 Right Angle Drives - 3 Shafts

Name: R2307.1
Brand: WC
SKU: R2307.1
Price: 302.83 EUR
Availability: InStock

Ø15 shafts, material: Aluminium

Article properties

Order No.

R2307.1

Shaft dia. tol. f7

Ratio

1:1

Input shaft A max. kW

1.29

Output shaft B max. Nm

4.4

Output shaft C max. Nm

4.4

Weight kg

1.2

See full product selection

£ 302.83 per unit (click for quantity discounts)

Ready to despatch 5
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 302.83	0%
10-14	£ 272.55	10%
15-24	£ 257.41	15%
25-49	£ 242.26	20%
50+	£ 211.98	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Lightweight aluminium alloy housing.
Case-hardened steel gears and shafts.

Technical Notes

Normally used as speed reducers.
Shaft A is the input shaft. Optimum performance based on max. 1400 rpm input.
Provides on average 10,000 hours trouble-free life.
Where ratio geared units are used as speed increasers the optimum input speed is 750 rpm for 1:2 ratios.
Very low operating noise levels. Temperature range is -20° to +80°.
Max. radial loading :41 Kg.
Max. axial loading: 20 Kg.
Angular alignment: 15' to 30' of arc.
