Right Angle Drives
three Ø8 shafts

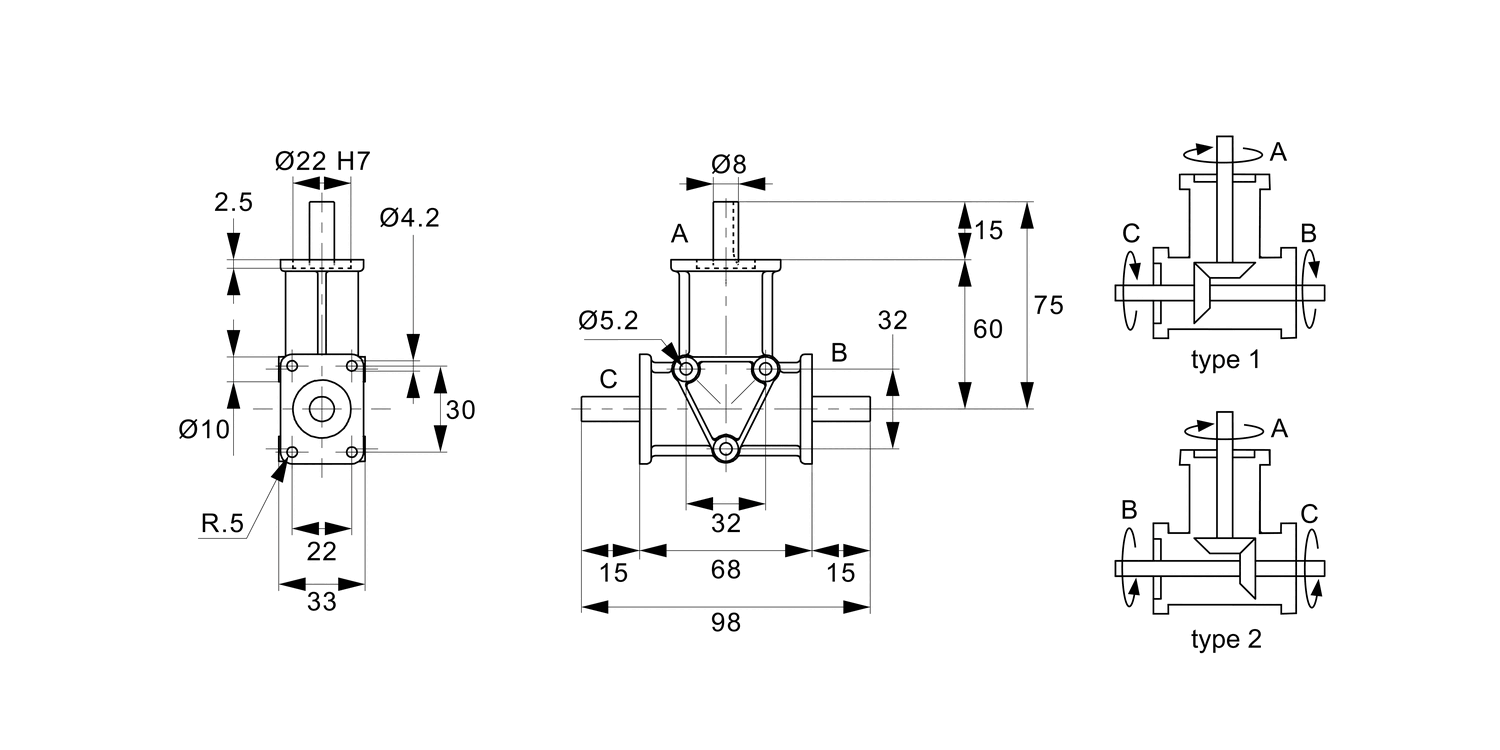

R2302 Right Angle Drives - 3 Shafts
Ø8 shafts, material: Aluminium
Order No.
R2302.2
Shaft dia.
tol. f7
8
Ratio
2:1
Input shaft A
max.
kW
0.18
Output shaft B
max.
Nm
0.6
Output shaft C
max.
Nm
0.6
Weight
kg
0.3
£ 193.55 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 193.55 | 0% |
| 10-14 | £ 174.20 | 10% |
| 15-24 | £ 164.52 | 15% |
| 25-49 | £ 154.84 | 20% |
| 50+ | £ 135.49 | 30% |
Technical & Application
Material
Lightweight aluminium alloy housing.
Case-hardened steel gears and shafts.
Technical Notes
Normally used as speed reducers.
Shaft A is the input shaft. Optimum performance is based on max. 1400 rpm input.
Provides on average 10,000 hours trouble-free life. Very low operating noise levels.
May also be used as speed increasers (here the max. shaft input speed for a 1:2 ratio unit is 750 rpm).
Temperature range is -20°C to +80°C.
Tips
See technical pages for gear box selection guide,
based on motor rating, gearing ratio, load type and expected hourly usage hours.
