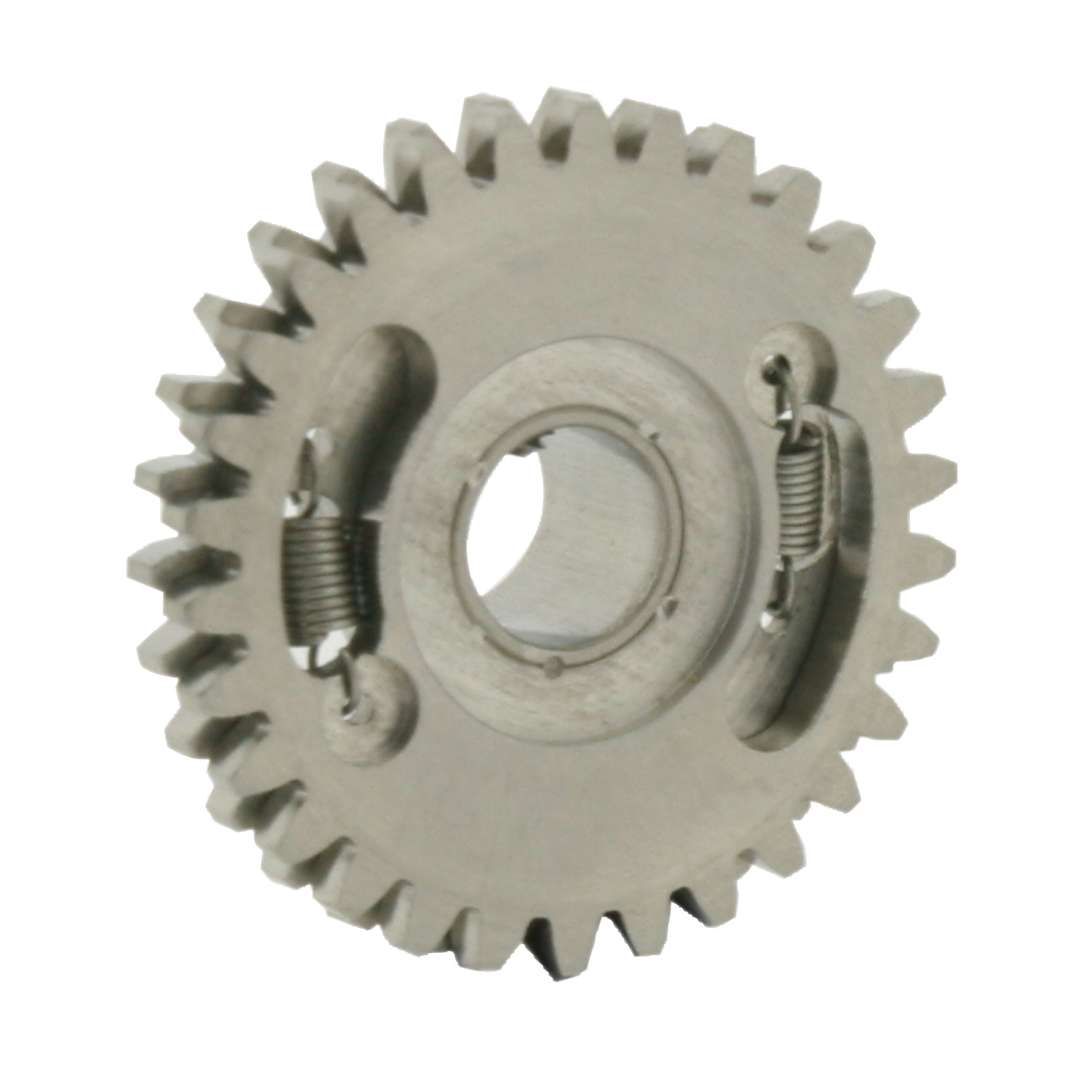

Anti-backlash Pinions
1,0 to 0,5 module
R2088.1 0,6 Module Anti-backlash Gears
aluminium, material: Aluminium
Order No.
R2088.A095-08
No. of teeth
95

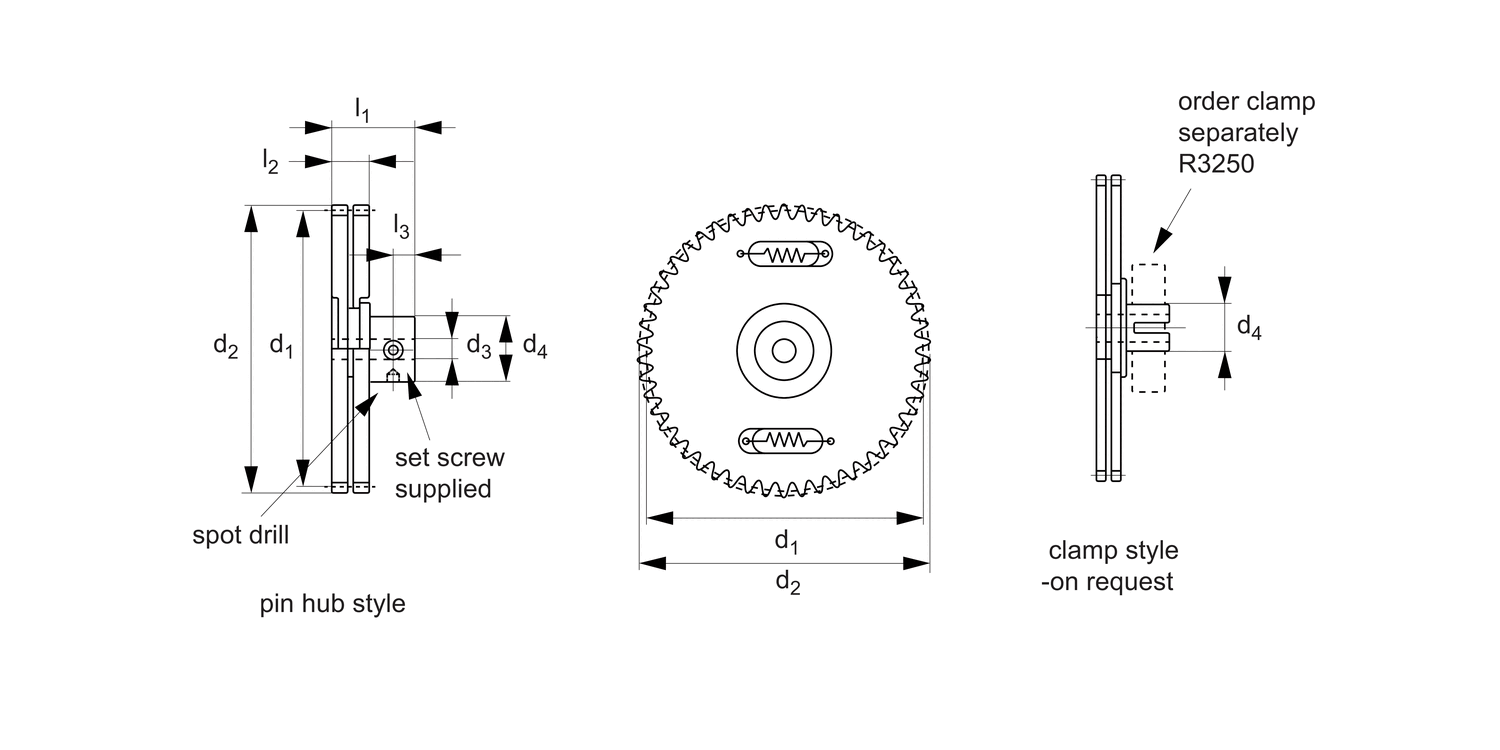

d1 p.d.
57.0
d2
tol. H8
8
d3
58.2
l1
10
l2
3
Module
0.6
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Aluminium (DIN 3,1355 anodized before cutting).
Hub - stainless steel (DIN 1,4305).
Technical Notes
20° pressure angle.
Quality class DIN 7, AGMA 10.
ØH= 10 when bore=5mm
ØH= 13 when bore=8mm.
Tips
Special versions available on request
(e.g. different number of teeth, 14.5° pressure angle, quality class DIN 5 & 3 etc).
