P1242 Clevis Pins

Name: P1242.120-065
Brand: WC
SKU: P1242.120-065
Price: 2.33 GBP
Availability: OutOfStock

material: Zinc-plated

Article properties

Order No.

P1242.120-065

d₁ tol. h11

d₂

3.2

d₃

20.0

h₁

4.0

h₂

1.5

l₁

l₂

57.9

l₃

5.5

See full product selection

£ 2.33 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 5 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-999	£ 2.33	0%
1000-1999	£ 1.63	30%
2000-4999	£ 1.40	40%
5000+	£ 1.17	50%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Mild steel, zinc-plated.

Technical Notes

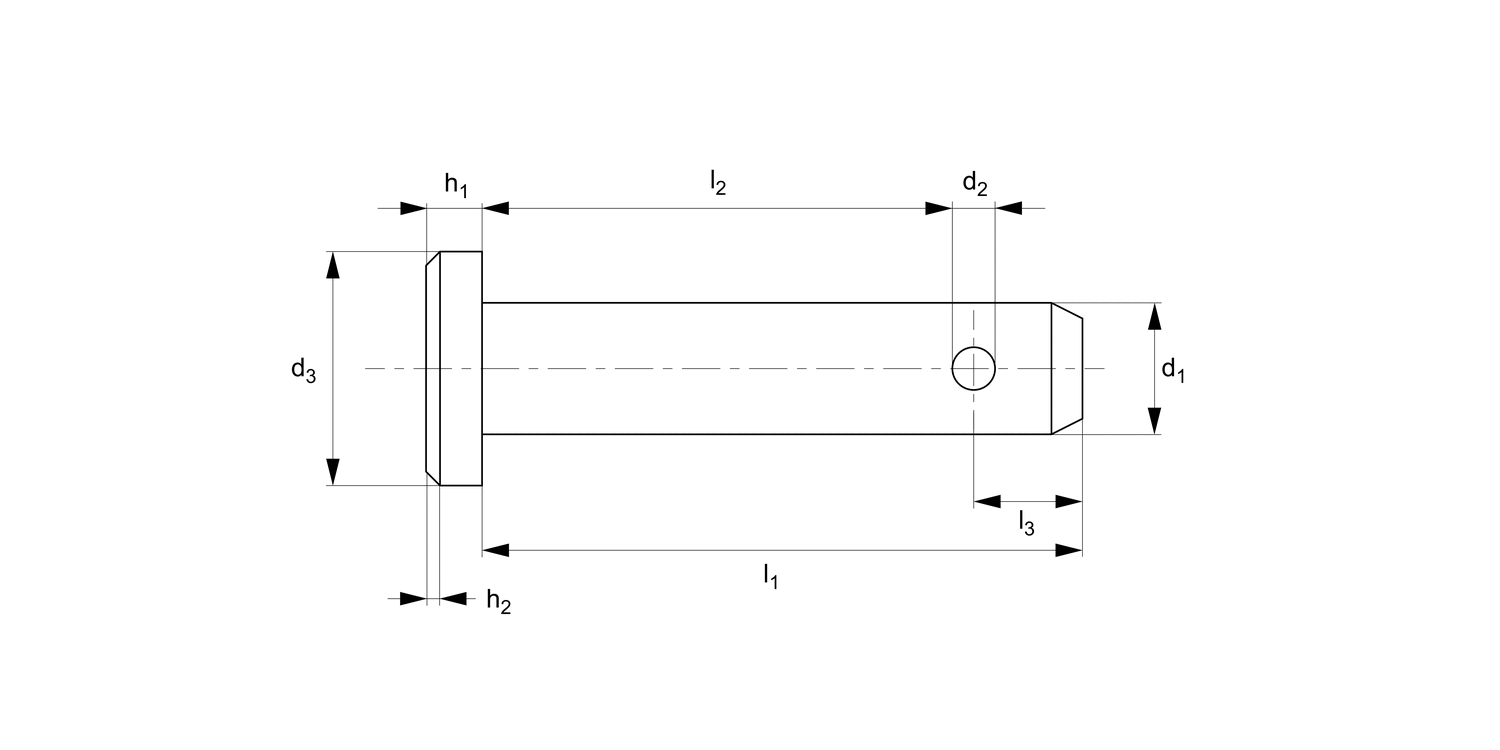

To DIN 1444 B (ISO 2341 form B). The grip length is l2.
l1 tolerances:-
up to 10mm long ±0,25
12-50mm long ±0,50
over 50mm long ±0,75.

Tips

For use with cotter pins (P1240 or P1241) or retaining pins (P1243).
