Cap Screws
Steel

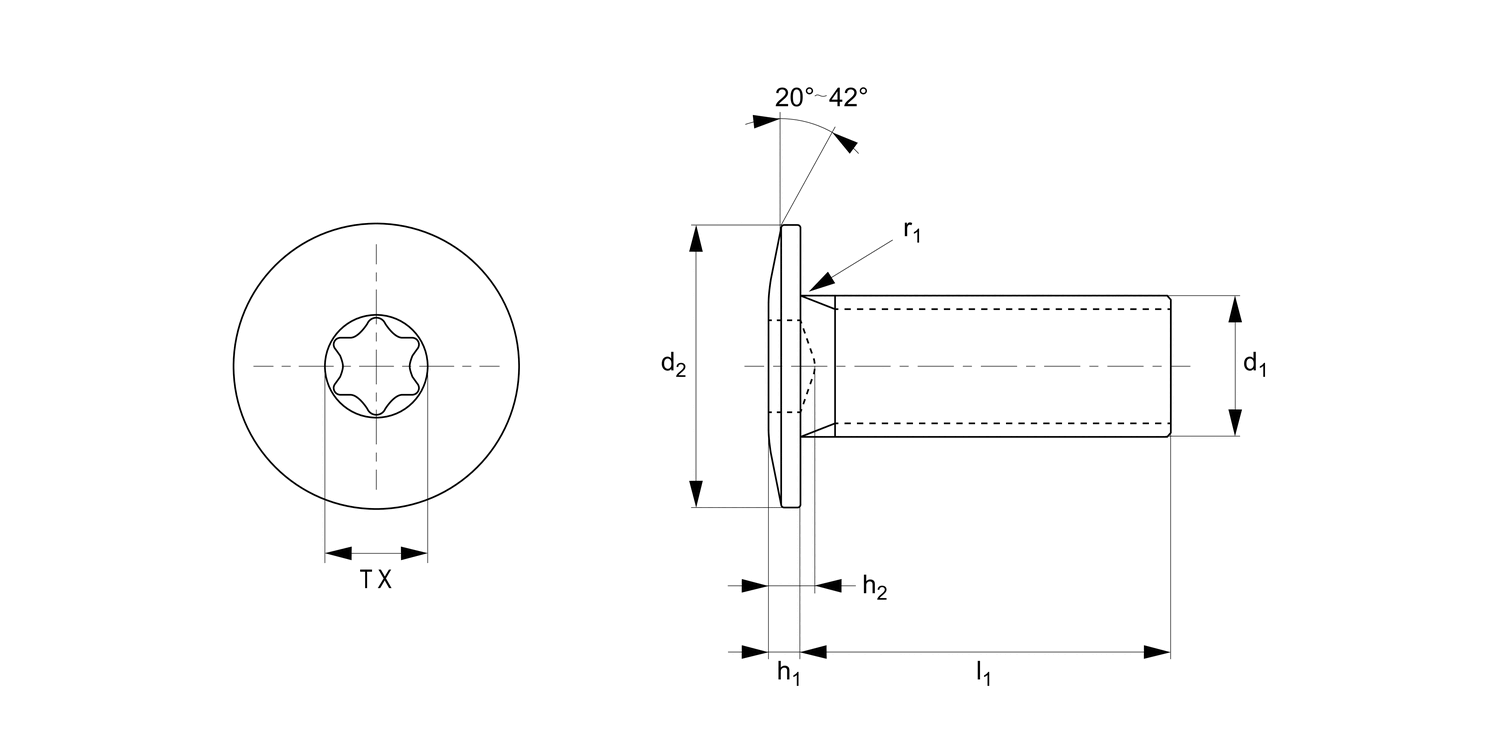

P0209.A4 Ultra Low Head Cap Screws
TX drive - 316 stainless, material: 316 stainless
Order No.
P0209.040-008-A4
d1
M 4
l1
8
d2
8
h1
0.9
h2
max.
2.5
r1
max.
0.5
TX size
TX-8
Torque to
max.
Nm
1.50
£ 3.80 per unit (click for quantity discounts)
Ready to despatch 366
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-99 | £ 3.80 | 0% |
| 100-249 | £ 3.42 | 10% |
| 250-749 | £ 3.04 | 20% |
| 750+ | £ 2.66 | 30% |
Technical & Application
Material
Stainless steel (AISI 303, 1.4305).
Tensile strength ~ 350N/mm2
(except for M2 ~ 200Nmm2).
Technical Notes
Ultra low head is extremely low profile. They do not require a countersunk location hole.
Most suitable for machine and equipment applications with minimal clearance.
