Cap Screws
Steel

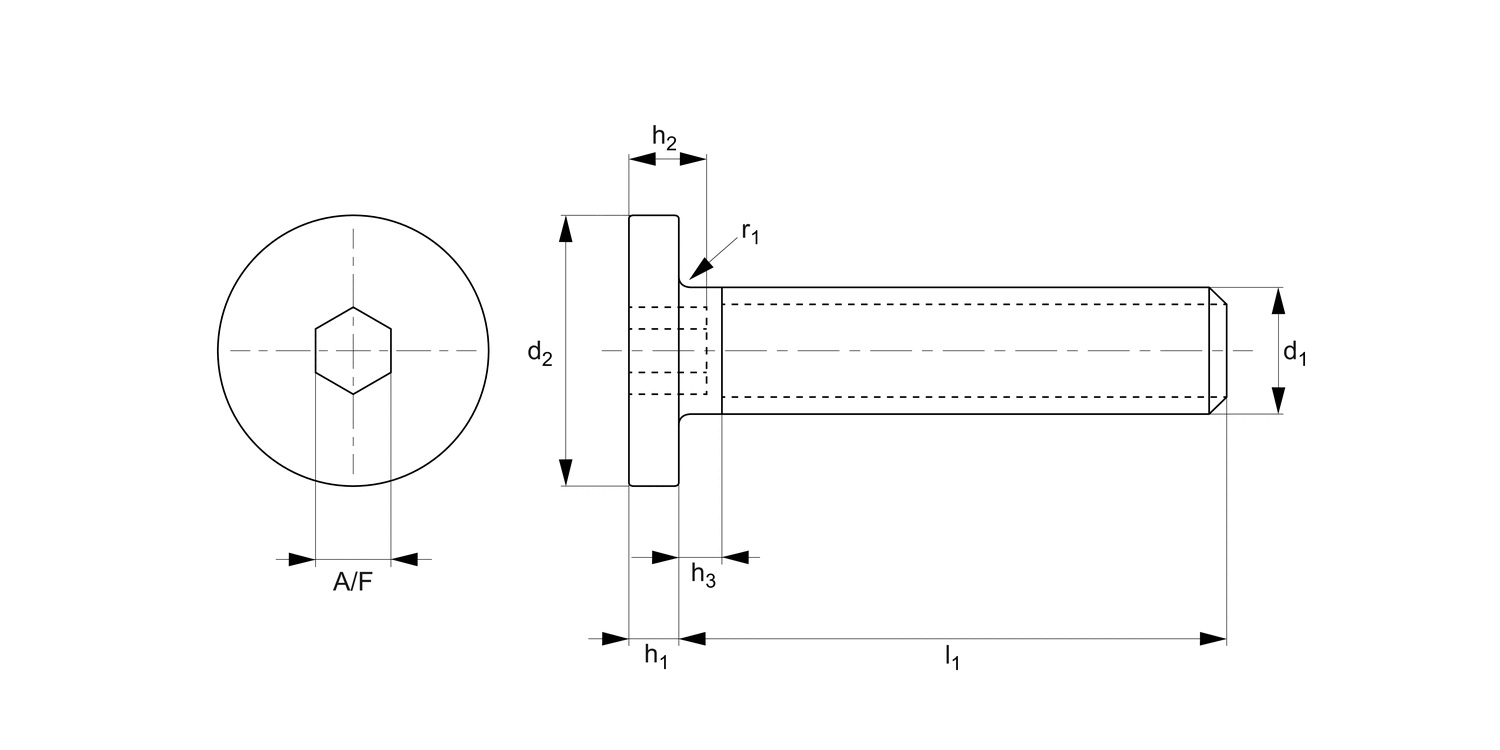

P0207.B2 Extra Low Head Cap Screws
hex. drive - 303 series stainless - blackened, material: Stainless steel B2
Order No.
P0207.040-010-B2
d1
M 4
l1
10
d2
8
h1
1.5
h2
max.
2.5
h3
max.
1.6
r1
0.20
A/F
2.0
Torque to
max.
Nm
1.10
£ 3.05 per unit (click for quantity discounts)
Ready to despatch 208
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-99 | £ 3.05 | 0% |
| 100-249 | £ 2.75 | 10% |
| 250-749 | £ 2.44 | 20% |
| 750+ | £ 2.14 | 30% |
Technical & Application
Material
Stainless steel (AISI 303, 1.4305) with black oxide coating.
Tensile strength ~400N/mm2
(except for M2 ~220N/mm2).
Technical Notes
Extra low head cap screws reduce the screw head height space. They require no countersinking unlike flat head screws.
