Air cylinder Mounts
Steel

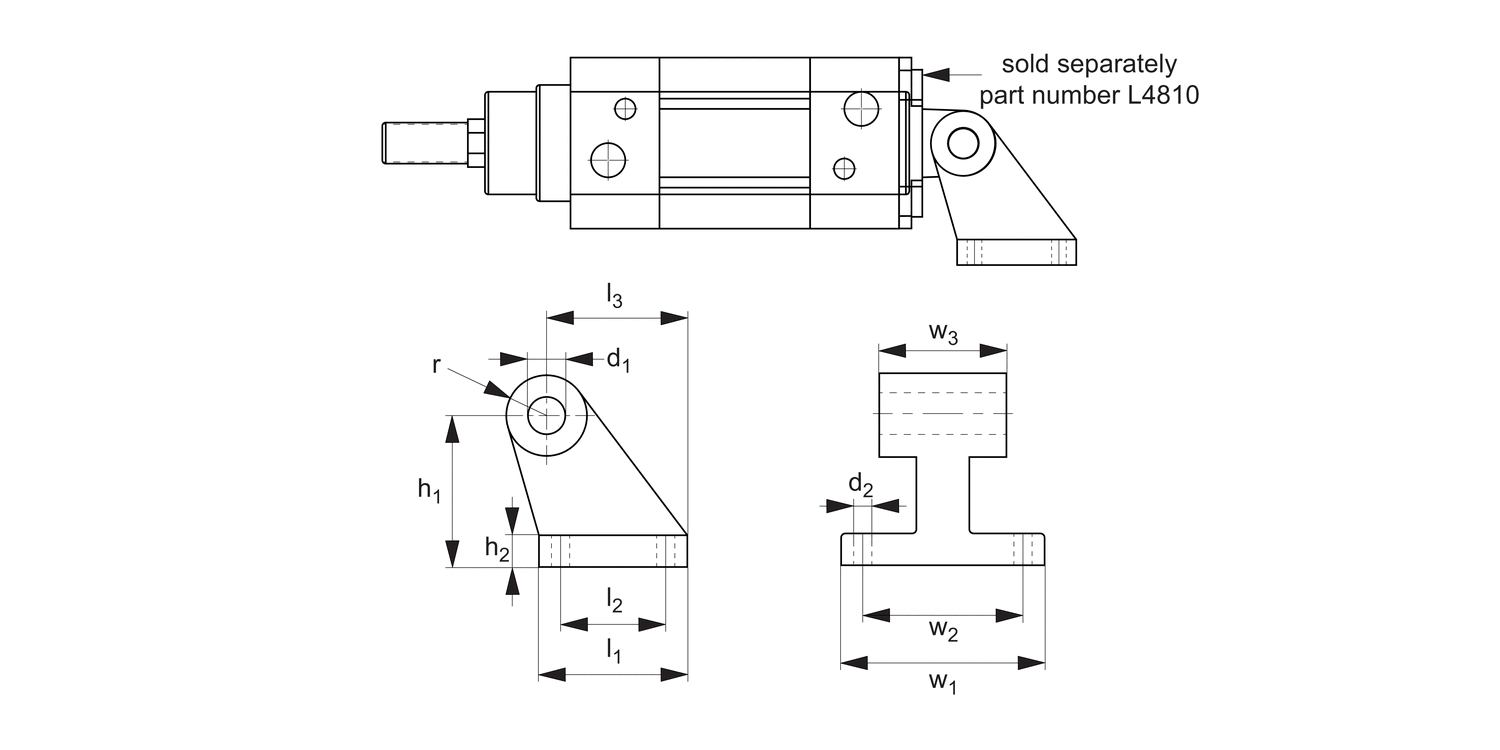

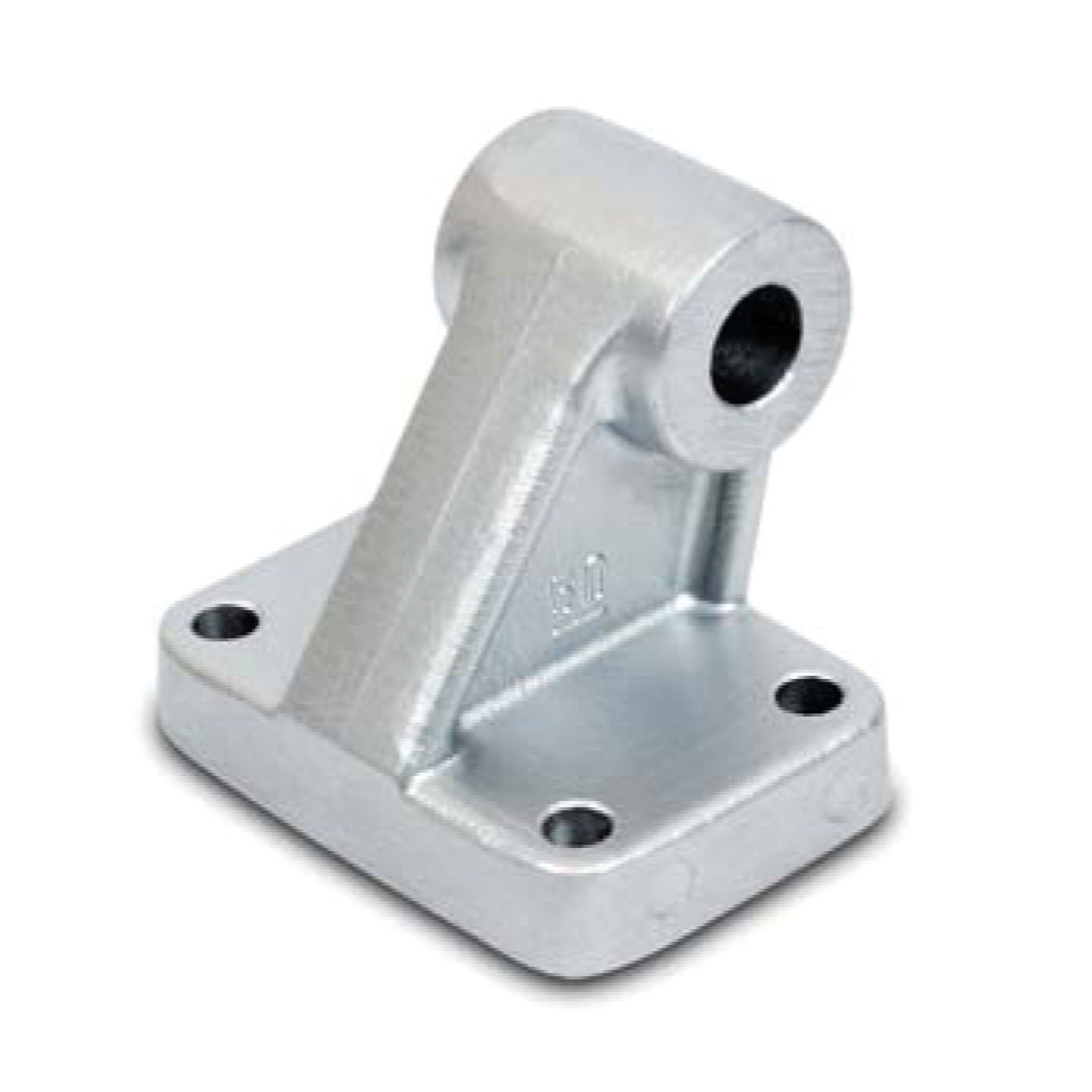

L4812 Air Cylinder Mounts - CETOP Series
clevis mounting foot, material: Steel
Order No.
L4812.080
Cylinder dia.
80
d1
16
d2
9.0
r
15.0
l1
60
l2
40
l3
57
w1
86
w2
66
w3
50
h1
63
h2
14
£ 30.10 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 30.10 | 0% |
| 5-9 | £ 27.09 | 10% |
| 10-19 | £ 25.59 | 15% |
| 20-49 | £ 22.58 | 25% |
| 50+ | £ 19.57 | 35% |
Technical & Application
Material
Steel (DIN 1040).
Technical Notes
CETOP Series
