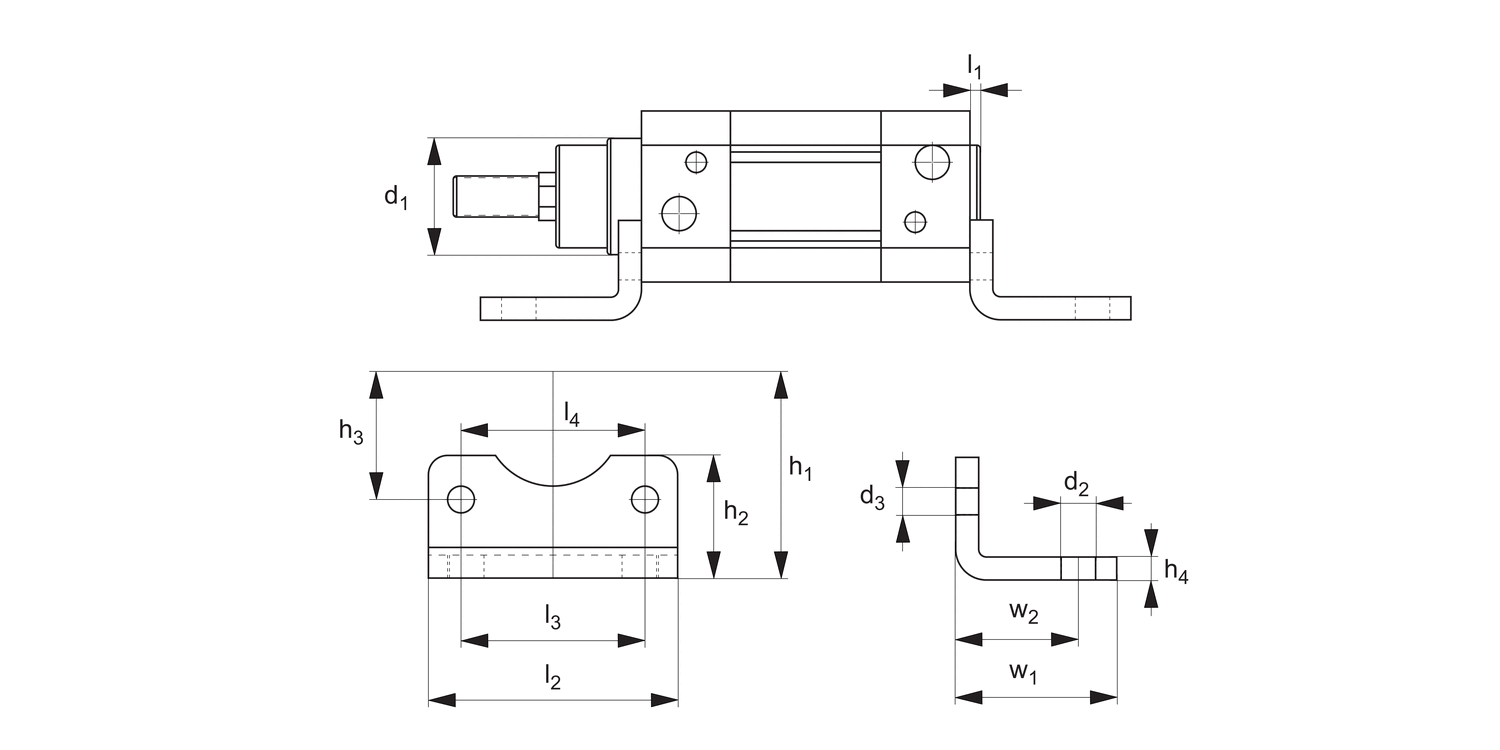

L4806 Air Cylinder Mounts - ISO Series

Name: L4806.125
Brand: WC
SKU: L4806.125
Price: 98.75 EUR
Availability: OutOfStock

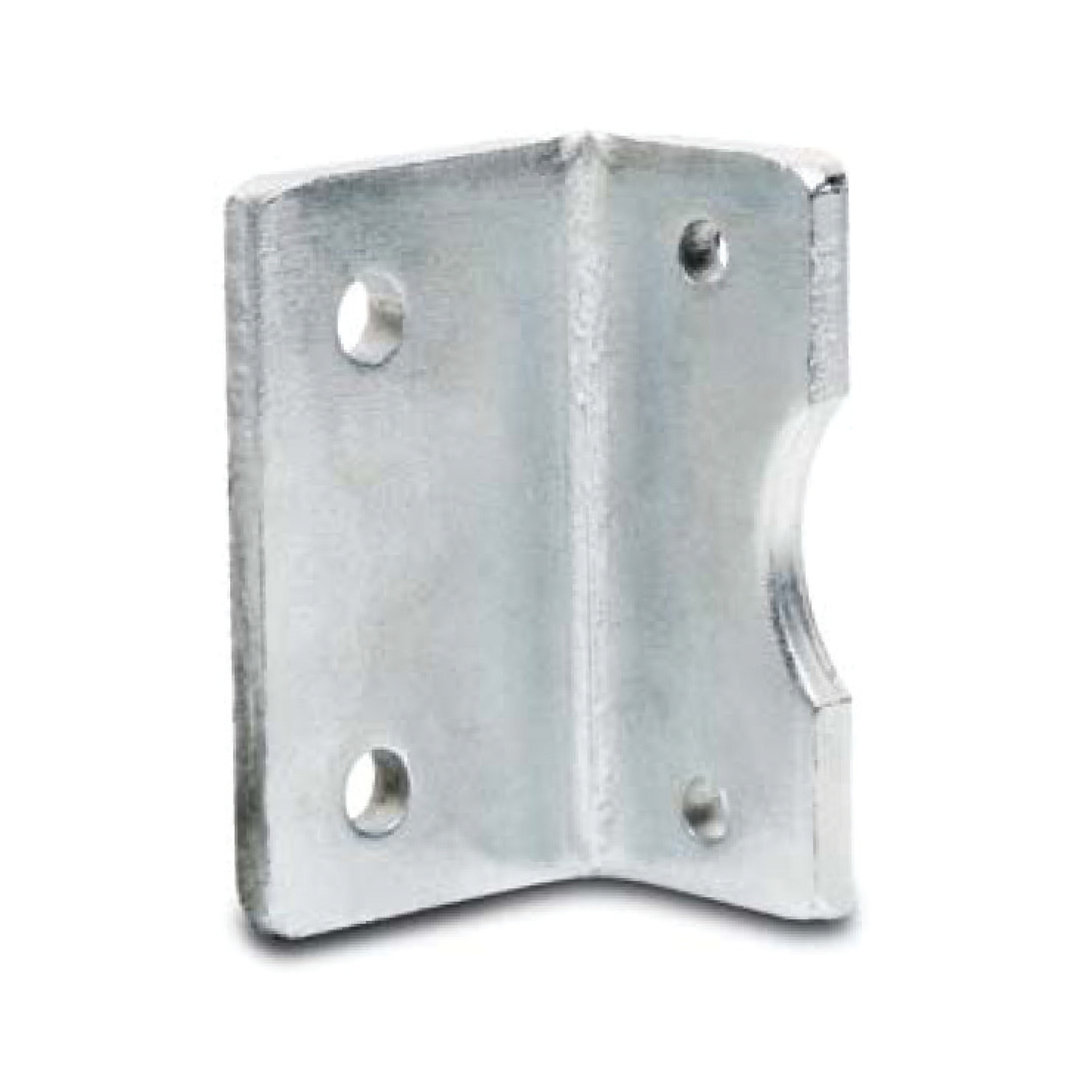

clevis foot bracket, material: Steel

Article properties

Order No.

L4806.125

Cylinder dia.

125

d₁

d₂

d₃

l₁

l₂

139

l₃

l₄

110.0

w₁

w₂

h₁

h₂

80.5

h₃

55.0

h₄

See full product selection

£ 98.75 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 98.75	0%
5-9	£ 88.88	10%
10-19	£ 83.94	15%
20-49	£ 74.06	25%
50+	£ 64.19	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (DIN 1040).

Technical Notes

ISO series
