L4804 Air Cylinder Mounts - ISO Series

Name: L4804.160
Brand: WC
SKU: L4804.160
Price: 200.64 EUR
Availability: OutOfStock

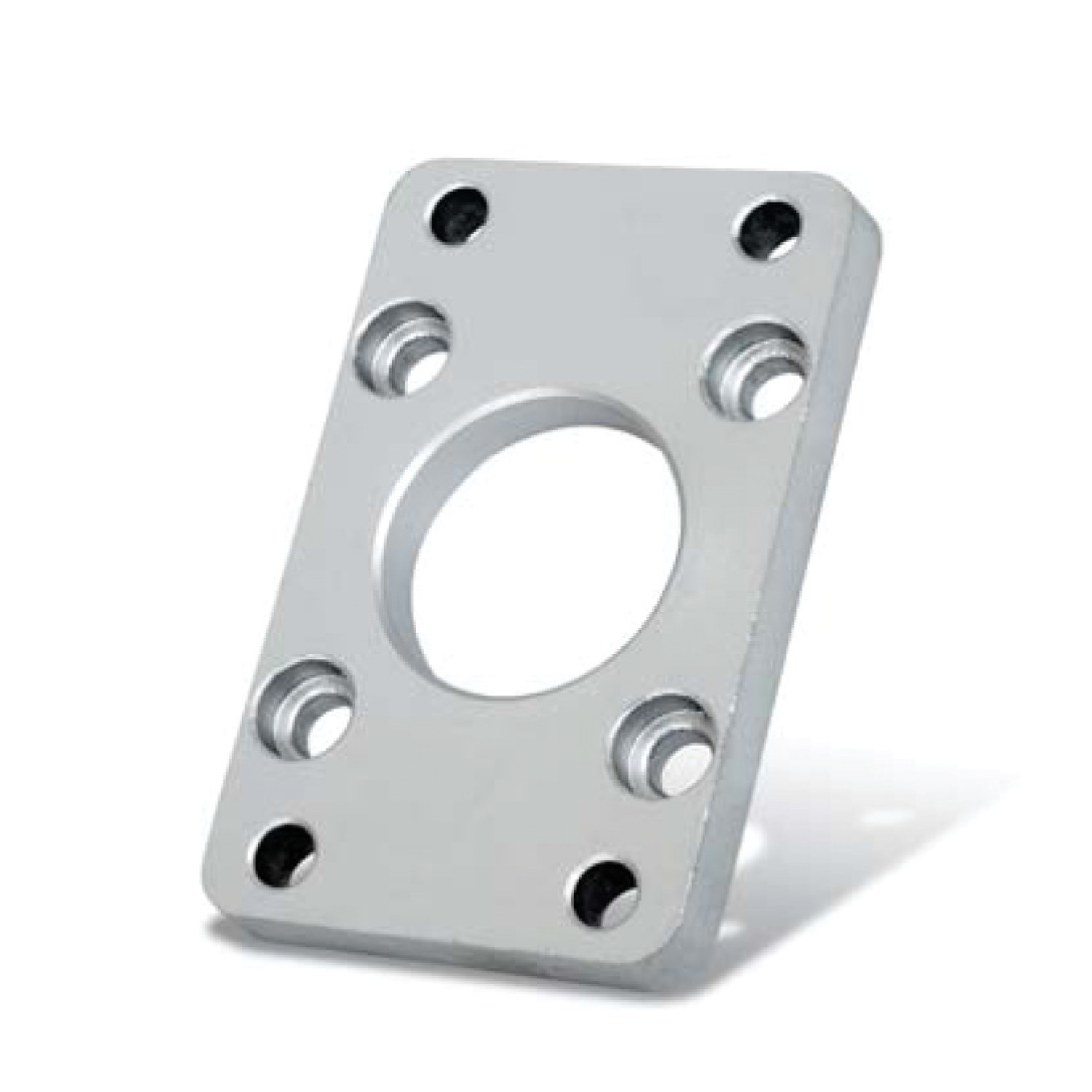

mounting flange, material: Steel

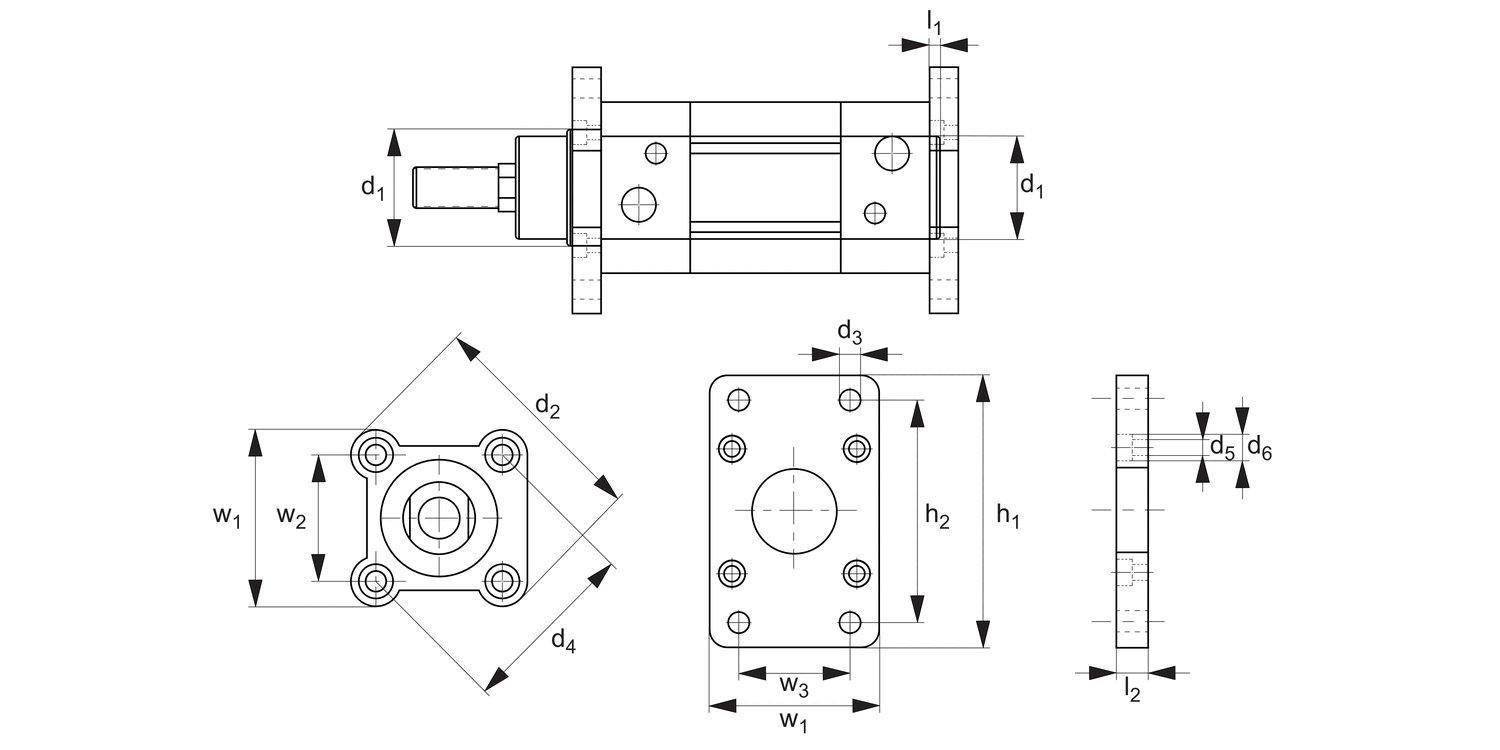

Article properties

Order No.

L4804.160

Cylinder dia.

160

d₁

d₂

252.0

d₃

d₄

198.0

d₅

d₆

l₁

l₂

w₁

186

w₂

140.0

w₃

115

h₁

280

h₂

230

See full product selection

£ 200.64 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 200.64	0%
5-9	£ 180.58	10%
10-19	£ 170.54	15%
20-49	£ 150.48	25%
50+	£ 130.42	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (DIN 1040).

Technical Notes

ISO series
