Air cylinder Mounts
Steel

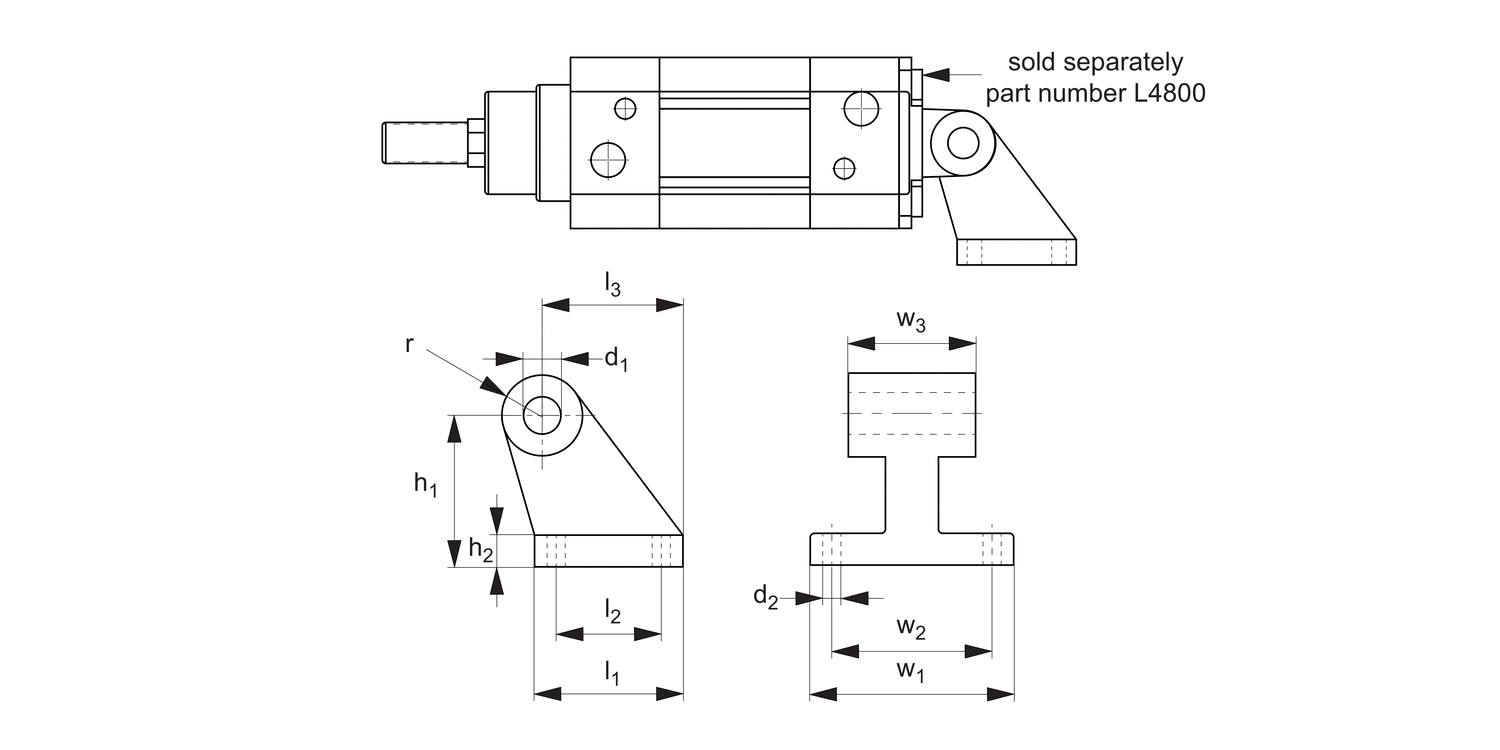

L4802 Air Cylinder Mounts - ISO Series
clevis foot mounting, material: Steel
Order No.
L4802.040
Cylinder dia.
40
d1
12
d2
7
r
11.0
l1
35
l2
22
l3
30.5
w1
54
w2
41
w3
28
h1
36
h2
10
£ 4.85 per unit (click for quantity discounts)
Ready to despatch 10
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 4.85 | 0% |
| 5-9 | £ 4.37 | 10% |
| 10-19 | £ 4.12 | 15% |
| 20-49 | £ 3.64 | 25% |
| 50+ | £ 3.15 | 35% |
Technical & Application
Material
Steel (DIN 1040).
Technical Notes
ISO series
