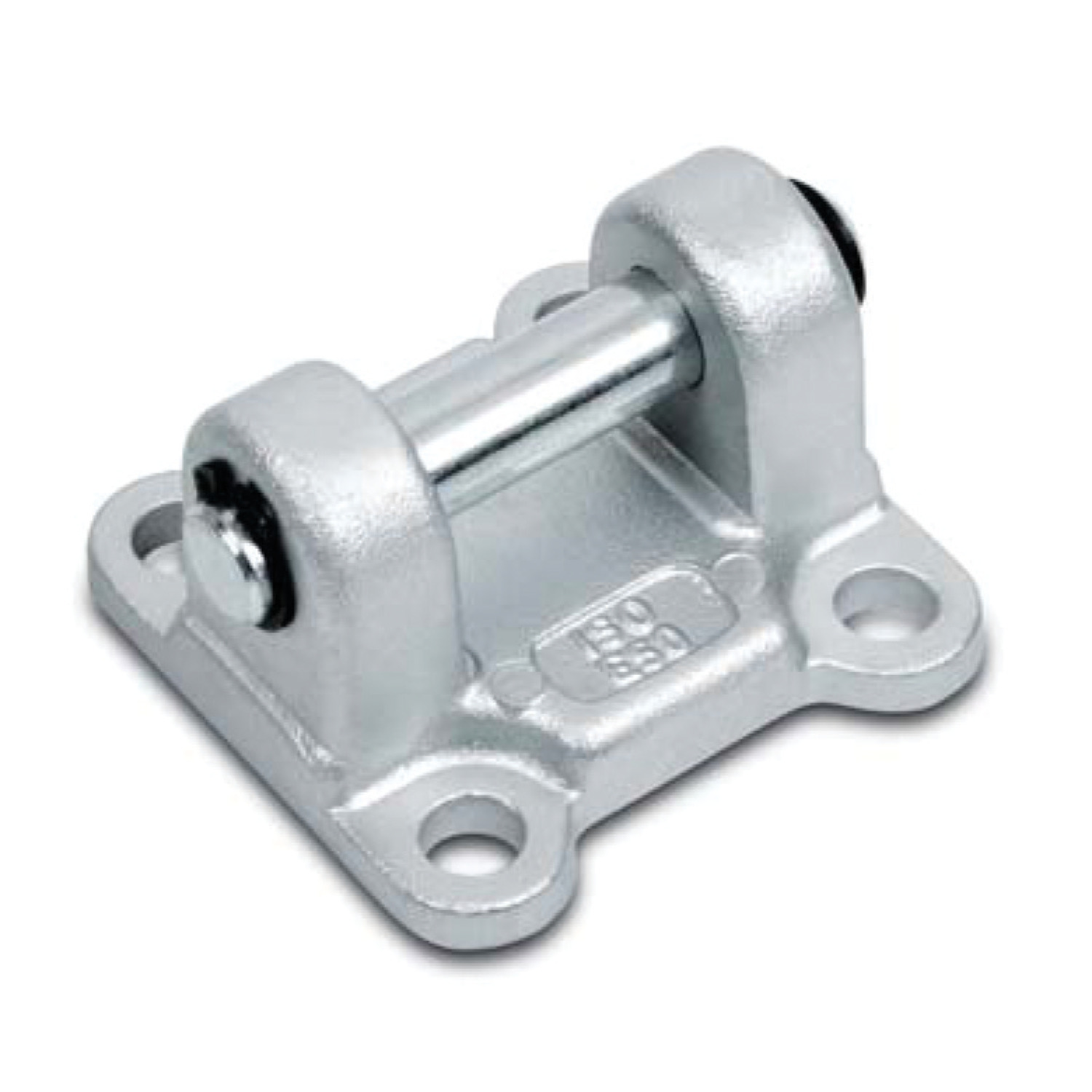

L4800 Air Cylinder Mounts - ISO Series

swivel flange, material: Steel

Article properties

Order No.

L4800.032

Cylinder dia.

32

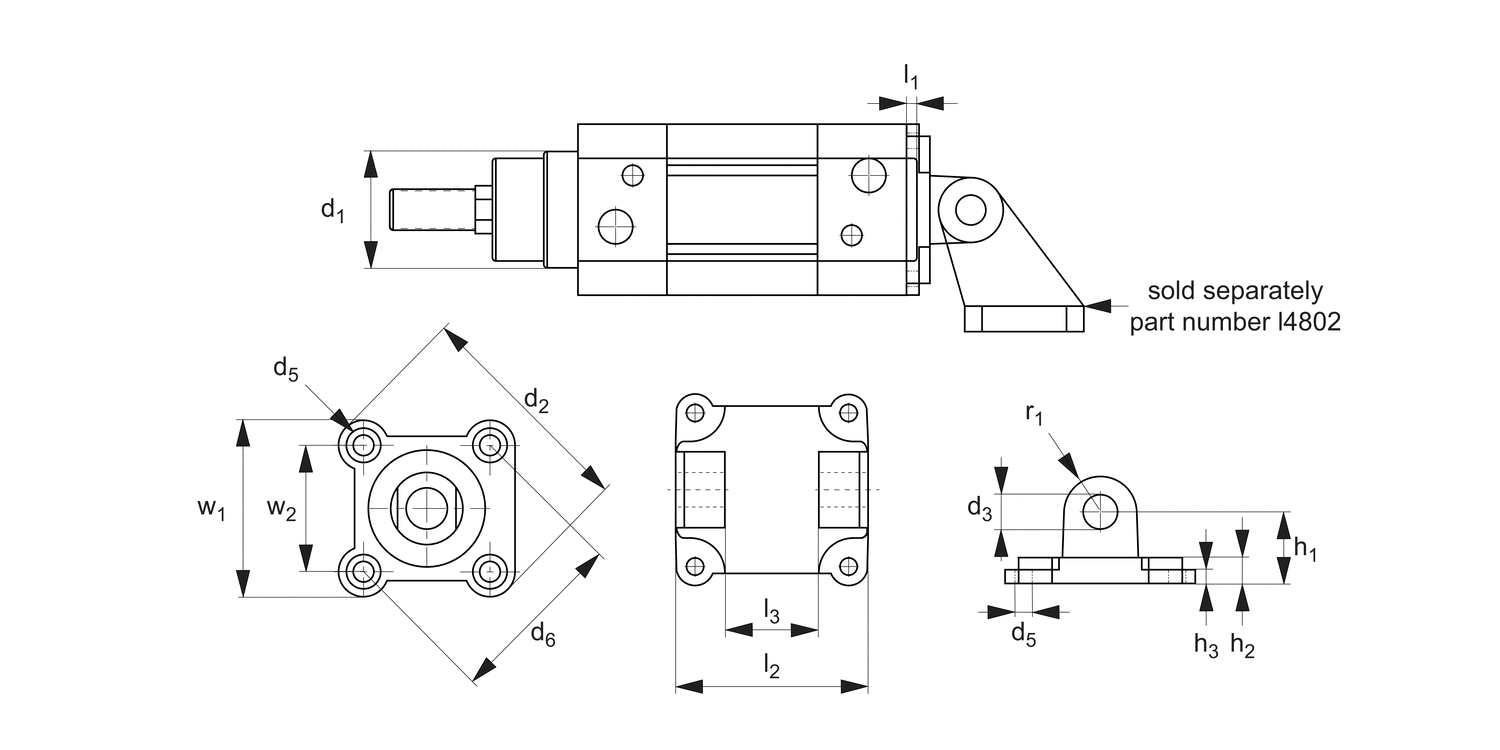

d₁

30

d₂

59.0

d₃

10

d₄

7

d₅

11

d₆

46.0

r₁

10

l₁

4

l₂

45

l₃

26

w₁

45

w₂

32.5

h₁

22

h₂

10

h₃

6.5

See full product selection

£ 11.54 per unit (click for quantity discounts)

Ready to despatch 7
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 11.54	0%
5-9	£ 10.39	10%
10-19	£ 9.81	15%
20-49	£ 8.66	25%
50+	£ 7.50	35%

Download product datasheet
