Vertical Lift Stages
motorised

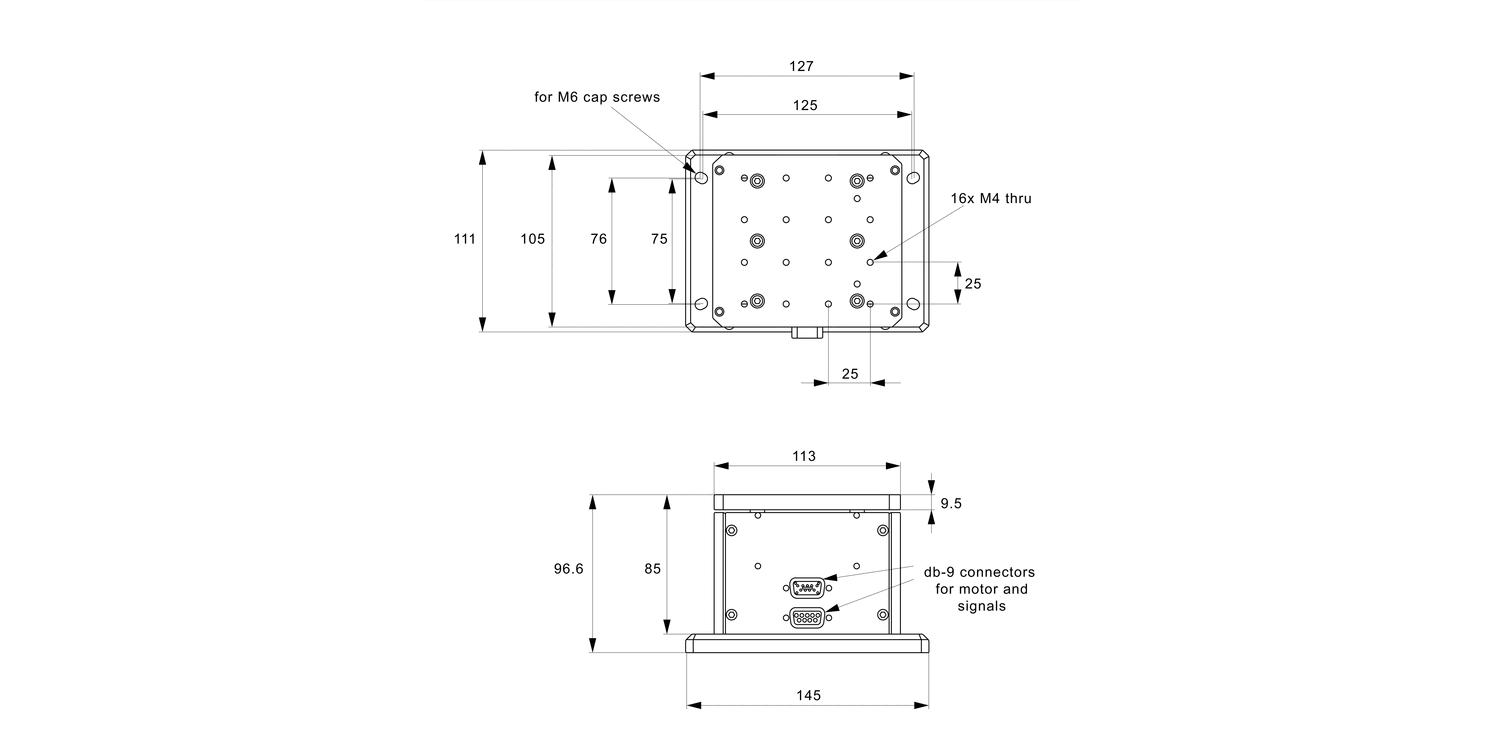

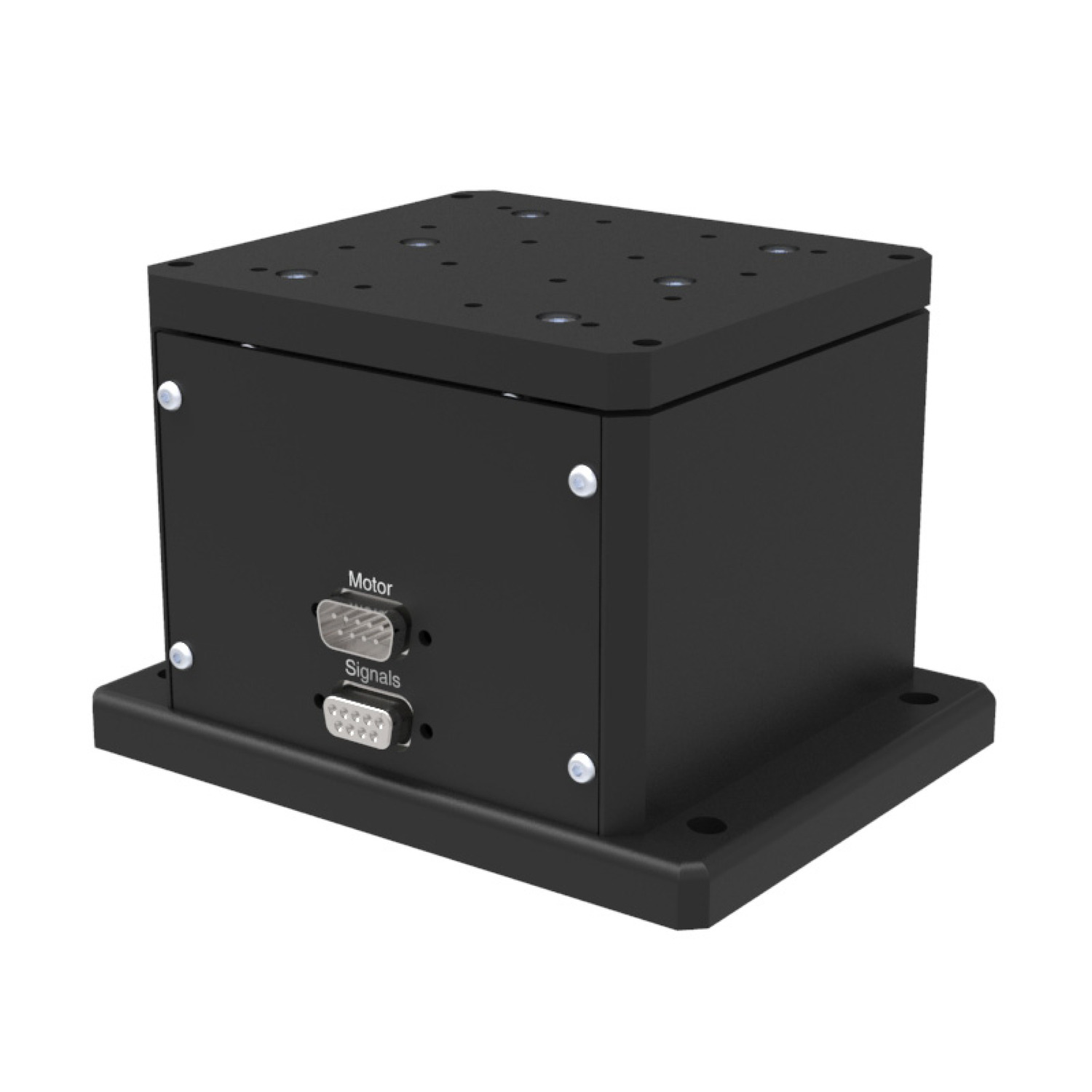

L3591 Motorised Vertical Lift Stages
high precision, material: Aluminium
Order No.
L3591.025-STB
Travel
25
Accuracy
±
10µ
Uni-directional repeatability
±
1µ
Load
max.
kg
7.0
Speed
max.
mm/s
10
Lead screw pitch
1.5875
Motor type
Stepper & enc.
Weight
kg
2.5
£ 6,771.60 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-1 | £ 6,771.60 | 0% |
| 2-4 | £ 6,433.02 | 5% |
| 5+ | £ 6,094.44 | 10% |
Technical & Application
Material
Black anodised aluminium body (6061). Hardened linear guideways, stainless steel Acme lead screw (with internally lubricated anti-backlash nut).
Technical Notes
Easy plug and play system. Integrated limit switches are provided as standard. Controllable from PC or PLC when used in conjunction with a motion controller. Controllers come with their own software but many pre-existing software packages (such as Labview) can be used.
Applications - research, semi-conductors, fibre optics, automation etc.
Tips
Stepper - Nema 17, high torque, brushless. 0.95 Amp/phase, 5.0 Ohm/phase, 3.1 mH/phase, 1.8°/step. Option with 1000 line rotary encoder.
Limit switches are wired normally closed.
Important Notes
Motor resolution 0,03µ, encoder resolution 0,4µ. Minimum step size 0,5µ.
