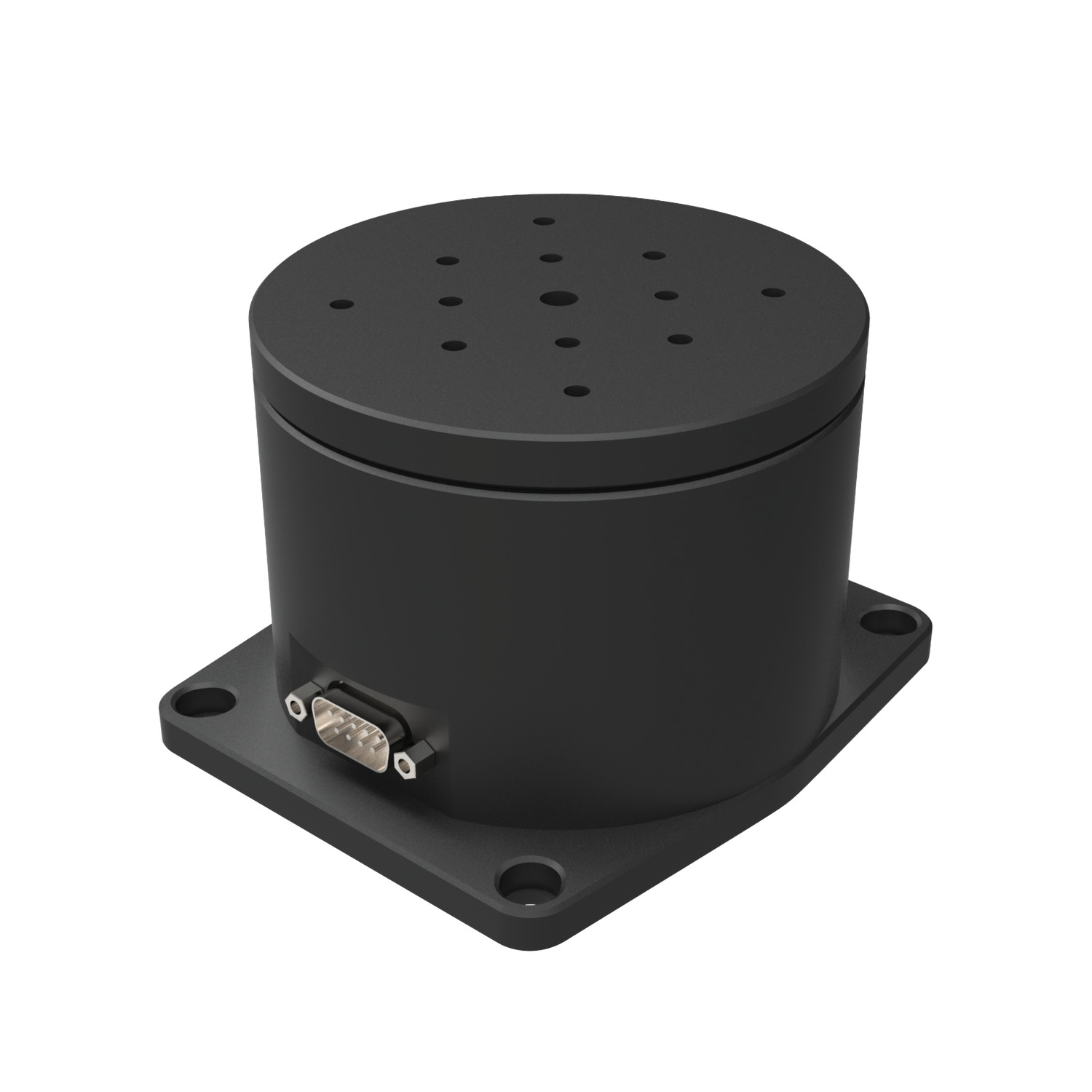

L3569 High Speed Rotary Tables

Name: L3569.STA
Brand: WC
SKU: L3569.STA
Price: 2257.2 EUR
Availability: OutOfStock

material: Aluminium

Article properties

Order No.

L3569.STA

Motor

Stepper

Speed max. rpm

2000

Acceleration max. °/s²

900

Load max. kg

2.3

Holding torque Nm

0.71

Resolution @25k steps/rev

0,014°

Weight kg

1.38

See full product selection

£ 2,257.20 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-1	£ 2,257.20	0%
2-2	£ 2,031.48	10%
3-4	£ 1,918.62	15%
5+	£ 1,805.76	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium alloy body (light, stiff and stable).

Technical Notes

Suitable for fast rotation of light payloads, uses a high torque direct drive Nema 23 stepper motor. This eliminates the use of worm gears enabling fast speeds, high reliability and maintenance free operation.
Max. speed (no load) up to 2000 rpm (12,000°/sec), max. acceleration (no load) 900°/sec2.
