Pillow Block Bearings
stainless
L1870 Stainless Pillow Block Bearing Units
material: Stainless steel
Order No.
L1870.030

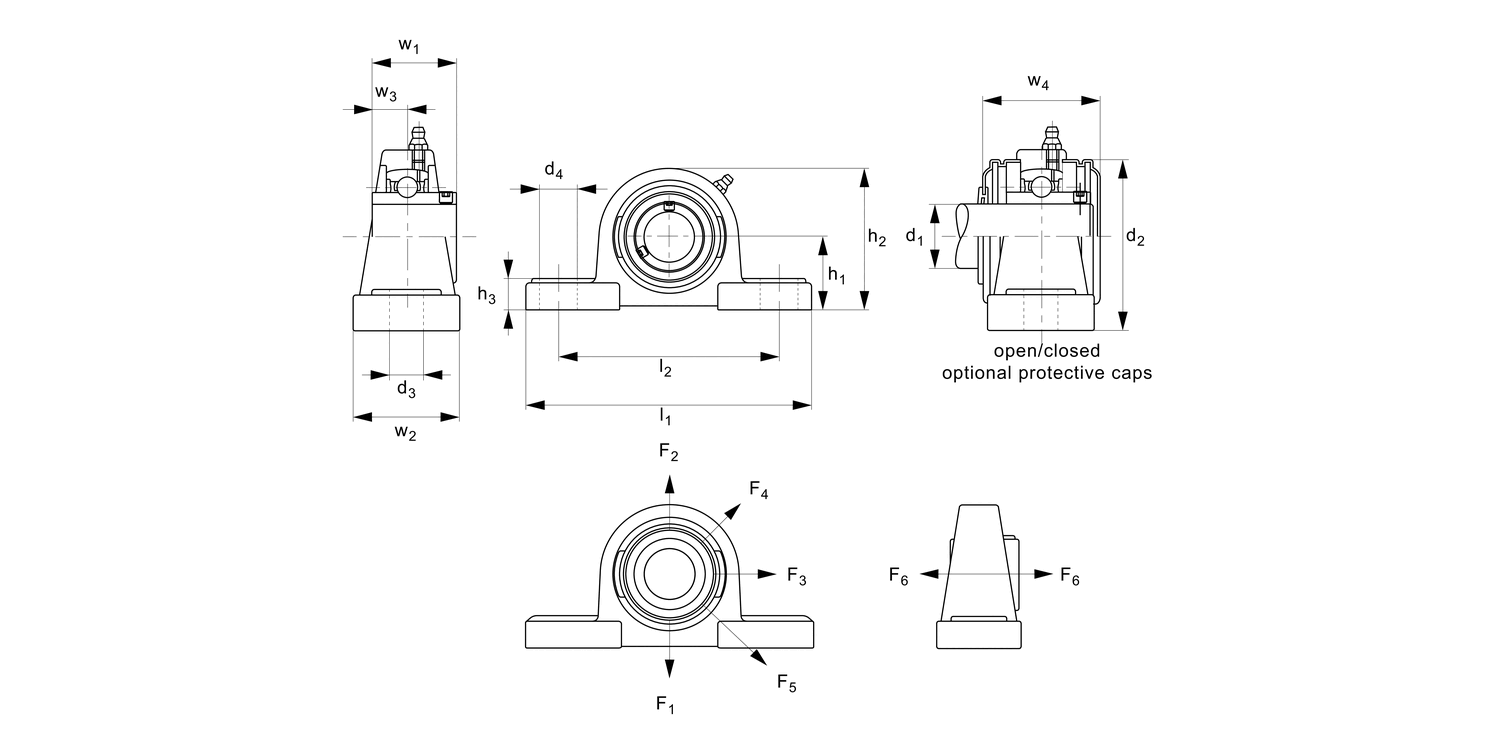

d1 for h6
30
l1
165
d2
70
d3
17
d4
21
h1
42.9
h2
+0|-0.8
83
h3
18
l2
121
w1
38.1
w2
48
w3
15.9
w4
52.8
Weight
kg
1.58
Speed
max.
rpm
3400
Dyn. load C
max.
kN
15.3
Static bearing load C0
max.
kN
11.5
Housing load F1
max.
kN
240
Housing load F6
max.
kN
44
Housing load F2
max.
kN
100
Housing load F3
max.
kN
180
Torque screw to
Nm
8.5
Housing load F4
max.
kN
70
Housing load F5
max.
kN
240
Set screw size
M 6x1
£ 199.66 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 199.66 | 0% |
| 5-19 | £ 179.69 | 10% |
| 20-39 | £ 159.73 | 20% |
| 40-99 | £ 139.76 | 30% |
| 100+ | £ 119.80 | 40% |
Technical & Application
Material
Stainless steel (AISI 304), with smooth surfaces. Bearing stainless steel (440C) with 2RS seals, lubricated with food grade grease (USDA approved).
Technical Notes
Self-aligning bearing units.
Temperature range for bearings: -15°C to +120°C.
Resistant to a moisture and a wide range of aggressive chemicals.
For optional shaft end caps add suffixes:
-CO for two open protective caps (with seals) for through shafts.
-CC for one open and one closed protective caps for shaft ends.
Tips
Shaft retention with two set screws (at 120° offset).
Used with h6 tolerance shafts (see our part no.s L1770-L1776).
Maximum housing loads measured @ 20°C.
