L1027.AL Low Profile Crossed Roller Table

Name: L1027.030-070-AL
Brand: WC
SKU: L1027.030-070-AL
Price: 394.58 EUR
Availability: OutOfStock

aluminium/steel, material: Aluminium

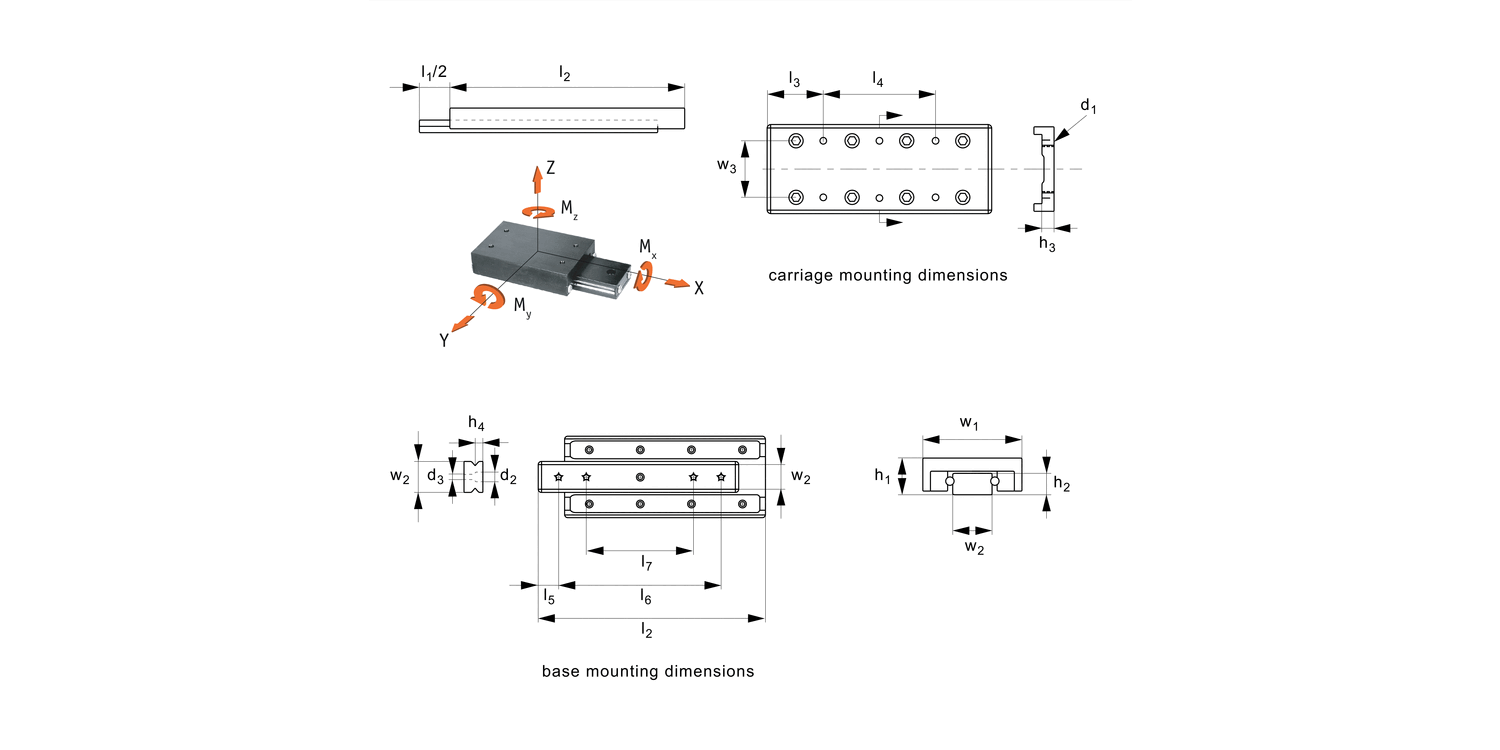

Article properties

Order No.

L1027.030-070-AL

Stroke l₁

Load max. kg

120

w₁ ±0.1

l₂

110

h₁ ±0.1

h₂

w₂

12.0

d₁

No. of carr holes

l₃

32.5

l₄

1x45

w₃

l₅

7.5

No. of base holes

h₃

5.5

l₆

h₄

3.8

l₇

d₂

6.1

d₃

Moment M_x max. Nm

7.05

Moment M_y max. Nm

26.4

Moment M_z max. Nm

27.7

See full product selection

£ 394.58 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 394.58	0%
5-9	£ 355.12	10%
10-19	£ 335.39	15%
20-49	£ 295.94	25%
50+	£ 256.48	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium body, black anodised carriage.
Hardened chrome steel crossed roller rail set.

Technical Notes

Straight line accuracy: 3µ/25mm of travel.
Positional repeatability: 3µ.
Coefficient of friction: 0,003 typical.

Tips

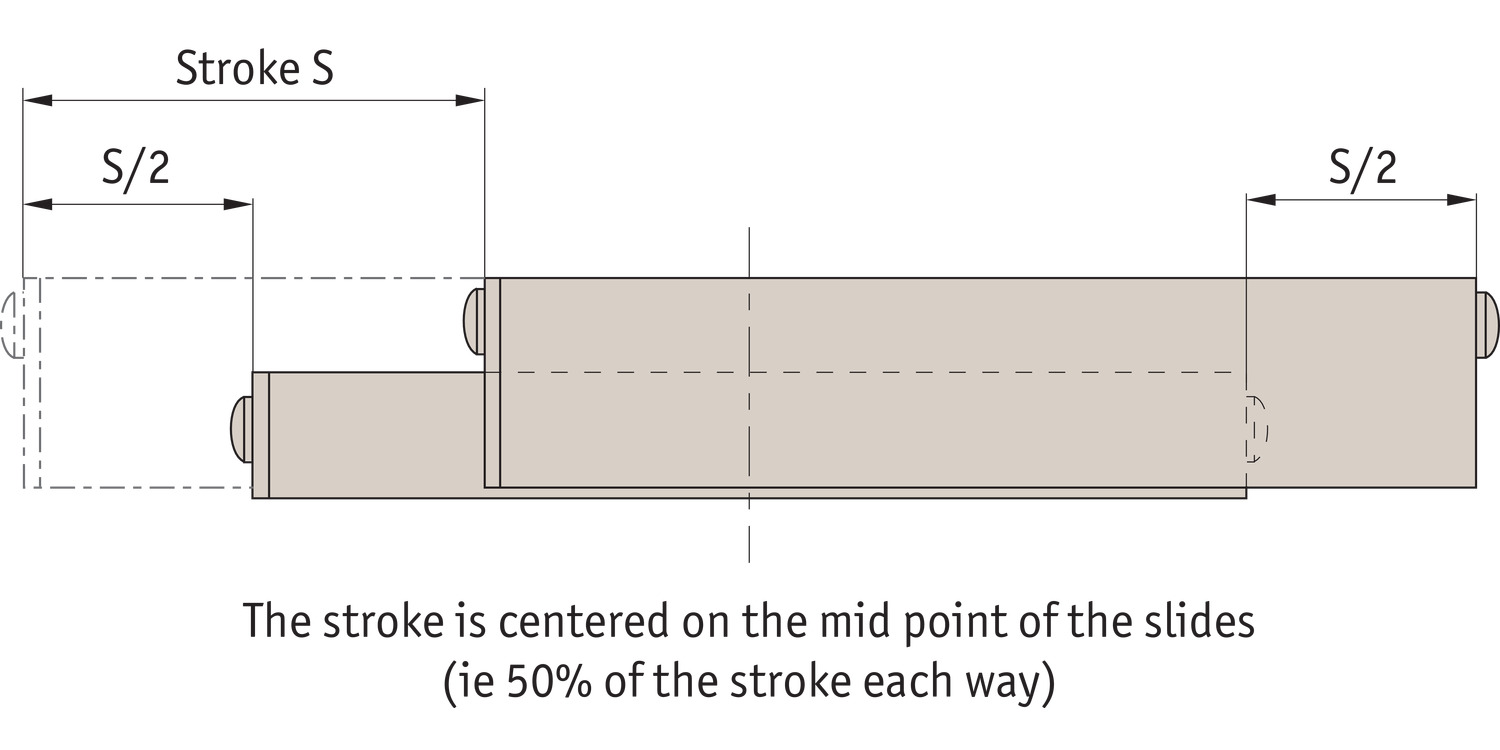

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
