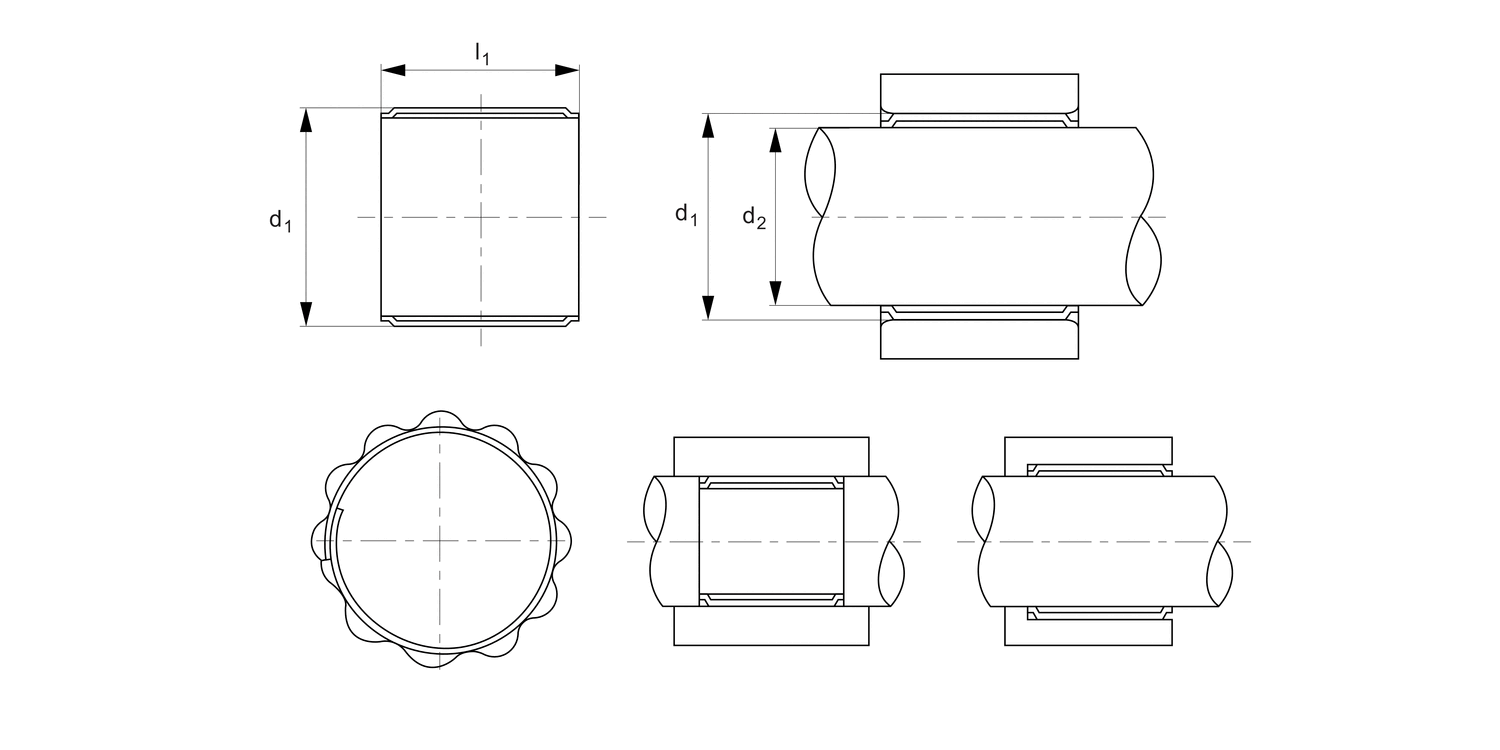

Price & Availability | Article | d1 tol. h9 | d1 nom. | l | d2 for bearings | d2 for torque transfer | Torque max. Nm | Radial load max. N | Material | ||||||||||||||||||||||||
P0395.SV005-005 | 5 | 5 | 5 | 4,01 to 4,06 | 4,14 to 4,18 | 0.17 | 180 | Steel | |||||||||||||||||||||||||
£ 2.81 per unit (click for quantity discounts) Ready to despatch 30 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 5 d1
nom. 5 l 5 d2 for bearings 4,01 to 4,06 d2 for torque transfer 4,14 to 4,18 Torque
max.
Nm 0.17 Radial load
max.
N 180 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV005-008 | 5 | 5 | 8 | 4,01 to 4,06 | 4,18 to 4,18 | 0.35 | 260 | Steel | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 5 d1
nom. 5 l 8 d2 for bearings 4,01 to 4,06 d2 for torque transfer 4,18 to 4,18 Torque
max.
Nm 0.35 Radial load
max.
N 260 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV005-010 | 5 | 5 | 10 | 4,01 to 4,06 | 4,14 to 4,18 | 0.50 | 310 | Steel | |||||||||||||||||||||||||
£ 2.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 5 d1
nom. 5 l 10 d2 for bearings 4,01 to 4,06 d2 for torque transfer 4,14 to 4,18 Torque
max.
Nm 0.50 Radial load
max.
N 310 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV006-006 | 6 | 6 | 6 | 5,01 to 5,06 | 5,14 to 5,18 | 0.33 | 380 | Steel | |||||||||||||||||||||||||
£ 2.74 per unit (click for quantity discounts) Ready to despatch 89 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 6 d1
nom. 6 l 6 d2 for bearings 5,01 to 5,06 d2 for torque transfer 5,14 to 5,18 Torque
max.
Nm 0.33 Radial load
max.
N 380 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV006-008 | 6 | 6 | 8 | 5,01 to 5,06 | 5,14 to 5,18 | 0.45 | 575 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 122 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 6 d1
nom. 6 l 8 d2 for bearings 5,01 to 5,06 d2 for torque transfer 5,14 to 5,18 Torque
max.
Nm 0.45 Radial load
max.
N 575 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV006-010 | 6 | 6 | 10 | 5,01 to 5,06 | 5,14 to 5,18 | 0.90 | 690 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 575 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 6 d1
nom. 6 l 10 d2 for bearings 5,01 to 5,06 d2 for torque transfer 5,14 to 5,18 Torque
max.
Nm 0.90 Radial load
max.
N 690 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV006-012 | 6 | 6 | 12 | 5,01 to 5,06 | 5,14 to 5,18 | 1.25 | 940 | Steel | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 6 d1
nom. 6 l 12 d2 for bearings 5,01 to 5,06 d2 for torque transfer 5,14 to 5,18 Torque
max.
Nm 1.25 Radial load
max.
N 940 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV008-005 | 8 | 8 | 5 | 6,51 to 6,57 | 6,65 to 6,71 | 0.45 | 550 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 323 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d1
nom. 8 l 5 d2 for bearings 6,51 to 6,57 d2 for torque transfer 6,65 to 6,71 Torque
max.
Nm 0.45 Radial load
max.
N 550 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV008-007 | 8 | 8 | 7 | 6,51 to 6,57 | 6,65 to 6,71 | 0.68 | 780 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 126 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d1
nom. 8 l 7 d2 for bearings 6,51 to 6,57 d2 for torque transfer 6,65 to 6,71 Torque
max.
Nm 0.68 Radial load
max.
N 780 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV008-008 | 8 | 8 | 8 | 6,51 to 6,57 | 6,65 to 6,71 | 0.80 | 910 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d1
nom. 8 l 8 d2 for bearings 6,51 to 6,57 d2 for torque transfer 6,65 to 6,71 Torque
max.
Nm 0.80 Radial load
max.
N 910 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV008-010 | 8 | 8 | 10 | 6,51 to 6,57 | 6,65 to 6,71 | 1.00 | 1125 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d1
nom. 8 l 10 d2 for bearings 6,51 to 6,57 d2 for torque transfer 6,65 to 6,71 Torque
max.
Nm 1.00 Radial load
max.
N 1125 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV008-014 | 8 | 8 | 14 | 6,51 to 6,57 | 6,65 to 6,71 | 1.30 | 1400 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 81 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d1
nom. 8 l 14 d2 for bearings 6,51 to 6,57 d2 for torque transfer 6,65 to 6,71 Torque
max.
Nm 1.30 Radial load
max.
N 1400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV009-008 | 9 | 9 | 8 | 7,51 to 7,57 | 7,65 to 7,71 | 0.85 | 1070 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 119 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 9 d1
nom. 9 l 8 d2 for bearings 7,51 to 7,57 d2 for torque transfer 7,65 to 7,71 Torque
max.
Nm 0.85 Radial load
max.
N 1070 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV010-006 | 10 | 10 | 6 | 8,51 to 8,57 | 8,65 to 8,71 | 1.80 | 950 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 112 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d1
nom. 10 l 6 d2 for bearings 8,51 to 8,57 d2 for torque transfer 8,65 to 8,71 Torque
max.
Nm 1.80 Radial load
max.
N 950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV010-010 | 10 | 10 | 10 | 8,51 to 8,57 | 8,65 to 8,71 | 3.00 | 1275 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d1
nom. 10 l 10 d2 for bearings 8,51 to 8,57 d2 for torque transfer 8,65 to 8,71 Torque
max.
Nm 3.00 Radial load
max.
N 1275 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV010-012 | 10 | 10 | 12 | 8,51 to 8,57 | 8,65 to 8,71 | 3.60 | 1650 | Steel | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d1
nom. 10 l 12 d2 for bearings 8,51 to 8,57 d2 for torque transfer 8,65 to 8,71 Torque
max.
Nm 3.60 Radial load
max.
N 1650 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV010-014 | 10 | 10 | 14 | 8,51 to 8,57 | 8,65 to 8,71 | 3.90 | 2000 | Stainless | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 81 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d1
nom. 10 l 14 d2 for bearings 8,51 to 8,57 d2 for torque transfer 8,65 to 8,71 Torque
max.
Nm 3.90 Radial load
max.
N 2000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV010-016 | 10 | 10 | 16 | 8,51 to 8,57 | 8,65 to 8,71 | 4.50 | 2100 | Steel | |||||||||||||||||||||||||
£ 2.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d1
nom. 10 l 16 d2 for bearings 8,51 to 8,57 d2 for torque transfer 8,65 to 8,71 Torque
max.
Nm 4.50 Radial load
max.
N 2100 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV011-010 | 11 | 11 | 10 | 9,51 to 9,57 | 9,65 to 9,71 | 4.00 | 1400 | Steel | |||||||||||||||||||||||||
£ 2.58 per unit (click for quantity discounts) Ready to despatch 55 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 11 d1
nom. 11 l 10 d2 for bearings 9,51 to 9,57 d2 for torque transfer 9,65 to 9,71 Torque
max.
Nm 4.00 Radial load
max.
N 1400 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV011-014 | 11 | 11 | 14 | 9,51 to 9,57 | 9,65 to 9,71 | 5.50 | 1680 | Steel | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 11 d1
nom. 11 l 14 d2 for bearings 9,51 to 9,57 d2 for torque transfer 9,65 to 9,71 Torque
max.
Nm 5.50 Radial load
max.
N 1680 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV012-006 | 12 | 12 | 6 | 10,52 to 10,59 | 10,70 to 10,77 | 2.20 | 1075 | Stainless | |||||||||||||||||||||||||
£ 2.45 per unit (click for quantity discounts) Ready to despatch 384 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 6 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 2.20 Radial load
max.
N 1075 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV012-008 | 12 | 12 | 8 | 10,52 to 10,59 | 10,70 to 10,77 | 3.20 | 1300 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 8 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 3.20 Radial load
max.
N 1300 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV012-010 | 12 | 12 | 10 | 10,52 to 10,59 | 10,70 to 10,77 | 4.50 | 1560 | Stainless | |||||||||||||||||||||||||
£ 2.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 10 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 4.50 Radial load
max.
N 1560 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV012-012 | 12 | 12 | 12 | 10,52 to 10,59 | 10,70 to 10,77 | 5.30 | 2100 | Stainless | |||||||||||||||||||||||||
£ 2.84 per unit (click for quantity discounts) Ready to despatch 129 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 12 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 5.30 Radial load
max.
N 2100 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV012-014 | 12 | 12 | 14 | 10,52 to 10,59 | 10,70 to 10,77 | 6.10 | 2400 | Steel | |||||||||||||||||||||||||
£ 2.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 14 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 6.10 Radial load
max.
N 2400 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV012-018 | 12 | 12 | 18 | 10,52 to 10,59 | 10,70 to 10,77 | 7.90 | 3075 | Stainless | |||||||||||||||||||||||||
£ 2.76 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d1
nom. 12 l 18 d2 for bearings 10,52 to 10,59 d2 for torque transfer 10,70 to 10,77 Torque
max.
Nm 7.90 Radial load
max.
N 3075 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV013-008 | 13 | 13 | 8 | 11,52 to 11,59 | 11,70 to 11,77 | 4.00 | 1650 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 110 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 13 d1
nom. 13 l 8 d2 for bearings 11,52 to 11,59 d2 for torque transfer 11,70 to 11,77 Torque
max.
Nm 4.00 Radial load
max.
N 1650 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV013-010 | 13 | 13 | 10 | 11,52 to 11,59 | 11,70 to 11,77 | 4.75 | 1800 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 24 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 13 d1
nom. 13 l 10 d2 for bearings 11,52 to 11,59 d2 for torque transfer 11,70 to 11,77 Torque
max.
Nm 4.75 Radial load
max.
N 1800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV013-012 | 13 | 13 | 12 | 11,52 to 11,59 | 11,70 to 11,77 | 5.60 | 2300 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 13 d1
nom. 13 l 12 d2 for bearings 11,52 to 11,59 d2 for torque transfer 11,70 to 11,77 Torque
max.
Nm 5.60 Radial load
max.
N 2300 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV013-015 | 13 | 13 | 15 | 11,52 to 11,59 | 11,70 to 11,77 | 7.20 | 3000 | Stainless | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 13 d1
nom. 13 l 15 d2 for bearings 11,52 to 11,59 d2 for torque transfer 11,70 to 11,77 Torque
max.
Nm 7.20 Radial load
max.
N 3000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV014-008 | 14 | 14 | 8 | 12,52 to 12,59 | 12,70 to 12,77 | 4.20 | 1825 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 98 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 14 d1
nom. 14 l 8 d2 for bearings 12,52 to 12,59 d2 for torque transfer 12,70 to 12,77 Torque
max.
Nm 4.20 Radial load
max.
N 1825 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV014-010 | 14 | 14 | 10 | 12,52 to 12,59 | 12,70 to 12,77 | 4.90 | 2000 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 14 d1
nom. 14 l 10 d2 for bearings 12,52 to 12,59 d2 for torque transfer 12,70 to 12,77 Torque
max.
Nm 4.90 Radial load
max.
N 2000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV014-014 | 14 | 14 | 14 | 12,52 to 12,59 | 12,70 to 12,77 | 5.60 | 3300 | Stainless | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 52 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 14 d1
nom. 14 l 14 d2 for bearings 12,52 to 12,59 d2 for torque transfer 12,70 to 12,77 Torque
max.
Nm 5.60 Radial load
max.
N 3300 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV014-020 | 14 | 14 | 20 | 12,52 to 12,59 | 12,70 to 12,77 | 8.00 | 4000 | Stainless | |||||||||||||||||||||||||
£ 2.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 14 d1
nom. 14 l 20 d2 for bearings 12,52 to 12,59 d2 for torque transfer 12,70 to 12,77 Torque
max.
Nm 8.00 Radial load
max.
N 4000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-006 | 15 | 15 | 6 | 13,52 to 13,59 | 13,70 to 13,77 | 3.70 | 1200 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 6 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 3.70 Radial load
max.
N 1200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-008 | 15 | 15 | 8 | 13,52 to 13,59 | 13,70 to 13,77 | 3.90 | 1600 | Stainless | |||||||||||||||||||||||||
£ 2.69 per unit (click for quantity discounts) Ready to despatch 126 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 8 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 3.90 Radial load
max.
N 1600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-010 | 15 | 15 | 10 | 13,52 to 13,59 | 13,70 to 13,77 | 4.80 | 2025 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 10 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 4.80 Radial load
max.
N 2025 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-012 | 15 | 15 | 12 | 13,52 to 13,59 | 13,70 to 13,77 | 6.80 | 2650 | Stainless | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 105 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 12 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 6.80 Radial load
max.
N 2650 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-014 | 15 | 15 | 14 | 13,52 to 13,59 | 13,70 to 13,77 | 8.90 | 2950 | Stainless | |||||||||||||||||||||||||
£ 2.52 per unit (click for quantity discounts) Ready to despatch 26 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 14 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 8.90 Radial load
max.
N 2950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-016 | 15 | 15 | 16 | 13,52 to 13,59 | 13,70 to 13,77 | 11.00 | 3400 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 167 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 16 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 11.00 Radial load
max.
N 3400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV015-019 | 15 | 15 | 19 | 13,52 to 13,59 | 13,70 to 13,77 | 12.50 | 3900 | Steel | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d1
nom. 15 l 19 d2 for bearings 13,52 to 13,59 d2 for torque transfer 13,70 to 13,77 Torque
max.
Nm 12.50 Radial load
max.
N 3900 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV016-010 | 16 | 16 | 10 | 14,52 to 14,59 | 14,70 to 14,77 | 7.00 | 2600 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 178 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 16 d1
nom. 16 l 10 d2 for bearings 14,52 to 14,59 d2 for torque transfer 14,70 to 14,77 Torque
max.
Nm 7.00 Radial load
max.
N 2600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV016-014 | 16 | 16 | 14 | 14,52 to 14,59 | 14,70 to 14,77 | 10.50 | 3100 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 16 d1
nom. 16 l 14 d2 for bearings 14,52 to 14,59 d2 for torque transfer 14,70 to 14,77 Torque
max.
Nm 10.50 Radial load
max.
N 3100 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV016-016 | 16 | 16 | 16 | 14,52 to 14,59 | 14,70 to 14,77 | 12.00 | 3500 | Stainless | |||||||||||||||||||||||||
£ 2.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 16 d1
nom. 16 l 16 d2 for bearings 14,52 to 14,59 d2 for torque transfer 14,70 to 14,77 Torque
max.
Nm 12.00 Radial load
max.
N 3500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-006 | 17 | 17 | 6 | 15,52 to 15,59 | 15,70 to 15,77 | 3.90 | 1500 | Stainless | |||||||||||||||||||||||||
£ 2.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 6 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 3.90 Radial load
max.
N 1500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-008 | 17 | 17 | 8 | 15,52 to 15,59 | 15,70 to 15,77 | 4.80 | 1800 | Stainless | |||||||||||||||||||||||||
£ 2.45 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 8 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 4.80 Radial load
max.
N 1800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-010 | 17 | 17 | 10 | 15,52 to 15,59 | 15,70 to 15,77 | 8.00 | 2650 | Stainless | |||||||||||||||||||||||||
£ 2.34 per unit (click for quantity discounts) Ready to despatch 36 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 10 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 8.00 Radial load
max.
N 2650 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-012 | 17 | 17 | 12 | 15,52 to 15,59 | 15,70 to 15,77 | 10.00 | 2800 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 57 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 12 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 10.00 Radial load
max.
N 2800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-014 | 17 | 17 | 14 | 15,52 to 15,59 | 15,70 to 15,77 | 12.00 | 3200 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 96 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 14 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 12.00 Radial load
max.
N 3200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV017-016 | 17 | 17 | 16 | 15,52 to 15,59 | 15,70 to 15,77 | 14.00 | 3650 | Stainless | |||||||||||||||||||||||||
£ 2.72 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 17 d1
nom. 17 l 16 d2 for bearings 15,52 to 15,59 d2 for torque transfer 15,70 to 15,77 Torque
max.
Nm 14.00 Radial load
max.
N 3650 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV018-010 | 18 | 18 | 10 | 16,52 to 16,59 | 16,70 to 16,77 | 9.00 | 2650 | Steel | |||||||||||||||||||||||||
£ 2.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 18 d1
nom. 18 l 10 d2 for bearings 16,52 to 16,59 d2 for torque transfer 16,70 to 16,77 Torque
max.
Nm 9.00 Radial load
max.
N 2650 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV018-016 | 18 | 18 | 16 | 16,52 to 16,59 | 16,70 to 16,77 | 15.00 | 3900 | Stainless | |||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts) Ready to despatch 112 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 18 d1
nom. 18 l 16 d2 for bearings 16,52 to 16,59 d2 for torque transfer 16,70 to 16,77 Torque
max.
Nm 15.00 Radial load
max.
N 3900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV018-022 | 18 | 18 | 22 | 16,52 to 16,59 | 16,70 to 16,77 | 21.00 | 5600 | Stainless | |||||||||||||||||||||||||
£ 3.10 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 18 d1
nom. 18 l 22 d2 for bearings 16,52 to 16,59 d2 for torque transfer 16,70 to 16,77 Torque
max.
Nm 21.00 Radial load
max.
N 5600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV019-010 | 19 | 19 | 10 | 17,52 to 17,59 | 17,70 to 17,77 | 10.00 | 2800 | Stainless | |||||||||||||||||||||||||
£ 2.53 per unit (click for quantity discounts) Ready to despatch 43 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 19 d1
nom. 19 l 10 d2 for bearings 17,52 to 17,59 d2 for torque transfer 17,70 to 17,77 Torque
max.
Nm 10.00 Radial load
max.
N 2800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV019-019 | 19 | 19 | 19 | 17,52 to 17,59 | 17,70 to 17,77 | 19.00 | 4900 | Stainless | |||||||||||||||||||||||||
£ 2.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 19 d1
nom. 19 l 19 d2 for bearings 17,52 to 17,59 d2 for torque transfer 17,70 to 17,77 Torque
max.
Nm 19.00 Radial load
max.
N 4900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV019-022 | 19 | 19 | 22 | 17,52 to 17,59 | 17,70 to 17,77 | 22.00 | 6000 | Stainless | |||||||||||||||||||||||||
£ 3.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 19 d1
nom. 19 l 22 d2 for bearings 17,52 to 17,59 d2 for torque transfer 17,70 to 17,77 Torque
max.
Nm 22.00 Radial load
max.
N 6000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-006 | 20 | 20 | 6 | 18,02 to 18,11 | 18,25 to 18,33 | 7.00 | 1600 | Stainless | |||||||||||||||||||||||||
£ 2.34 per unit (click for quantity discounts) Ready to despatch 199 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 6 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 7.00 Radial load
max.
N 1600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-007 | 20 | 20 | 7 | 18,02 to 18,11 | 18,25 to 18,33 | 8.00 | 1800 | Stainless | |||||||||||||||||||||||||
£ 2.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 7 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 8.00 Radial load
max.
N 1800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-008 | 20 | 20 | 8 | 18,02 to 18,11 | 18,25 to 18,33 | 9.00 | 2200 | Stainless | |||||||||||||||||||||||||
£ 2.19 per unit (click for quantity discounts) Ready to despatch 151 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 8 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 9.00 Radial load
max.
N 2200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-010 | 20 | 20 | 10 | 18,02 to 18,11 | 18,25 to 18,33 | 12.00 | 2900 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 1015 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 10 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 12.00 Radial load
max.
N 2900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-012 | 20 | 20 | 12 | 18,02 to 18,11 | 18,25 to 18,33 | 15.00 | 3750 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 36 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 12 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 15.00 Radial load
max.
N 3750 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-014 | 20 | 20 | 14 | 18,02 to 18,11 | 18,25 to 18,33 | 18.00 | 4600 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 14 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 18.00 Radial load
max.
N 4600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-015 | 20 | 20 | 15 | 18,02 to 18,11 | 18,25 to 18,33 | 19.00 | 5200 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 60 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 15 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 19.00 Radial load
max.
N 5200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-018 | 20 | 20 | 18 | 18,02 to 18,11 | 18,25 to 18,33 | 23.00 | 5900 | Stainless | |||||||||||||||||||||||||
£ 2.72 per unit (click for quantity discounts) Ready to despatch 80 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 18 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 23.00 Radial load
max.
N 5900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-020 | 20 | 20 | 20 | 18,02 to 18,11 | 18,25 to 18,33 | 25.00 | 6850 | Stainless | |||||||||||||||||||||||||
£ 3.20 per unit (click for quantity discounts) Ready to despatch 167 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 20 d2 for bearings 18,02 to 18,11 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 25.00 Radial load
max.
N 6850 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV020-022 | 20 | 20 | 22 | 18,02 to 18,33 | 18,25 to 18,33 | 28.00 | 7700 | Stainless | |||||||||||||||||||||||||
£ 3.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 20 d1
nom. 20 l 22 d2 for bearings 18,02 to 18,33 d2 for torque transfer 18,25 to 18,33 Torque
max.
Nm 28.00 Radial load
max.
N 7700 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV022-012 | 22 | 22 | 12 | 20,02 to 20,11 | 20,25 to 20,33 | 18.00 | 4450 | Stainless | |||||||||||||||||||||||||
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 22 d1
nom. 22 l 12 d2 for bearings 20,02 to 20,11 d2 for torque transfer 20,25 to 20,33 Torque
max.
Nm 18.00 Radial load
max.
N 4450 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV022-015 | 22 | 22 | 15 | 20,02 to 20,11 | 20,25 to 20,33 | 26.00 | 5550 | Stainless | |||||||||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 22 d1
nom. 22 l 15 d2 for bearings 20,02 to 20,11 d2 for torque transfer 20,25 to 20,33 Torque
max.
Nm 26.00 Radial load
max.
N 5550 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV022-022 | 22 | 22 | 22 | 20,02 to 20,11 | 20,25 to 20,33 | 33.00 | 8250 | Stainless | |||||||||||||||||||||||||
£ 3.24 per unit (click for quantity discounts) Ready to despatch 481 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 22 d1
nom. 22 l 22 d2 for bearings 20,02 to 20,11 d2 for torque transfer 20,25 to 20,33 Torque
max.
Nm 33.00 Radial load
max.
N 8250 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV024-010 | 24 | 24 | 10 | 22,02 to 22,11 | 22,25 to 22,33 | 30.00 | 5950 | Stainless | |||||||||||||||||||||||||
£ 2.18 per unit (click for quantity discounts) Ready to despatch 119 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 24 d1
nom. 24 l 10 d2 for bearings 22,02 to 22,11 d2 for torque transfer 22,25 to 22,33 Torque
max.
Nm 30.00 Radial load
max.
N 5950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV024-015 | 24 | 24 | 15 | 22,02 to 22,11 | 22,25 to 22,33 | 30.00 | 5950 | Stainless | |||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts) Ready to despatch 294 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 24 d1
nom. 24 l 15 d2 for bearings 22,02 to 22,11 d2 for torque transfer 22,25 to 22,33 Torque
max.
Nm 30.00 Radial load
max.
N 5950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV024-022 | 24 | 24 | 22 | 22,02 to 22,11 | 22,25 to 22,33 | 40.00 | 9000 | Stainless | |||||||||||||||||||||||||
£ 3.36 per unit (click for quantity discounts) Ready to despatch 45 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 24 d1
nom. 24 l 22 d2 for bearings 22,02 to 22,11 d2 for torque transfer 22,25 to 22,33 Torque
max.
Nm 40.00 Radial load
max.
N 9000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV024-024 | 24 | 24 | 24 | 22,02 to 22,11 | 22,25 to 22,33 | 48.00 | 10200 | Stainless | |||||||||||||||||||||||||
£ 3.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 24 d1
nom. 24 l 24 d2 for bearings 22,02 to 22,11 d2 for torque transfer 22,25 to 22,33 Torque
max.
Nm 48.00 Radial load
max.
N 10200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-008 | 25 | 25 | 8 | 23,02 to 23,11 | 23,25 to 23,33 | 15.00 | 3000 | Stainless | |||||||||||||||||||||||||
£ 2.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 8 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 15.00 Radial load
max.
N 3000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-010 | 25 | 25 | 10 | 23,02 to 23,11 | 23,25 to 23,33 | 20.00 | 3850 | Stainless | |||||||||||||||||||||||||
£ 2.69 per unit (click for quantity discounts) Ready to despatch 43 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 10 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 20.00 Radial load
max.
N 3850 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-012 | 25 | 25 | 12 | 23,02 to 23,11 | 23,25 to 23,33 | 22.00 | 4900 | Stainless | |||||||||||||||||||||||||
£ 2.69 per unit (click for quantity discounts) Ready to despatch 180 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 12 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 22.00 Radial load
max.
N 4900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-015 | 25 | 25 | 15 | 23,02 to 23,11 | 23,25 to 23,33 | 28.00 | 6450 | Stainless | |||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 15 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 28.00 Radial load
max.
N 6450 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-018 | 25 | 25 | 18 | 23,02 to 23,11 | 23,25 to 23,33 | 38.00 | 7200 | Stainless | |||||||||||||||||||||||||
£ 2.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 18 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 38.00 Radial load
max.
N 7200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-020 | 25 | 25 | 20 | 23,02 to 23,11 | 23,25 to 23,33 | 41.00 | 7575 | Stainless | |||||||||||||||||||||||||
£ 3.13 per unit (click for quantity discounts) Ready to despatch 51 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 20 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 41.00 Radial load
max.
N 7575 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-021 | 25 | 25 | 21 | 23,02 to 23,11 | 23,25 to 23,33 | 43.00 | 7700 | Stainless | |||||||||||||||||||||||||
£ 3.24 per unit (click for quantity discounts) Ready to despatch 105 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 21 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 43.00 Radial load
max.
N 7700 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV025-025 | 25 | 25 | 25 | 23,02 to 23,11 | 23,25 to 23,33 | 53.00 | 10600 | Stainless | |||||||||||||||||||||||||
£ 3.50 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 25 d1
nom. 25 l 25 d2 for bearings 23,02 to 23,11 d2 for torque transfer 23,25 to 23,33 Torque
max.
Nm 53.00 Radial load
max.
N 10600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV028-012 | 28 | 28 | 12 | 26,02 to 26,11 | 26,25 to 26,33 | 30.00 | 5750 | Stainless | |||||||||||||||||||||||||
£ 2.76 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 28 d1
nom. 28 l 12 d2 for bearings 26,02 to 26,11 d2 for torque transfer 26,25 to 26,33 Torque
max.
Nm 30.00 Radial load
max.
N 5750 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV028-020 | 28 | 28 | 20 | 26,02 to 26,11 | 26,25 to 26,33 | 53.00 | 10600 | Stainless | |||||||||||||||||||||||||
£ 3.50 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 28 d1
nom. 28 l 20 d2 for bearings 26,02 to 26,11 d2 for torque transfer 26,25 to 26,33 Torque
max.
Nm 53.00 Radial load
max.
N 10600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV028-022 | 28 | 28 | 22 | 26,02 to 26,11 | 26,25 to 26,33 | 60.00 | 11300 | Stainless | |||||||||||||||||||||||||
£ 3.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 28 d1
nom. 28 l 22 d2 for bearings 26,02 to 26,11 d2 for torque transfer 26,25 to 26,33 Torque
max.
Nm 60.00 Radial load
max.
N 11300 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV028-025 | 28 | 28 | 25 | 26,02 to 26,11 | 26,25 to 26,33 | 71.00 | 12000 | Stainless | |||||||||||||||||||||||||
£ 3.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 28 d1
nom. 28 l 25 d2 for bearings 26,02 to 26,11 d2 for torque transfer 26,25 to 26,33 Torque
max.
Nm 71.00 Radial load
max.
N 12000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-008 | 30 | 30 | 8 | 28,02 to 28,11 | 28,25 to 28,33 | 25.00 | 2800 | Stainless | |||||||||||||||||||||||||
£ 2.87 per unit (click for quantity discounts) Ready to despatch 158 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 8 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 25.00 Radial load
max.
N 2800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-010 | 30 | 30 | 10 | 28,02 to 28,11 | 28,25 to 28,33 | 29.00 | 4200 | Stainless | |||||||||||||||||||||||||
£ 2.94 per unit (click for quantity discounts) Ready to despatch 169 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 10 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 29.00 Radial load
max.
N 4200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-012 | 30 | 30 | 12 | 28,02 to 28,11 | 28,25 to 28,33 | 35.00 | 5400 | Stainless | |||||||||||||||||||||||||
£ 3.32 per unit (click for quantity discounts) Ready to despatch 34 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 12 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 35.00 Radial load
max.
N 5400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-015 | 30 | 30 | 15 | 28,02 to 28,11 | 28,25 to 28,33 | 47.00 | 7000 | Stainless | |||||||||||||||||||||||||
£ 3.33 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 15 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 47.00 Radial load
max.
N 7000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-020 | 30 | 30 | 20 | 28,02 to 28,11 | 28,25 to 28,33 | 60.00 | 10200 | Stainless | |||||||||||||||||||||||||
£ 3.50 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 20 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 60.00 Radial load
max.
N 10200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-023 | 30 | 30 | 23 | 28,02 to 28,11 | 28,25 to 28,33 | 70.00 | 12200 | Stainless | |||||||||||||||||||||||||
£ 3.83 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 23 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 70.00 Radial load
max.
N 12200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV030-030 | 30 | 30 | 30 | 28,02 to 28,11 | 28,25 to 28,33 | 95.00 | 16600 | Stainless | |||||||||||||||||||||||||
£ 4.08 per unit (click for quantity discounts) Ready to despatch 85 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 30 d1
nom. 30 l 30 d2 for bearings 28,02 to 28,11 d2 for torque transfer 28,25 to 28,33 Torque
max.
Nm 95.00 Radial load
max.
N 16600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV032-012 | 32 | 32 | 12 | 30,02 to 30,11 | 30,25 to 30,33 | 44.00 | 5800 | Stainless | |||||||||||||||||||||||||
£ 3.20 per unit (click for quantity discounts) Ready to despatch 26 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 32 d1
nom. 32 l 12 d2 for bearings 30,02 to 30,11 d2 for torque transfer 30,25 to 30,33 Torque
max.
Nm 44.00 Radial load
max.
N 5800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV032-016 | 32 | 32 | 16 | 30,02 to 30,11 | 30,25 to 30,33 | 56.00 | 8400 | Stainless | |||||||||||||||||||||||||
£ 3.52 per unit (click for quantity discounts) Ready to despatch 817 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 32 d1
nom. 32 l 16 d2 for bearings 30,02 to 30,11 d2 for torque transfer 30,25 to 30,33 Torque
max.
Nm 56.00 Radial load
max.
N 8400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV032-030 | 32 | 32 | 30 | 30,02 to 30,11 | 30,25 to 30,33 | 110.00 | 17000 | Stainless | |||||||||||||||||||||||||
£ 4.44 per unit (click for quantity discounts) Ready to despatch 87 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 32 d1
nom. 32 l 30 d2 for bearings 30,02 to 30,11 d2 for torque transfer 30,25 to 30,33 Torque
max.
Nm 110.00 Radial load
max.
N 17000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV035-010 | 35 | 35 | 10 | 33,03 to 33,13 | 33,25 to 33,40 | 40.00 | 4000 | Stainless | |||||||||||||||||||||||||
£ 3.20 per unit (click for quantity discounts) Ready to despatch 150 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 35 d1
nom. 35 l 10 d2 for bearings 33,03 to 33,13 d2 for torque transfer 33,25 to 33,40 Torque
max.
Nm 40.00 Radial load
max.
N 4000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV035-012 | 35 | 35 | 12 | 33,03 to 33,13 | 33,25 to 33,40 | 48.00 | 4600 | Stainless | |||||||||||||||||||||||||
£ 3.32 per unit (click for quantity discounts) Ready to despatch 458 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 35 d1
nom. 35 l 12 d2 for bearings 33,03 to 33,13 d2 for torque transfer 33,25 to 33,40 Torque
max.
Nm 48.00 Radial load
max.
N 4600 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV035-015 | 35 | 35 | 15 | 33,03 to 33,13 | 33,25 to 33,40 | 60.00 | 4950 | Stainless | |||||||||||||||||||||||||
£ 3.33 per unit (click for quantity discounts) Ready to despatch 60 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 35 d1
nom. 35 l 15 d2 for bearings 33,03 to 33,13 d2 for torque transfer 33,25 to 33,40 Torque
max.
Nm 60.00 Radial load
max.
N 4950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV035-025 | 35 | 35 | 25 | 33,03 to 33,13 | 33,25 to 33,40 | 110.00 | 8650 | Stainless | |||||||||||||||||||||||||
£ 4.08 per unit (click for quantity discounts) Ready to despatch 38 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 35 d1
nom. 35 l 25 d2 for bearings 33,03 to 33,13 d2 for torque transfer 33,25 to 33,40 Torque
max.
Nm 110.00 Radial load
max.
N 8650 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV035-030 | 35 | 35 | 30 | 33,03 to 33,13 | 33,25 to 33,40 | 130.00 | 9800 | Stainless | |||||||||||||||||||||||||
£ 4.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 35 d1
nom. 35 l 30 d2 for bearings 33,03 to 33,13 d2 for torque transfer 33,25 to 33,40 Torque
max.
Nm 130.00 Radial load
max.
N 9800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV036-012 | 36 | 36 | 12 | 34,03 to 34,13 | 34,30 to 34,40 | 55.00 | 4800 | Stainless | |||||||||||||||||||||||||
£ 3.17 per unit (click for quantity discounts) Ready to despatch 2514 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 36 d1
nom. 36 l 12 d2 for bearings 34,03 to 34,13 d2 for torque transfer 34,30 to 34,40 Torque
max.
Nm 55.00 Radial load
max.
N 4800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV036-015 | 36 | 36 | 15 | 34,03 to 34,13 | 34,30 to 34,40 | 63.00 | 5100 | Stainless | |||||||||||||||||||||||||
£ 3.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 36 d1
nom. 36 l 15 d2 for bearings 34,03 to 34,13 d2 for torque transfer 34,30 to 34,40 Torque
max.
Nm 63.00 Radial load
max.
N 5100 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV036-030 | 36 | 36 | 30 | 34,03 to 34,13 | 34,30 to 34,40 | 135.00 | 10300 | Stainless | |||||||||||||||||||||||||
£ 4.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 36 d1
nom. 36 l 30 d2 for bearings 34,03 to 34,13 d2 for torque transfer 34,30 to 34,40 Torque
max.
Nm 135.00 Radial load
max.
N 10300 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV040-010 | 40 | 40 | 10 | 38,03 to 38,13 | 38,30 to 38,40 | 55.00 | 3800 | Stainless | |||||||||||||||||||||||||
£ 3.33 per unit (click for quantity discounts) Ready to despatch 1087 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 40 d1
nom. 40 l 10 d2 for bearings 38,03 to 38,13 d2 for torque transfer 38,30 to 38,40 Torque
max.
Nm 55.00 Radial load
max.
N 3800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV040-012 | 40 | 40 | 12 | 38,03 to 38,13 | 38,30 to 38,40 | 63.00 | 4500 | Stainless | |||||||||||||||||||||||||
£ 3.42 per unit (click for quantity discounts) Ready to despatch 87 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 40 d1
nom. 40 l 12 d2 for bearings 38,03 to 38,13 d2 for torque transfer 38,30 to 38,40 Torque
max.
Nm 63.00 Radial load
max.
N 4500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV040-015 | 40 | 40 | 15 | 38,03 to 38,13 | 38,30 to 38,40 | 83.00 | 5400 | Stainless | |||||||||||||||||||||||||
£ 3.76 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 40 d1
nom. 40 l 15 d2 for bearings 38,03 to 38,13 d2 for torque transfer 38,30 to 38,40 Torque
max.
Nm 83.00 Radial load
max.
N 5400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV040-023 | 40 | 40 | 23 | 38,03 to 38,13 | 38,30 to 38,40 | 104.00 | 8500 | Steel | |||||||||||||||||||||||||
£ 4.30 per unit (click for quantity discounts) Ready to despatch 40 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 40 d1
nom. 40 l 23 d2 for bearings 38,03 to 38,13 d2 for torque transfer 38,30 to 38,40 Torque
max.
Nm 104.00 Radial load
max.
N 8500 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV040-030 | 40 | 40 | 30 | 38,03 to 38,13 | 38,30 to 38,40 | 180.00 | 12000 | Stainless | |||||||||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 38 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 40 d1
nom. 40 l 30 d2 for bearings 38,03 to 38,13 d2 for torque transfer 38,30 to 38,40 Torque
max.
Nm 180.00 Radial load
max.
N 12000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV045-010 | 45 | 45 | 10 | 43,03 to 43,13 | 43,30 to 43,40 | 68.00 | 4250 | Stainless | |||||||||||||||||||||||||
£ 3.86 per unit (click for quantity discounts) Ready to despatch 114 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 10 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 68.00 Radial load
max.
N 4250 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV045-015 | 45 | 45 | 15 | 43,03 to 43,13 | 43,30 to 43,40 | 102.00 | 6230 | Stainless | |||||||||||||||||||||||||
£ 4.08 per unit (click for quantity discounts) Ready to despatch 165 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 15 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 102.00 Radial load
max.
N 6230 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV045-020 | 45 | 45 | 20 | 43,03 to 43,13 | 43,30 to 43,40 | 145.00 | 9400 | Stainless | |||||||||||||||||||||||||
£ 4.35 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 20 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 145.00 Radial load
max.
N 9400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV045-023 | 45 | 45 | 23 | 43,03 to 43,13 | 43,30 to 43,40 | 160.00 | 10100 | Steel | |||||||||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 99 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 23 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 160.00 Radial load
max.
N 10100 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV045-025 | 45 | 45 | 25 | 43,03 to 43,13 | 43,30 to 43,40 | 200.00 | 11000 | Stainless | |||||||||||||||||||||||||
£ 3.63 per unit (click for quantity discounts) Ready to despatch 51 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 25 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 200.00 Radial load
max.
N 11000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV045-030 | 45 | 45 | 30 | 43,03 to 43,13 | 43,30 to 43,40 | 230.00 | 13950 | Stainless | |||||||||||||||||||||||||
£ 4.95 per unit (click for quantity discounts) Ready to despatch 141 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 45 d1
nom. 45 l 30 d2 for bearings 43,03 to 43,13 d2 for torque transfer 43,30 to 43,40 Torque
max.
Nm 230.00 Radial load
max.
N 13950 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV050-012 | 50 | 50 | 12 | 48,03 to 48,13 | 48,30 to 48,40 | 107.00 | 5750 | Stainless | |||||||||||||||||||||||||
£ 3.98 per unit (click for quantity discounts) Ready to despatch 358 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 50 d1
nom. 50 l 12 d2 for bearings 48,03 to 48,13 d2 for torque transfer 48,30 to 48,40 Torque
max.
Nm 107.00 Radial load
max.
N 5750 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV050-016 | 50 | 50 | 16 | 48,03 to 48,13 | 48,30 to 48,40 | 141.00 | 7565 | Steel | |||||||||||||||||||||||||
£ 4.08 per unit (click for quantity discounts) Ready to despatch 27 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 50 d1
nom. 50 l 16 d2 for bearings 48,03 to 48,13 d2 for torque transfer 48,30 to 48,40 Torque
max.
Nm 141.00 Radial load
max.
N 7565 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV050-020 | 50 | 50 | 20 | 48,03 to 48,13 | 48,30 to 48,40 | 186.00 | 9575 | Stainless | |||||||||||||||||||||||||
£ 4.44 per unit (click for quantity discounts) Ready to despatch 82 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 50 d1
nom. 50 l 20 d2 for bearings 48,03 to 48,13 d2 for torque transfer 48,30 to 48,40 Torque
max.
Nm 186.00 Radial load
max.
N 9575 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV050-030 | 50 | 50 | 30 | 48,03 to 48,13 | 48,30 to 48,40 | 310.00 | 13400 | Stainless | |||||||||||||||||||||||||
£ 5.42 per unit (click for quantity discounts) Ready to despatch 91 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 50 d1
nom. 50 l 30 d2 for bearings 48,03 to 48,13 d2 for torque transfer 48,30 to 48,40 Torque
max.
Nm 310.00 Radial load
max.
N 13400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV050-040 | 50 | 50 | 40 | 48,03 to 48,13 | 48,30 to 48,40 | 350.00 | 18000 | Steel | |||||||||||||||||||||||||
£ 6.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 50 d1
nom. 50 l 40 d2 for bearings 48,03 to 48,13 d2 for torque transfer 48,30 to 48,40 Torque
max.
Nm 350.00 Radial load
max.
N 18000 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV055-010 | 55 | 55 | 10 | 52,53 to 52,65 | 52,85 to 52,97 | 125.00 | 4900 | Stainless | |||||||||||||||||||||||||
£ 4.48 per unit (click for quantity discounts) Ready to despatch 65 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 55 d1
nom. 55 l 10 d2 for bearings 52,53 to 52,65 d2 for torque transfer 52,85 to 52,97 Torque
max.
Nm 125.00 Radial load
max.
N 4900 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV055-014 | 55 | 55 | 14 | 52,53 to 52,65 | 52,85 to 52,97 | 175.00 | 6750 | Stainless | |||||||||||||||||||||||||
£ 4.68 per unit (click for quantity discounts) Ready to despatch 102 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 55 d1
nom. 55 l 14 d2 for bearings 52,53 to 52,65 d2 for torque transfer 52,85 to 52,97 Torque
max.
Nm 175.00 Radial load
max.
N 6750 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV055-015 | 55 | 55 | 15 | 52,53 to 52,65 | 52,85 to 52,97 | 185.00 | 6800 | Stainless | |||||||||||||||||||||||||
£ 4.55 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 55 d1
nom. 55 l 15 d2 for bearings 52,53 to 52,65 d2 for torque transfer 52,85 to 52,97 Torque
max.
Nm 185.00 Radial load
max.
N 6800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV055-029 | 55 | 55 | 29 | 52,53 to 52,65 | 52,85 to 52,97 | 330.00 | 12500 | Stainless | |||||||||||||||||||||||||
£ 6.67 per unit (click for quantity discounts) Ready to despatch 146 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 55 d1
nom. 55 l 29 d2 for bearings 52,53 to 52,65 d2 for torque transfer 52,85 to 52,97 Torque
max.
Nm 330.00 Radial load
max.
N 12500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV060-020 | 60 | 60 | 20 | 57,53 to 57,65 | 57,85 to 57,97 | 310.00 | 12000 | Stainless | |||||||||||||||||||||||||
£ 4.44 per unit (click for quantity discounts) Ready to despatch 531 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 60 d1
nom. 60 l 20 d2 for bearings 57,53 to 57,65 d2 for torque transfer 57,85 to 57,97 Torque
max.
Nm 310.00 Radial load
max.
N 12000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV060-022 | 60 | 60 | 22 | 57,53 to 57,65 | 57,85 to 57,97 | 350.00 | 13200 | Stainless | |||||||||||||||||||||||||
£ 5.42 per unit (click for quantity discounts) Ready to despatch 40 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 60 d1
nom. 60 l 22 d2 for bearings 57,53 to 57,65 d2 for torque transfer 57,85 to 57,97 Torque
max.
Nm 350.00 Radial load
max.
N 13200 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV060-028 | 60 | 60 | 28 | 57,53 to 57,65 | 57,85 to 57,97 | 420.00 | 18400 | Stainless | |||||||||||||||||||||||||
£ 5.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 60 d1
nom. 60 l 28 d2 for bearings 57,53 to 57,65 d2 for torque transfer 57,85 to 57,97 Torque
max.
Nm 420.00 Radial load
max.
N 18400 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV065-020 | 65 | 65 | 20 | 62,53 to 62,65 | 62,85 to 62,97 | 480.00 | 14800 | Stainless | |||||||||||||||||||||||||
£ 5.96 per unit (click for quantity discounts) Ready to despatch 112 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 65 d1
nom. 65 l 20 d2 for bearings 62,53 to 62,65 d2 for torque transfer 62,85 to 62,97 Torque
max.
Nm 480.00 Radial load
max.
N 14800 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV065-033 | 65 | 65 | 33 | 62,53 to 62,65 | 62,85 to 62,97 | 650.00 | 21000 | Stainless | |||||||||||||||||||||||||
£ 6.44 per unit (click for quantity discounts) Ready to despatch 97 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 65 d1
nom. 65 l 33 d2 for bearings 62,53 to 62,65 d2 for torque transfer 62,85 to 62,97 Torque
max.
Nm 650.00 Radial load
max.
N 21000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV080-012 | 80 | 80 | 12 | 77,53 to 77,65 | 77,85 to 77,97 | 550.00 | 15000 | Stainless | |||||||||||||||||||||||||
£ 6.52 per unit (click for quantity discounts) Ready to despatch 60 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 80 d1
nom. 80 l 12 d2 for bearings 77,53 to 77,65 d2 for torque transfer 77,85 to 77,97 Torque
max.
Nm 550.00 Radial load
max.
N 15000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV080-017 | 80 | 80 | 17 | 77,53 to 77,65 | 77,85 to 77,97 | 700.00 | 16500 | Stainless | |||||||||||||||||||||||||
£ 7.08 per unit (click for quantity discounts) Ready to despatch 84 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 80 d1
nom. 80 l 17 d2 for bearings 77,53 to 77,65 d2 for torque transfer 77,85 to 77,97 Torque
max.
Nm 700.00 Radial load
max.
N 16500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV085-022 | 85 | 85 | 22 | 82,04 to 82,18 | 82,44 to 82,58 | 800.00 | 19000 | Stainless | |||||||||||||||||||||||||
£ 9.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 85 d1
nom. 85 l 22 d2 for bearings 82,04 to 82,18 d2 for torque transfer 82,44 to 82,58 Torque
max.
Nm 800.00 Radial load
max.
N 19000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV090-024 | 90 | 90 | 24 | 87,04 to 87,18 | 87,44 to 87,58 | 850.00 | 22000 | Stainless | |||||||||||||||||||||||||
£ 11.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 90 d1
nom. 90 l 24 d2 for bearings 87,04 to 87,18 d2 for torque transfer 87,44 to 87,58 Torque
max.
Nm 850.00 Radial load
max.
N 22000 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV090-030 | 90 | 90 | 30 | 87,04 to 87,18 | 87,44 to 87,58 | 1100.00 | 27000 | Steel | |||||||||||||||||||||||||
£ 11.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 90 d1
nom. 90 l 30 d2 for bearings 87,04 to 87,18 d2 for torque transfer 87,44 to 87,58 Torque
max.
Nm 1100.00 Radial load
max.
N 27000 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV100-024 | 100 | 100 | 24 | 97,04 to 97,18 | 97,44 to 97,58 | 1350.00 | 28000 | Steel | |||||||||||||||||||||||||
£ 11.06 per unit (click for quantity discounts) Ready to despatch 148 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 100 d1
nom. 100 l 24 d2 for bearings 97,04 to 97,18 d2 for torque transfer 97,44 to 97,58 Torque
max.
Nm 1350.00 Radial load
max.
N 28000 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV100-036 | 100 | 100 | 36 | 97,04 to 97,18 | 97,44 to 97,58 | 1900.00 | 36000 | Steel | |||||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 100 d1
nom. 100 l 36 d2 for bearings 97,04 to 97,18 d2 for torque transfer 97,44 to 97,58 Torque
max.
Nm 1900.00 Radial load
max.
N 36000 Material Steel | |||||||||||||||||||||||||||||||||
P0395.SV140-015 | 140 | 140 | 15 | 136,04 to 136,20 | 136,52 to 136,68 | 1200.00 | 25500 | Stainless | |||||||||||||||||||||||||
£ 13.59 per unit (click for quantity discounts) Ready to despatch 27 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 140 d1
nom. 140 l 15 d2 for bearings 136,04 to 136,20 d2 for torque transfer 136,52 to 136,68 Torque
max.
Nm 1200.00 Radial load
max.
N 25500 Material Stainless | |||||||||||||||||||||||||||||||||
P0395.SV140-022 | 140 | 140 | 22 | 136,04 to 136,20 | 136,52 to 136,68 | 1250.00 | 32000 | Steel | |||||||||||||||||||||||||
£ 13.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 140 d1
nom. 140 l 22 d2 for bearings 136,04 to 136,20 d2 for torque transfer 136,52 to 136,68 Torque
max.
Nm 1250.00 Radial load
max.
N 32000 Material Steel |
Stainless steel (type 304, DIN 1.4301).
Tolerance rings allow the mating of parts with wider tolerances.
The waves are on the outside, the ring sits on the shaft with the waves being compressed by the housing bore.
For use where there is an accurate bore but the shaft may have a wide tolerance.
Company registration no: 00496138
Company VAT number GB 408154022
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
