SV Tolerance Rings
Stainless Steel
P0397 Bearing Tolerance Rings
material: Stainless steel
Alternative products you may wish to consider
d1
13
l1
5
Bearing dia. & no.
13 (~624)
d2
13,60 to 13,65
Radial load
max.
N
125
£ 2.47 per unit (click for quantity discounts)
d1
16
l1
5
Bearing dia. & no.
16 (~625)
d2
16,60 to 16,65
Radial load
max.
N
150
£ 2.56 per unit (click for quantity discounts)
d1
19
l1
6
Bearing dia. & no.
19 (~626)
d2
19,60 to 19,65
Radial load
max.
N
220
£ 2.14 per unit (click for quantity discounts)
d1
22
l1
7
Bearing dia. & no.
22 (~608)
d2
22,60 to 22,65
Radial load
max.
N
300
£ 2.25 per unit (click for quantity discounts)
d1
24
l1
7
Bearing dia. & no.
24 (~609)
d2
24,60 to 24,65
Radial load
max.
N
330
£ 2.45 per unit (click for quantity discounts)
d1
26
l1
8
Bearing dia. & no.
26 (~629)
d2
26,60 to 26,65
Radial load
max.
N
400
£ 2.75 per unit (click for quantity discounts)
d1
28
l1
8
Bearing dia. & no.
28 (~6001)
d2
28,60 to 28,65
Radial load
max.
N
440
£ 2.85 per unit (click for quantity discounts)
d1
30
l1
9
Bearing dia. & no.
30 (~6200)
d2
30,60 to 30,65
Radial load
max.
N
520
£ 2.84 per unit (click for quantity discounts)
d1
32
l1
9
Bearing dia. & no.
32 (~6002)
d2
32,60 to 32,65
Radial load
max.
N
560
£ 2.84 per unit (click for quantity discounts)
d1
32
l1
10
Bearing dia. & no.
32 (~6201)
d2
32,60 to 32,65
Radial load
max.
N
620
£ 2.84 per unit (click for quantity discounts)
d1
35
l1
10
Bearing dia. & no.
35 (~6003)
d2
35,60 to 35,65
Radial load
max.
N
750
£ 3.20 per unit (click for quantity discounts)
d1
35
l1
15
Bearing dia. & no.
35 (~6202)
d2
35,60 to 35,65
Radial load
max.
N
1050
£ 3.70 per unit (click for quantity discounts)
d1
52
l1
15
Bearing dia. & no.
52 (~6205)
d2
52,60 to 52,65
Radial load
max.
N
1600
£ 4.69 per unit (click for quantity discounts)
d1
l1
Bearing dia. & no.
d2
Radial load
max.
N
| Price & Availability | Article | d1 | l1 | Bearing dia. & no. | d2 | Radial load max. N | |||||||||||||||
| P0397.HVL013-005 | 13 | 5 | 13 (~624) | 13,60 to 13,65 | 125 | ||||||||||||||||
£ 2.47 per unit (click for quantity discounts) Ready to despatch 171 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 13 l1 5 Bearing dia. & no. 13 (~624) d2 13,60 to 13,65 Radial load
max.
N 125 | |||||||||||||||||||||
| P0397.HVL016-005 | 16 | 5 | 16 (~625) | 16,60 to 16,65 | 150 | ||||||||||||||||
£ 2.56 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 5 Bearing dia. & no. 16 (~625) d2 16,60 to 16,65 Radial load
max.
N 150 | |||||||||||||||||||||
| P0397.HVL019-006 | 19 | 6 | 19 (~626) | 19,60 to 19,65 | 220 | ||||||||||||||||
£ 2.14 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 19 l1 6 Bearing dia. & no. 19 (~626) d2 19,60 to 19,65 Radial load
max.
N 220 | |||||||||||||||||||||
| P0397.HVL022-007 | 22 | 7 | 22 (~608) | 22,60 to 22,65 | 300 | ||||||||||||||||
£ 2.25 per unit (click for quantity discounts) Ready to despatch 418 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 22 l1 7 Bearing dia. & no. 22 (~608) d2 22,60 to 22,65 Radial load
max.
N 300 | |||||||||||||||||||||
| P0397.HVL024-007 | 24 | 7 | 24 (~609) | 24,60 to 24,65 | 330 | ||||||||||||||||
£ 2.45 per unit (click for quantity discounts) Ready to despatch 45 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 24 l1 7 Bearing dia. & no. 24 (~609) d2 24,60 to 24,65 Radial load
max.
N 330 | |||||||||||||||||||||
| P0397.HVL026-008 | 26 | 8 | 26 (~629) | 26,60 to 26,65 | 400 | ||||||||||||||||
£ 2.75 per unit (click for quantity discounts) Ready to despatch 101 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 26 l1 8 Bearing dia. & no. 26 (~629) d2 26,60 to 26,65 Radial load
max.
N 400 | |||||||||||||||||||||
| P0397.HVL028-008 | 28 | 8 | 28 (~6001) | 28,60 to 28,65 | 440 | ||||||||||||||||
£ 2.85 per unit (click for quantity discounts) Ready to despatch 103 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 28 l1 8 Bearing dia. & no. 28 (~6001) d2 28,60 to 28,65 Radial load
max.
N 440 | |||||||||||||||||||||
| P0397.HVL030-009 | 30 | 9 | 30 (~6200) | 30,60 to 30,65 | 520 | ||||||||||||||||
£ 2.84 per unit (click for quantity discounts) Ready to despatch 96 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 30 l1 9 Bearing dia. & no. 30 (~6200) d2 30,60 to 30,65 Radial load
max.
N 520 | |||||||||||||||||||||
| P0397.HVL032-008 | 32 | 8 | 32 (~16002) | 32,60 to 32,65 | 500 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1 32 l1 8 Bearing dia. & no. 32 (~16002) d2 32,60 to 32,65 Radial load
max.
N 500 | |||||||||||||||||||||
| P0397.HVL032-009 | 32 | 9 | 32 (~6002) | 32,60 to 32,65 | 560 | ||||||||||||||||
£ 2.84 per unit (click for quantity discounts) Ready to despatch 105 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 32 l1 9 Bearing dia. & no. 32 (~6002) d2 32,60 to 32,65 Radial load
max.
N 560 | |||||||||||||||||||||
| P0397.HVL032-010 | 32 | 10 | 32 (~6201) | 32,60 to 32,65 | 620 | ||||||||||||||||
£ 2.84 per unit (click for quantity discounts) Ready to despatch 80 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 32 l1 10 Bearing dia. & no. 32 (~6201) d2 32,60 to 32,65 Radial load
max.
N 620 | |||||||||||||||||||||
| P0397.HVL035-010 | 35 | 10 | 35 (~6003) | 35,60 to 35,65 | 750 | ||||||||||||||||
£ 3.20 per unit (click for quantity discounts) Ready to despatch 74 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 35 l1 10 Bearing dia. & no. 35 (~6003) d2 35,60 to 35,65 Radial load
max.
N 750 | |||||||||||||||||||||
| P0397.HVL035-015 | 35 | 15 | 35 (~6202) | 35,60 to 35,65 | 1050 | ||||||||||||||||
£ 3.70 per unit (click for quantity discounts) Ready to despatch 40 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 35 l1 15 Bearing dia. & no. 35 (~6202) d2 35,60 to 35,65 Radial load
max.
N 1050 | |||||||||||||||||||||
| P0397.HVL052-015 | 52 | 15 | 52 (~6205) | 52,60 to 52,65 | 1600 | ||||||||||||||||
£ 4.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 52 l1 15 Bearing dia. & no. 52 (~6205) d2 52,60 to 52,65 Radial load
max.
N 1600 | |||||||||||||||||||||
Technical & Application
Material
Stainless steel (type 304, DIN 1.4301).
Technical Notes

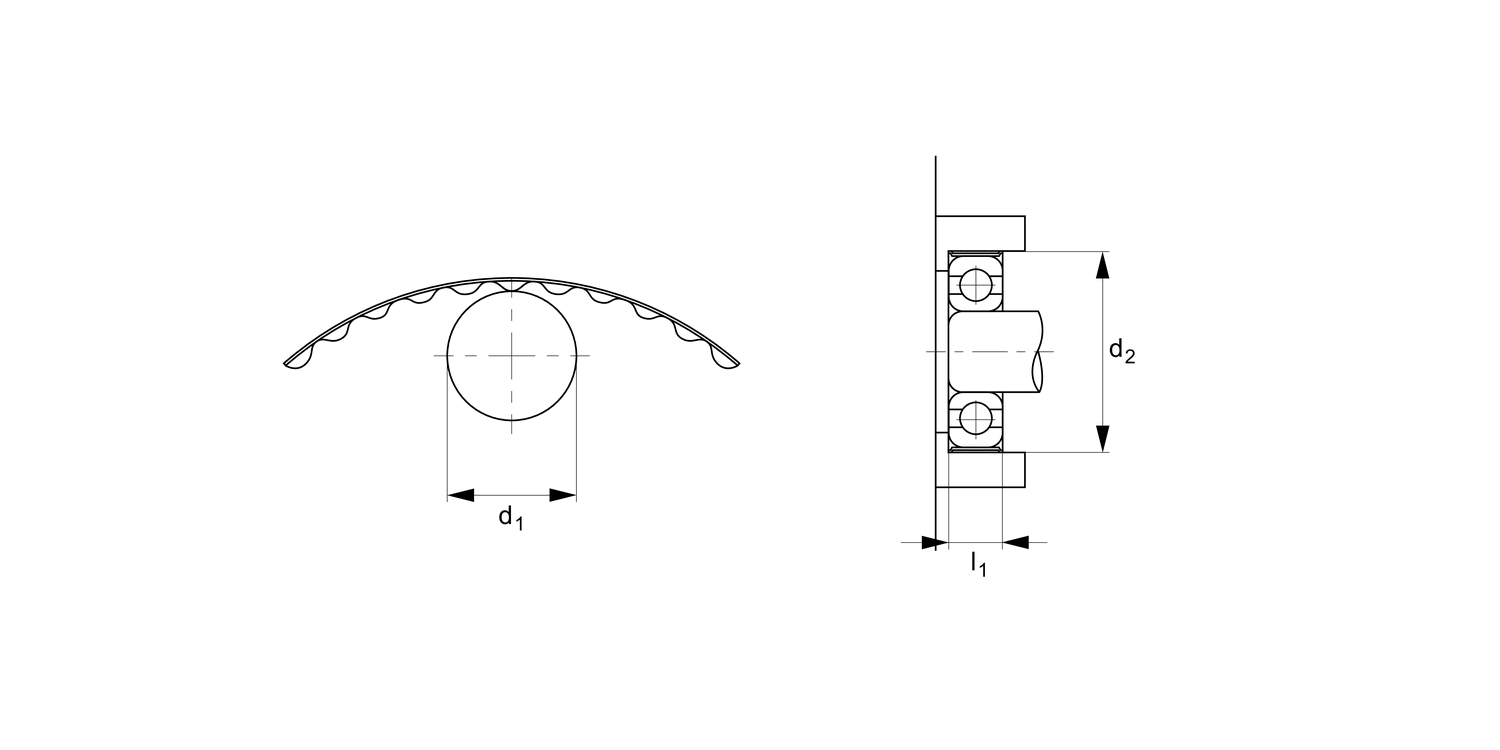

The waves are on the inside, the ring sits on the housing bore with the waves being compressed by the shaft diameter. Used as a bearing mount where the bearings are required to float axially.
