P0396 Tolerance Rings - Hole Variable- HV type

HV type, A2 Stainless, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

SV Tolerance Rings
Stainless Steel

HV Tolerance Rings
Stainless Steel

Bearing Tolerance Rings
for light section bearings

Tolerance Ring HV Type Ø4x6 A2 s/s .

P0396.HV004-006

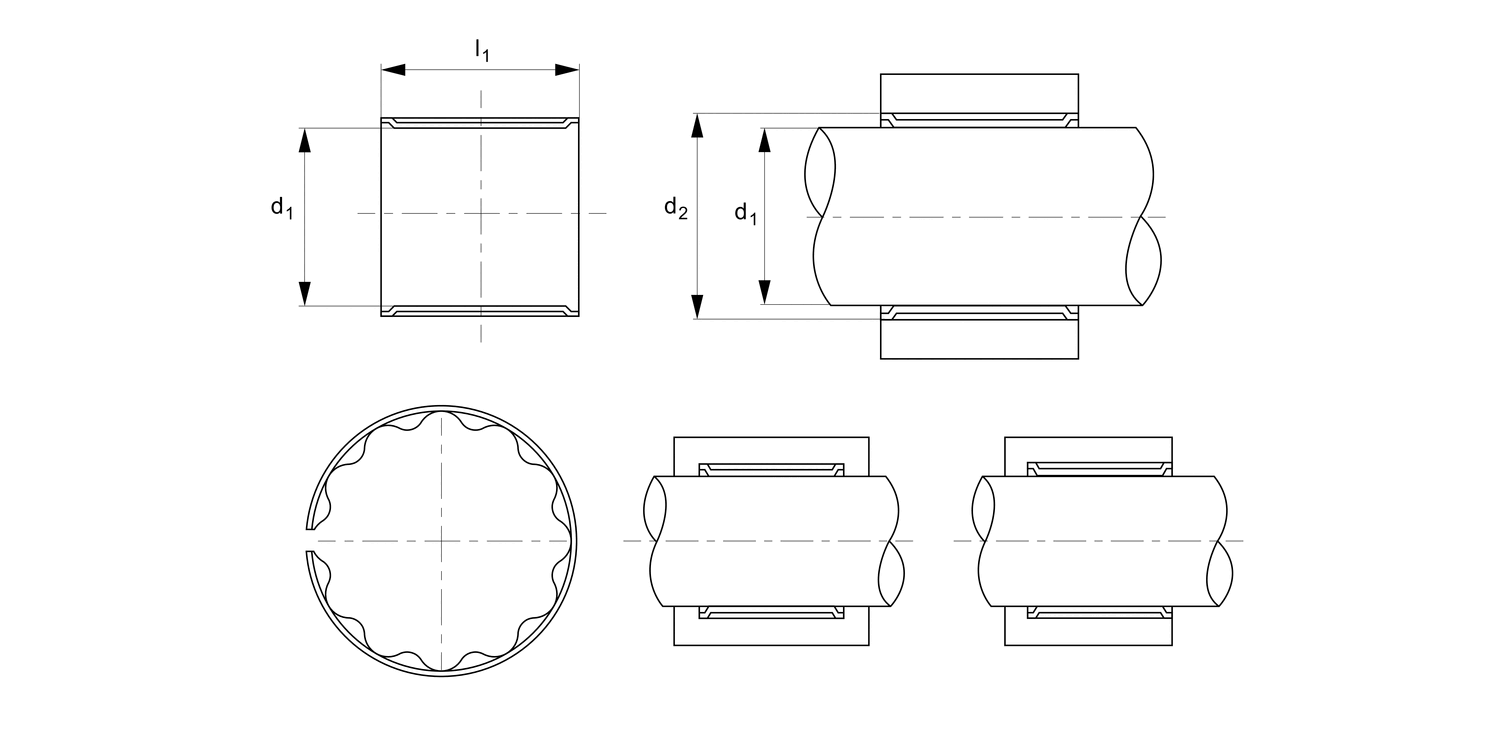

d₁ tol. H9

4

d₁ nom.

4

l

6

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.15

Radial load max. N

80

Material

Steel

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø4x8 A2 s/s .

P0396.HV004-008

d₁ tol. H9

4

d₁ nom.

4

l

8

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.25

Radial load max. N

90

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø4x10 A2 s/s .

P0396.HV004-010

d₁ tol. H9

4

d₁ nom.

4

l

10

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.35

Radial load max. N

95

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x5 A2 s/s .

P0396.HV005-005

d₁ tol. H9

5

d₁ nom.

5

l

5

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

0.45

Radial load max. N

100

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x8 A2 s/s .

P0396.HV005-008

d₁ tol. H9

5

d₁ nom.

5

l

8

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

0.66

Radial load max. N

160

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x12 A2 s/s .

P0396.HV005-012

d₁ tol. H9

5

d₁ nom.

5

l

12

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

1.25

Radial load max. N

250

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x6 A2 s/s .

P0396.HV006-006

d₁ tol. H9

6

d₁ nom.

6

l

6

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

0.45

Radial load max. N

133

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x8 A2 s/s .

P0396.HV006-008

d₁ tol. H9

6

d₁ nom.

6

l

8

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

0.75

Radial load max. N

240

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x10 A2 s/s .

P0396.HV006-010

d₁ tol. H9

6

d₁ nom.

6

l

10

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

1.00

Radial load max. N

290

Material

Steel

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x15 A2 s/s .

P0396.HV006-015

d₁ tol. H9

6

d₁ nom.

6

l

15

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

1.20

Radial load max. N

300

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x6 A2 s/s .

P0396.HV008-006

d₁ tol. H9

8

d₁ nom.

8

l

6

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

1.00

Radial load max. N

240

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x8 A2 s/s .

P0396.HV008-008

d₁ tol. H9

8

d₁ nom.

8

l

8

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

1.45

Radial load max. N

360

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x12 A2 s/s .

P0396.HV008-012

d₁ tol. H9

8

d₁ nom.

8

l

12

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

2.00

Radial load max. N

580

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x14 A2 s/s .

P0396.HV008-014

d₁ tol. H9

8

d₁ nom.

8

l

14

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

2.10

Radial load max. N

600

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x4 A2 s/s .

P0396.HV010-004

d₁ tol. H9

10

d₁ nom.

10

l

4

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

0.95

Radial load max. N

480

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x6 A2 s/s .

P0396.HV010-006

d₁ tol. H9

10

d₁ nom.

10

l

6

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

2.30

Radial load max. N

850

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x8 A2 s/s .

P0396.HV010-008

d₁ tol. H9

10

d₁ nom.

10

l

8

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

2.50

Radial load max. N

1020

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x10 A2 s/s .

P0396.HV010-010

d₁ tol. H9

10

d₁ nom.

10

l

10

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

3.00

Radial load max. N

1220

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x12 A2 s/s .

P0396.HV010-012

d₁ tol. H9

10

d₁ nom.

10

l

12

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

3.50

Radial load max. N

1650

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV010-014

d₁ tol. H9

10

d₁ nom.

10

l

14

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

4.00

Radial load max. N

2050

Material

Stainless

Tolerance Rings - Hole Variable- HV type

P0396.HV010-018

d₁ tol. H9

10

d₁ nom.

10

l

18

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

4.50

Radial load max. N

2500

Material

Stainless

Tolerance Ring HV Type Ø12x4 A2 s/s .

P0396.HV012-004

d₁ tol. H9

12

d₁ nom.

12

l

4

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

1.60

Radial load max. N

720

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x6 A2 s/s .

P0396.HV012-006

d₁ tol. H9

12

d₁ nom.

12

l

6

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

3.00

Radial load max. N

1200

Material

Stainless

£ 2.34 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x10 A2 s/s .

P0396.HV012-010

d₁ tol. H9

12

d₁ nom.

12

l

10

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

4.00

Radial load max. N

1825

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x12 A2 s/s .

P0396.HV012-012

d₁ tol. H9

12

d₁ nom.

12

l

12

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

6.00

Radial load max. N

2400

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x16 A2 s/s .

P0396.HV012-016

d₁ tol. H9

12

d₁ nom.

12

l

16

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

8.00

Radial load max. N

3025

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x18 A2 s/s .

P0396.HV012-018

d₁ tol. H9

12

d₁ nom.

12

l

18

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

9.00

Radial load max. N

3350

Material

Stainless

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x8 A2 s/s .

P0396.HV014-008

d₁ tol. H9

14

d₁ nom.

14

l

8

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

5.00

Radial load max. N

1800

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x12 A2 s/s .

P0396.HV014-012

d₁ tol. H9

14

d₁ nom.

14

l

12

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

7.00

Radial load max. N

2410

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x14 A2 s/s .

P0396.HV014-014

d₁ tol. H9

14

d₁ nom.

14

l

14

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

9.00

Radial load max. N

2750

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x8 A2 s/s .

P0396.HV015-008

d₁ tol. H9

15

d₁ nom.

15

l

8

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

5.50

Radial load max. N

1825

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x12 A2 s/s .

P0396.HV015-012

d₁ tol. H9

15

d₁ nom.

15

l

12

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

7.50

Radial load max. N

2500

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x14 A2 s/s .

P0396.HV015-014

d₁ tol. H9

15

d₁ nom.

15

l

14

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

11.00

Radial load max. N

2925

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x22 A2 s/s .

P0396.HV015-022

d₁ tol. H9

15

d₁ nom.

15

l

22

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

14.00

Radial load max. N

3500

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x5 A2 s/s .

P0396.HV016-005

d₁ tol. H9

16

d₁ nom.

16

l

5

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

4.0

Radial load max. N

1100

Material

Stainless

£ 2.35 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x8 A2 s/s .

P0396.HV016-008

d₁ tol. H9

16

d₁ nom.

16

l

8

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

7.0

Radial load max. N

1900

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x10 A2 s/s .

P0396.HV016-010

d₁ tol. H9

16

d₁ nom.

16

l

10

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

8.0

Radial load max. N

2275

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x12 A2 s/s .

P0396.HV016-012

d₁ tol. H9

16

d₁ nom.

16

l

12

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

9.0

Radial load max. N

2800

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x16 A2 s/s .

P0396.HV016-016

d₁ tol. H9

16

d₁ nom.

16

l

16

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

14.0

Radial load max. N

3650

Material

Stainless

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x22 A2 s/s .

P0396.HV016-022

d₁ tol. H9

16

d₁ nom.

16

l

22

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

17.0

Radial load max. N

4500

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x6 A2 s/s .

P0396.HV018-006

d₁ tol. H9

18

d₁ nom.

18

l

6

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

6.5

Radial load max. N

1300

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x10 A2 s/s .

P0396.HV018-010

d₁ tol. H9

18

d₁ nom.

18

l

10

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

11.0

Radial load max. N

2450

Material

Stainless

£ 2.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x16 A2 s/s .

P0396.HV018-016

d₁ tol. H9

18

d₁ nom.

18

l

16

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

17.0

Radial load max. N

4100

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø19x506 A2 s/s .

P0396.HV019-006

d₁ tol. H9

19

d₁ nom.

19

l

6

d_{2 for bearings}

20,89 to 20,98

d_{2 for torque transfer}

20,67 to 20,75

Torque max. Nm

7.0

Radial load max. N

1875

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV009-016

d₁ tol. H9

19

d₁ nom.

19

l

16

d_{2 for bearings}

20,89 to 20,98

d_{2 for torque transfer}

20,67 to 20,75

Torque max. Nm

21.0

Radial load max. N

4450

Material

Steel

Tolerance Ring HV Type Ø20x12 A2 s/s .

P0396.HV020-012

d₁ tol. H9

20

d₁ nom.

20

l

12

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

18.0

Radial load max. N

3650

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x14 A2 s/s .

P0396.HV020-014

d₁ tol. H9

20

d₁ nom.

20

l

14

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

22.0

Radial load max. N

4300

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x16 A2 s/s .

P0396.HV020-016

d₁ tol. H9

20

d₁ nom.

20

l

16

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

24.0

Radial load max. N

4900

Material

Steel

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x20 A2 s/s .

P0396.HV020-020

d₁ tol. H9

20

d₁ nom.

20

l

20

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

30.0

Radial load max. N

6100

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x26 A2 s/s .

P0396.HV020-026

d₁ tol. H9

20

d₁ nom.

20

l

26

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

34.0

Radial load max. N

7250

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x5 A2 s/s .

P0396.HV022-005

d₁ tol. H9

22

d₁ nom.

22

l

5

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

12.0

Radial load max. N

1650

Material

Stainless

£ 2.15 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x7 A2 s/s .

P0396.HV022-007

d₁ tol. H9

22

d₁ nom.

22

l

7

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

16.0

Radial load max. N

2450

Material

Stainless

£ 2.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x10 A2 s/s .

P0396.HV022-010

d₁ tol. H9

22

d₁ nom.

22

l

10

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

18.0

Radial load max. N

3525

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x16 A2 s/s .

P0396.HV022-016

d₁ tol. H9

22

d₁ nom.

22

l

16

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

30.0

Radial load max. N

5450

Material

Steel

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x20 A2 s/s .

P0396.HV022-020

d₁ tol. H9

22

d₁ nom.

22

l

20

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

35.0

Radial load max. N

7000

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x22 A2 s/s .

P0396.HV022-022

d₁ tol. H9

22

d₁ nom.

22

l

22

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

38.0

Radial load max. N

8200

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x6 A2 s/s .

P0396.HV024-006

d₁ tol. H9

24

d₁ nom.

24

l

6

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

17.0

Radial load max. N

2320

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x7 A2 s/s .

P0396.HV024-007

d₁ tol. H9

24

d₁ nom.

24

l

7

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

18.0

Radial load max. N

2715

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x12 A2 s/s .

P0396.HV024-012

d₁ tol. H9

24

d₁ nom.

24

l

12

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

29.0

Radial load max. N

5550

Material

Stainless

£ 2.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x16 A2 s/s .

P0396.HV024-016

d₁ tol. H9

24

d₁ nom.

24

l

16

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

32.0

Radial load max. N

7800

Material

Steel

£ 2.88 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x20 A2 s/s .

P0396.HV024-020

d₁ tol. H9

24

d₁ nom.

24

l

20

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

45.0

Radial load max. N

9000

Material

Steel

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x10 A2 s/s .

P0396.HV025-010

d₁ tol. H9

25

d₁ nom.

25

l

10

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

24.0

Radial load max. N

4300

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x16 A2 s/s .

P0396.HV025-016

d₁ tol. H9

25

d₁ nom.

25

l

16

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

35.0

Radial load max. N

7800

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x20 A2 s/s .

P0396.HV025-020

d₁ tol. H9

25

d₁ nom.

25

l

20

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

47.0

Radial load max. N

9000

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x8 A2 s/s .

P0396.HV026-008

d₁ tol. H9

26

d₁ nom.

26

l

8

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

21.0

Radial load max. N

3425

Material

Stainless

£ 2.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x10 A2 s/s .

P0396.HV026-010

d₁ tol. H9

26

d₁ nom.

26

l

10

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

26.0

Radial load max. N

4500

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x16 A2 s/s .

P0396.HV026-016

d₁ tol. H9

26

d₁ nom.

26

l

16

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

43.0

Radial load max. N

8250

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x20 A2 s/s .

P0396.HV026-020

d₁ tol. H9

26

d₁ nom.

26

l

20

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

52.0

Radial load max. N

9600

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x8 A2 s/s .

P0396.HV028-008

d₁ tol. H9

28

d₁ nom.

28

l

8

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

27.0

Radial load max. N

4000

Material

Stainless

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x10 A2 s/s .

P0396.HV028-010

d₁ tol. H9

28

d₁ nom.

28

l

10

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

30.0

Radial load max. N

4700

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x12 A2 s/s .

P0396.HV028-012

d₁ tol. H9

28

d₁ nom.

28

l

12

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

39.0

Radial load max. N

6250

Material

Stainless

£ 2.88 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x14 A2 s/s .

P0396.HV028-014

d₁ tol. H9

28

d₁ nom.

28

l

14

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

45.0

Radial load max. N

7250

Material

Stainless

£ 2.90 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x20 A2 s/s .

P0396.HV028-020

d₁ tol. H9

28

d₁ nom.

28

l

20

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

55.0

Radial load max. N

9050

Material

Stainless

£ 3.54 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x30 A2 s/s .

P0396.HV028-030

d₁ tol. H9

28

d₁ nom.

28

l

30

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

92.0

Radial load max. N

15250

Material

Steel

£ 4.31 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x8 A2 s/s .

P0396.HV030-008

d₁ tol. H9

30

d₁ nom.

30

l

8

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

28.0

Radial load max. N

4100

Material

Stainless

£ 2.87 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x12 A2 s/s .

P0396.HV030-012

d₁ tol. H9

30

d₁ nom.

30

l

12

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

40.0

Radial load max. N

5700

Material

Stainless

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x16 A2 s/s .

P0396.HV030-016

d₁ tol. H9

30

d₁ nom.

30

l

16

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

50.0

Radial load max. N

8065

Material

Stainless

£ 3.39 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x30 A2 s/s .

P0396.HV030-030

d₁ tol. H9

30

d₁ nom.

30

l

30

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

95.0

Radial load max. N

15500

Material

Steel

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x8 A2 s/s .

P0396.HV032-008

d₁ tol. H9

32

d₁ nom.

32

l

8

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

30.0

Radial load max. N

3000

Material

Stainless

£ 2.87 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x10 A2 s/s .

P0396.HV032-010

d₁ tol. H9

32

d₁ nom.

32

l

10

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

35.0

Radial load max. N

3200

Material

Stainless

£ 3.20 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x14 A2 s/s .

P0396.HV032-014

d₁ tol. H9

32

d₁ nom.

32

l

14

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

50.0

Radial load max. N

4200

Material

Stainless

£ 3.04 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x30 A2 s/s .

P0396.HV032-030

d₁ tol. H9

32

d₁ nom.

32

l

30

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

115.0

Radial load max. N

18000

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x6 A2 s/s .

P0396.HV035-006

d₁ tol. H9

35

d₁ nom.

35

l

6

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

32.0

Radial load max. N

2900

Material

Steel

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x10 A2 s/s .

P0396.HV035-010

d₁ tol. H9

35

d₁ nom.

35

l

10

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

43.0

Radial load max. N

3350

Material

Stainless

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x14 A2 s/s .

P0396.HV035-014

d₁ tol. H9

35

d₁ nom.

35

l

14

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

58.0

Radial load max. N

5000

Material

Stainless

£ 3.24 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x16 A2 s/s .

P0396.HV035-016

d₁ tol. H9

35

d₁ nom.

35

l

16

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

70.0

Radial load max. N

8200

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x8 A2 s/s .

P0396.HV040-008

d₁ tol. H9

40

d₁ nom.

40

l

8

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

54.0

Radial load max. N

2800

Material

Steel

£ 3.13 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV040-100

d₁ tol. H9

40

d₁ nom.

40

l

10

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

62.0

Radial load max. N

3300

Material

Steel

Tolerance Ring HV Type Ø40x12 A2 s/s .

P0396.HV040-012

d₁ tol. H9

40

d₁ nom.

40

l

12

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

72.0

Radial load max. N

4450

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x16 A2 s/s .

P0396.HV040-016

d₁ tol. H9

40

d₁ nom.

40

l

16

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

91.0

Radial load max. N

6230

Material

Stainless

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x20 A2 s/s .

P0396.HV040-020

d₁ tol. H9

40

d₁ nom.

40

l

20

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

125.0

Radial load max. N

8450

Material

Stainless

£ 5.03 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x30 A2 s/s .

P0396.HV040-030

d₁ tol. H9

40

d₁ nom.

40

l

30

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

180.0

Radial load max. N

12000

Material

Stainless

£ 5.30 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø42x12 A2 s/s .

P0396.HV042-012

d₁ tol. H9

42

d₁ nom.

42

l

12

d_{2 for bearings}

43,89 to 43,98

d_{2 for torque transfer}

43,67 to 43,75

Torque max. Nm

75.0

Radial load max. N

4900

Material

Stainless

£ 3.46 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø42x30 A2 s/s .

P0396.HV042-030

d₁ tol. H9

42

d₁ nom.

42

l

30

d_{2 for bearings}

43,89 to 43,98

d_{2 for torque transfer}

43,67 to 43,75

Torque max. Nm

225.0

Radial load max. N

13250

Material

Stainless

£ 5.07 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø45x12 A2 s/s .

P0396.HV045-012

d₁ tol. H9

45

d₁ nom.

45

l

12

d_{2 for bearings}

46,89 to 46,98

d_{2 for torque transfer}

46,67 to 46,75

Torque max. Nm

90.0

Radial load max. N

6000

Material

Stainless

£ 4.19 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø45x20 A2 s/s .

P0396.HV045-020

d₁ tol. H9

45

d₁ nom.

45

l

20

d_{2 for bearings}

46,89 to 46,98

d_{2 for torque transfer}

46,67 to 46,75

Torque max. Nm

165.0

Radial load max. N

8700

Material

Stainless

£ 5.59 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x6 A2 s/s .

P0396.HV047-006

d₁ tol. H9

47

d₁ nom.

47

l

6

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

65.0

Radial load max. N

2450

Material

Steel

£ 3.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x8 A2 s/s .

P0396.HV047-008

d₁ tol. H9

47

d₁ nom.

47

l

8

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

76.0

Radial load max. N

2850

Material

Steel

£ 3.54 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x14 A2 s/s .

P0396.HV047-014

d₁ tol. H9

47

d₁ nom.

47

l

14

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

117.0

Radial load max. N

6230

Material

Steel

£ 4.16 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x18 A2 s/s .

P0396.HV047-018

d₁ tol. H9

47

d₁ nom.

47

l

18

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

175.0

Radial load max. N

8300

Material

Stainless

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x20 A2 s/s .

P0396.HV047-020

d₁ tol. H9

47

d₁ nom.

47

l

20

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

210.0

Radial load max. N

8450

Material

Stainless

£ 4.40 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x22 A2 s/s .

P0396.HV047-022

d₁ tol. H9

47

d₁ nom.

47

l

22

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

235.0

Radial load max. N

10750

Material

Stainless

£ 4.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø50x15 A2 s/s .

P0396.HV050-015

d₁ tol. H9

50

d₁ nom.

50

l

15

d_{2 for bearings}

52,35 to 52,47

d_{2 for torque transfer}

52,03 to 52,15

Torque max. Nm

157.0

Radial load max. N

6600

Material

Stainless

£ 4.02 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø50x20 A2 s/s .

P0396.HV050-020

d₁ tol. H9

50

d₁ nom.

50

l

20

d_{2 for bearings}

52,35 to 52,47

d_{2 for torque transfer}

52,03 to 52,15

Torque max. Nm

215.0

Radial load max. N

10100

Material

Stainless

£ 4.40 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø52x8 A2 s/s .

P0396.HV052-008

d₁ tol. H9

52

d₁ nom.

52

l

8

d_{2 for bearings}

54,35 to 54,47

d_{2 for torque transfer}

54,03 to 54,15

Torque max. Nm

100.0

Radial load max. N

3200

Material

Steel

£ 3.83 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø52x15 A2 s/s .

P0396.HV052-015

d₁ tol. H9

52

d₁ nom.

52

l

15

d_{2 for bearings}

54,35 to 54,47

d_{2 for torque transfer}

54,03 to 54,15

Torque max. Nm

165.0

Radial load max. N

7120

Material

Stainless

£ 4.30 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø55x12 A2 s/s .

P0396.HV055-012

d₁ tol. H9

55

d₁ nom.

55

l

12

d_{2 for bearings}

57,35 to 57,47

d_{2 for torque transfer}

57,03 to 57,15

Torque max. Nm

156.0

Radial load max. N

5550

Material

Stainless

£ 4.35 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV055-020

d₁ tol. H9

55

d₁ nom.

55

l

20

d_{2 for bearings}

57,35 to 57,47

d_{2 for torque transfer}

57,03 to 57,15

Torque max. Nm

260.0

Radial load max. N

10750

Material

Stainless

Tolerance Ring HV Type Ø60x15 A2 s/s .

P0396.HV060-015

d₁ tol. H9

60

d₁ nom.

60

l

15

d_{2 for bearings}

62,35 to 62,47

d_{2 for torque transfer}

62,03 to 62,15

Torque max. Nm

280.0

Radial load max. N

8800

Material

Stainless

£ 4.48 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø60x25 A2 s/s .

P0396.HV060-025

d₁ tol. H9

60

d₁ nom.

60

l

25

d_{2 for bearings}

62,35 to 62,47

d_{2 for torque transfer}

62,03 to 62,15

Torque max. Nm

475.0

Radial load max. N

15500

Material

Stainless

£ 5.74 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø62x10 A2 s/s .

P0396.HV062-010

d₁ tol. H9

62

d₁ nom.

62

l

10

d_{2 for bearings}

64,35 to 64,47

d_{2 for torque transfer}

64,03 to 64,15

Torque max. Nm

215.0

Radial load max. N

5300

Material

Stainless

£ 4.68 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø62x15 A2 s/s .

P0396.HV062-015

d₁ tol. H9

62

d₁ nom.

62

l

15

d_{2 for bearings}

64,35 to 64,47

d_{2 for torque transfer}

64,03 to 64,15

Torque max. Nm

290.0

Radial load max. N

8450

Material

Stainless

£ 4.87 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV065-025

d₁ tol. H9

65

d₁ nom.

65

l

25

d_{2 for bearings}

67,35 to 67,47

d_{2 for torque transfer}

67,03 to 67,15

Torque max. Nm

520.0

Radial load max. N

14900

Material

Stainless

Tolerance Rings - Hole Variable- HV type

P0396.HV065-063

d₁ tol. H9

65

d₁ nom.

65

l

63

d_{2 for bearings}

67,35 to 67,47

d_{2 for torque transfer}

67,03 to 67,15

Torque max. Nm

850.0

Radial load max. N

46000

Material

Stainless

Tolerance Ring HV Type Ø70x25 A2 s/s .

P0396.HV070-025

d₁ tol. H9

70

d₁ nom.

70

l

25

d_{2 for bearings}

72,35 to 72,47

d_{2 for torque transfer}

72,03 to 72,15

Torque max. Nm

550.0

Radial load max. N

16900

Material

Stainless

£ 7.01 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x10 A2 s/s .

P0396.HV072-010

d₁ tol. H9

72

d₁ nom.

72

l

10

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

230.0

Radial load max. N

6000

Material

Stainless

£ 6.56 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x17 A2 s/s .

P0396.HV072-017

d₁ tol. H9

72

d₁ nom.

72

l

17

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

420.0

Radial load max. N

13000

Material

Stainless

£ 6.93 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x19 A2 s/s .

P0396.HV072-019

d₁ tol. H9

72

d₁ nom.

72

l

19

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

470.0

Radial load max. N

14500

Material

Stainless

£ 6.70 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x20 A2 s/s .

P0396.HV072-020

d₁ tol. H9

72

d₁ nom.

72

l

20

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

490.0

Radial load max. N

15000

Material

Stainless

£ 7.01 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø75x16 A2 s/s .

P0396.HV075-016

d₁ tol. H9

75

d₁ nom.

75

l

16

d_{2 for bearings}

77,35 to 77,47

d_{2 for torque transfer}

77,03 to 77,15

Torque max. Nm

520.0

Radial load max. N

13000

Material

Stainless

£ 7.33 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø75x20 A2 s/s .

P0396.HV075-020

d₁ tol. H9

75

d₁ nom.

75

l

20

d_{2 for bearings}

77,35 to 77,47

d_{2 for torque transfer}

77,03 to 77,15

Torque max. Nm

600.0

Radial load max. N

17000

Material

Stainless

£ 6.92 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø80x12 A2 s/s .

P0396.HV080-012

d₁ tol. H9

80

d₁ nom.

80

l

12

d_{2 for bearings}

82,35 to 82,47

d_{2 for torque transfer}

82,03 to 82,15

Torque max. Nm

280.0

Radial load max. N

11000

Material

Steel

£ 8.56 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø80x20 A2 s/s .

P0396.HV080-020

d₁ tol. H9

80

d₁ nom.

80

l

20

d_{2 for bearings}

82,35 to 82,47

d_{2 for torque transfer}

82,03 to 82,15

Torque max. Nm

630.0

Radial load max. N

16800

Material

Stainless

£ 9.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø84x12 A2 s/s .

P0396.HV084-012

d₁ tol. H9

84

d₁ nom.

84

l

12

d_{2 for bearings}

86,82 to 86,96

d_{2 for torque transfer}

86,42 to 86,56

Torque max. Nm

490.0

Radial load max. N

13000

Material

Stainless

£ 8.65 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø85x19 A2 s/s .

P0396.HV085-019

d₁ tol. H9

85

d₁ nom.

85

l

19

d_{2 for bearings}

87,82 to 87,96

d_{2 for torque transfer}

87,42 to 87,56

Torque max. Nm

700.0

Radial load max. N

17000

Material

Steel

£ 10.60 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x15 A2 s/s .

P0396.HV090-015

d₁ tol. H9

90

d₁ nom.

90

l

15

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

560.0

Radial load max. N

14000

Material

Stainless

£ 9.60 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x20 A2 s/s .

P0396.HV090-020

d₁ tol. H9

90

d₁ nom.

90

l

20

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

770.0

Radial load max. N

18000

Material

Steel

£ 11.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x23 A2 s/s .

P0396.HV090-023

d₁ tol. H9

90

d₁ nom.

90

l

23

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

870.0

Radial load max. N

21000

Material

Steel

£ 11.14 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x25 A2 s/s .

P0396.HV090-025

d₁ tol. H9

90

d₁ nom.

90

l

25

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

950.0

Radial load max. N

22500

Material

Stainless

£ 12.37 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø4x6 A2 s/s .

P0396.HV004-006

d₁ tol. H9

4

d₁ nom.

4

l

6

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.15

Radial load max. N

80

Material

Steel

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø4x8 A2 s/s .

P0396.HV004-008

d₁ tol. H9

4

d₁ nom.

4

l

8

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.25

Radial load max. N

90

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø4x10 A2 s/s .

P0396.HV004-010

d₁ tol. H9

4

d₁ nom.

4

l

10

d_{2 for bearings}

4,93 to 4,95

d_{2 for torque transfer}

4,82 to 4,86

Torque max. Nm

0.35

Radial load max. N

95

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x5 A2 s/s .

P0396.HV005-005

d₁ tol. H9

5

d₁ nom.

5

l

5

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

0.45

Radial load max. N

100

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x8 A2 s/s .

P0396.HV005-008

d₁ tol. H9

5

d₁ nom.

5

l

8

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

0.66

Radial load max. N

160

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø5x12 A2 s/s .

P0396.HV005-012

d₁ tol. H9

5

d₁ nom.

5

l

12

d_{2 for bearings}

5,93 to 5,95

d_{2 for torque transfer}

5,82 to 5,86

Torque max. Nm

1.25

Radial load max. N

250

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x6 A2 s/s .

P0396.HV006-006

d₁ tol. H9

6

d₁ nom.

6

l

6

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

0.45

Radial load max. N

133

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x8 A2 s/s .

P0396.HV006-008

d₁ tol. H9

6

d₁ nom.

6

l

8

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

0.75

Radial load max. N

240

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x10 A2 s/s .

P0396.HV006-010

d₁ tol. H9

6

d₁ nom.

6

l

10

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

1.00

Radial load max. N

290

Material

Steel

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x15 A2 s/s .

P0396.HV006-015

d₁ tol. H9

6

d₁ nom.

6

l

15

d_{2 for bearings}

6,93 to 6,985

d_{2 for torque transfer}

6,82 to 6,86

Torque max. Nm

1.20

Radial load max. N

300

Material

Steel

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x6 A2 s/s .

P0396.HV008-006

d₁ tol. H9

8

d₁ nom.

8

l

6

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

1.00

Radial load max. N

240

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x8 A2 s/s .

P0396.HV008-008

d₁ tol. H9

8

d₁ nom.

8

l

8

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

1.45

Radial load max. N

360

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x12 A2 s/s .

P0396.HV008-012

d₁ tol. H9

8

d₁ nom.

8

l

12

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

2.00

Radial load max. N

580

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø8x14 A2 s/s .

P0396.HV008-014

d₁ tol. H9

8

d₁ nom.

8

l

14

d_{2 for bearings}

9,41 to 9,48

d_{2 for torque transfer}

9,23 to 9,30

Torque max. Nm

2.10

Radial load max. N

600

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x4 A2 s/s .

P0396.HV010-004

d₁ tol. H9

10

d₁ nom.

10

l

4

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

0.95

Radial load max. N

480

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x6 A2 s/s .

P0396.HV010-006

d₁ tol. H9

10

d₁ nom.

10

l

6

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

2.30

Radial load max. N

850

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x8 A2 s/s .

P0396.HV010-008

d₁ tol. H9

10

d₁ nom.

10

l

8

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

2.50

Radial load max. N

1020

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x10 A2 s/s .

P0396.HV010-010

d₁ tol. H9

10

d₁ nom.

10

l

10

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

3.00

Radial load max. N

1220

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø10x12 A2 s/s .

P0396.HV010-012

d₁ tol. H9

10

d₁ nom.

10

l

12

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

3.50

Radial load max. N

1650

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV010-014

d₁ tol. H9

10

d₁ nom.

10

l

14

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

4.00

Radial load max. N

2050

Material

Stainless

Tolerance Rings - Hole Variable- HV type

P0396.HV010-018

d₁ tol. H9

10

d₁ nom.

10

l

18

d_{2 for bearings}

11,41 to 11,48

d_{2 for torque transfer}

11,23 to 11,30

Torque max. Nm

4.50

Radial load max. N

2500

Material

Stainless

Tolerance Ring HV Type Ø12x4 A2 s/s .

P0396.HV012-004

d₁ tol. H9

12

d₁ nom.

12

l

4

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

1.60

Radial load max. N

720

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x6 A2 s/s .

P0396.HV012-006

d₁ tol. H9

12

d₁ nom.

12

l

6

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

3.00

Radial load max. N

1200

Material

Stainless

£ 2.34 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x10 A2 s/s .

P0396.HV012-010

d₁ tol. H9

12

d₁ nom.

12

l

10

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

4.00

Radial load max. N

1825

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x12 A2 s/s .

P0396.HV012-012

d₁ tol. H9

12

d₁ nom.

12

l

12

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

6.00

Radial load max. N

2400

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x16 A2 s/s .

P0396.HV012-016

d₁ tol. H9

12

d₁ nom.

12

l

16

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

8.00

Radial load max. N

3025

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø12x18 A2 s/s .

P0396.HV012-018

d₁ tol. H9

12

d₁ nom.

12

l

18

d_{2 for bearings}

13,41 to 13,48

d_{2 for torque transfer}

13,23 to 13,30

Torque max. Nm

9.00

Radial load max. N

3350

Material

Stainless

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x8 A2 s/s .

P0396.HV014-008

d₁ tol. H9

14

d₁ nom.

14

l

8

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

5.00

Radial load max. N

1800

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x12 A2 s/s .

P0396.HV014-012

d₁ tol. H9

14

d₁ nom.

14

l

12

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

7.00

Radial load max. N

2410

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø14x14 A2 s/s .

P0396.HV014-014

d₁ tol. H9

14

d₁ nom.

14

l

14

d_{2 for bearings}

15,41 to 15,48

d_{2 for torque transfer}

15,23 to 15,30

Torque max. Nm

9.00

Radial load max. N

2750

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x8 A2 s/s .

P0396.HV015-008

d₁ tol. H9

15

d₁ nom.

15

l

8

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

5.50

Radial load max. N

1825

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x12 A2 s/s .

P0396.HV015-012

d₁ tol. H9

15

d₁ nom.

15

l

12

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

7.50

Radial load max. N

2500

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x14 A2 s/s .

P0396.HV015-014

d₁ tol. H9

15

d₁ nom.

15

l

14

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

11.00

Radial load max. N

2925

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø15x22 A2 s/s .

P0396.HV015-022

d₁ tol. H9

15

d₁ nom.

15

l

22

d_{2 for bearings}

16,41 to 16,48

d_{2 for torque transfer}

16,23 to 16,30

Torque max. Nm

14.00

Radial load max. N

3500

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x5 A2 s/s .

P0396.HV016-005

d₁ tol. H9

16

d₁ nom.

16

l

5

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

4.0

Radial load max. N

1100

Material

Stainless

£ 2.35 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x8 A2 s/s .

P0396.HV016-008

d₁ tol. H9

16

d₁ nom.

16

l

8

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

7.0

Radial load max. N

1900

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x10 A2 s/s .

P0396.HV016-010

d₁ tol. H9

16

d₁ nom.

16

l

10

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

8.0

Radial load max. N

2275

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x12 A2 s/s .

P0396.HV016-012

d₁ tol. H9

16

d₁ nom.

16

l

12

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

9.0

Radial load max. N

2800

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø6x16 A2 s/s .

P0396.HV016-016

d₁ tol. H9

16

d₁ nom.

16

l

16

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

14.0

Radial load max. N

3650

Material

Stainless

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø16x22 A2 s/s .

P0396.HV016-022

d₁ tol. H9

16

d₁ nom.

16

l

22

d_{2 for bearings}

17,41 to 17,48

d_{2 for torque transfer}

17,23 to 17,30

Torque max. Nm

17.0

Radial load max. N

4500

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x6 A2 s/s .

P0396.HV018-006

d₁ tol. H9

18

d₁ nom.

18

l

6

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

6.5

Radial load max. N

1300

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x10 A2 s/s .

P0396.HV018-010

d₁ tol. H9

18

d₁ nom.

18

l

10

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

11.0

Radial load max. N

2450

Material

Stainless

£ 2.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø18x16 A2 s/s .

P0396.HV018-016

d₁ tol. H9

18

d₁ nom.

18

l

16

d_{2 for bearings}

19,89 to 19,98

d_{2 for torque transfer}

19,67 to 19,75

Torque max. Nm

17.0

Radial load max. N

4100

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø19x506 A2 s/s .

P0396.HV019-006

d₁ tol. H9

19

d₁ nom.

19

l

6

d_{2 for bearings}

20,89 to 20,98

d_{2 for torque transfer}

20,67 to 20,75

Torque max. Nm

7.0

Radial load max. N

1875

Material

Stainless

£ 2.26 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV009-016

d₁ tol. H9

19

d₁ nom.

19

l

16

d_{2 for bearings}

20,89 to 20,98

d_{2 for torque transfer}

20,67 to 20,75

Torque max. Nm

21.0

Radial load max. N

4450

Material

Steel

Tolerance Ring HV Type Ø20x12 A2 s/s .

P0396.HV020-012

d₁ tol. H9

20

d₁ nom.

20

l

12

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

18.0

Radial load max. N

3650

Material

Stainless

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x14 A2 s/s .

P0396.HV020-014

d₁ tol. H9

20

d₁ nom.

20

l

14

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

22.0

Radial load max. N

4300

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x16 A2 s/s .

P0396.HV020-016

d₁ tol. H9

20

d₁ nom.

20

l

16

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

24.0

Radial load max. N

4900

Material

Steel

£ 2.75 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x20 A2 s/s .

P0396.HV020-020

d₁ tol. H9

20

d₁ nom.

20

l

20

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

30.0

Radial load max. N

6100

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø20x26 A2 s/s .

P0396.HV020-026

d₁ tol. H9

20

d₁ nom.

20

l

26

d_{2 for bearings}

21,89 to 21,98

d_{2 for torque transfer}

21,67 to 21,75

Torque max. Nm

34.0

Radial load max. N

7250

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x5 A2 s/s .

P0396.HV022-005

d₁ tol. H9

22

d₁ nom.

22

l

5

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

12.0

Radial load max. N

1650

Material

Stainless

£ 2.15 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x7 A2 s/s .

P0396.HV022-007

d₁ tol. H9

22

d₁ nom.

22

l

7

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

16.0

Radial load max. N

2450

Material

Stainless

£ 2.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x10 A2 s/s .

P0396.HV022-010

d₁ tol. H9

22

d₁ nom.

22

l

10

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

18.0

Radial load max. N

3525

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x16 A2 s/s .

P0396.HV022-016

d₁ tol. H9

22

d₁ nom.

22

l

16

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

30.0

Radial load max. N

5450

Material

Steel

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x20 A2 s/s .

P0396.HV022-020

d₁ tol. H9

22

d₁ nom.

22

l

20

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

35.0

Radial load max. N

7000

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø22x22 A2 s/s .

P0396.HV022-022

d₁ tol. H9

22

d₁ nom.

22

l

22

d_{2 for bearings}

23,89 to 23,98

d_{2 for torque transfer}

23,67 to 23,75

Torque max. Nm

38.0

Radial load max. N

8200

Material

Steel

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x6 A2 s/s .

P0396.HV024-006

d₁ tol. H9

24

d₁ nom.

24

l

6

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

17.0

Radial load max. N

2320

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x7 A2 s/s .

P0396.HV024-007

d₁ tol. H9

24

d₁ nom.

24

l

7

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

18.0

Radial load max. N

2715

Material

Stainless

£ 2.45 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x12 A2 s/s .

P0396.HV024-012

d₁ tol. H9

24

d₁ nom.

24

l

12

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

29.0

Radial load max. N

5550

Material

Stainless

£ 2.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x16 A2 s/s .

P0396.HV024-016

d₁ tol. H9

24

d₁ nom.

24

l

16

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

32.0

Radial load max. N

7800

Material

Steel

£ 2.88 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø24x20 A2 s/s .

P0396.HV024-020

d₁ tol. H9

24

d₁ nom.

24

l

20

d_{2 for bearings}

25,89 to 25,98

d_{2 for torque transfer}

25,67 to 25,75

Torque max. Nm

45.0

Radial load max. N

9000

Material

Steel

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x10 A2 s/s .

P0396.HV025-010

d₁ tol. H9

25

d₁ nom.

25

l

10

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

24.0

Radial load max. N

4300

Material

Steel

£ 2.57 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x16 A2 s/s .

P0396.HV025-016

d₁ tol. H9

25

d₁ nom.

25

l

16

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

35.0

Radial load max. N

7800

Material

Stainless

£ 2.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø25x20 A2 s/s .

P0396.HV025-020

d₁ tol. H9

25

d₁ nom.

25

l

20

d_{2 for bearings}

26,89 to 26,98

d_{2 for torque transfer}

26,67 to 26,75

Torque max. Nm

47.0

Radial load max. N

9000

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x8 A2 s/s .

P0396.HV026-008

d₁ tol. H9

26

d₁ nom.

26

l

8

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

21.0

Radial load max. N

3425

Material

Stainless

£ 2.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x10 A2 s/s .

P0396.HV026-010

d₁ tol. H9

26

d₁ nom.

26

l

10

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

26.0

Radial load max. N

4500

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x16 A2 s/s .

P0396.HV026-016

d₁ tol. H9

26

d₁ nom.

26

l

16

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

43.0

Radial load max. N

8250

Material

Stainless

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø26x20 A2 s/s .

P0396.HV026-020

d₁ tol. H9

26

d₁ nom.

26

l

20

d_{2 for bearings}

27,89 to 27,98

d_{2 for torque transfer}

27,67 to 27,75

Torque max. Nm

52.0

Radial load max. N

9600

Material

Stainless

£ 3.10 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x8 A2 s/s .

P0396.HV028-008

d₁ tol. H9

28

d₁ nom.

28

l

8

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

27.0

Radial load max. N

4000

Material

Stainless

£ 2.58 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x10 A2 s/s .

P0396.HV028-010

d₁ tol. H9

28

d₁ nom.

28

l

10

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

30.0

Radial load max. N

4700

Material

Stainless

£ 2.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x12 A2 s/s .

P0396.HV028-012

d₁ tol. H9

28

d₁ nom.

28

l

12

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

39.0

Radial load max. N

6250

Material

Stainless

£ 2.88 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x14 A2 s/s .

P0396.HV028-014

d₁ tol. H9

28

d₁ nom.

28

l

14

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

45.0

Radial load max. N

7250

Material

Stainless

£ 2.90 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x20 A2 s/s .

P0396.HV028-020

d₁ tol. H9

28

d₁ nom.

28

l

20

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

55.0

Radial load max. N

9050

Material

Stainless

£ 3.54 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø28x30 A2 s/s .

P0396.HV028-030

d₁ tol. H9

28

d₁ nom.

28

l

30

d_{2 for bearings}

29,89 to 29,98

d_{2 for torque transfer}

29,67 to 29,75

Torque max. Nm

92.0

Radial load max. N

15250

Material

Steel

£ 4.31 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x8 A2 s/s .

P0396.HV030-008

d₁ tol. H9

30

d₁ nom.

30

l

8

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

28.0

Radial load max. N

4100

Material

Stainless

£ 2.87 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x12 A2 s/s .

P0396.HV030-012

d₁ tol. H9

30

d₁ nom.

30

l

12

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

40.0

Radial load max. N

5700

Material

Stainless

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x16 A2 s/s .

P0396.HV030-016

d₁ tol. H9

30

d₁ nom.

30

l

16

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

50.0

Radial load max. N

8065

Material

Stainless

£ 3.39 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø30x30 A2 s/s .

P0396.HV030-030

d₁ tol. H9

30

d₁ nom.

30

l

30

d_{2 for bearings}

31,89 to 31,98

d_{2 for torque transfer}

31,67 to 31,75

Torque max. Nm

95.0

Radial load max. N

15500

Material

Steel

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x8 A2 s/s .

P0396.HV032-008

d₁ tol. H9

32

d₁ nom.

32

l

8

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

30.0

Radial load max. N

3000

Material

Stainless

£ 2.87 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x10 A2 s/s .

P0396.HV032-010

d₁ tol. H9

32

d₁ nom.

32

l

10

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

35.0

Radial load max. N

3200

Material

Stainless

£ 3.20 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x14 A2 s/s .

P0396.HV032-014

d₁ tol. H9

32

d₁ nom.

32

l

14

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

50.0

Radial load max. N

4200

Material

Stainless

£ 3.04 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø32x30 A2 s/s .

P0396.HV032-030

d₁ tol. H9

32

d₁ nom.

32

l

30

d_{2 for bearings}

33,89 to 33,98

d_{2 for torque transfer}

33,67 to 33,75

Torque max. Nm

115.0

Radial load max. N

18000

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x6 A2 s/s .

P0396.HV035-006

d₁ tol. H9

35

d₁ nom.

35

l

6

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

32.0

Radial load max. N

2900

Material

Steel

£ 2.76 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x10 A2 s/s .

P0396.HV035-010

d₁ tol. H9

35

d₁ nom.

35

l

10

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

43.0

Radial load max. N

3350

Material

Stainless

£ 3.06 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x14 A2 s/s .

P0396.HV035-014

d₁ tol. H9

35

d₁ nom.

35

l

14

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

58.0

Radial load max. N

5000

Material

Stainless

£ 3.24 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø35x16 A2 s/s .

P0396.HV035-016

d₁ tol. H9

35

d₁ nom.

35

l

16

d_{2 for bearings}

36,89 to 36,98

d_{2 for torque transfer}

36,67 to 36,75

Torque max. Nm

70.0

Radial load max. N

8200

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x8 A2 s/s .

P0396.HV040-008

d₁ tol. H9

40

d₁ nom.

40

l

8

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

54.0

Radial load max. N

2800

Material

Steel

£ 3.13 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV040-100

d₁ tol. H9

40

d₁ nom.

40

l

10

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

62.0

Radial load max. N

3300

Material

Steel

Tolerance Ring HV Type Ø40x12 A2 s/s .

P0396.HV040-012

d₁ tol. H9

40

d₁ nom.

40

l

12

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

72.0

Radial load max. N

4450

Material

Stainless

£ 3.36 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x16 A2 s/s .

P0396.HV040-016

d₁ tol. H9

40

d₁ nom.

40

l

16

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

91.0

Radial load max. N

6230

Material

Stainless

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x20 A2 s/s .

P0396.HV040-020

d₁ tol. H9

40

d₁ nom.

40

l

20

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

125.0

Radial load max. N

8450

Material

Stainless

£ 5.03 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø40x30 A2 s/s .

P0396.HV040-030

d₁ tol. H9

40

d₁ nom.

40

l

30

d_{2 for bearings}

41,89 to 41,98

d_{2 for torque transfer}

41,67 to 41,75

Torque max. Nm

180.0

Radial load max. N

12000

Material

Stainless

£ 5.30 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø42x12 A2 s/s .

P0396.HV042-012

d₁ tol. H9

42

d₁ nom.

42

l

12

d_{2 for bearings}

43,89 to 43,98

d_{2 for torque transfer}

43,67 to 43,75

Torque max. Nm

75.0

Radial load max. N

4900

Material

Stainless

£ 3.46 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø42x30 A2 s/s .

P0396.HV042-030

d₁ tol. H9

42

d₁ nom.

42

l

30

d_{2 for bearings}

43,89 to 43,98

d_{2 for torque transfer}

43,67 to 43,75

Torque max. Nm

225.0

Radial load max. N

13250

Material

Stainless

£ 5.07 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø45x12 A2 s/s .

P0396.HV045-012

d₁ tol. H9

45

d₁ nom.

45

l

12

d_{2 for bearings}

46,89 to 46,98

d_{2 for torque transfer}

46,67 to 46,75

Torque max. Nm

90.0

Radial load max. N

6000

Material

Stainless

£ 4.19 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø45x20 A2 s/s .

P0396.HV045-020

d₁ tol. H9

45

d₁ nom.

45

l

20

d_{2 for bearings}

46,89 to 46,98

d_{2 for torque transfer}

46,67 to 46,75

Torque max. Nm

165.0

Radial load max. N

8700

Material

Stainless

£ 5.59 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x6 A2 s/s .

P0396.HV047-006

d₁ tol. H9

47

d₁ nom.

47

l

6

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

65.0

Radial load max. N

2450

Material

Steel

£ 3.69 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x8 A2 s/s .

P0396.HV047-008

d₁ tol. H9

47

d₁ nom.

47

l

8

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

76.0

Radial load max. N

2850

Material

Steel

£ 3.54 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x14 A2 s/s .

P0396.HV047-014

d₁ tol. H9

47

d₁ nom.

47

l

14

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

117.0

Radial load max. N

6230

Material

Steel

£ 4.16 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x18 A2 s/s .

P0396.HV047-018

d₁ tol. H9

47

d₁ nom.

47

l

18

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

175.0

Radial load max. N

8300

Material

Stainless

£ 4.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x20 A2 s/s .

P0396.HV047-020

d₁ tol. H9

47

d₁ nom.

47

l

20

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

210.0

Radial load max. N

8450

Material

Stainless

£ 4.40 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø47x22 A2 s/s .

P0396.HV047-022

d₁ tol. H9

47

d₁ nom.

47

l

22

d_{2 for bearings}

48,89 to 48,98

d_{2 for torque transfer}

48,67 to 48,75

Torque max. Nm

235.0

Radial load max. N

10750

Material

Stainless

£ 4.63 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø50x15 A2 s/s .

P0396.HV050-015

d₁ tol. H9

50

d₁ nom.

50

l

15

d_{2 for bearings}

52,35 to 52,47

d_{2 for torque transfer}

52,03 to 52,15

Torque max. Nm

157.0

Radial load max. N

6600

Material

Stainless

£ 4.02 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø50x20 A2 s/s .

P0396.HV050-020

d₁ tol. H9

50

d₁ nom.

50

l

20

d_{2 for bearings}

52,35 to 52,47

d_{2 for torque transfer}

52,03 to 52,15

Torque max. Nm

215.0

Radial load max. N

10100

Material

Stainless

£ 4.40 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø52x8 A2 s/s .

P0396.HV052-008

d₁ tol. H9

52

d₁ nom.

52

l

8

d_{2 for bearings}

54,35 to 54,47

d_{2 for torque transfer}

54,03 to 54,15

Torque max. Nm

100.0

Radial load max. N

3200

Material

Steel

£ 3.83 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø52x15 A2 s/s .

P0396.HV052-015

d₁ tol. H9

52

d₁ nom.

52

l

15

d_{2 for bearings}

54,35 to 54,47

d_{2 for torque transfer}

54,03 to 54,15

Torque max. Nm

165.0

Radial load max. N

7120

Material

Stainless

£ 4.30 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø55x12 A2 s/s .

P0396.HV055-012

d₁ tol. H9

55

d₁ nom.

55

l

12

d_{2 for bearings}

57,35 to 57,47

d_{2 for torque transfer}

57,03 to 57,15

Torque max. Nm

156.0

Radial load max. N

5550

Material

Stainless

£ 4.35 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV055-020

d₁ tol. H9

55

d₁ nom.

55

l

20

d_{2 for bearings}

57,35 to 57,47

d_{2 for torque transfer}

57,03 to 57,15

Torque max. Nm

260.0

Radial load max. N

10750

Material

Stainless

Tolerance Ring HV Type Ø60x15 A2 s/s .

P0396.HV060-015

d₁ tol. H9

60

d₁ nom.

60

l

15

d_{2 for bearings}

62,35 to 62,47

d_{2 for torque transfer}

62,03 to 62,15

Torque max. Nm

280.0

Radial load max. N

8800

Material

Stainless

£ 4.48 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø60x25 A2 s/s .

P0396.HV060-025

d₁ tol. H9

60

d₁ nom.

60

l

25

d_{2 for bearings}

62,35 to 62,47

d_{2 for torque transfer}

62,03 to 62,15

Torque max. Nm

475.0

Radial load max. N

15500

Material

Stainless

£ 5.74 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø62x10 A2 s/s .

P0396.HV062-010

d₁ tol. H9

62

d₁ nom.

62

l

10

d_{2 for bearings}

64,35 to 64,47

d_{2 for torque transfer}

64,03 to 64,15

Torque max. Nm

215.0

Radial load max. N

5300

Material

Stainless

£ 4.68 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø62x15 A2 s/s .

P0396.HV062-015

d₁ tol. H9

62

d₁ nom.

62

l

15

d_{2 for bearings}

64,35 to 64,47

d_{2 for torque transfer}

64,03 to 64,15

Torque max. Nm

290.0

Radial load max. N

8450

Material

Stainless

£ 4.87 per unit (click for quantity discounts)

Tolerance Rings - Hole Variable- HV type

P0396.HV065-025

d₁ tol. H9

65

d₁ nom.

65

l

25

d_{2 for bearings}

67,35 to 67,47

d_{2 for torque transfer}

67,03 to 67,15

Torque max. Nm

520.0

Radial load max. N

14900

Material

Stainless

Tolerance Rings - Hole Variable- HV type

P0396.HV065-063

d₁ tol. H9

65

d₁ nom.

65

l

63

d_{2 for bearings}

67,35 to 67,47

d_{2 for torque transfer}

67,03 to 67,15

Torque max. Nm

850.0

Radial load max. N

46000

Material

Stainless

Tolerance Ring HV Type Ø70x25 A2 s/s .

P0396.HV070-025

d₁ tol. H9

70

d₁ nom.

70

l

25

d_{2 for bearings}

72,35 to 72,47

d_{2 for torque transfer}

72,03 to 72,15

Torque max. Nm

550.0

Radial load max. N

16900

Material

Stainless

£ 7.01 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x10 A2 s/s .

P0396.HV072-010

d₁ tol. H9

72

d₁ nom.

72

l

10

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

230.0

Radial load max. N

6000

Material

Stainless

£ 6.56 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x17 A2 s/s .

P0396.HV072-017

d₁ tol. H9

72

d₁ nom.

72

l

17

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

420.0

Radial load max. N

13000

Material

Stainless

£ 6.93 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x19 A2 s/s .

P0396.HV072-019

d₁ tol. H9

72

d₁ nom.

72

l

19

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

470.0

Radial load max. N

14500

Material

Stainless

£ 6.70 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø72x20 A2 s/s .

P0396.HV072-020

d₁ tol. H9

72

d₁ nom.

72

l

20

d_{2 for bearings}

74,35 to 74,47

d_{2 for torque transfer}

74,03 to 74,15

Torque max. Nm

490.0

Radial load max. N

15000

Material

Stainless

£ 7.01 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø75x16 A2 s/s .

P0396.HV075-016

d₁ tol. H9

75

d₁ nom.

75

l

16

d_{2 for bearings}

77,35 to 77,47

d_{2 for torque transfer}

77,03 to 77,15

Torque max. Nm

520.0

Radial load max. N

13000

Material

Stainless

£ 7.33 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø75x20 A2 s/s .

P0396.HV075-020

d₁ tol. H9

75

d₁ nom.

75

l

20

d_{2 for bearings}

77,35 to 77,47

d_{2 for torque transfer}

77,03 to 77,15

Torque max. Nm

600.0

Radial load max. N

17000

Material

Stainless

£ 6.92 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø80x12 A2 s/s .

P0396.HV080-012

d₁ tol. H9

80

d₁ nom.

80

l

12

d_{2 for bearings}

82,35 to 82,47

d_{2 for torque transfer}

82,03 to 82,15

Torque max. Nm

280.0

Radial load max. N

11000

Material

Steel

£ 8.56 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø80x20 A2 s/s .

P0396.HV080-020

d₁ tol. H9

80

d₁ nom.

80

l

20

d_{2 for bearings}

82,35 to 82,47

d_{2 for torque transfer}

82,03 to 82,15

Torque max. Nm

630.0

Radial load max. N

16800

Material

Stainless

£ 9.52 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø84x12 A2 s/s .

P0396.HV084-012

d₁ tol. H9

84

d₁ nom.

84

l

12

d_{2 for bearings}

86,82 to 86,96

d_{2 for torque transfer}

86,42 to 86,56

Torque max. Nm

490.0

Radial load max. N

13000

Material

Stainless

£ 8.65 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø85x19 A2 s/s .

P0396.HV085-019

d₁ tol. H9

85

d₁ nom.

85

l

19

d_{2 for bearings}

87,82 to 87,96

d_{2 for torque transfer}

87,42 to 87,56

Torque max. Nm

700.0

Radial load max. N

17000

Material

Steel

£ 10.60 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x15 A2 s/s .

P0396.HV090-015

d₁ tol. H9

90

d₁ nom.

90

l

15

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

560.0

Radial load max. N

14000

Material

Stainless

£ 9.60 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x20 A2 s/s .

P0396.HV090-020

d₁ tol. H9

90

d₁ nom.

90

l

20

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

770.0

Radial load max. N

18000

Material

Steel

£ 11.08 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x23 A2 s/s .

P0396.HV090-023

d₁ tol. H9

90

d₁ nom.

90

l

23

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

870.0

Radial load max. N

21000

Material

Steel

£ 11.14 per unit (click for quantity discounts)

Tolerance Ring HV Type Ø90x25 A2 s/s .

P0396.HV090-025

d₁ tol. H9

90

d₁ nom.

90

l

25

d_{2 for bearings}

92,82 to 92,96

d_{2 for torque transfer}

92,42 to 92,56

Torque max. Nm

950.0

Radial load max. N

22500

Material

Stainless

£ 12.37 per unit (click for quantity discounts)



Select all

d₁ tol. H9

d₁ nom.

l

d_{2 for bearings}

d_{2 for torque transfer}

Torque max. Nm

Radial load max. N

Material

Price & Availability	Article	d1 tol. H9	d1 nom.	l	d2 for bearings	d2 for torque transfer	Torque max. Nm	Radial load max. N	Material
	P0396.HV004-006	4	4	6	4,93 to 4,95	4,82 to 4,86	0.15	80	Steel
£ 2.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.58 0% 100-249 £ 2.32 10% 250-749 £ 2.06 20% 750+ £ 1.81 30% d1 tol. H9 4 d1 nom. 4 l 6 d2 for bearings 4,93 to 4,95 d2 for torque transfer 4,82 to 4,86 Torque max. Nm 0.15 Radial load max. N 80 Material Steel more info »
	P0396.HV004-008	4	4	8	4,93 to 4,95	4,82 to 4,86	0.25	90	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 4 d1 nom. 4 l 8 d2 for bearings 4,93 to 4,95 d2 for torque transfer 4,82 to 4,86 Torque max. Nm 0.25 Radial load max. N 90 Material Steel more info »
	P0396.HV004-010	4	4	10	4,93 to 4,95	4,82 to 4,86	0.35	95	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 4 d1 nom. 4 l 10 d2 for bearings 4,93 to 4,95 d2 for torque transfer 4,82 to 4,86 Torque max. Nm 0.35 Radial load max. N 95 Material Steel more info »
	P0396.HV005-005	5	5	5	5,93 to 5,95	5,82 to 5,86	0.45	100	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 359 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 5 d1 nom. 5 l 5 d2 for bearings 5,93 to 5,95 d2 for torque transfer 5,82 to 5,86 Torque max. Nm 0.45 Radial load max. N 100 Material Steel more info »
	P0396.HV005-008	5	5	8	5,93 to 5,95	5,82 to 5,86	0.66	160	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 325 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 5 d1 nom. 5 l 8 d2 for bearings 5,93 to 5,95 d2 for torque transfer 5,82 to 5,86 Torque max. Nm 0.66 Radial load max. N 160 Material Steel more info »
	P0396.HV005-012	5	5	12	5,93 to 5,95	5,82 to 5,86	1.25	250	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 50 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 5 d1 nom. 5 l 12 d2 for bearings 5,93 to 5,95 d2 for torque transfer 5,82 to 5,86 Torque max. Nm 1.25 Radial load max. N 250 Material Steel more info »
	P0396.HV006-006	6	6	6	6,93 to 6,985	6,82 to 6,86	0.45	133	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 40 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 6 d1 nom. 6 l 6 d2 for bearings 6,93 to 6,985 d2 for torque transfer 6,82 to 6,86 Torque max. Nm 0.45 Radial load max. N 133 Material Steel more info »
	P0396.HV006-008	6	6	8	6,93 to 6,985	6,82 to 6,86	0.75	240	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 6 d1 nom. 6 l 8 d2 for bearings 6,93 to 6,985 d2 for torque transfer 6,82 to 6,86 Torque max. Nm 0.75 Radial load max. N 240 Material Steel more info »
	P0396.HV006-010	6	6	10	6,93 to 6,985	6,82 to 6,86	1.00	290	Steel
£ 2.75 per unit (click for quantity discounts) Ready to despatch 300 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.75 0% 100-249 £ 2.48 10% 250-749 £ 2.20 20% 750+ £ 1.93 30% d1 tol. H9 6 d1 nom. 6 l 10 d2 for bearings 6,93 to 6,985 d2 for torque transfer 6,82 to 6,86 Torque max. Nm 1.00 Radial load max. N 290 Material Steel more info »
	P0396.HV006-015	6	6	15	6,93 to 6,985	6,82 to 6,86	1.20	300	Steel
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 6 d1 nom. 6 l 15 d2 for bearings 6,93 to 6,985 d2 for torque transfer 6,82 to 6,86 Torque max. Nm 1.20 Radial load max. N 300 Material Steel more info »
	P0396.HV008-006	8	8	6	9,41 to 9,48	9,23 to 9,30	1.00	240	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 8 d1 nom. 8 l 6 d2 for bearings 9,41 to 9,48 d2 for torque transfer 9,23 to 9,30 Torque max. Nm 1.00 Radial load max. N 240 Material Steel more info »
	P0396.HV008-008	8	8	8	9,41 to 9,48	9,23 to 9,30	1.45	360	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 8 d1 nom. 8 l 8 d2 for bearings 9,41 to 9,48 d2 for torque transfer 9,23 to 9,30 Torque max. Nm 1.45 Radial load max. N 360 Material Steel more info »
	P0396.HV008-012	8	8	12	9,41 to 9,48	9,23 to 9,30	2.00	580	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 8 d1 nom. 8 l 12 d2 for bearings 9,41 to 9,48 d2 for torque transfer 9,23 to 9,30 Torque max. Nm 2.00 Radial load max. N 580 Material Steel more info »
	P0396.HV008-014	8	8	14	9,41 to 9,48	9,23 to 9,30	2.10	600	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 8 d1 nom. 8 l 14 d2 for bearings 9,41 to 9,48 d2 for torque transfer 9,23 to 9,30 Torque max. Nm 2.10 Radial load max. N 600 Material Steel more info »
	P0396.HV010-004	10	10	4	11,41 to 11,48	11,23 to 11,30	0.95	480	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 10 d1 nom. 10 l 4 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 0.95 Radial load max. N 480 Material Stainless more info »
	P0396.HV010-006	10	10	6	11,41 to 11,48	11,23 to 11,30	2.30	850	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 114 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 10 d1 nom. 10 l 6 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 2.30 Radial load max. N 850 Material Stainless more info »
	P0396.HV010-008	10	10	8	11,41 to 11,48	11,23 to 11,30	2.50	1020	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 10 d1 nom. 10 l 8 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 2.50 Radial load max. N 1020 Material Stainless more info »
	P0396.HV010-010	10	10	10	11,41 to 11,48	11,23 to 11,30	3.00	1220	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 10 d1 nom. 10 l 10 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 3.00 Radial load max. N 1220 Material Stainless more info »
	P0396.HV010-012	10	10	12	11,41 to 11,48	11,23 to 11,30	3.50	1650	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 47 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 10 d1 nom. 10 l 12 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 3.50 Radial load max. N 1650 Material Stainless more info »
	P0396.HV010-014	10	10	14	11,41 to 11,48	11,23 to 11,30	4.00	2050	Stainless
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 10 d1 nom. 10 l 14 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 4.00 Radial load max. N 2050 Material Stainless more info »
	P0396.HV010-018	10	10	18	11,41 to 11,48	11,23 to 11,30	4.50	2500	Stainless
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 10 d1 nom. 10 l 18 d2 for bearings 11,41 to 11,48 d2 for torque transfer 11,23 to 11,30 Torque max. Nm 4.50 Radial load max. N 2500 Material Stainless more info »
	P0396.HV012-004	12	12	4	13,41 to 13,48	13,23 to 13,30	1.60	720	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 75 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 12 d1 nom. 12 l 4 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 1.60 Radial load max. N 720 Material Stainless more info »
	P0396.HV012-006	12	12	6	13,41 to 13,48	13,23 to 13,30	3.00	1200	Stainless
£ 2.34 per unit (click for quantity discounts) Ready to despatch 83 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.34 0% 100-249 £ 2.11 10% 250-749 £ 1.87 20% 750+ £ 1.64 30% d1 tol. H9 12 d1 nom. 12 l 6 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 3.00 Radial load max. N 1200 Material Stainless more info »
	P0396.HV012-010	12	12	10	13,41 to 13,48	13,23 to 13,30	4.00	1825	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 12 d1 nom. 12 l 10 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 4.00 Radial load max. N 1825 Material Stainless more info »
	P0396.HV012-012	12	12	12	13,41 to 13,48	13,23 to 13,30	6.00	2400	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 12 d1 nom. 12 l 12 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 6.00 Radial load max. N 2400 Material Stainless more info »
	P0396.HV012-016	12	12	16	13,41 to 13,48	13,23 to 13,30	8.00	3025	Stainless
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 12 d1 nom. 12 l 16 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 8.00 Radial load max. N 3025 Material Stainless more info »
	P0396.HV012-018	12	12	18	13,41 to 13,48	13,23 to 13,30	9.00	3350	Stainless
£ 2.75 per unit (click for quantity discounts) Ready to despatch 72 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.75 0% 100-249 £ 2.48 10% 250-749 £ 2.20 20% 750+ £ 1.93 30% d1 tol. H9 12 d1 nom. 12 l 18 d2 for bearings 13,41 to 13,48 d2 for torque transfer 13,23 to 13,30 Torque max. Nm 9.00 Radial load max. N 3350 Material Stainless more info »
	P0396.HV014-008	14	14	8	15,41 to 15,48	15,23 to 15,30	5.00	1800	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 98 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 14 d1 nom. 14 l 8 d2 for bearings 15,41 to 15,48 d2 for torque transfer 15,23 to 15,30 Torque max. Nm 5.00 Radial load max. N 1800 Material Stainless more info »
	P0396.HV014-012	14	14	12	15,41 to 15,48	15,23 to 15,30	7.00	2410	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 14 d1 nom. 14 l 12 d2 for bearings 15,41 to 15,48 d2 for torque transfer 15,23 to 15,30 Torque max. Nm 7.00 Radial load max. N 2410 Material Stainless more info »
	P0396.HV014-014	14	14	14	15,41 to 15,48	15,23 to 15,30	9.00	2750	Stainless
£ 2.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.52 0% 100-249 £ 2.27 10% 250-749 £ 2.02 20% 750+ £ 1.76 30% d1 tol. H9 14 d1 nom. 14 l 14 d2 for bearings 15,41 to 15,48 d2 for torque transfer 15,23 to 15,30 Torque max. Nm 9.00 Radial load max. N 2750 Material Stainless more info »
	P0396.HV015-008	15	15	8	16,41 to 16,48	16,23 to 16,30	5.50	1825	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 98 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 15 d1 nom. 15 l 8 d2 for bearings 16,41 to 16,48 d2 for torque transfer 16,23 to 16,30 Torque max. Nm 5.50 Radial load max. N 1825 Material Stainless more info »
	P0396.HV015-012	15	15	12	16,41 to 16,48	16,23 to 16,30	7.50	2500	Stainless
£ 2.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.52 0% 100-249 £ 2.27 10% 250-749 £ 2.02 20% 750+ £ 1.76 30% d1 tol. H9 15 d1 nom. 15 l 12 d2 for bearings 16,41 to 16,48 d2 for torque transfer 16,23 to 16,30 Torque max. Nm 7.50 Radial load max. N 2500 Material Stainless more info »
	P0396.HV015-014	15	15	14	16,41 to 16,48	16,23 to 16,30	11.00	2925	Stainless
£ 2.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.52 0% 100-249 £ 2.27 10% 250-749 £ 2.02 20% 750+ £ 1.76 30% d1 tol. H9 15 d1 nom. 15 l 14 d2 for bearings 16,41 to 16,48 d2 for torque transfer 16,23 to 16,30 Torque max. Nm 11.00 Radial load max. N 2925 Material Stainless more info »
	P0396.HV015-022	15	15	22	16,41 to 16,48	16,23 to 16,30	14.00	3500	Stainless
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 15 d1 nom. 15 l 22 d2 for bearings 16,41 to 16,48 d2 for torque transfer 16,23 to 16,30 Torque max. Nm 14.00 Radial load max. N 3500 Material Stainless more info »
	P0396.HV016-005	16	16	5	17,41 to 17,48	17,23 to 17,30	4.0	1100	Stainless
£ 2.35 per unit (click for quantity discounts) Ready to despatch 154 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.35 0% 100-249 £ 2.12 10% 250-749 £ 1.88 20% 750+ £ 1.65 30% d1 tol. H9 16 d1 nom. 16 l 5 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 4.0 Radial load max. N 1100 Material Stainless more info »
	P0396.HV016-008	16	16	8	17,41 to 17,48	17,23 to 17,30	7.0	1900	Stainless
£ 2.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.26 0% 100-249 £ 2.03 10% 250-749 £ 1.81 20% 750+ £ 1.58 30% d1 tol. H9 16 d1 nom. 16 l 8 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 7.0 Radial load max. N 1900 Material Stainless more info »
	P0396.HV016-010	16	16	10	17,41 to 17,48	17,23 to 17,30	8.0	2275	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 110 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 16 d1 nom. 16 l 10 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 8.0 Radial load max. N 2275 Material Stainless more info »
	P0396.HV016-012	16	16	12	17,41 to 17,48	17,23 to 17,30	9.0	2800	Stainless
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 16 d1 nom. 16 l 12 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 9.0 Radial load max. N 2800 Material Stainless more info »
	P0396.HV016-016	16	16	16	17,41 to 17,48	17,23 to 17,30	14.0	3650	Stainless
£ 2.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.58 0% 100-249 £ 2.32 10% 250-749 £ 2.06 20% 750+ £ 1.81 30% d1 tol. H9 16 d1 nom. 16 l 16 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 14.0 Radial load max. N 3650 Material Stainless more info »
	P0396.HV016-022	16	16	22	17,41 to 17,48	17,23 to 17,30	17.0	4500	Stainless
£ 2.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.76 0% 100-249 £ 2.48 10% 250-749 £ 2.21 20% 750+ £ 1.93 30% d1 tol. H9 16 d1 nom. 16 l 22 d2 for bearings 17,41 to 17,48 d2 for torque transfer 17,23 to 17,30 Torque max. Nm 17.0 Radial load max. N 4500 Material Stainless more info »
	P0396.HV018-006	18	18	6	19,89 to 19,98	19,67 to 19,75	6.5	1300	Stainless
£ 2.26 per unit (click for quantity discounts) Ready to despatch 279 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.26 0% 100-249 £ 2.03 10% 250-749 £ 1.81 20% 750+ £ 1.58 30% d1 tol. H9 18 d1 nom. 18 l 6 d2 for bearings 19,89 to 19,98 d2 for torque transfer 19,67 to 19,75 Torque max. Nm 6.5 Radial load max. N 1300 Material Stainless more info »
	P0396.HV018-010	18	18	10	19,89 to 19,98	19,67 to 19,75	11.0	2450	Stainless
£ 2.36 per unit (click for quantity discounts) Ready to despatch 180 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.36 0% 100-249 £ 2.12 10% 250-749 £ 1.89 20% 750+ £ 1.65 30% d1 tol. H9 18 d1 nom. 18 l 10 d2 for bearings 19,89 to 19,98 d2 for torque transfer 19,67 to 19,75 Torque max. Nm 11.0 Radial load max. N 2450 Material Stainless more info »
	P0396.HV018-016	18	18	16	19,89 to 19,98	19,67 to 19,75	17.0	4100	Stainless
£ 2.76 per unit (click for quantity discounts) Ready to despatch 200 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.76 0% 100-249 £ 2.48 10% 250-749 £ 2.21 20% 750+ £ 1.93 30% d1 tol. H9 18 d1 nom. 18 l 16 d2 for bearings 19,89 to 19,98 d2 for torque transfer 19,67 to 19,75 Torque max. Nm 17.0 Radial load max. N 4100 Material Stainless more info »
	P0396.HV019-006	19	19	6	20,89 to 20,98	20,67 to 20,75	7.0	1875	Stainless
£ 2.26 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.26 0% 100-249 £ 2.03 10% 250-749 £ 1.81 20% 750+ £ 1.58 30% d1 tol. H9 19 d1 nom. 19 l 6 d2 for bearings 20,89 to 20,98 d2 for torque transfer 20,67 to 20,75 Torque max. Nm 7.0 Radial load max. N 1875 Material Stainless more info »
	P0396.HV009-016	19	19	16	20,89 to 20,98	20,67 to 20,75	21.0	4450	Steel
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 19 d1 nom. 19 l 16 d2 for bearings 20,89 to 20,98 d2 for torque transfer 20,67 to 20,75 Torque max. Nm 21.0 Radial load max. N 4450 Material Steel more info »
	P0396.HV020-012	20	20	12	21,89 to 21,98	21,67 to 21,75	18.0	3650	Stainless
£ 2.57 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 20 d1 nom. 20 l 12 d2 for bearings 21,89 to 21,98 d2 for torque transfer 21,67 to 21,75 Torque max. Nm 18.0 Radial load max. N 3650 Material Stainless more info »
	P0396.HV020-014	20	20	14	21,89 to 21,98	21,67 to 21,75	22.0	4300	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 20 d1 nom. 20 l 14 d2 for bearings 21,89 to 21,98 d2 for torque transfer 21,67 to 21,75 Torque max. Nm 22.0 Radial load max. N 4300 Material Steel more info »
	P0396.HV020-016	20	20	16	21,89 to 21,98	21,67 to 21,75	24.0	4900	Steel
£ 2.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.75 0% 100-249 £ 2.48 10% 250-749 £ 2.20 20% 750+ £ 1.93 30% d1 tol. H9 20 d1 nom. 20 l 16 d2 for bearings 21,89 to 21,98 d2 for torque transfer 21,67 to 21,75 Torque max. Nm 24.0 Radial load max. N 4900 Material Steel more info »
	P0396.HV020-020	20	20	20	21,89 to 21,98	21,67 to 21,75	30.0	6100	Steel
£ 3.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.06 0% 100-249 £ 2.75 10% 250-749 £ 2.45 20% 750+ £ 2.14 30% d1 tol. H9 20 d1 nom. 20 l 20 d2 for bearings 21,89 to 21,98 d2 for torque transfer 21,67 to 21,75 Torque max. Nm 30.0 Radial load max. N 6100 Material Steel more info »
	P0396.HV020-026	20	20	26	21,89 to 21,98	21,67 to 21,75	34.0	7250	Stainless
£ 3.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.10 0% 100-249 £ 2.79 10% 250-749 £ 2.48 20% 750+ £ 2.17 30% d1 tol. H9 20 d1 nom. 20 l 26 d2 for bearings 21,89 to 21,98 d2 for torque transfer 21,67 to 21,75 Torque max. Nm 34.0 Radial load max. N 7250 Material Stainless more info »
	P0396.HV022-005	22	22	5	23,89 to 23,98	23,67 to 23,75	12.0	1650	Stainless
£ 2.15 per unit (click for quantity discounts) Ready to despatch 180 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.15 0% 100-249 £ 1.94 10% 250-749 £ 1.72 20% 750+ £ 1.51 30% d1 tol. H9 22 d1 nom. 22 l 5 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 12.0 Radial load max. N 1650 Material Stainless more info »
	P0396.HV022-007	22	22	7	23,89 to 23,98	23,67 to 23,75	16.0	2450	Stainless
£ 2.36 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.36 0% 100-249 £ 2.12 10% 250-749 £ 1.89 20% 750+ £ 1.65 30% d1 tol. H9 22 d1 nom. 22 l 7 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 16.0 Radial load max. N 2450 Material Stainless more info »
	P0396.HV022-010	22	22	10	23,89 to 23,98	23,67 to 23,75	18.0	3525	Stainless
£ 2.45 per unit (click for quantity discounts) Ready to despatch 666 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.45 0% 100-249 £ 2.21 10% 250-749 £ 1.96 20% 750+ £ 1.72 30% d1 tol. H9 22 d1 nom. 22 l 10 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 18.0 Radial load max. N 3525 Material Stainless more info »
	P0396.HV022-016	22	22	16	23,89 to 23,98	23,67 to 23,75	30.0	5450	Steel
£ 2.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.76 0% 100-249 £ 2.48 10% 250-749 £ 2.21 20% 750+ £ 1.93 30% d1 tol. H9 22 d1 nom. 22 l 16 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 30.0 Radial load max. N 5450 Material Steel more info »
	P0396.HV022-020	22	22	20	23,89 to 23,98	23,67 to 23,75	35.0	7000	Steel
£ 3.06 per unit (click for quantity discounts) Ready to despatch 92 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.06 0% 100-249 £ 2.75 10% 250-749 £ 2.45 20% 750+ £ 2.14 30% d1 tol. H9 22 d1 nom. 22 l 20 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 35.0 Radial load max. N 7000 Material Steel more info »
	P0396.HV022-022	22	22	22	23,89 to 23,98	23,67 to 23,75	38.0	8200	Steel
£ 3.06 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.06 0% 100-249 £ 2.75 10% 250-749 £ 2.45 20% 750+ £ 2.14 30% d1 tol. H9 22 d1 nom. 22 l 22 d2 for bearings 23,89 to 23,98 d2 for torque transfer 23,67 to 23,75 Torque max. Nm 38.0 Radial load max. N 8200 Material Steel more info »
	P0396.HV024-006	24	24	6	25,89 to 25,98	25,67 to 25,75	17.0	2320	Stainless
£ 2.45 per unit (click for quantity discounts) Ready to despatch 80 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.45 0% 100-249 £ 2.21 10% 250-749 £ 1.96 20% 750+ £ 1.72 30% d1 tol. H9 24 d1 nom. 24 l 6 d2 for bearings 25,89 to 25,98 d2 for torque transfer 25,67 to 25,75 Torque max. Nm 17.0 Radial load max. N 2320 Material Stainless more info »
	P0396.HV024-007	24	24	7	25,89 to 25,98	25,67 to 25,75	18.0	2715	Stainless
£ 2.45 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.45 0% 100-249 £ 2.21 10% 250-749 £ 1.96 20% 750+ £ 1.72 30% d1 tol. H9 24 d1 nom. 24 l 7 d2 for bearings 25,89 to 25,98 d2 for torque transfer 25,67 to 25,75 Torque max. Nm 18.0 Radial load max. N 2715 Material Stainless more info »
	P0396.HV024-012	24	24	12	25,89 to 25,98	25,67 to 25,75	29.0	5550	Stainless
£ 2.69 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.69 0% 100-249 £ 2.42 10% 250-749 £ 2.15 20% 750+ £ 1.88 30% d1 tol. H9 24 d1 nom. 24 l 12 d2 for bearings 25,89 to 25,98 d2 for torque transfer 25,67 to 25,75 Torque max. Nm 29.0 Radial load max. N 5550 Material Stainless more info »
	P0396.HV024-016	24	24	16	25,89 to 25,98	25,67 to 25,75	32.0	7800	Steel
£ 2.88 per unit (click for quantity discounts) Ready to despatch 182 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.88 0% 100-249 £ 2.59 10% 250-749 £ 2.30 20% 750+ £ 2.02 30% d1 tol. H9 24 d1 nom. 24 l 16 d2 for bearings 25,89 to 25,98 d2 for torque transfer 25,67 to 25,75 Torque max. Nm 32.0 Radial load max. N 7800 Material Steel more info »
	P0396.HV024-020	24	24	20	25,89 to 25,98	25,67 to 25,75	45.0	9000	Steel
£ 3.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.10 0% 100-249 £ 2.79 10% 250-749 £ 2.48 20% 750+ £ 2.17 30% d1 tol. H9 24 d1 nom. 24 l 20 d2 for bearings 25,89 to 25,98 d2 for torque transfer 25,67 to 25,75 Torque max. Nm 45.0 Radial load max. N 9000 Material Steel more info »
	P0396.HV025-010	25	25	10	26,89 to 26,98	26,67 to 26,75	24.0	4300	Steel
£ 2.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.57 0% 100-249 £ 2.31 10% 250-749 £ 2.06 20% 750+ £ 1.80 30% d1 tol. H9 25 d1 nom. 25 l 10 d2 for bearings 26,89 to 26,98 d2 for torque transfer 26,67 to 26,75 Torque max. Nm 24.0 Radial load max. N 4300 Material Steel more info »
	P0396.HV025-016	25	25	16	26,89 to 26,98	26,67 to 26,75	35.0	7800	Stainless
£ 2.52 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.52 0% 100-249 £ 2.27 10% 250-749 £ 2.02 20% 750+ £ 1.76 30% d1 tol. H9 25 d1 nom. 25 l 16 d2 for bearings 26,89 to 26,98 d2 for torque transfer 26,67 to 26,75 Torque max. Nm 35.0 Radial load max. N 7800 Material Stainless more info »
	P0396.HV025-020	25	25	20	26,89 to 26,98	26,67 to 26,75	47.0	9000	Stainless
£ 3.10 per unit (click for quantity discounts) Ready to despatch 150 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.10 0% 100-249 £ 2.79 10% 250-749 £ 2.48 20% 750+ £ 2.17 30% d1 tol. H9 25 d1 nom. 25 l 20 d2 for bearings 26,89 to 26,98 d2 for torque transfer 26,67 to 26,75 Torque max. Nm 47.0 Radial load max. N 9000 Material Stainless more info »
	P0396.HV026-008	26	26	8	27,89 to 27,98	27,67 to 27,75	21.0	3425	Stainless
£ 2.69 per unit (click for quantity discounts) Ready to despatch 101 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.69 0% 100-249 £ 2.42 10% 250-749 £ 2.15 20% 750+ £ 1.88 30% d1 tol. H9 26 d1 nom. 26 l 8 d2 for bearings 27,89 to 27,98 d2 for torque transfer 27,67 to 27,75 Torque max. Nm 21.0 Radial load max. N 3425 Material Stainless more info »
	P0396.HV026-010	26	26	10	27,89 to 27,98	27,67 to 27,75	26.0	4500	Stainless
£ 2.63 per unit (click for quantity discounts) Ready to despatch 75 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 26 d1 nom. 26 l 10 d2 for bearings 27,89 to 27,98 d2 for torque transfer 27,67 to 27,75 Torque max. Nm 26.0 Radial load max. N 4500 Material Stainless more info »
	P0396.HV026-016	26	26	16	27,89 to 27,98	27,67 to 27,75	43.0	8250	Stainless
£ 2.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.76 0% 100-249 £ 2.48 10% 250-749 £ 2.21 20% 750+ £ 1.93 30% d1 tol. H9 26 d1 nom. 26 l 16 d2 for bearings 27,89 to 27,98 d2 for torque transfer 27,67 to 27,75 Torque max. Nm 43.0 Radial load max. N 8250 Material Stainless more info »
	P0396.HV026-020	26	26	20	27,89 to 27,98	27,67 to 27,75	52.0	9600	Stainless
£ 3.10 per unit (click for quantity discounts) Ready to despatch 192 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.10 0% 100-249 £ 2.79 10% 250-749 £ 2.48 20% 750+ £ 2.17 30% d1 tol. H9 26 d1 nom. 26 l 20 d2 for bearings 27,89 to 27,98 d2 for torque transfer 27,67 to 27,75 Torque max. Nm 52.0 Radial load max. N 9600 Material Stainless more info »
	P0396.HV028-008	28	28	8	29,89 to 29,98	29,67 to 29,75	27.0	4000	Stainless
£ 2.58 per unit (click for quantity discounts) Ready to despatch 584 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.58 0% 100-249 £ 2.32 10% 250-749 £ 2.06 20% 750+ £ 1.81 30% d1 tol. H9 28 d1 nom. 28 l 8 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 27.0 Radial load max. N 4000 Material Stainless more info »
	P0396.HV028-010	28	28	10	29,89 to 29,98	29,67 to 29,75	30.0	4700	Stainless
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.63 0% 100-249 £ 2.37 10% 250-749 £ 2.10 20% 750+ £ 1.84 30% d1 tol. H9 28 d1 nom. 28 l 10 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 30.0 Radial load max. N 4700 Material Stainless more info »
	P0396.HV028-012	28	28	12	29,89 to 29,98	29,67 to 29,75	39.0	6250	Stainless
£ 2.88 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.88 0% 100-249 £ 2.59 10% 250-749 £ 2.30 20% 750+ £ 2.02 30% d1 tol. H9 28 d1 nom. 28 l 12 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 39.0 Radial load max. N 6250 Material Stainless more info »
	P0396.HV028-014	28	28	14	29,89 to 29,98	29,67 to 29,75	45.0	7250	Stainless
£ 2.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.90 0% 100-249 £ 2.61 10% 250-749 £ 2.32 20% 750+ £ 2.03 30% d1 tol. H9 28 d1 nom. 28 l 14 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 45.0 Radial load max. N 7250 Material Stainless more info »
	P0396.HV028-020	28	28	20	29,89 to 29,98	29,67 to 29,75	55.0	9050	Stainless
£ 3.54 per unit (click for quantity discounts) Ready to despatch 38 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.54 0% 100-249 £ 3.19 10% 250-749 £ 2.83 20% 750+ £ 2.48 30% d1 tol. H9 28 d1 nom. 28 l 20 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 55.0 Radial load max. N 9050 Material Stainless more info »
	P0396.HV028-030	28	28	30	29,89 to 29,98	29,67 to 29,75	92.0	15250	Steel
£ 4.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.31 0% 100-249 £ 3.88 10% 250-749 £ 3.45 20% 750+ £ 3.02 30% d1 tol. H9 28 d1 nom. 28 l 30 d2 for bearings 29,89 to 29,98 d2 for torque transfer 29,67 to 29,75 Torque max. Nm 92.0 Radial load max. N 15250 Material Steel more info »
	P0396.HV030-008	30	30	8	31,89 to 31,98	31,67 to 31,75	28.0	4100	Stainless
£ 2.87 per unit (click for quantity discounts) Ready to despatch 86 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.87 0% 100-249 £ 2.58 10% 250-749 £ 2.30 20% 750+ £ 2.01 30% d1 tol. H9 30 d1 nom. 30 l 8 d2 for bearings 31,89 to 31,98 d2 for torque transfer 31,67 to 31,75 Torque max. Nm 28.0 Radial load max. N 4100 Material Stainless more info »
	P0396.HV030-012	30	30	12	31,89 to 31,98	31,67 to 31,75	40.0	5700	Stainless
£ 3.06 per unit (click for quantity discounts) Ready to despatch 92 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.06 0% 100-249 £ 2.75 10% 250-749 £ 2.45 20% 750+ £ 2.14 30% d1 tol. H9 30 d1 nom. 30 l 12 d2 for bearings 31,89 to 31,98 d2 for torque transfer 31,67 to 31,75 Torque max. Nm 40.0 Radial load max. N 5700 Material Stainless more info »
	P0396.HV030-016	30	30	16	31,89 to 31,98	31,67 to 31,75	50.0	8065	Stainless
£ 3.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.39 0% 100-249 £ 3.05 10% 250-749 £ 2.71 20% 750+ £ 2.37 30% d1 tol. H9 30 d1 nom. 30 l 16 d2 for bearings 31,89 to 31,98 d2 for torque transfer 31,67 to 31,75 Torque max. Nm 50.0 Radial load max. N 8065 Material Stainless more info »
	P0396.HV030-030	30	30	30	31,89 to 31,98	31,67 to 31,75	95.0	15500	Steel
£ 4.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.08 0% 100-249 £ 3.67 10% 250-749 £ 3.26 20% 750+ £ 2.86 30% d1 tol. H9 30 d1 nom. 30 l 30 d2 for bearings 31,89 to 31,98 d2 for torque transfer 31,67 to 31,75 Torque max. Nm 95.0 Radial load max. N 15500 Material Steel more info »
	P0396.HV032-008	32	32	8	33,89 to 33,98	33,67 to 33,75	30.0	3000	Stainless
£ 2.87 per unit (click for quantity discounts) Ready to despatch 89 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.87 0% 100-249 £ 2.58 10% 250-749 £ 2.30 20% 750+ £ 2.01 30% d1 tol. H9 32 d1 nom. 32 l 8 d2 for bearings 33,89 to 33,98 d2 for torque transfer 33,67 to 33,75 Torque max. Nm 30.0 Radial load max. N 3000 Material Stainless more info »
	P0396.HV032-010	32	32	10	33,89 to 33,98	33,67 to 33,75	35.0	3200	Stainless
£ 3.20 per unit (click for quantity discounts) Ready to despatch 1280 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.20 0% 100-249 £ 2.88 10% 250-749 £ 2.56 20% 750+ £ 2.24 30% d1 tol. H9 32 d1 nom. 32 l 10 d2 for bearings 33,89 to 33,98 d2 for torque transfer 33,67 to 33,75 Torque max. Nm 35.0 Radial load max. N 3200 Material Stainless more info »
	P0396.HV032-014	32	32	14	33,89 to 33,98	33,67 to 33,75	50.0	4200	Stainless
£ 3.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.04 0% 100-249 £ 2.74 10% 250-749 £ 2.43 20% 750+ £ 2.13 30% d1 tol. H9 32 d1 nom. 32 l 14 d2 for bearings 33,89 to 33,98 d2 for torque transfer 33,67 to 33,75 Torque max. Nm 50.0 Radial load max. N 4200 Material Stainless more info »
	P0396.HV032-030	32	32	30	33,89 to 33,98	33,67 to 33,75	115.0	18000	Stainless
£ 3.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.36 0% 100-249 £ 3.02 10% 250-749 £ 2.69 20% 750+ £ 2.35 30% d1 tol. H9 32 d1 nom. 32 l 30 d2 for bearings 33,89 to 33,98 d2 for torque transfer 33,67 to 33,75 Torque max. Nm 115.0 Radial load max. N 18000 Material Stainless more info »
	P0396.HV035-006	35	35	6	36,89 to 36,98	36,67 to 36,75	32.0	2900	Steel
£ 2.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 2.76 0% 100-249 £ 2.48 10% 250-749 £ 2.21 20% 750+ £ 1.93 30% d1 tol. H9 35 d1 nom. 35 l 6 d2 for bearings 36,89 to 36,98 d2 for torque transfer 36,67 to 36,75 Torque max. Nm 32.0 Radial load max. N 2900 Material Steel more info »
	P0396.HV035-010	35	35	10	36,89 to 36,98	36,67 to 36,75	43.0	3350	Stainless
£ 3.06 per unit (click for quantity discounts) Ready to despatch 180 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.06 0% 100-249 £ 2.75 10% 250-749 £ 2.45 20% 750+ £ 2.14 30% d1 tol. H9 35 d1 nom. 35 l 10 d2 for bearings 36,89 to 36,98 d2 for torque transfer 36,67 to 36,75 Torque max. Nm 43.0 Radial load max. N 3350 Material Stainless more info »
	P0396.HV035-014	35	35	14	36,89 to 36,98	36,67 to 36,75	58.0	5000	Stainless
£ 3.24 per unit (click for quantity discounts) Ready to despatch 57 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.24 0% 100-249 £ 2.92 10% 250-749 £ 2.59 20% 750+ £ 2.27 30% d1 tol. H9 35 d1 nom. 35 l 14 d2 for bearings 36,89 to 36,98 d2 for torque transfer 36,67 to 36,75 Torque max. Nm 58.0 Radial load max. N 5000 Material Stainless more info »
	P0396.HV035-016	35	35	16	36,89 to 36,98	36,67 to 36,75	70.0	8200	Stainless
£ 3.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.36 0% 100-249 £ 3.02 10% 250-749 £ 2.69 20% 750+ £ 2.35 30% d1 tol. H9 35 d1 nom. 35 l 16 d2 for bearings 36,89 to 36,98 d2 for torque transfer 36,67 to 36,75 Torque max. Nm 70.0 Radial load max. N 8200 Material Stainless more info »
	P0396.HV040-008	40	40	8	41,89 to 41,98	41,67 to 41,75	54.0	2800	Steel
£ 3.13 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.13 0% 100-249 £ 2.82 10% 250-749 £ 2.50 20% 750+ £ 2.19 30% d1 tol. H9 40 d1 nom. 40 l 8 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 54.0 Radial load max. N 2800 Material Steel more info »
	P0396.HV040-100	40	40	10	41,89 to 41,98	41,67 to 41,75	62.0	3300	Steel
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 40 d1 nom. 40 l 10 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 62.0 Radial load max. N 3300 Material Steel more info »
	P0396.HV040-012	40	40	12	41,89 to 41,98	41,67 to 41,75	72.0	4450	Stainless
£ 3.36 per unit (click for quantity discounts) Ready to despatch 69 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.36 0% 100-249 £ 3.02 10% 250-749 £ 2.69 20% 750+ £ 2.35 30% d1 tol. H9 40 d1 nom. 40 l 12 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 72.0 Radial load max. N 4450 Material Stainless more info »
	P0396.HV040-016	40	40	16	41,89 to 41,98	41,67 to 41,75	91.0	6230	Stainless
£ 4.08 per unit (click for quantity discounts) Ready to despatch 62 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.08 0% 100-249 £ 3.67 10% 250-749 £ 3.26 20% 750+ £ 2.86 30% d1 tol. H9 40 d1 nom. 40 l 16 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 91.0 Radial load max. N 6230 Material Stainless more info »
	P0396.HV040-020	40	40	20	41,89 to 41,98	41,67 to 41,75	125.0	8450	Stainless
£ 5.03 per unit (click for quantity discounts) Ready to despatch 114 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.03 0% 100-249 £ 4.53 10% 250-749 £ 4.02 20% 750+ £ 3.52 30% d1 tol. H9 40 d1 nom. 40 l 20 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 125.0 Radial load max. N 8450 Material Stainless more info »
	P0396.HV040-030	40	40	30	41,89 to 41,98	41,67 to 41,75	180.0	12000	Stainless
£ 5.30 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.30 0% 100-249 £ 4.77 10% 250-749 £ 4.24 20% 750+ £ 3.71 30% d1 tol. H9 40 d1 nom. 40 l 30 d2 for bearings 41,89 to 41,98 d2 for torque transfer 41,67 to 41,75 Torque max. Nm 180.0 Radial load max. N 12000 Material Stainless more info »
	P0396.HV042-012	42	42	12	43,89 to 43,98	43,67 to 43,75	75.0	4900	Stainless
£ 3.46 per unit (click for quantity discounts) Ready to despatch 181 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.46 0% 100-249 £ 3.11 10% 250-749 £ 2.77 20% 750+ £ 2.42 30% d1 tol. H9 42 d1 nom. 42 l 12 d2 for bearings 43,89 to 43,98 d2 for torque transfer 43,67 to 43,75 Torque max. Nm 75.0 Radial load max. N 4900 Material Stainless more info »
	P0396.HV042-030	42	42	30	43,89 to 43,98	43,67 to 43,75	225.0	13250	Stainless
£ 5.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.07 0% 100-249 £ 4.56 10% 250-749 £ 4.06 20% 750+ £ 3.55 30% d1 tol. H9 42 d1 nom. 42 l 30 d2 for bearings 43,89 to 43,98 d2 for torque transfer 43,67 to 43,75 Torque max. Nm 225.0 Radial load max. N 13250 Material Stainless more info »
	P0396.HV045-012	45	45	12	46,89 to 46,98	46,67 to 46,75	90.0	6000	Stainless
£ 4.19 per unit (click for quantity discounts) Ready to despatch 92 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.19 0% 100-249 £ 3.77 10% 250-749 £ 3.35 20% 750+ £ 2.93 30% d1 tol. H9 45 d1 nom. 45 l 12 d2 for bearings 46,89 to 46,98 d2 for torque transfer 46,67 to 46,75 Torque max. Nm 90.0 Radial load max. N 6000 Material Stainless more info »
	P0396.HV045-020	45	45	20	46,89 to 46,98	46,67 to 46,75	165.0	8700	Stainless
£ 5.59 per unit (click for quantity discounts) Ready to despatch 111 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.59 0% 100-249 £ 5.03 10% 250-749 £ 4.47 20% 750+ £ 3.91 30% d1 tol. H9 45 d1 nom. 45 l 20 d2 for bearings 46,89 to 46,98 d2 for torque transfer 46,67 to 46,75 Torque max. Nm 165.0 Radial load max. N 8700 Material Stainless more info »
	P0396.HV047-006	47	47	6	48,89 to 48,98	48,67 to 48,75	65.0	2450	Steel
£ 3.69 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.69 0% 100-249 £ 3.32 10% 250-749 £ 2.95 20% 750+ £ 2.58 30% d1 tol. H9 47 d1 nom. 47 l 6 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 65.0 Radial load max. N 2450 Material Steel more info »
	P0396.HV047-008	47	47	8	48,89 to 48,98	48,67 to 48,75	76.0	2850	Steel
£ 3.54 per unit (click for quantity discounts) Ready to despatch 80 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.54 0% 100-249 £ 3.19 10% 250-749 £ 2.83 20% 750+ £ 2.48 30% d1 tol. H9 47 d1 nom. 47 l 8 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 76.0 Radial load max. N 2850 Material Steel more info »
	P0396.HV047-014	47	47	14	48,89 to 48,98	48,67 to 48,75	117.0	6230	Steel
£ 4.16 per unit (click for quantity discounts) Ready to despatch 193 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.16 0% 100-249 £ 3.74 10% 250-749 £ 3.33 20% 750+ £ 2.91 30% d1 tol. H9 47 d1 nom. 47 l 14 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 117.0 Radial load max. N 6230 Material Steel more info »
	P0396.HV047-018	47	47	18	48,89 to 48,98	48,67 to 48,75	175.0	8300	Stainless
£ 4.08 per unit (click for quantity discounts) Ready to despatch 84 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.08 0% 100-249 £ 3.67 10% 250-749 £ 3.26 20% 750+ £ 2.86 30% d1 tol. H9 47 d1 nom. 47 l 18 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 175.0 Radial load max. N 8300 Material Stainless more info »
	P0396.HV047-020	47	47	20	48,89 to 48,98	48,67 to 48,75	210.0	8450	Stainless
£ 4.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.40 0% 100-249 £ 3.96 10% 250-749 £ 3.52 20% 750+ £ 3.08 30% d1 tol. H9 47 d1 nom. 47 l 20 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 210.0 Radial load max. N 8450 Material Stainless more info »
	P0396.HV047-022	47	47	22	48,89 to 48,98	48,67 to 48,75	235.0	10750	Stainless
£ 4.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.63 0% 100-249 £ 4.17 10% 250-749 £ 3.70 20% 750+ £ 3.24 30% d1 tol. H9 47 d1 nom. 47 l 22 d2 for bearings 48,89 to 48,98 d2 for torque transfer 48,67 to 48,75 Torque max. Nm 235.0 Radial load max. N 10750 Material Stainless more info »
	P0396.HV050-015	50	50	15	52,35 to 52,47	52,03 to 52,15	157.0	6600	Stainless
£ 4.02 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.02 0% 100-249 £ 3.62 10% 250-749 £ 3.22 20% 750+ £ 2.81 30% d1 tol. H9 50 d1 nom. 50 l 15 d2 for bearings 52,35 to 52,47 d2 for torque transfer 52,03 to 52,15 Torque max. Nm 157.0 Radial load max. N 6600 Material Stainless more info »
	P0396.HV050-020	50	50	20	52,35 to 52,47	52,03 to 52,15	215.0	10100	Stainless
£ 4.40 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.40 0% 100-249 £ 3.96 10% 250-749 £ 3.52 20% 750+ £ 3.08 30% d1 tol. H9 50 d1 nom. 50 l 20 d2 for bearings 52,35 to 52,47 d2 for torque transfer 52,03 to 52,15 Torque max. Nm 215.0 Radial load max. N 10100 Material Stainless more info »
	P0396.HV052-008	52	52	8	54,35 to 54,47	54,03 to 54,15	100.0	3200	Steel
£ 3.83 per unit (click for quantity discounts) Ready to despatch 50 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 3.83 0% 100-249 £ 3.45 10% 250-749 £ 3.06 20% 750+ £ 2.68 30% d1 tol. H9 52 d1 nom. 52 l 8 d2 for bearings 54,35 to 54,47 d2 for torque transfer 54,03 to 54,15 Torque max. Nm 100.0 Radial load max. N 3200 Material Steel more info »
	P0396.HV052-015	52	52	15	54,35 to 54,47	54,03 to 54,15	165.0	7120	Stainless
£ 4.30 per unit (click for quantity discounts) Ready to despatch 294 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.30 0% 100-249 £ 3.87 10% 250-749 £ 3.44 20% 750+ £ 3.01 30% d1 tol. H9 52 d1 nom. 52 l 15 d2 for bearings 54,35 to 54,47 d2 for torque transfer 54,03 to 54,15 Torque max. Nm 165.0 Radial load max. N 7120 Material Stainless more info »
	P0396.HV055-012	55	55	12	57,35 to 57,47	57,03 to 57,15	156.0	5550	Stainless
£ 4.35 per unit (click for quantity discounts) Ready to despatch 50 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.35 0% 100-249 £ 3.92 10% 250-749 £ 3.48 20% 750+ £ 3.05 30% d1 tol. H9 55 d1 nom. 55 l 12 d2 for bearings 57,35 to 57,47 d2 for torque transfer 57,03 to 57,15 Torque max. Nm 156.0 Radial load max. N 5550 Material Stainless more info »
	P0396.HV055-020	55	55	20	57,35 to 57,47	57,03 to 57,15	260.0	10750	Stainless
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 55 d1 nom. 55 l 20 d2 for bearings 57,35 to 57,47 d2 for torque transfer 57,03 to 57,15 Torque max. Nm 260.0 Radial load max. N 10750 Material Stainless more info »
	P0396.HV060-015	60	60	15	62,35 to 62,47	62,03 to 62,15	280.0	8800	Stainless
£ 4.48 per unit (click for quantity discounts) Ready to despatch 85 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.48 0% 100-249 £ 4.03 10% 250-749 £ 3.58 20% 750+ £ 3.14 30% d1 tol. H9 60 d1 nom. 60 l 15 d2 for bearings 62,35 to 62,47 d2 for torque transfer 62,03 to 62,15 Torque max. Nm 280.0 Radial load max. N 8800 Material Stainless more info »
	P0396.HV060-025	60	60	25	62,35 to 62,47	62,03 to 62,15	475.0	15500	Stainless
£ 5.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 5.74 0% 100-249 £ 5.17 10% 250-749 £ 4.59 20% 750+ £ 4.02 30% d1 tol. H9 60 d1 nom. 60 l 25 d2 for bearings 62,35 to 62,47 d2 for torque transfer 62,03 to 62,15 Torque max. Nm 475.0 Radial load max. N 15500 Material Stainless more info »
	P0396.HV062-010	62	62	10	64,35 to 64,47	64,03 to 64,15	215.0	5300	Stainless
£ 4.68 per unit (click for quantity discounts) Ready to despatch 109 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.68 0% 100-249 £ 4.21 10% 250-749 £ 3.74 20% 750+ £ 3.28 30% d1 tol. H9 62 d1 nom. 62 l 10 d2 for bearings 64,35 to 64,47 d2 for torque transfer 64,03 to 64,15 Torque max. Nm 215.0 Radial load max. N 5300 Material Stainless more info »
	P0396.HV062-015	62	62	15	64,35 to 64,47	64,03 to 64,15	290.0	8450	Stainless
£ 4.87 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 4.87 0% 100-249 £ 4.38 10% 250-749 £ 3.90 20% 750+ £ 3.41 30% d1 tol. H9 62 d1 nom. 62 l 15 d2 for bearings 64,35 to 64,47 d2 for torque transfer 64,03 to 64,15 Torque max. Nm 290.0 Radial load max. N 8450 Material Stainless more info »
	P0396.HV065-025	65	65	25	67,35 to 67,47	67,03 to 67,15	520.0	14900	Stainless
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 65 d1 nom. 65 l 25 d2 for bearings 67,35 to 67,47 d2 for torque transfer 67,03 to 67,15 Torque max. Nm 520.0 Radial load max. N 14900 Material Stainless more info »
	P0396.HV065-063	65	65	63	67,35 to 67,47	67,03 to 67,15	850.0	46000	Stainless
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 tol. H9 65 d1 nom. 65 l 63 d2 for bearings 67,35 to 67,47 d2 for torque transfer 67,03 to 67,15 Torque max. Nm 850.0 Radial load max. N 46000 Material Stainless more info »
	P0396.HV070-025	70	70	25	72,35 to 72,47	72,03 to 72,15	550.0	16900	Stainless
£ 7.01 per unit (click for quantity discounts) Ready to despatch 70 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 7.01 0% 100-249 £ 6.31 10% 250-749 £ 5.61 20% 750+ £ 4.91 30% d1 tol. H9 70 d1 nom. 70 l 25 d2 for bearings 72,35 to 72,47 d2 for torque transfer 72,03 to 72,15 Torque max. Nm 550.0 Radial load max. N 16900 Material Stainless more info »
	P0396.HV072-010	72	72	10	74,35 to 74,47	74,03 to 74,15	230.0	6000	Stainless
£ 6.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.56 0% 100-249 £ 5.90 10% 250-749 £ 5.25 20% 750+ £ 4.59 30% d1 tol. H9 72 d1 nom. 72 l 10 d2 for bearings 74,35 to 74,47 d2 for torque transfer 74,03 to 74,15 Torque max. Nm 230.0 Radial load max. N 6000 Material Stainless more info »
	P0396.HV072-017	72	72	17	74,35 to 74,47	74,03 to 74,15	420.0	13000	Stainless
£ 6.93 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.93 0% 100-249 £ 6.24 10% 250-749 £ 5.54 20% 750+ £ 4.85 30% d1 tol. H9 72 d1 nom. 72 l 17 d2 for bearings 74,35 to 74,47 d2 for torque transfer 74,03 to 74,15 Torque max. Nm 420.0 Radial load max. N 13000 Material Stainless more info »
	P0396.HV072-019	72	72	19	74,35 to 74,47	74,03 to 74,15	470.0	14500	Stainless
£ 6.70 per unit (click for quantity discounts) Ready to despatch 83 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.70 0% 100-249 £ 6.03 10% 250-749 £ 5.36 20% 750+ £ 4.69 30% d1 tol. H9 72 d1 nom. 72 l 19 d2 for bearings 74,35 to 74,47 d2 for torque transfer 74,03 to 74,15 Torque max. Nm 470.0 Radial load max. N 14500 Material Stainless more info »
	P0396.HV072-020	72	72	20	74,35 to 74,47	74,03 to 74,15	490.0	15000	Stainless
£ 7.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 7.01 0% 100-249 £ 6.31 10% 250-749 £ 5.61 20% 750+ £ 4.91 30% d1 tol. H9 72 d1 nom. 72 l 20 d2 for bearings 74,35 to 74,47 d2 for torque transfer 74,03 to 74,15 Torque max. Nm 490.0 Radial load max. N 15000 Material Stainless more info »
	P0396.HV075-016	75	75	16	77,35 to 77,47	77,03 to 77,15	520.0	13000	Stainless
£ 7.33 per unit (click for quantity discounts) Ready to despatch 53 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 7.33 0% 100-249 £ 6.60 10% 250-749 £ 5.86 20% 750+ £ 5.13 30% d1 tol. H9 75 d1 nom. 75 l 16 d2 for bearings 77,35 to 77,47 d2 for torque transfer 77,03 to 77,15 Torque max. Nm 520.0 Radial load max. N 13000 Material Stainless more info »
	P0396.HV075-020	75	75	20	77,35 to 77,47	77,03 to 77,15	600.0	17000	Stainless
£ 6.92 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 6.92 0% 100-249 £ 6.23 10% 250-749 £ 5.54 20% 750+ £ 4.84 30% d1 tol. H9 75 d1 nom. 75 l 20 d2 for bearings 77,35 to 77,47 d2 for torque transfer 77,03 to 77,15 Torque max. Nm 600.0 Radial load max. N 17000 Material Stainless more info »
	P0396.HV080-012	80	80	12	82,35 to 82,47	82,03 to 82,15	280.0	11000	Steel
£ 8.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 8.56 0% 100-249 £ 7.70 10% 250-749 £ 6.85 20% 750+ £ 5.99 30% d1 tol. H9 80 d1 nom. 80 l 12 d2 for bearings 82,35 to 82,47 d2 for torque transfer 82,03 to 82,15 Torque max. Nm 280.0 Radial load max. N 11000 Material Steel more info »
	P0396.HV080-020	80	80	20	82,35 to 82,47	82,03 to 82,15	630.0	16800	Stainless
£ 9.52 per unit (click for quantity discounts) Ready to despatch 80 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 9.52 0% 100-249 £ 8.57 10% 250-749 £ 7.62 20% 750+ £ 6.66 30% d1 tol. H9 80 d1 nom. 80 l 20 d2 for bearings 82,35 to 82,47 d2 for torque transfer 82,03 to 82,15 Torque max. Nm 630.0 Radial load max. N 16800 Material Stainless more info »
	P0396.HV084-012	84	84	12	86,82 to 86,96	86,42 to 86,56	490.0	13000	Stainless
£ 8.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 8.65 0% 100-249 £ 7.79 10% 250-749 £ 6.92 20% 750+ £ 6.06 30% d1 tol. H9 84 d1 nom. 84 l 12 d2 for bearings 86,82 to 86,96 d2 for torque transfer 86,42 to 86,56 Torque max. Nm 490.0 Radial load max. N 13000 Material Stainless more info »
	P0396.HV085-019	85	85	19	87,82 to 87,96	87,42 to 87,56	700.0	17000	Steel
£ 10.60 per unit (click for quantity discounts) Ready to despatch 43 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 10.60 0% 100-249 £ 9.54 10% 250-749 £ 8.48 20% 750+ £ 7.42 30% d1 tol. H9 85 d1 nom. 85 l 19 d2 for bearings 87,82 to 87,96 d2 for torque transfer 87,42 to 87,56 Torque max. Nm 700.0 Radial load max. N 17000 Material Steel more info »
	P0396.HV090-015	90	90	15	92,82 to 92,96	92,42 to 92,56	560.0	14000	Stainless
£ 9.60 per unit (click for quantity discounts) Ready to despatch 19 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 9.60 0% 100-249 £ 8.64 10% 250-749 £ 7.68 20% 750+ £ 6.72 30% d1 tol. H9 90 d1 nom. 90 l 15 d2 for bearings 92,82 to 92,96 d2 for torque transfer 92,42 to 92,56 Torque max. Nm 560.0 Radial load max. N 14000 Material Stainless more info »
	P0396.HV090-020	90	90	20	92,82 to 92,96	92,42 to 92,56	770.0	18000	Steel
£ 11.08 per unit (click for quantity discounts) Ready to despatch 84 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 11.08 0% 100-249 £ 9.97 10% 250-749 £ 8.86 20% 750+ £ 7.76 30% d1 tol. H9 90 d1 nom. 90 l 20 d2 for bearings 92,82 to 92,96 d2 for torque transfer 92,42 to 92,56 Torque max. Nm 770.0 Radial load max. N 18000 Material Steel more info »
	P0396.HV090-023	90	90	23	92,82 to 92,96	92,42 to 92,56	870.0	21000	Steel
£ 11.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 11.14 0% 100-249 £ 10.03 10% 250-749 £ 8.91 20% 750+ £ 7.80 30% d1 tol. H9 90 d1 nom. 90 l 23 d2 for bearings 92,82 to 92,96 d2 for torque transfer 92,42 to 92,56 Torque max. Nm 870.0 Radial load max. N 21000 Material Steel more info »
	P0396.HV090-025	90	90	25	92,82 to 92,96	92,42 to 92,56	950.0	22500	Stainless
£ 12.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-99 £ 12.37 0% 100-249 £ 11.13 10% 250-749 £ 9.90 20% 750+ £ 8.66 30% d1 tol. H9 90 d1 nom. 90 l 25 d2 for bearings 92,82 to 92,96 d2 for torque transfer 92,42 to 92,56 Torque max. Nm 950.0 Radial load max. N 22500 Material Stainless more info »
