PEEK Fasteners
HomeProductsMechanical ComponentsThread Inserts & Specialist ScrewsPEEK FastenersPEEK FastenersP0500.MP

P0500.MP Cap Head Hexagon Socket

Medical
P0500.MP Cap Head Hexagon Socket
P0500.MP Cap Head Hexagon Socket
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

P0500.HP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
Hygienic
P0500.MP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
Medical
P0500.NP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
Natural PEEK
P0501.NP - Hexagonal Head Set Screw
Hexagonal Head Set Screw
Natural PEEK
P0502.NP - Hexagon Nuts
Hexagon Nuts
Natural PEEK
P0503.NP - Female-Female Hexagon Spacers
Female Hexagon Spacers
Natural PEEK
P0504.NP - Male-Female Hexagonal Spacers
Male-Female Hexagonal Spacers
Natural PEEK
P0507.NP - Set Screws
Set Screws
Natural PEEK
P0508.NP - Ultra Low Head Cap Screws
Machine Screws
Natural PEEK, ultra low head
P0509.NP - Torx Low Cap Head Screws
Low Cap Head Screws
Natural PEEK, TX
P0510.NP - Washers
Washers
Natural PEEK
P0511.NP - Low Cap Head Hex Socket Screws
Low Cap Head Screws
Natural PEEK, hex
P0512.NP - Slotted Cheese Head Screw
Cheese Head Screw
Natural PEEK, slotted
P0513.NP - Torx Ultra Low Head Screws
Ultra Low Head Screws
Natural PEEK, TX
P0514.NP - Countersunk Hexagon Head Screws
Countersunk Hex Screws
Natural PEEK
P0515.NP - Torx Countersunk Head Screws
Countersunk Head Screws
Natural PEEK, TX
P0520.NP - Torx Pan Head Screws
Pan Head Screws
Natural PEEK, TX
P0530.NP - Cap Head Vented Screws
Cap Head Screws
Natural PEEK, vented

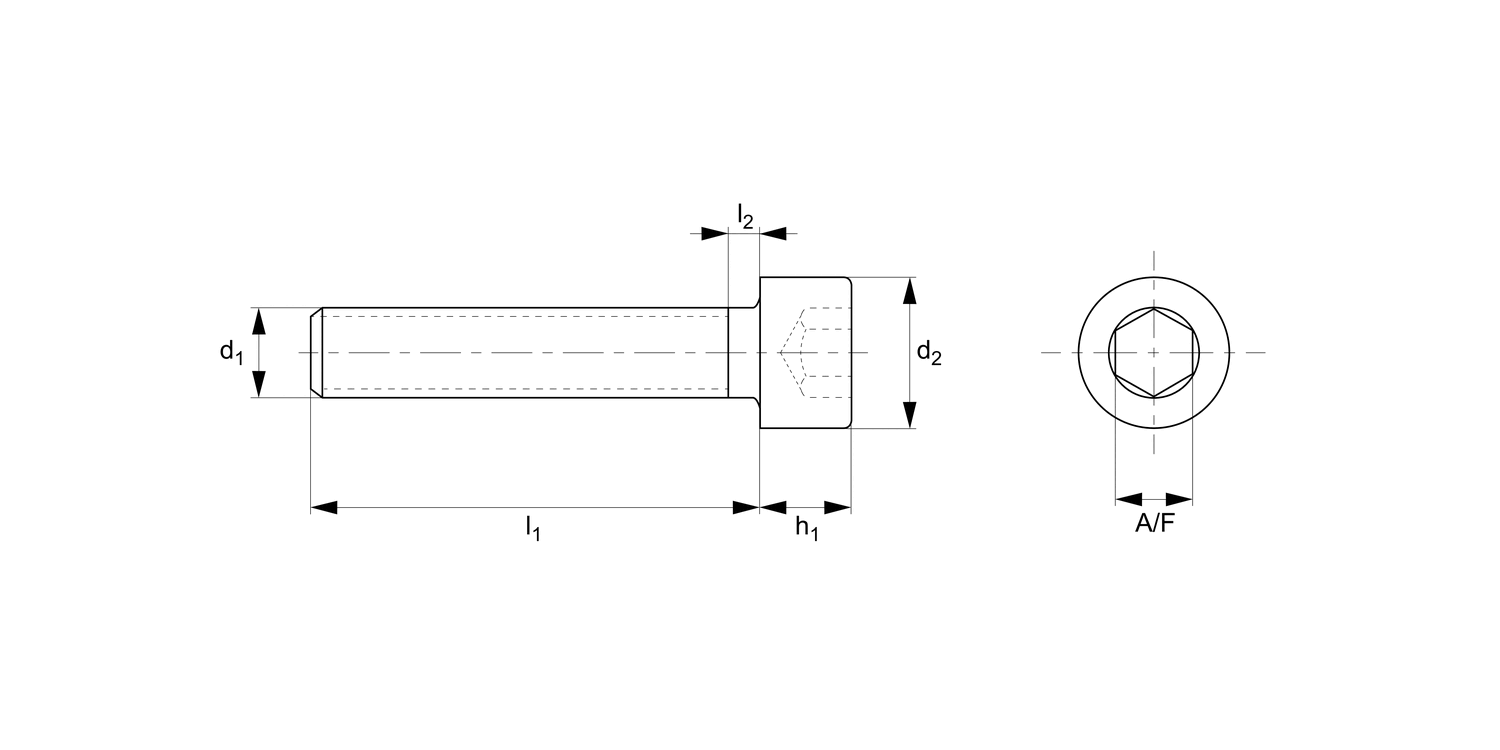

P0500.030-008-MP Cap head hexagon socket M3x8 PEEK PEEK (Green)
Cap head hexagon socket M3x8 PEEK PEEK (Green)

P0500.030-008-MP

d1
M 3
l1 +/- 0. 2
8
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-010-MP Cap head hexagon socket M3x10 PEEK PEEK (Green)
Cap head hexagon socket M3x10 PEEK PEEK (Green)

P0500.030-010-MP

d1
M 3
l1 +/- 0. 2
10
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-012-MP Cap head hexagon socket M3x12 PEEK PEEK (Green)
Cap head hexagon socket M3x12 PEEK PEEK (Green)

P0500.030-012-MP

d1
M 3
l1 +/- 0. 2
12
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-015-MP Cap head hexagon socket M3x15 PEEK PEEK (Green)
Cap head hexagon socket M3x15 PEEK PEEK (Green)

P0500.030-015-MP

d1
M 3
l1 +/- 0. 2
15
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-020-MP Cap head hexagon socket M3x20 PEEK PEEK (Green)
Cap head hexagon socket M3x20 PEEK PEEK (Green)

P0500.030-020-MP

d1
M 3
l1 +/- 0. 2
20
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-025-MP Cap head hexagon socket M3x25 PEEK PEEK (Green)
Cap head hexagon socket M3x25 PEEK PEEK (Green)

P0500.030-025-MP

d1
M 3
l1 +/- 0. 2
25
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.040-008-MP Cap head hexagon socket M4x8 PEEK PEEK (Green)
Cap head hexagon socket M4x8 PEEK PEEK (Green)

P0500.040-008-MP

d1
M 4
l1 +/- 0. 2
8
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-010-MP Cap head hexagon socket M4x10 PEEK PEEK (Green)
Cap head hexagon socket M4x10 PEEK PEEK (Green)

P0500.040-010-MP

d1
M 4
l1 +/- 0. 2
10
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-012-MP Cap head hexagon socket M4x12 PEEK PEEK (Green)
Cap head hexagon socket M4x12 PEEK PEEK (Green)

P0500.040-012-MP

d1
M 4
l1 +/- 0. 2
12
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-015-MP Cap head hexagon socket M4x15 PEEK PEEK (Green)
Cap head hexagon socket M4x15 PEEK PEEK (Green)

P0500.040-015-MP

d1
M 4
l1 +/- 0. 2
15
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-020-MP Cap head hexagon socket M4x20 PEEK PEEK (Green)
Cap head hexagon socket M4x20 PEEK PEEK (Green)

P0500.040-020-MP

d1
M 4
l1 +/- 0. 2
20
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-025-MP Cap head hexagon socket M4x25 PEEK PEEK (Green)
Cap head hexagon socket M4x25 PEEK PEEK (Green)

P0500.040-025-MP

d1
M 4
l1 +/- 0. 2
25
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.050-008-MP Cap head hexagon socket M5x8 PEEK PEEK (Green)
Cap head hexagon socket M5x8 PEEK PEEK (Green)

P0500.050-008-MP

d1
M 5
l1 +/- 0. 2
8
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-010-MP Cap head hexagon socket M5x10 PEEK PEEK (Green)
Cap head hexagon socket M5x10 PEEK PEEK (Green)

P0500.050-010-MP

d1
M 5
l1 +/- 0. 2
10
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-012-MP Cap head hexagon socket M5x12 PEEK PEEK (Green)
Cap head hexagon socket M5x12 PEEK PEEK (Green)

P0500.050-012-MP

d1
M 5
l1 +/- 0. 2
12
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-015-MP Cap head hexagon socket M5x15 PEEK PEEK (Green)
Cap head hexagon socket M5x15 PEEK PEEK (Green)

P0500.050-015-MP

d1
M 5
l1 +/- 0. 2
15
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-020-MP Cap head hexagon socket M5x20 PEEK PEEK (Green)
Cap head hexagon socket M5x20 PEEK PEEK (Green)

P0500.050-020-MP

d1
M 5
l1 +/- 0. 2
20
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-025-MP Cap head hexagon socket M5x25 PEEK PEEK (Green)
Cap head hexagon socket M5x25 PEEK PEEK (Green)

P0500.050-025-MP

d1
M 5
l1 +/- 0. 2
25
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-030-MP Cap head hexagon socket M5x30 PEEK PEEK (Green)
Cap head hexagon socket M5x30 PEEK PEEK (Green)

P0500.050-030-MP

d1
M 5
l1 +/- 0. 2
30
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.060-010-MP Cap head hexagon socket M6x10 PEEK PEEK (Green)
Cap head hexagon socket M6x10 PEEK PEEK (Green)

P0500.060-010-MP

d1
M 6
l1 +/- 0. 2
10
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-012-MP Cap head hexagon socket M6x12 PEEK PEEK (Green)
Cap head hexagon socket M6x12 PEEK PEEK (Green)

P0500.060-012-MP

d1
M 6
l1 +/- 0. 2
12
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-015-MP Cap head hexagon socket M6x15 PEEK PEEK (Green)
Cap head hexagon socket M6x15 PEEK PEEK (Green)

P0500.060-015-MP

d1
M 6
l1 +/- 0. 2
15
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-020-MP Cap head hexagon socket M6x20 PEEK PEEK (Green)
Cap head hexagon socket M6x20 PEEK PEEK (Green)

P0500.060-020-MP

d1
M 6
l1 +/- 0. 2
20
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-025-MP Cap head hexagon socket M6x25 PEEK PEEK (Green)
Cap head hexagon socket M6x25 PEEK PEEK (Green)

P0500.060-025-MP

d1
M 6
l1 +/- 0. 2
25
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-030-MP Cap head hexagon socket M6x30 PEEK PEEK (Green)
Cap head hexagon socket M6x30 PEEK PEEK (Green)

P0500.060-030-MP

d1
M 6
l1 +/- 0. 2
30
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.080-020-MP Cap head hexagon socket M8x20 PEEK PEEK (Green)
Cap head hexagon socket M8x20 PEEK PEEK (Green)

P0500.080-020-MP

d1
M 8
l1 +/- 0. 2
20
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-025-MP Cap head hexagon socket M8x25 PEEK PEEK (Green)
Cap head hexagon socket M8x25 PEEK PEEK (Green)

P0500.080-025-MP

d1
M 8
l1 +/- 0. 2
25
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-030-MP Cap head hexagon socket M8x30 PEEK PEEK (Green)
Cap head hexagon socket M8x30 PEEK PEEK (Green)

P0500.080-030-MP

d1
M 8
l1 +/- 0. 2
30
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-035-MP Cap head hexagon socket M8x35 PEEK PEEK (Green)
Cap head hexagon socket M8x35 PEEK PEEK (Green)

P0500.080-035-MP

d1
M 8
l1 +/- 0. 2
35
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.030-008-MP Cap head hexagon socket M3x8 PEEK PEEK (Green)
Cap head hexagon socket M3x8 PEEK PEEK (Green)

P0500.030-008-MP

d1
M 3
l1 +/- 0. 2
8
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-010-MP Cap head hexagon socket M3x10 PEEK PEEK (Green)
Cap head hexagon socket M3x10 PEEK PEEK (Green)

P0500.030-010-MP

d1
M 3
l1 +/- 0. 2
10
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-012-MP Cap head hexagon socket M3x12 PEEK PEEK (Green)
Cap head hexagon socket M3x12 PEEK PEEK (Green)

P0500.030-012-MP

d1
M 3
l1 +/- 0. 2
12
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-015-MP Cap head hexagon socket M3x15 PEEK PEEK (Green)
Cap head hexagon socket M3x15 PEEK PEEK (Green)

P0500.030-015-MP

d1
M 3
l1 +/- 0. 2
15
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-020-MP Cap head hexagon socket M3x20 PEEK PEEK (Green)
Cap head hexagon socket M3x20 PEEK PEEK (Green)

P0500.030-020-MP

d1
M 3
l1 +/- 0. 2
20
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.030-025-MP Cap head hexagon socket M3x25 PEEK PEEK (Green)
Cap head hexagon socket M3x25 PEEK PEEK (Green)

P0500.030-025-MP

d1
M 3
l1 +/- 0. 2
25
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
P0500.040-008-MP Cap head hexagon socket M4x8 PEEK PEEK (Green)
Cap head hexagon socket M4x8 PEEK PEEK (Green)

P0500.040-008-MP

d1
M 4
l1 +/- 0. 2
8
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-010-MP Cap head hexagon socket M4x10 PEEK PEEK (Green)
Cap head hexagon socket M4x10 PEEK PEEK (Green)

P0500.040-010-MP

d1
M 4
l1 +/- 0. 2
10
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-012-MP Cap head hexagon socket M4x12 PEEK PEEK (Green)
Cap head hexagon socket M4x12 PEEK PEEK (Green)

P0500.040-012-MP

d1
M 4
l1 +/- 0. 2
12
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-015-MP Cap head hexagon socket M4x15 PEEK PEEK (Green)
Cap head hexagon socket M4x15 PEEK PEEK (Green)

P0500.040-015-MP

d1
M 4
l1 +/- 0. 2
15
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-020-MP Cap head hexagon socket M4x20 PEEK PEEK (Green)
Cap head hexagon socket M4x20 PEEK PEEK (Green)

P0500.040-020-MP

d1
M 4
l1 +/- 0. 2
20
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.040-025-MP Cap head hexagon socket M4x25 PEEK PEEK (Green)
Cap head hexagon socket M4x25 PEEK PEEK (Green)

P0500.040-025-MP

d1
M 4
l1 +/- 0. 2
25
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
P0500.050-008-MP Cap head hexagon socket M5x8 PEEK PEEK (Green)
Cap head hexagon socket M5x8 PEEK PEEK (Green)

P0500.050-008-MP

d1
M 5
l1 +/- 0. 2
8
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-010-MP Cap head hexagon socket M5x10 PEEK PEEK (Green)
Cap head hexagon socket M5x10 PEEK PEEK (Green)

P0500.050-010-MP

d1
M 5
l1 +/- 0. 2
10
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-012-MP Cap head hexagon socket M5x12 PEEK PEEK (Green)
Cap head hexagon socket M5x12 PEEK PEEK (Green)

P0500.050-012-MP

d1
M 5
l1 +/- 0. 2
12
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-015-MP Cap head hexagon socket M5x15 PEEK PEEK (Green)
Cap head hexagon socket M5x15 PEEK PEEK (Green)

P0500.050-015-MP

d1
M 5
l1 +/- 0. 2
15
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-020-MP Cap head hexagon socket M5x20 PEEK PEEK (Green)
Cap head hexagon socket M5x20 PEEK PEEK (Green)

P0500.050-020-MP

d1
M 5
l1 +/- 0. 2
20
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-025-MP Cap head hexagon socket M5x25 PEEK PEEK (Green)
Cap head hexagon socket M5x25 PEEK PEEK (Green)

P0500.050-025-MP

d1
M 5
l1 +/- 0. 2
25
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.050-030-MP Cap head hexagon socket M5x30 PEEK PEEK (Green)
Cap head hexagon socket M5x30 PEEK PEEK (Green)

P0500.050-030-MP

d1
M 5
l1 +/- 0. 2
30
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
P0500.060-010-MP Cap head hexagon socket M6x10 PEEK PEEK (Green)
Cap head hexagon socket M6x10 PEEK PEEK (Green)

P0500.060-010-MP

d1
M 6
l1 +/- 0. 2
10
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-012-MP Cap head hexagon socket M6x12 PEEK PEEK (Green)
Cap head hexagon socket M6x12 PEEK PEEK (Green)

P0500.060-012-MP

d1
M 6
l1 +/- 0. 2
12
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-015-MP Cap head hexagon socket M6x15 PEEK PEEK (Green)
Cap head hexagon socket M6x15 PEEK PEEK (Green)

P0500.060-015-MP

d1
M 6
l1 +/- 0. 2
15
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-020-MP Cap head hexagon socket M6x20 PEEK PEEK (Green)
Cap head hexagon socket M6x20 PEEK PEEK (Green)

P0500.060-020-MP

d1
M 6
l1 +/- 0. 2
20
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-025-MP Cap head hexagon socket M6x25 PEEK PEEK (Green)
Cap head hexagon socket M6x25 PEEK PEEK (Green)

P0500.060-025-MP

d1
M 6
l1 +/- 0. 2
25
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.060-030-MP Cap head hexagon socket M6x30 PEEK PEEK (Green)
Cap head hexagon socket M6x30 PEEK PEEK (Green)

P0500.060-030-MP

d1
M 6
l1 +/- 0. 2
30
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
P0500.080-020-MP Cap head hexagon socket M8x20 PEEK PEEK (Green)
Cap head hexagon socket M8x20 PEEK PEEK (Green)

P0500.080-020-MP

d1
M 8
l1 +/- 0. 2
20
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-025-MP Cap head hexagon socket M8x25 PEEK PEEK (Green)
Cap head hexagon socket M8x25 PEEK PEEK (Green)

P0500.080-025-MP

d1
M 8
l1 +/- 0. 2
25
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-030-MP Cap head hexagon socket M8x30 PEEK PEEK (Green)
Cap head hexagon socket M8x30 PEEK PEEK (Green)

P0500.080-030-MP

d1
M 8
l1 +/- 0. 2
30
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
P0500.080-035-MP Cap head hexagon socket M8x35 PEEK PEEK (Green)
Cap head hexagon socket M8x35 PEEK PEEK (Green)

P0500.080-035-MP

d1
M 8
l1 +/- 0. 2
35
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0

d1
l1 +/- 0. 2
l2 max.
d2
h1
A/F
Price & AvailabilityArticled1l1 +/- 0. 2l2 max.d2h1A/F
P0500.030-008-MPM 381.05.532.5
P0500.030-010-MPM 3101.05.532.5
P0500.030-012-MPM 3121.05.532.5
P0500.030-015-MPM 3151.05.532.5
P0500.030-020-MPM 3201.05.532.5
P0500.030-025-MPM 3251.05.532.5
P0500.040-008-MPM 481.47.043.0
P0500.040-010-MPM 4101.47.043.0
P0500.040-012-MPM 4121.47.043.0
P0500.040-015-MPM 4151.47.043.0
P0500.040-020-MPM 4201.47.043.0
P0500.040-025-MPM 4251.47.043.0
P0500.050-008-MPM 581.68.554.0
P0500.050-010-MPM 5101.68.554.0
P0500.050-012-MPM 5121.68.554.0
P0500.050-015-MPM 5151.68.554.0
P0500.050-020-MPM 5201.68.554.0
P0500.050-025-MPM 5251.68.554.0
P0500.050-030-MPM 5301.68.554.0
P0500.060-010-MPM 6102.010.065.0
P0500.060-012-MPM 6122.010.065.0
P0500.060-015-MPM 6152.010.065.0
P0500.060-020-MPM 6202.010.065.0
P0500.060-025-MPM 6252.010.065.0
P0500.060-030-MPM 6302.010.065.0
P0500.080-020-MPM 8202.513.086.0
P0500.080-025-MPM 8252.513.086.0
P0500.080-030-MPM 8302.513.086.0
P0500.080-035-MPM 8352.513.086.0

Technical & Application

Material

Polyether ether ketone (PEEK). Green

A high performance plastic with very good durability and wear resistance. PEEK has excellent chemical resistance and performs well at temperatures up to 260°C. Tensile strength ~116N/mm².

Technical Notes

Manufactured for medical industry applications, these products are in a variant of PEEK which is refined for biocompatibilty.

For industries with a hygienic requirement, these products are available with an X-Ray opaque or metal detectable filler, blue in colour, for optical detection.

Natural PEEK is used in the aerospace and chemical industries.

Product Datasheets

P0500.MP Cap Head Hexagon SocketJune 19, 2025, 5:00 PM / 202.63 kB
PEEK FastenersJune 19, 2025, 4:51 PM / 4.08 MB
PEEK FastenersJune 19, 2025, 4:46 PM / 4.08 MB
Thread Inserts & Specialist ScrewsJune 19, 2025, 4:42 PM / 44.15 MB
Mechanical ComponentsJune 19, 2025, 4:38 PM / 43.59 MB

CAD files

P0500.MP AcisMarch 12, 2025, 12:01 PM / 768.29 kB
P0500.MP IGESMarch 12, 2025, 12:01 PM / 1.63 MB
P0500.MP ParasolidMarch 12, 2025, 12:01 PM / 438.08 kB
P0500.MP ProEMarch 12, 2025, 12:01 PM / 3.34 MB
P0500.MP SolidWorksMarch 12, 2025, 12:01 PM / 11.22 MB
P0500.MP StepMarch 12, 2025, 12:01 PM / 920.34 kB

This content is not visible because of your cookie settings.


Contact
Automotion Components
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
Route via Google Maps

Company registration no: 00496138
Company VAT number GB 408154022

Information
FAQNewsTechnical ReferenceComponents In Motion
Follow us
© 2025 Automotion Components
Contact
Automotion Components

Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
