Standard Machine Mounts
P2151 Machine Mounts
material: Steel
Alternative products you may wish to consider
£ 3.59 per unit (click for quantity discounts)
£ 9.11 per unit (click for quantity discounts)
£ 12.67 per unit (click for quantity discounts)
£ 17.34 per unit (click for quantity discounts)
£ 21.06 per unit (click for quantity discounts)
£ 22.73 per unit (click for quantity discounts)
£ 32.84 per unit (click for quantity discounts)
£ 47.69 per unit (click for quantity discounts)
£ 13.35 per unit (click for quantity discounts)
£ 19.11 per unit (click for quantity discounts)
£ 21.78 per unit (click for quantity discounts)
£ 24.86 per unit (click for quantity discounts)
£ 31.76 per unit (click for quantity discounts)
£ 49.96 per unit (click for quantity discounts)

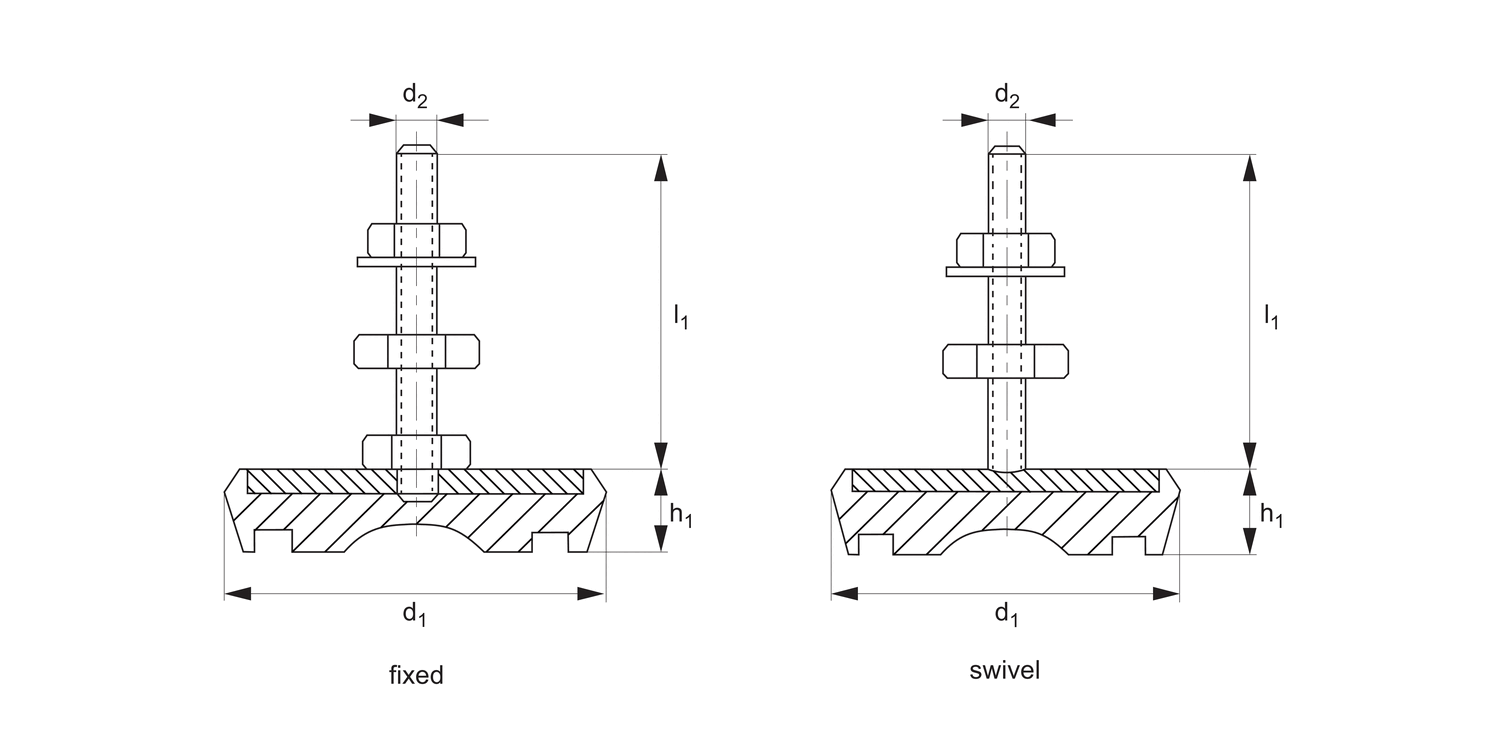

Style
d1
h1
d2
l1
Load range
kgf
| Price & Availability | Article | Style | d1 | h1 | d2 | l1 | Load range kgf | ||||||||||||||||||
| P2151.040-F | Fixed | 40 | 15 | M 8 | 40 | 0-60 | |||||||||||||||||||
£ 3.59 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 40 h1 15 d2 M 8 l1 40 Load range
kgf 0-60 | |||||||||||||||||||||||||
| P2151.063-F | Fixed | 63 | 18 | M10 | 83 | 30-100 | |||||||||||||||||||
£ 9.11 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 63 h1 18 d2 M10 l1 83 Load range
kgf 30-100 | |||||||||||||||||||||||||
| P2151.070-F | Fixed | 70 | 22 | M12 | 90 | 80-150 | |||||||||||||||||||
£ 12.67 per unit (click for quantity discounts) Ready to despatch 46 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 70 h1 22 d2 M12 l1 90 Load range
kgf 80-150 | |||||||||||||||||||||||||
| P2151.090-F | Fixed | 90 | 25 | M12 | 90 | 100-350 | |||||||||||||||||||
£ 17.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 90 h1 25 d2 M12 l1 90 Load range
kgf 100-350 | |||||||||||||||||||||||||
| P2151.106-F | Fixed | 106 | 29 | M16 | 110 | 300-600 | |||||||||||||||||||
£ 21.06 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 106 h1 29 d2 M16 l1 110 Load range
kgf 300-600 | |||||||||||||||||||||||||
| P2151.127-F | Fixed | 127 | 33 | M16 | 110 | 500-900 | |||||||||||||||||||
£ 22.73 per unit (click for quantity discounts) Ready to despatch 51 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 127 h1 33 d2 M16 l1 110 Load range
kgf 500-900 | |||||||||||||||||||||||||
| P2151.150-F | Fixed | 150 | 39 | M16 | 110 | 800-1500 | |||||||||||||||||||
£ 32.84 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 150 h1 39 d2 M16 l1 110 Load range
kgf 800-1500 | |||||||||||||||||||||||||
| P2151.170-F | Fixed | 170 | 42 | M16 | 110 | 1300-2000 | |||||||||||||||||||
£ 47.69 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Fixed d1 170 h1 42 d2 M16 l1 110 Load range
kgf 1300-2000 | |||||||||||||||||||||||||
| P2151.070-S | Swivel | 70 | 22 | M12 | 90 | 80-150 | |||||||||||||||||||
£ 13.35 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 70 h1 22 d2 M12 l1 90 Load range
kgf 80-150 | |||||||||||||||||||||||||
| P2151.090-S | Swivel | 90 | 26 | M12 | 90 | 100-350 | |||||||||||||||||||
£ 19.11 per unit (click for quantity discounts) Ready to despatch 31 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 90 h1 26 d2 M12 l1 90 Load range
kgf 100-350 | |||||||||||||||||||||||||
| P2151.106-S | Swivel | 106 | 32 | M16 | 110 | 300-600 | |||||||||||||||||||
£ 21.78 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 106 h1 32 d2 M16 l1 110 Load range
kgf 300-600 | |||||||||||||||||||||||||
| P2151.127-S | Swivel | 127 | 33 | M16 | 110 | 500-900 | |||||||||||||||||||
£ 24.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 127 h1 33 d2 M16 l1 110 Load range
kgf 500-900 | |||||||||||||||||||||||||
| P2151.150-S | Swivel | 150 | 39 | M16 | 110 | 800-1500 | |||||||||||||||||||
£ 31.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 150 h1 39 d2 M16 l1 110 Load range
kgf 800-1500 | |||||||||||||||||||||||||
| P2151.170-S | Swivel | 170 | 42 | M16 | 110 | 1300-2000 | |||||||||||||||||||
£ 49.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Style Swivel d1 170 h1 42 d2 M16 l1 110 Load range
kgf 1300-2000 | |||||||||||||||||||||||||
Technical & Application
Material
Steel body with zinc plated thread.
Synthetic rubber base (65 Shore A), with anti-slide cavity.
Technical Notes
Suitable for medium and high frequency vibrations and with smooth floors.
Tips
For inclined floors use the swivel base versions (M12 and M16).
The swivel base versions have a separate screw which rests in the concave cup on the top portion of the foot body.
