Rod Ends with Studs
Female

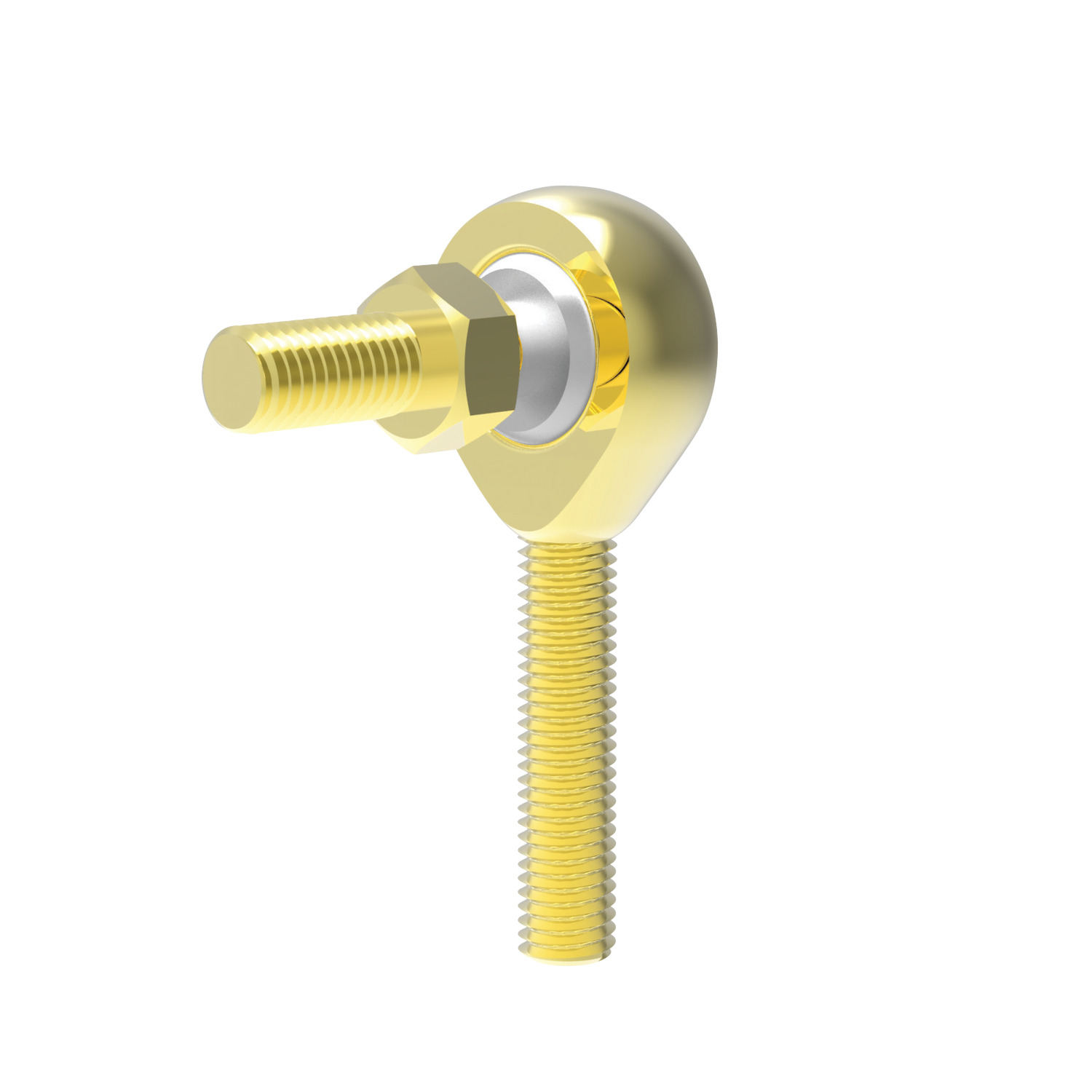

R3617.i Imperial Male Rod End with Stud
with Nylon bearing race, material: Steel
Alternative products you may wish to consider
Thread hand
Right
d1
10-32
d2
10-32
l1
1.562
w1
0.375
d3
0.750
d4
0.304
l2
1.000
l3
0.469
l4
0.562
l5
0.125
w2
0.281
A/F
0.375
a
°
25
£ 10.14 per unit (click for quantity discounts)
Thread hand
Right
d1
5/16-24
d2
5/16-24
l1
1.875
w1
0.437
d3
0.875
d4
0.356
l2
1.250
l3
0.531
l4
0.687
l5
0.125
w2
0.344
A/F
0.437
a
°
25
£ 8.07 per unit (click for quantity discounts)
Thread hand
Right
d1
3/8-24
d2
3/8-24
l1
2.000
w1
0.500
d3
1.090
d4
0.424
l2
1.250
l3
0.644
l4
0.906
l5
0.187
w2
0.406
A/F
0.500
a
°
25
Thread hand
Right
d1
1/2-20
d2
1/2-20
l1
2.437
w1
0.625
d3
1.380
d4
0.564
l2
1.500
l3
0.875
l4
1.125
l5
0.250
w2
0.500
A/F
0.625
a
°
25
£ 9.88 per unit (click for quantity discounts)
Thread hand
Right
d1
5/8-18
d2
5/8-18
l1
2.625
w1
0.750
d3
1.500
d4
0.622
l2
1.625
l3
1.000
l4
1.125
l5
0.375
w2
0.562
A/F
0.750
a
°
25
£ 21.39 per unit (click for quantity discounts)
Thread hand
Right
d1
3/4-16
d2
3/4-16
l1
2.875
w1
0.875
d3
1.750
d4
0.747
l2
1.750
l3
1.187
l4
1.812
l5
0.375
w2
0.687
A/F
1.000
a
°
25
£ 22.44 per unit (click for quantity discounts)
Thread hand
Left
d1
10-32
d2
10-32
l1
1.562
w1
0.375
d3
0.750
d4
0.304
l2
1.000
l3
0.469
l4
0.562
l5
0.125
w2
0.281
A/F
0.375
a
°
25
£ 7.86 per unit (click for quantity discounts)
Thread hand
Left
d1
5/16-24
d2
5/16-24
l1
1.875
w1
0.437
d3
0.875
d4
0.356
l2
1.250
l3
0.531
l4
0.687
l5
0.125
w2
0.344
A/F
0.437
a
°
25
£ 7.71 per unit (click for quantity discounts)
Thread hand
Left
d1
3/8-24
d2
3/8-24
l1
2.000
w1
0.500
d3
1.090
d4
0.424
l2
1.250
l3
0.644
l4
0.906
l5
0.187
w2
0.406
A/F
0.500
a
°
25
£ 8.56 per unit (click for quantity discounts)
Thread hand
Left
d1
1/2-20
d2
1/2-20
l1
2.437
w1
0.625
d3
1.380
d4
0.564
l2
1.500
l3
0.875
l4
1.125
l5
0.250
w2
0.500
A/F
0.625
a
°
25
£ 10.62 per unit (click for quantity discounts)
Thread hand
d1
d2
l1
w1
d3
d4
l2
l3
l4
l5
w2
A/F
a
°

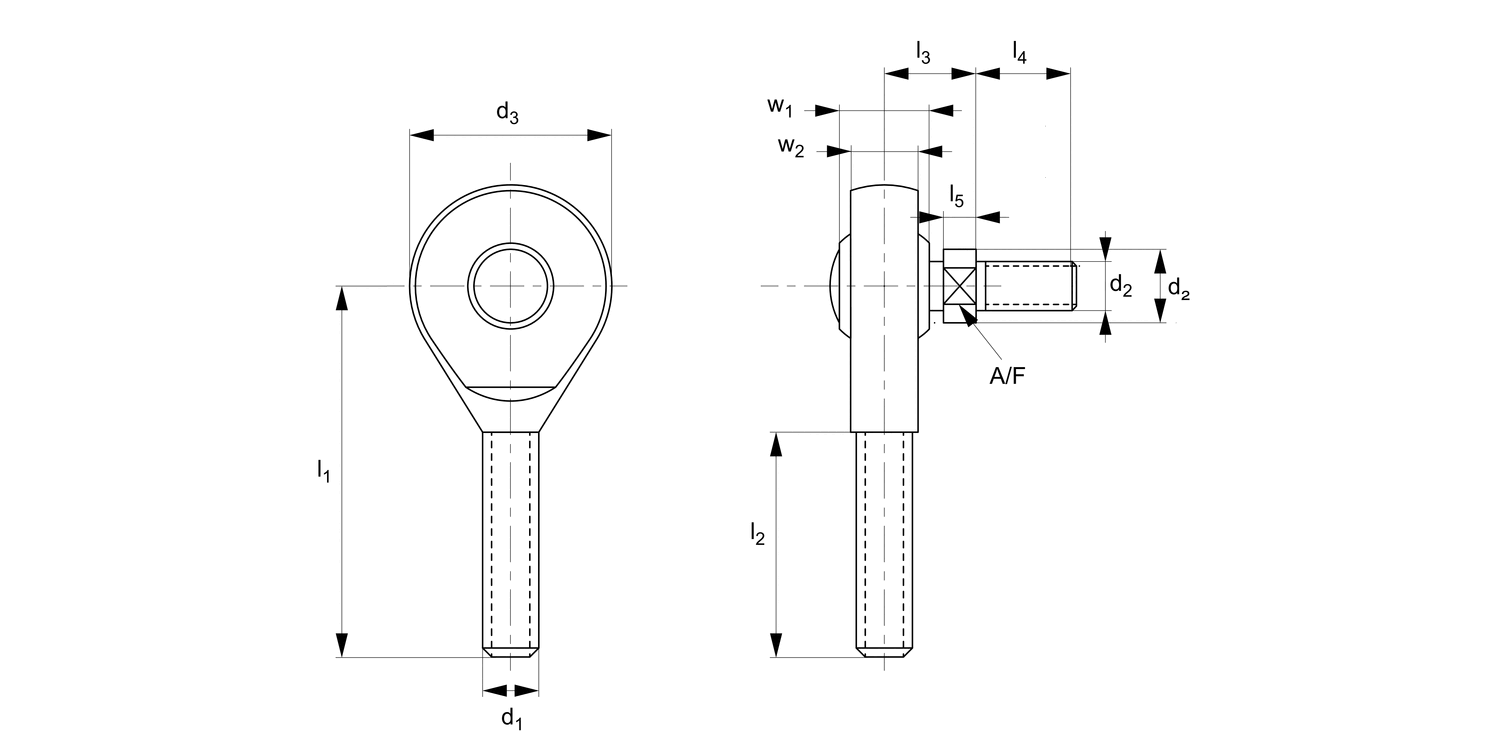

| Price & Availability | Article | Thread hand | d1 | d2 | l1 | w1 | d3 | d4 | l2 | l3 | l4 | l5 | w2 | A/F | a ° | |||||||||||||||||||||
| R3617.I250 | Right | 10-32 | 10-32 | 1.562 | 0.375 | 0.750 | 0.304 | 1.000 | 0.469 | 0.562 | 0.125 | 0.281 | 0.375 | 25 | ||||||||||||||||||||||
£ 10.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 10-32 d2 10-32 l1 1.562 w1 0.375 d3 0.750 d4 0.304 l2 1.000 l3 0.469 l4 0.562 l5 0.125 w2 0.281 A/F 0.375 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.I313 | Right | 5/16-24 | 5/16-24 | 1.875 | 0.437 | 0.875 | 0.356 | 1.250 | 0.531 | 0.687 | 0.125 | 0.344 | 0.437 | 25 | ||||||||||||||||||||||
£ 8.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 5/16-24 d2 5/16-24 l1 1.875 w1 0.437 d3 0.875 d4 0.356 l2 1.250 l3 0.531 l4 0.687 l5 0.125 w2 0.344 A/F 0.437 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.I375 | Right | 3/8-24 | 3/8-24 | 2.000 | 0.500 | 1.090 | 0.424 | 1.250 | 0.644 | 0.906 | 0.187 | 0.406 | 0.500 | 25 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Thread hand Right d1 3/8-24 d2 3/8-24 l1 2.000 w1 0.500 d3 1.090 d4 0.424 l2 1.250 l3 0.644 l4 0.906 l5 0.187 w2 0.406 A/F 0.500 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.I500 | Right | 1/2-20 | 1/2-20 | 2.437 | 0.625 | 1.380 | 0.564 | 1.500 | 0.875 | 1.125 | 0.250 | 0.500 | 0.625 | 25 | ||||||||||||||||||||||
£ 9.88 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 1/2-20 d2 1/2-20 l1 2.437 w1 0.625 d3 1.380 d4 0.564 l2 1.500 l3 0.875 l4 1.125 l5 0.250 w2 0.500 A/F 0.625 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.I625 | Right | 5/8-18 | 5/8-18 | 2.625 | 0.750 | 1.500 | 0.622 | 1.625 | 1.000 | 1.125 | 0.375 | 0.562 | 0.750 | 25 | ||||||||||||||||||||||
£ 21.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 5/8-18 d2 5/8-18 l1 2.625 w1 0.750 d3 1.500 d4 0.622 l2 1.625 l3 1.000 l4 1.125 l5 0.375 w2 0.562 A/F 0.750 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.I750 | Right | 3/4-16 | 3/4-16 | 2.875 | 0.875 | 1.750 | 0.747 | 1.750 | 1.187 | 1.812 | 0.375 | 0.687 | 1.000 | 25 | ||||||||||||||||||||||
£ 22.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Right d1 3/4-16 d2 3/4-16 l1 2.875 w1 0.875 d3 1.750 d4 0.747 l2 1.750 l3 1.187 l4 1.812 l5 0.375 w2 0.687 A/F 1.000 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.IL250 | Left | 10-32 | 10-32 | 1.562 | 0.375 | 0.750 | 0.304 | 1.000 | 0.469 | 0.562 | 0.125 | 0.281 | 0.375 | 25 | ||||||||||||||||||||||
£ 7.86 per unit (click for quantity discounts) Ready to despatch 34 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Left d1 10-32 d2 10-32 l1 1.562 w1 0.375 d3 0.750 d4 0.304 l2 1.000 l3 0.469 l4 0.562 l5 0.125 w2 0.281 A/F 0.375 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.IL313 | Left | 5/16-24 | 5/16-24 | 1.875 | 0.437 | 0.875 | 0.356 | 1.250 | 0.531 | 0.687 | 0.125 | 0.344 | 0.437 | 25 | ||||||||||||||||||||||
£ 7.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Left d1 5/16-24 d2 5/16-24 l1 1.875 w1 0.437 d3 0.875 d4 0.356 l2 1.250 l3 0.531 l4 0.687 l5 0.125 w2 0.344 A/F 0.437 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.IL375 | Left | 3/8-24 | 3/8-24 | 2.000 | 0.500 | 1.090 | 0.424 | 1.250 | 0.644 | 0.906 | 0.187 | 0.406 | 0.500 | 25 | ||||||||||||||||||||||
£ 8.56 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Left d1 3/8-24 d2 3/8-24 l1 2.000 w1 0.500 d3 1.090 d4 0.424 l2 1.250 l3 0.644 l4 0.906 l5 0.187 w2 0.406 A/F 0.500 a
° 25 | ||||||||||||||||||||||||||||||||||||
| R3617.IL500 | Left | 1/2-20 | 1/2-20 | 2.437 | 0.625 | 1.380 | 0.564 | 1.500 | 0.875 | 1.125 | 0.250 | 0.500 | 0.625 | 25 | ||||||||||||||||||||||
£ 10.62 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread hand Left d1 1/2-20 d2 1/2-20 l1 2.437 w1 0.625 d3 1.380 d4 0.564 l2 1.500 l3 0.875 l4 1.125 l5 0.250 w2 0.500 A/F 0.625 a
° 25 | ||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Housing and Stud: Yellow zinc plated steel.
Ball: Zinc plated, surface hardened steel.
Technical Notes
Features an injection molded, fibre reinforced nylon bearing race.
Female thread, Maintenance free, yellow zinc is not RoHS Compliant.
Tips
Standard thread is Right hand thread, rod end studs are all Right hand threads.
