Module 0.5
Spur Gears
R5112 Spur Gears - Module 0.5 - Plastic
white - set screw - 14-18 teeth, material: Polyacetal
Alternative products you may wish to consider

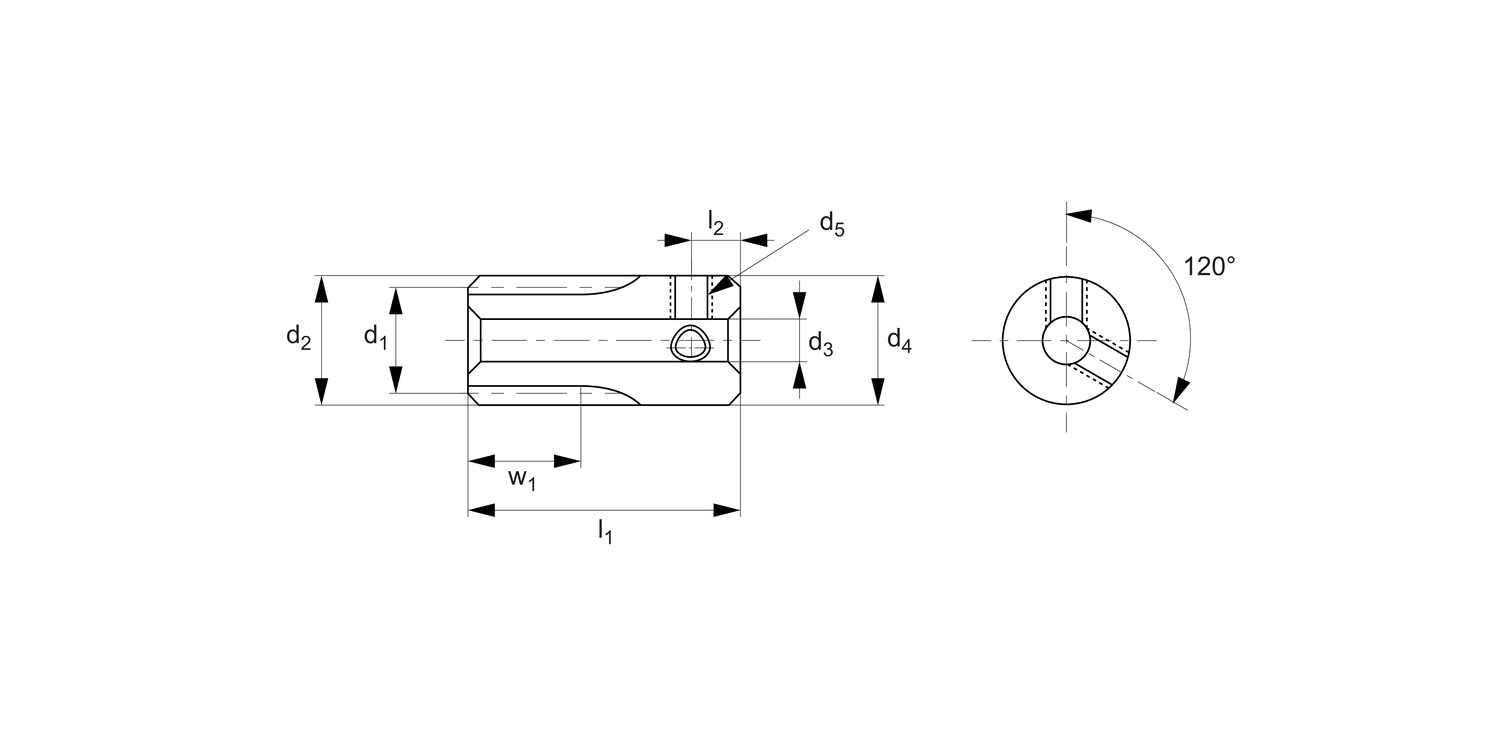

Module
No. of teeth z
14
Pitch dia. d1
7.0
d2
8.0
w1
8
d3
tol. H9
3
d4
9
l1
18
l3
3
Thread d5
2xM 3
Torque
max.
Nm
0.214
Weight
g
1.15
£ 13.58 per unit (click for quantity discounts)
Module
No. of teeth z
15
Pitch dia. d1
7.5
d2
8.5
w1
8
d3
tol. H9
3
d4
9
l1
18
l3
3
Thread d5
2xM 3
Torque
max.
Nm
0.229
Weight
g
1.22
£ 13.77 per unit (click for quantity discounts)
Module
No. of teeth z
18
Pitch dia. d1
9.0
d2
10.0
w1
8
d3
tol. H9
3
d4
10
l1
18
l3
3
Thread d5
2xM 3
Torque
max.
Nm
0.275
Weight
g
1.65
£ 14.18 per unit (click for quantity discounts)
Module
No. of teeth z
Pitch dia. d1
d2
w1
d3
tol. H9
d4
l1
l3
Thread d5
Torque
max.
Nm
Weight
g
| Price & Availability | Article | Module | No. of teeth z | Pitch dia. d1 | d2 | w1 | d3 tol. H9 | d4 | l1 | l3 | Thread d5 | Torque max. Nm | Weight g | ||||||||||||||||||
| R5112.050-014 | 14 | 7.0 | 8.0 | 8 | 3 | 9 | 18 | 3 | 2xM 3 | 0.214 | 1.15 | ||||||||||||||||||||
£ 13.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Module No. of teeth z 14 Pitch dia. d1 7.0 d2 8.0 w1 8 d3
tol. H9 3 d4 9 l1 18 l3 3 Thread d5 2xM 3 Torque
max.
Nm 0.214 Weight
g 1.15 | |||||||||||||||||||||||||||||||
| R5112.050-015 | 15 | 7.5 | 8.5 | 8 | 3 | 9 | 18 | 3 | 2xM 3 | 0.229 | 1.22 | ||||||||||||||||||||
£ 13.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Module No. of teeth z 15 Pitch dia. d1 7.5 d2 8.5 w1 8 d3
tol. H9 3 d4 9 l1 18 l3 3 Thread d5 2xM 3 Torque
max.
Nm 0.229 Weight
g 1.22 | |||||||||||||||||||||||||||||||
| R5112.050-018 | 18 | 9.0 | 10.0 | 8 | 3 | 10 | 18 | 3 | 2xM 3 | 0.275 | 1.65 | ||||||||||||||||||||
£ 14.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Module No. of teeth z 18 Pitch dia. d1 9.0 d2 10.0 w1 8 d3
tol. H9 3 d4 10 l1 18 l3 3 Thread d5 2xM 3 Torque
max.
Nm 0.275 Weight
g 1.65 | |||||||||||||||||||||||||||||||
Technical & Application
Material
White polyacetal, machined. Accuracy to JIS B 1702-1 (ISO) class 9-10. Steel set screw.
Technical Notes
20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,01 - 0,03mm.
Tips
Module 0.5 for gears with 20-120 teeth see R5113. Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
