R3098.1 Roller clutch
material: Steel
Alternative products you may wish to consider
d1
4
d2
8.00
l2
+0.000|-0.008
6.00
Housing diameter N7 steel R7 al.
8.00
Overrun speed
max.
rpm
17000
Torque
max.
Ncm
0.34
£ 25.64 per unit (click for quantity discounts)
d1
6
d2
10.00
l2
+0.000|-0.008
12.00
Housing diameter N7 steel R7 al.
10.00
Overrun speed
max.
rpm
23060
Torque
max.
Ncm
1.76
£ 17.43 per unit (click for quantity discounts)
d1
8
d2
12.00
l2
+0.000|-0.008
12.00
Housing diameter N7 steel R7 al.
12.00
Overrun speed
max.
rpm
17000
Torque
max.
Ncm
3.15
d1
10
d2
14.00
l2
+0.000|-0.008
12.00
Housing diameter N7 steel R7 al.
14.00
Overrun speed
max.
rpm
14000
Torque
max.
Ncm
5.30
£ 18.05 per unit (click for quantity discounts)
d1
12
d2
18.00
l2
+0.000|-0.008
16.00
Housing diameter N7 steel R7 al.
18.00
Overrun speed
max.
rpm
11000
Torque
max.
Ncm
12.20
£ 17.10 per unit (click for quantity discounts)
d1
20
d2
26.00
l2
+0.000|-0.008
16.00
Housing diameter N7 steel R7 al.
26.00
Overrun speed
max.
rpm
7000
Torque
max.
Ncm
28.50
£ 22.32 per unit (click for quantity discounts)
d1
d2
l2
+0.000|-0.008
Housing diameter N7 steel R7 al.
Overrun speed
max.
rpm
Torque
max.
Ncm
| Price & Availability | Article | d1 | d2 | l2 +0.000|-0.008 | Housing diameter N7 steel R7 al. | Overrun speed max. rpm | Torque max. Ncm | ||||||
| R3098.004 | 4 | 8.00 | 6.00 | 8.00 | 17000 | 0.34 | |||||||
£ 25.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 4 d2 8.00 l2
+0.000|-0.008 6.00 Housing diameter N7 steel R7 al. 8.00 Overrun speed
max.
rpm 17000 Torque
max.
Ncm 0.34 | |||||||||||||
| R3098.006 | 6 | 10.00 | 12.00 | 10.00 | 23060 | 1.76 | |||||||
£ 17.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 6 d2 10.00 l2
+0.000|-0.008 12.00 Housing diameter N7 steel R7 al. 10.00 Overrun speed
max.
rpm 23060 Torque
max.
Ncm 1.76 | |||||||||||||
| R3098.008 | 8 | 12.00 | 12.00 | 12.00 | 17000 | 3.15 | |||||||
Ready to despatch 0 Need more? Please call us.
d1 8 d2 12.00 l2
+0.000|-0.008 12.00 Housing diameter N7 steel R7 al. 12.00 Overrun speed
max.
rpm 17000 Torque
max.
Ncm 3.15 | |||||||||||||
| R3098.010 | 10 | 14.00 | 12.00 | 14.00 | 14000 | 5.30 | |||||||
£ 18.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 10 d2 14.00 l2
+0.000|-0.008 12.00 Housing diameter N7 steel R7 al. 14.00 Overrun speed
max.
rpm 14000 Torque
max.
Ncm 5.30 | |||||||||||||
| R3098.012 | 12 | 18.00 | 16.00 | 18.00 | 11000 | 12.20 | |||||||
£ 17.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 12 d2 18.00 l2
+0.000|-0.008 16.00 Housing diameter N7 steel R7 al. 18.00 Overrun speed
max.
rpm 11000 Torque
max.
Ncm 12.20 | |||||||||||||
| R3098.020 | 20 | 26.00 | 16.00 | 26.00 | 7000 | 28.50 | |||||||
£ 22.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 20 d2 26.00 l2
+0.000|-0.008 16.00 Housing diameter N7 steel R7 al. 26.00 Overrun speed
max.
rpm 7000 Torque
max.
Ncm 28.50 | |||||||||||||
Technical & Application
Material
Case hardened steel roller cup. Needle bearings hardened chrome steel.
Springs - stainless. Cage - nylon 66. Drawn cup design.
Technical Notes

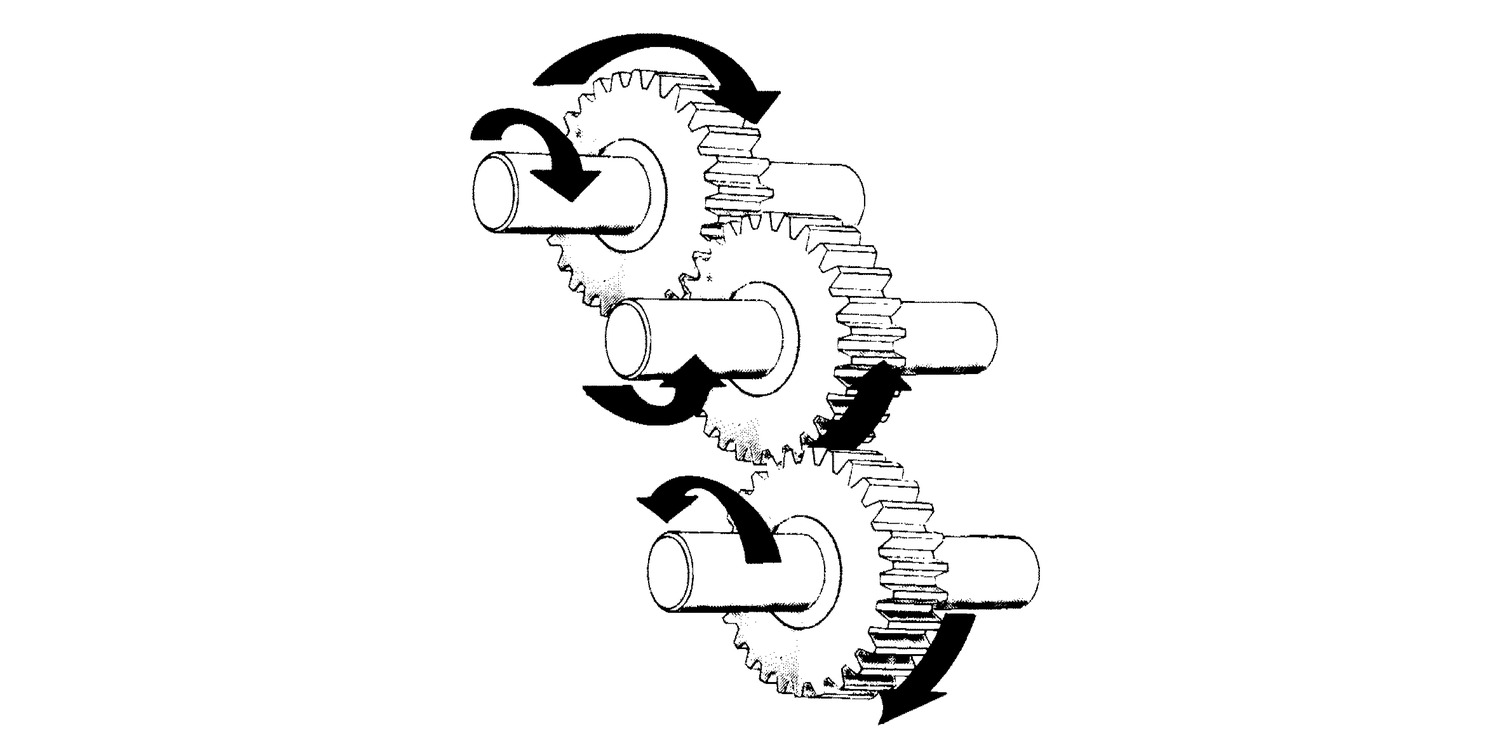

Free rolling one way, drives in opposite direction, minimum backlash.
Max. operating temperature 70°C (plastic spring). Temperature range -45°C to +70°C (grease).
Tips
For shaft tolerance h6.
