Intelligent Motors
NEMA 14
L3536 Intelligent NEMA 34 Stepper Motors
with mactalk software, material: Aluminium
Order No.
L3536.34-3
Holding torque
Nm
10.5

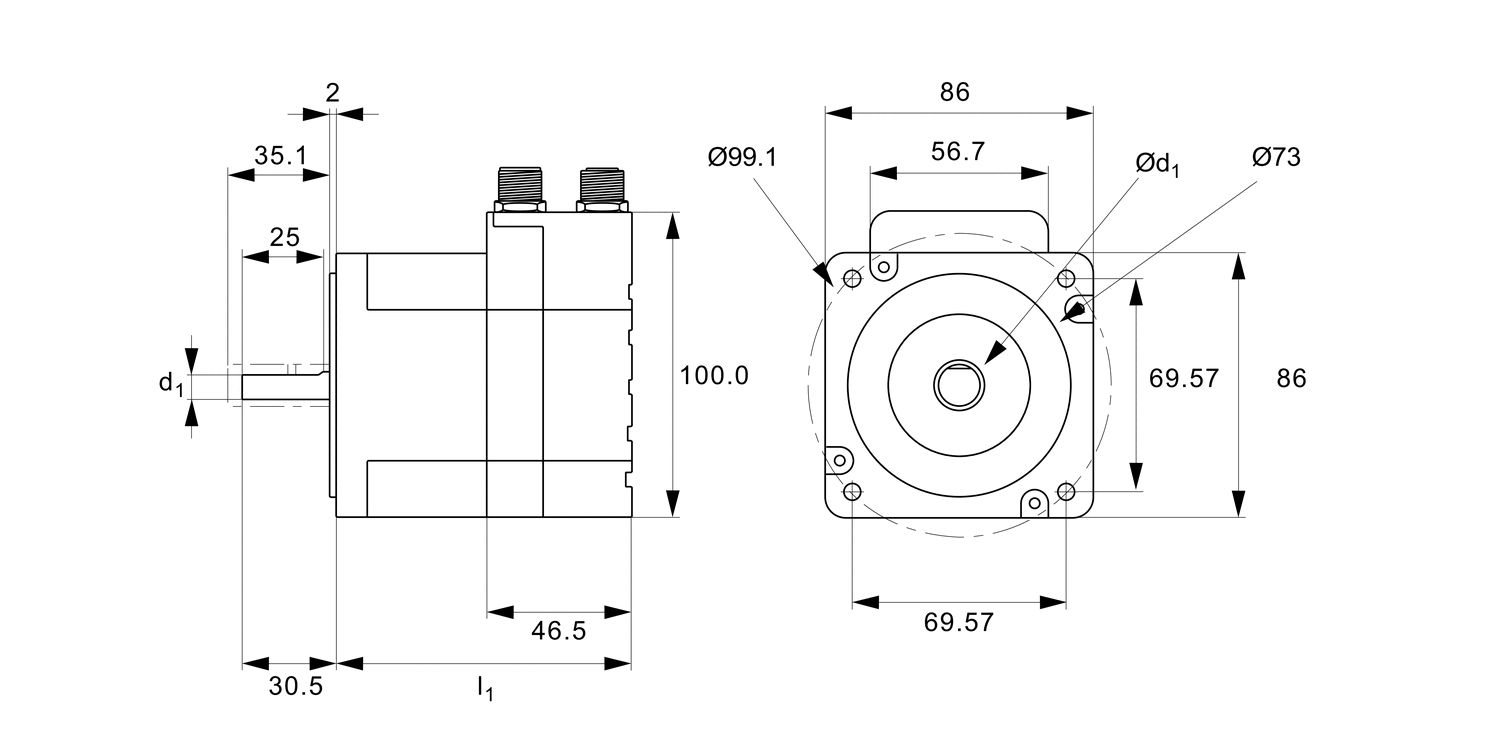

Flange dimensions
87x87
Length
220
Shaft
+0|-0.013
14.0
Power
max.
W
>320
Rotor inertia
kg·cm²
5.3
Typical supply current @24V DC ADC RMS
6.3
Typical supply current @48V DC ADC RMS
5.7
Typical supply current @80V DC ADC RMS
6.6
Weight
kg
5.3
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Combined 2 phase, high torque stepper motors with in-built power driver and controller.
IP42/55 rated (IP 67 optional).
Technical Notes
Allows easy control from a PC or PLC for single or multiple motors. Low cost alternative to motors, drivers and controllers.
Easy to use free software, little cabling.
The I/O points can be set up by users as Input or Output or as analogue input.
Resolution: 409600 counts/rev.
Mainly supply voltage: 12-80V DC.
Control and main I/O supply voltage: 12-28V DC.
Nominal speed range 0.01-3000 rpm.
Tips
8 I/O's that can be configured to Inputs, Outputs or analogue Inputs.
Can readily be programmed in Labview, VB etc. The motor can be run independently from PC if required (programmed can be downloaded to motor). Easy connection via USB port, RS 485, optional wireless and ethernet control.
Optional encoders, gearing, motor brake etc.
Important Notes
We have a free motor selection help service - including a free motor configuration software programme and technical help to ensure the motor is to your requirement - please consult our technical department for full motor specifications.
Product Datasheets
Application images
