Front Micrometer
X stages

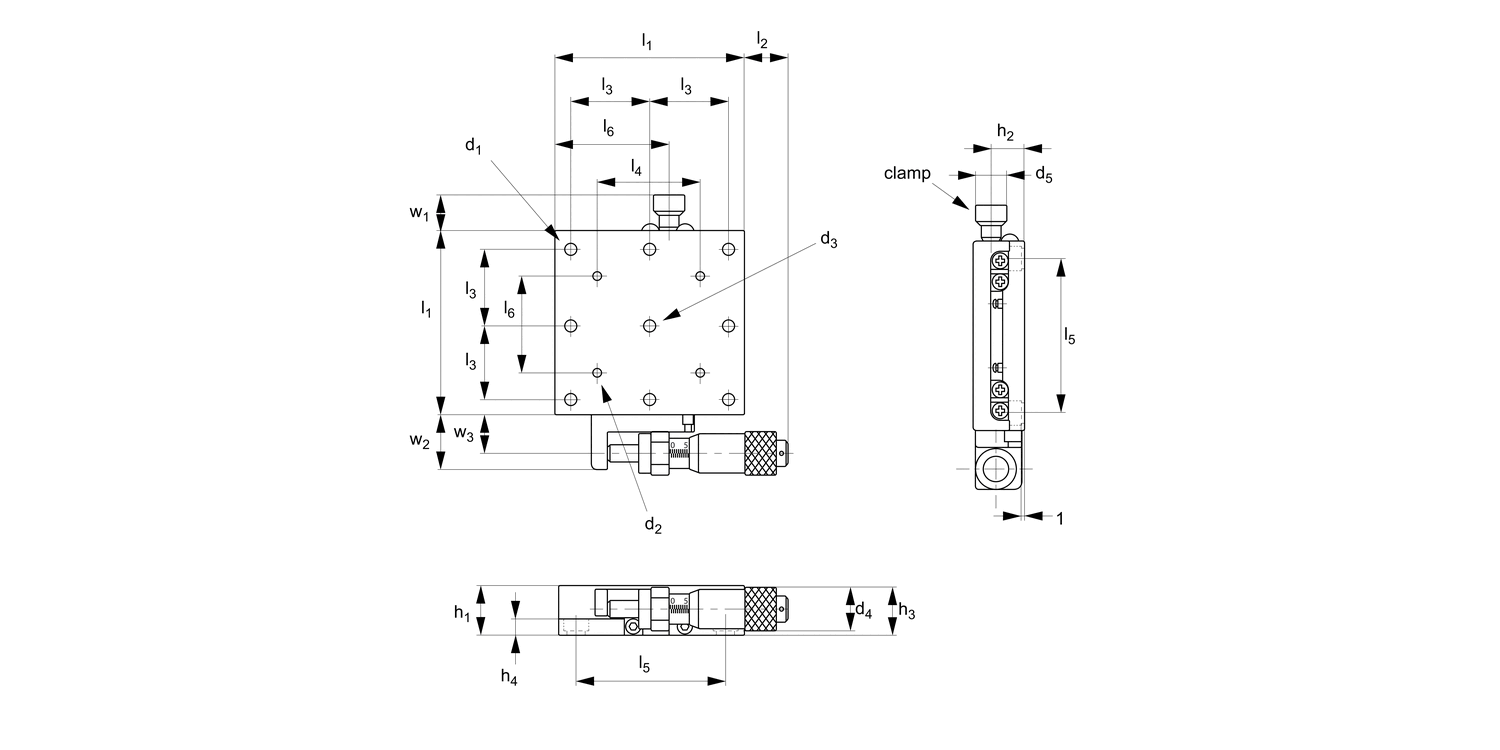

L3122 Stainless Micrometer X Stages
side drive, material: Stainless steel
Alternative products you may wish to consider
Travel
l1
l2
l3
l4
l5
l6
h1
h2
h3
| Price & Availability | Article | Travel | l1 | l2 | l3 | l4 | l5 | l6 | h1 | h2 | h3 | ||||||
| L3122.040 | 13 | 40 | 23.7 | 16 | - | 32 | 26 | 16.0 | 10.5 | 9 | |||||||
Ready to despatch 0 Need more? Please call us.
Travel 13 l1 40 l2 23.7 l3 16 l4 - l5 32 l6 26 h1 16.0 h2 10.5 h3 9 | |||||||||||||||||
| L3122.060 | 13 | 60 | 13.8 | 25 | 32 | 50 | 36 | 16.0 | 10.5 | 9 | |||||||
Ready to despatch 0 Need more? Please call us.
Travel 13 l1 60 l2 13.8 l3 25 l4 32 l5 50 l6 36 h1 16.0 h2 10.5 h3 9 | |||||||||||||||||
| L3122.080 | 25 | 80 | 32.5 | 25 | 50 | 70 | 55 | 20.0 | 14.5 | 10.8 | |||||||
Ready to despatch 0 Need more? Please call us.
Travel 25 l1 80 l2 32.5 l3 25 l4 50 l5 70 l6 55 h1 20.0 h2 14.5 h3 10.8 | |||||||||||||||||
| L3122.100 | 25 | 100 | 17.5 | 25 | 70 | 90 | 67.5 | 20.0 | 14.5 | 10.8 | |||||||
Ready to despatch 0 Need more? Please call us.
Travel 25 l1 100 l2 17.5 l3 25 l4 70 l5 90 l6 67.5 h1 20.0 h2 14.5 h3 10.8 | |||||||||||||||||
h4
d1
d2
d3
d4
d5
w1
w2
Load
max.
kg
| Price & Availability | Article | h4 | d1 | d2 | d3 | d4 | d5 | w1 | w2 | Load max. kg | ||||||
| L3122.040 | 4.5 | M3 | - | 4 | 13 | 10 | 18.5 | 12 | 10.0 | |||||||
Ready to despatch 0 Need more? Please call us.
h4 4.5 d1 M3 d2 - d3 4 d4 13 d5 10 w1 18.5 w2 12 Load
max.
kg 10.0 | ||||||||||||||||
| L3122.060 | 5.0 | M4 | M3 | 4 | 13 | 10 | 18.5 | 12 | 20.0 | |||||||
Ready to despatch 0 Need more? Please call us.
h4 5.0 d1 M4 d2 M3 d3 4 d4 13 d5 10 w1 18.5 w2 12 Load
max.
kg 20.0 | ||||||||||||||||
| L3122.080 | 6.5 | M4 | M4 | 4 | 13 | 10 | 23.5 | 17 | 27.0 | |||||||
Ready to despatch 0 Need more? Please call us.
h4 6.5 d1 M4 d2 M4 d3 4 d4 13 d5 10 w1 23.5 w2 17 Load
max.
kg 27.0 | ||||||||||||||||
| L3122.100 | 6.5 | M4 | M4 | 4 | 13 | 10 | 23.5 | 17 | 35.0 | |||||||
Ready to despatch 0 Need more? Please call us.
h4 6.5 d1 M4 d2 M4 d3 4 d4 13 d5 10 w1 23.5 w2 17 Load
max.
kg 35.0 | ||||||||||||||||
Technical & Application
Material
Stainless steel (440C) with electroless nickel plating.
Technical Notes
Straightness accuracy 5µ.
Spring loaded micrometer allows precise repeatable adjustments with low friction and zero backlash.
Micrometer increments 0,01mm.
Important Notes
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
3D CAD available.
