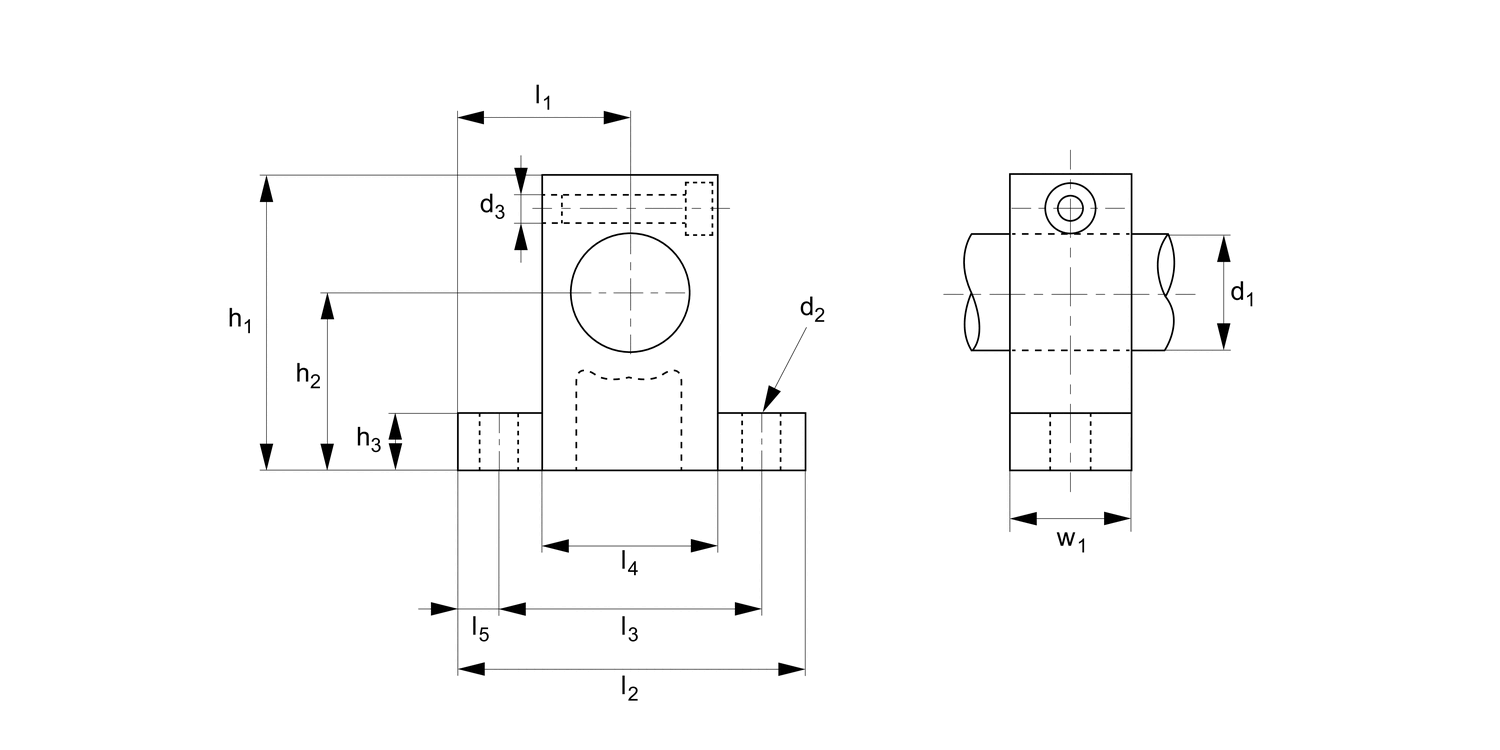

L1779.AL Shaft End Supports

Aluminium, material: Aluminium

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Shaft supports
Aluminium

Shaft End Supports
316 series stainless steel

Shaft end support Ø8

L1779.008-AL

d₁

8

d₂

5.5

d₃

M4

h₁

32.8

h₂ ±0.02

20

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

18

l₅

5.0

w₁

14

Weight g

24

£ 9.48 per unit (click for quantity discounts)

Shaft end support Ø10 EC:20272807 WG:05063055081047

L1779.010-AL

d₁

10

d₂

5.5

d₃

M4

h₁

32.8

h₂ ±0.02

20

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

18

l₅

5.0

w₁

14

Weight g

24

£ 9.48 per unit (click for quantity discounts)

Shaft end support Ø12 EC:20272814 WG:05063055081054

L1779.012-AL

d₁

12

d₂

5.5

d₃

M4

h₁

38.0

h₂ ±0.02

23

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

20

l₅

5.0

w₁

14

Weight g

30

£ 11.15 per unit (click for quantity discounts)

Shaft end support Ø13 EC:20272821 WG:05063055081061

L1779.013-AL

d₁

13

d₂

5.5

d₃

M4

h₁

38.0

h₂ ±0.02

23

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

20

l₅

5.0

w₁

14

Weight g

30

£ 11.15 per unit (click for quantity discounts)

Shaft end support Ø16 EC:20272838 WG:05063055081078

L1779.016-AL

d₁

16

d₂

5.5

d₃

M4

h₁

44.0

h₂ ±0.02

27

h₃

8

l₁ ±0.05

24

l₂

48

l₃

38

l₄

25

l₅

5.0

w₁

16

Weight g

40

£ 13.70 per unit (click for quantity discounts)

Shaft end support Ø20 EC:20272845 WG:05063055081085

L1779.020-AL

d₁

20

d₂

6.6

d₃

M5

h₁

51.0

h₂ ±0.02

31

h₃

10

l₁ ±0.05

30

l₂

60

l₃

45

l₄

30

l₅

7.5

w₁

20

Weight g

70

£ 15.17 per unit (click for quantity discounts)

Shaft end support Ø25 EC:20272852 WG:05063055081092

L1779.025-AL

d₁

25

d₂

6.6

d₃

M6

h₁

60.0

h₂ ±0.02

35

h₃

12

l₁ ±0.05

35

l₂

70

l₃

56

l₄

38

l₅

7.0

w₁

24

Weight g

130

£ 16.53 per unit (click for quantity discounts)

Shaft end support Ø30 EC:20272869 WG:05063055081108

L1779.030-AL

d₁

30

d₂

9.0

d₃

M6

h₁

70.0

h₂ ±0.02

42

h₃

12

l₁ ±0.05

42

l₂

84

l₃

64

l₄

44

l₅

10.0

w₁

28

Weight g

180

£ 18.80 per unit (click for quantity discounts)

Shaft end support Ø35 EC:20272876 WG:05063055081115

L1779.035-AL

d₁

35

d₂

11.0

d₃

M8

h₁

85.0

h₂ ±0.02

50

h₃

15

l₁ ±0.05

49

l₂

98

l₃

74

l₄

50

l₅

12.0

w₁

32

Weight g

270

£ 20.72 per unit (click for quantity discounts)

Shaft end support Ø40 EC:20272883 WG:05063055081122

L1779.040-AL

d₁

40

d₂

11.0

d₃

M8

h₁

96.0

h₂ ±0.02

60

h₃

15

l₁ ±0.05

57

l₂

114

l₃

90

l₄

60

l₅

12.0

w₁

36

Weight g

420

£ 28.54 per unit (click for quantity discounts)

Shaft end support Ø8

L1779.008-AL

d₁

8

d₂

5.5

d₃

M4

h₁

32.8

h₂ ±0.02

20

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

18

l₅

5.0

w₁

14

Weight g

24

£ 9.48 per unit (click for quantity discounts)

Shaft end support Ø10 EC:20272807 WG:05063055081047

L1779.010-AL

d₁

10

d₂

5.5

d₃

M4

h₁

32.8

h₂ ±0.02

20

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

18

l₅

5.0

w₁

14

Weight g

24

£ 9.48 per unit (click for quantity discounts)

Shaft end support Ø12 EC:20272814 WG:05063055081054

L1779.012-AL

d₁

12

d₂

5.5

d₃

M4

h₁

38.0

h₂ ±0.02

23

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

20

l₅

5.0

w₁

14

Weight g

30

£ 11.15 per unit (click for quantity discounts)

Shaft end support Ø13 EC:20272821 WG:05063055081061

L1779.013-AL

d₁

13

d₂

5.5

d₃

M4

h₁

38.0

h₂ ±0.02

23

h₃

6

l₁ ±0.05

21

l₂

42

l₃

32

l₄

20

l₅

5.0

w₁

14

Weight g

30

£ 11.15 per unit (click for quantity discounts)

Shaft end support Ø16 EC:20272838 WG:05063055081078

L1779.016-AL

d₁

16

d₂

5.5

d₃

M4

h₁

44.0

h₂ ±0.02

27

h₃

8

l₁ ±0.05

24

l₂

48

l₃

38

l₄

25

l₅

5.0

w₁

16

Weight g

40

£ 13.70 per unit (click for quantity discounts)

Shaft end support Ø20 EC:20272845 WG:05063055081085

L1779.020-AL

d₁

20

d₂

6.6

d₃

M5

h₁

51.0

h₂ ±0.02

31

h₃

10

l₁ ±0.05

30

l₂

60

l₃

45

l₄

30

l₅

7.5

w₁

20

Weight g

70

£ 15.17 per unit (click for quantity discounts)

Shaft end support Ø25 EC:20272852 WG:05063055081092

L1779.025-AL

d₁

25

d₂

6.6

d₃

M6

h₁

60.0

h₂ ±0.02

35

h₃

12

l₁ ±0.05

35

l₂

70

l₃

56

l₄

38

l₅

7.0

w₁

24

Weight g

130

£ 16.53 per unit (click for quantity discounts)

Shaft end support Ø30 EC:20272869 WG:05063055081108

L1779.030-AL

d₁

30

d₂

9.0

d₃

M6

h₁

70.0

h₂ ±0.02

42

h₃

12

l₁ ±0.05

42

l₂

84

l₃

64

l₄

44

l₅

10.0

w₁

28

Weight g

180

£ 18.80 per unit (click for quantity discounts)

Shaft end support Ø35 EC:20272876 WG:05063055081115

L1779.035-AL

d₁

35

d₂

11.0

d₃

M8

h₁

85.0

h₂ ±0.02

50

h₃

15

l₁ ±0.05

49

l₂

98

l₃

74

l₄

50

l₅

12.0

w₁

32

Weight g

270

£ 20.72 per unit (click for quantity discounts)

Shaft end support Ø40 EC:20272883 WG:05063055081122

L1779.040-AL

d₁

40

d₂

11.0

d₃

M8

h₁

96.0

h₂ ±0.02

60

h₃

15

l₁ ±0.05

57

l₂

114

l₃

90

l₄

60

l₅

12.0

w₁

36

Weight g

420

£ 28.54 per unit (click for quantity discounts)



Select all

d₁

d₂

d₃

h₁

h₂ ±0.02

h₃

l₁ ±0.05

l₂

l₃

l₄

l₅

w₁

Weight g

Price & Availability	Article	d1	d2	d3	h1	h2 ±0.02	h3	l1 ±0.05	l2	l3	l4	l5	w1	Weight g
	L1779.008-AL	8	5.5	M4	32.8	20	6	21	42	32	18	5.0	14	24
£ 9.48 per unit (click for quantity discounts) Ready to despatch 55 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.48 0% 10-19 £ 8.53 10% 20-49 £ 8.06 15% 50-99 £ 7.58 20% 100+ £ 6.64 30% d1 8 d2 5.5 d3 M4 h1 32.8 h2 ±0.02 20 h3 6 l1 ±0.05 21 l2 42 l3 32 l4 18 l5 5.0 w1 14 Weight g 24 more info »
	L1779.010-AL	10	5.5	M4	32.8	20	6	21	42	32	18	5.0	14	24
£ 9.48 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.48 0% 10-19 £ 8.53 10% 20-49 £ 8.06 15% 50-99 £ 7.58 20% 100+ £ 6.64 30% d1 10 d2 5.5 d3 M4 h1 32.8 h2 ±0.02 20 h3 6 l1 ±0.05 21 l2 42 l3 32 l4 18 l5 5.0 w1 14 Weight g 24 more info »
	L1779.012-AL	12	5.5	M4	38.0	23	6	21	42	32	20	5.0	14	30
£ 11.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 11.15 0% 10-19 £ 10.04 10% 20-49 £ 9.48 15% 50-99 £ 8.92 20% 100+ £ 7.81 30% d1 12 d2 5.5 d3 M4 h1 38.0 h2 ±0.02 23 h3 6 l1 ±0.05 21 l2 42 l3 32 l4 20 l5 5.0 w1 14 Weight g 30 more info »
	L1779.013-AL	13	5.5	M4	38.0	23	6	21	42	32	20	5.0	14	30
£ 11.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 11.15 0% 10-19 £ 10.04 10% 20-49 £ 9.48 15% 50-99 £ 8.92 20% 100+ £ 7.81 30% d1 13 d2 5.5 d3 M4 h1 38.0 h2 ±0.02 23 h3 6 l1 ±0.05 21 l2 42 l3 32 l4 20 l5 5.0 w1 14 Weight g 30 more info »
	L1779.016-AL	16	5.5	M4	44.0	27	8	24	48	38	25	5.0	16	40
£ 13.70 per unit (click for quantity discounts) Ready to despatch 283 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.70 0% 10-19 £ 12.33 10% 20-49 £ 11.65 15% 50-99 £ 10.96 20% 100+ £ 9.59 30% d1 16 d2 5.5 d3 M4 h1 44.0 h2 ±0.02 27 h3 8 l1 ±0.05 24 l2 48 l3 38 l4 25 l5 5.0 w1 16 Weight g 40 more info »
	L1779.020-AL	20	6.6	M5	51.0	31	10	30	60	45	30	7.5	20	70
£ 15.17 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.17 0% 10-19 £ 13.65 10% 20-49 £ 12.89 15% 50-99 £ 12.14 20% 100+ £ 10.62 30% d1 20 d2 6.6 d3 M5 h1 51.0 h2 ±0.02 31 h3 10 l1 ±0.05 30 l2 60 l3 45 l4 30 l5 7.5 w1 20 Weight g 70 more info »
	L1779.025-AL	25	6.6	M6	60.0	35	12	35	70	56	38	7.0	24	130
£ 16.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.53 0% 10-19 £ 14.88 10% 20-49 £ 14.05 15% 50-99 £ 13.22 20% 100+ £ 11.57 30% d1 25 d2 6.6 d3 M6 h1 60.0 h2 ±0.02 35 h3 12 l1 ±0.05 35 l2 70 l3 56 l4 38 l5 7.0 w1 24 Weight g 130 more info »
	L1779.030-AL	30	9.0	M6	70.0	42	12	42	84	64	44	10.0	28	180
£ 18.80 per unit (click for quantity discounts) Ready to despatch 52 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.80 0% 10-19 £ 16.92 10% 20-49 £ 15.98 15% 50-99 £ 15.04 20% 100+ £ 13.16 30% d1 30 d2 9.0 d3 M6 h1 70.0 h2 ±0.02 42 h3 12 l1 ±0.05 42 l2 84 l3 64 l4 44 l5 10.0 w1 28 Weight g 180 more info »
	L1779.035-AL	35	11.0	M8	85.0	50	15	49	98	74	50	12.0	32	270
£ 20.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 20.72 0% 10-19 £ 18.65 10% 20-49 £ 17.61 15% 50-99 £ 16.58 20% 100+ £ 14.50 30% d1 35 d2 11.0 d3 M8 h1 85.0 h2 ±0.02 50 h3 15 l1 ±0.05 49 l2 98 l3 74 l4 50 l5 12.0 w1 32 Weight g 270 more info »
	L1779.040-AL	40	11.0	M8	96.0	60	15	57	114	90	60	12.0	36	420
£ 28.54 per unit (click for quantity discounts) Ready to despatch 16 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 28.54 0% 10-19 £ 25.69 10% 20-49 £ 24.26 15% 50-99 £ 22.83 20% 100+ £ 19.98 30% d1 40 d2 11.0 d3 M8 h1 96.0 h2 ±0.02 60 h3 15 l1 ±0.05 57 l2 114 l3 90 l4 60 l5 12.0 w1 36 Weight g 420 more info »
