R5177 Spur Gears - Module 1

Name: R5177.100-014-08
Brand: WC
SKU: R5177.100-014-08
Price: 14.38 EUR
Availability: OutOfStock

carbon steel - 12-18 teeth, material: Steel

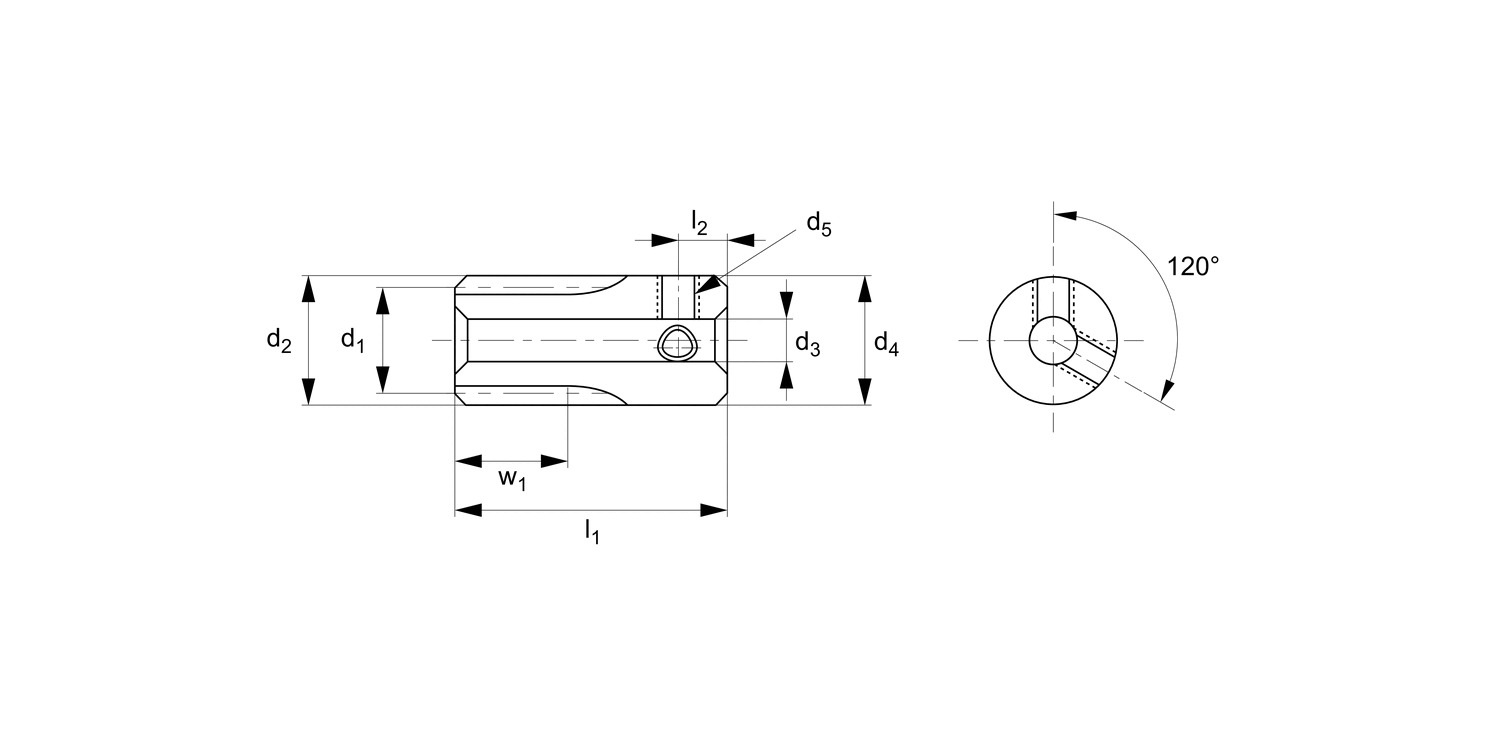

Article properties

Order No.

R5177.100-014-08

Module

m 1

No. of teeth z

Pitch dia. d₁

d₂

w₁

d₃ tol. H8

d₄

l₁

l₂

Thread d₅

2xM 4

Torque max. Nm

3.38

Weight g

30.1

See full product selection

£ 14.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 14.38	0%
5-19	£ 12.94	10%
20-39	£ 11.50	20%
40-99	£ 10.07	30%
100+	£ 8.63	40%

Download product datasheet

Technical & Application

Material

Carbon steel (ISO C45).
Accuracy to JIS B 1702-1 (ISO) class 8- 9.

Technical Notes

20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,04 - 0,10mm.

Tips

Module 1 for gears with 14-120 teeth see R5173 & R5179, for gears with 8-10 teeth see R5175 & R5176.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
