Spur Gears

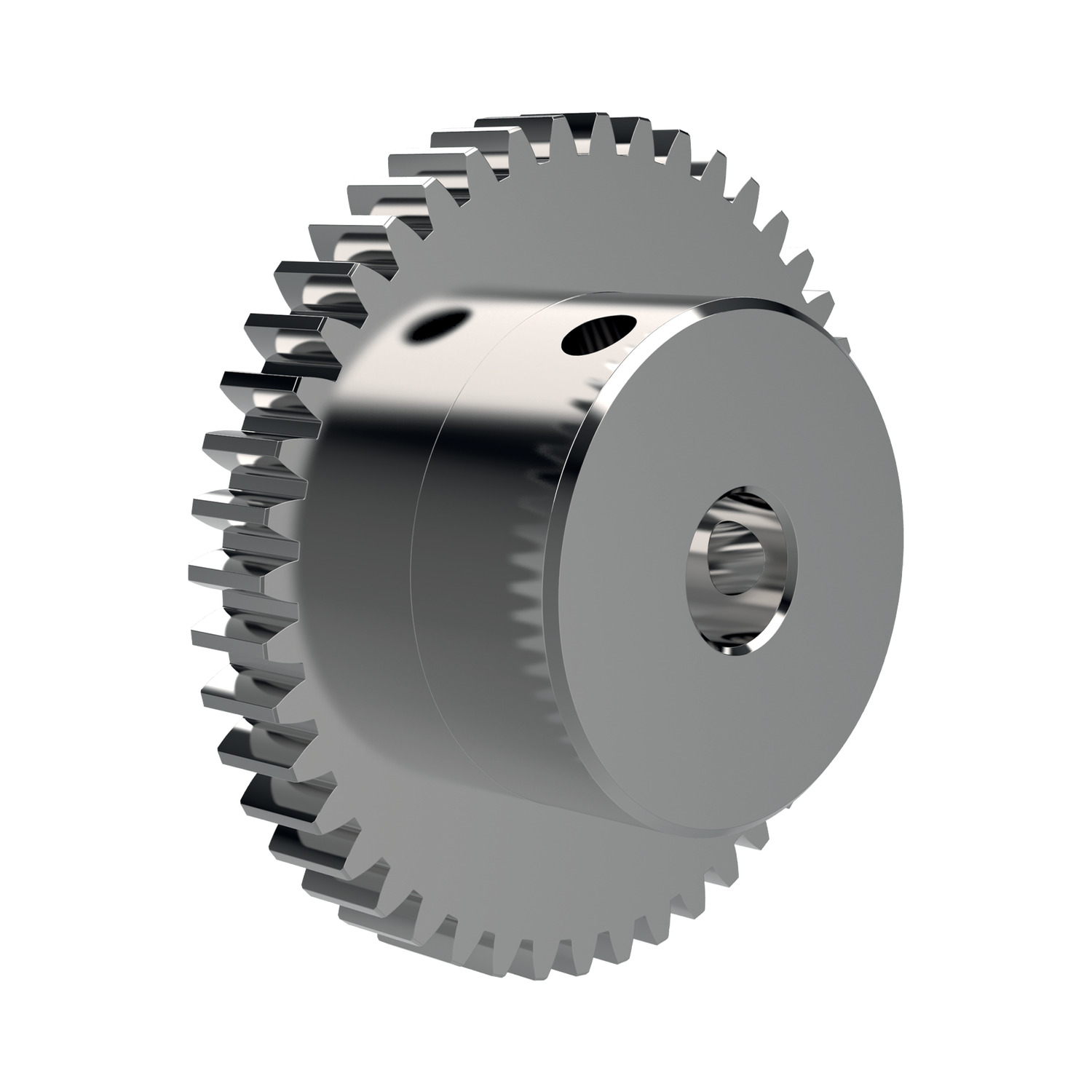

R5165 Spur Gears - Module 1
stainless steel - 17-120 teeth, material: Stainless steel
Order No.
R5165.100-050-06
Module
No. of teeth z
50

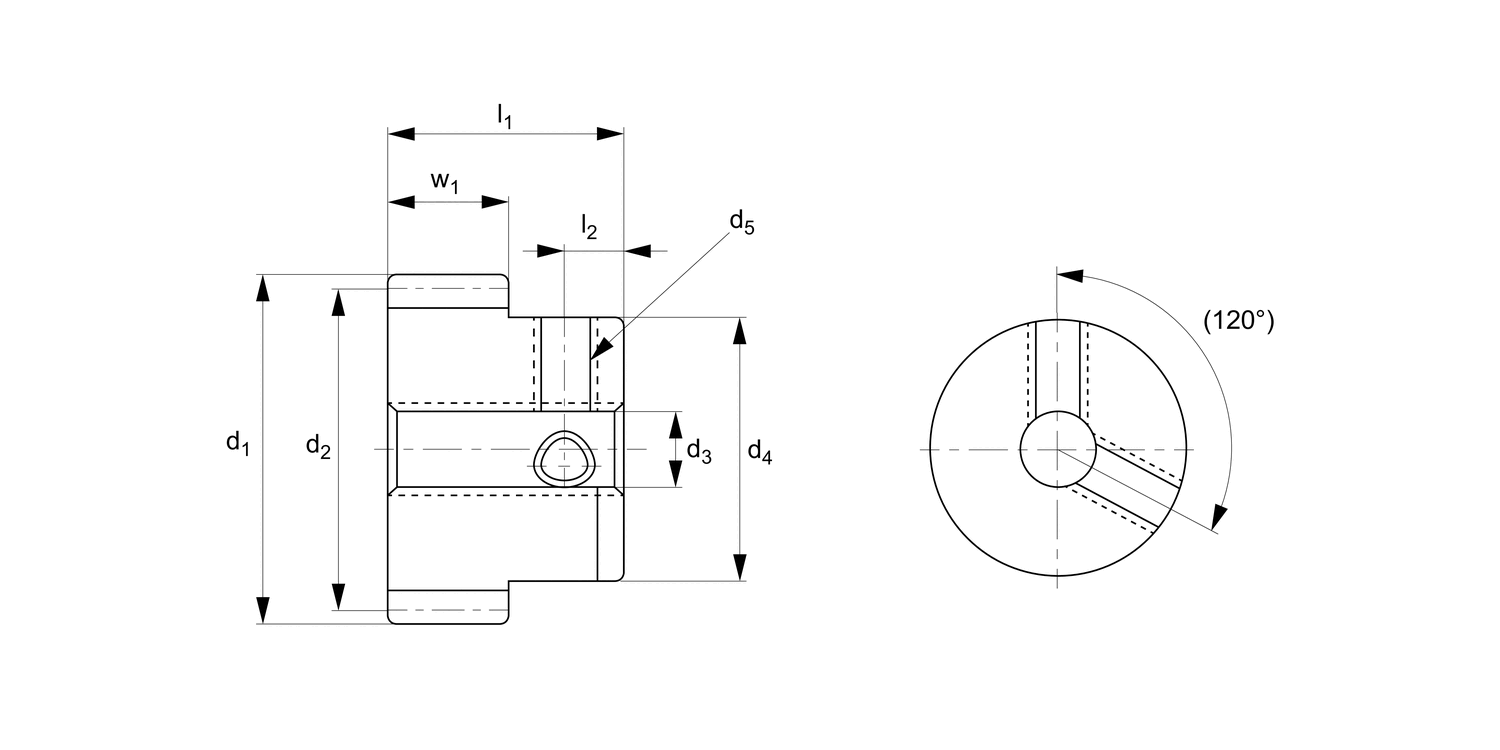

Pitch dia. d1
50
d2
52
w1
6
d3
tol. H8
8
d4
28
l1
16
l2
4
Thread d5
2xM 4
Torque
max.
Nm
7.62
Weight
g
134.2
£ 103.33 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-1 | £ 103.33 | 0% |
| 2-2 | £ 93.00 | 10% |
| 3-4 | £ 87.83 | 15% |
| 5+ | £ 82.66 | 20% |
Technical & Application
Material
Stainless steel (SUS 304, JIS G 4303).
Accuracy to JIS B 1702-1 (ISO) class 9.
Technical Notes
20° pressure angle, full depth tooth.
Amount of backlash when assembling gears = 0,06 - 0,12mm.
Tips
For stainless steel module 1 gears with 14-16 teeth, see R5163.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
