Module 0.75
Spur Gears

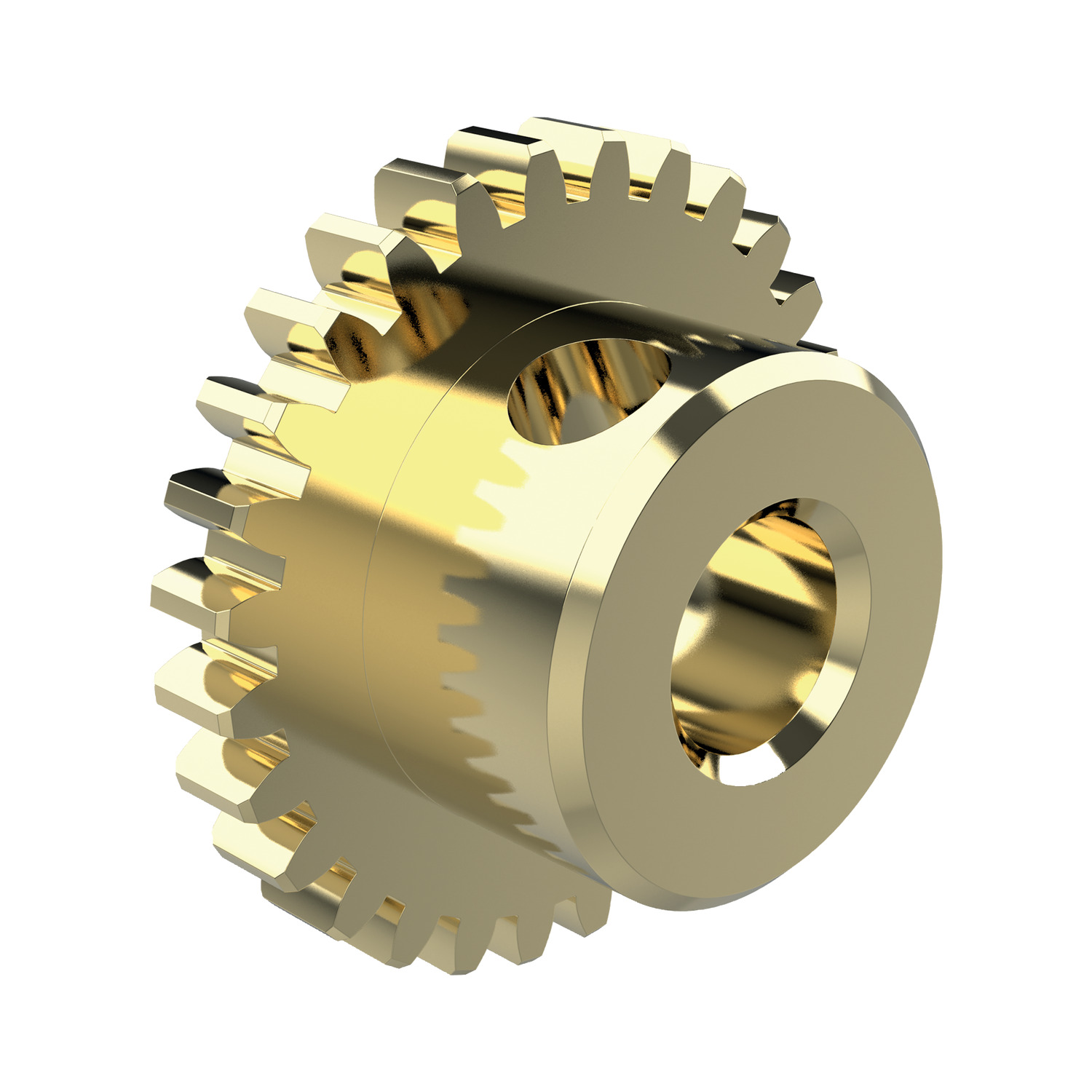

R5133 Spur Gears - Module 0.75 - Brass
brass - 16-48 teeth, material: Brass
Order No.
R5133.075-035

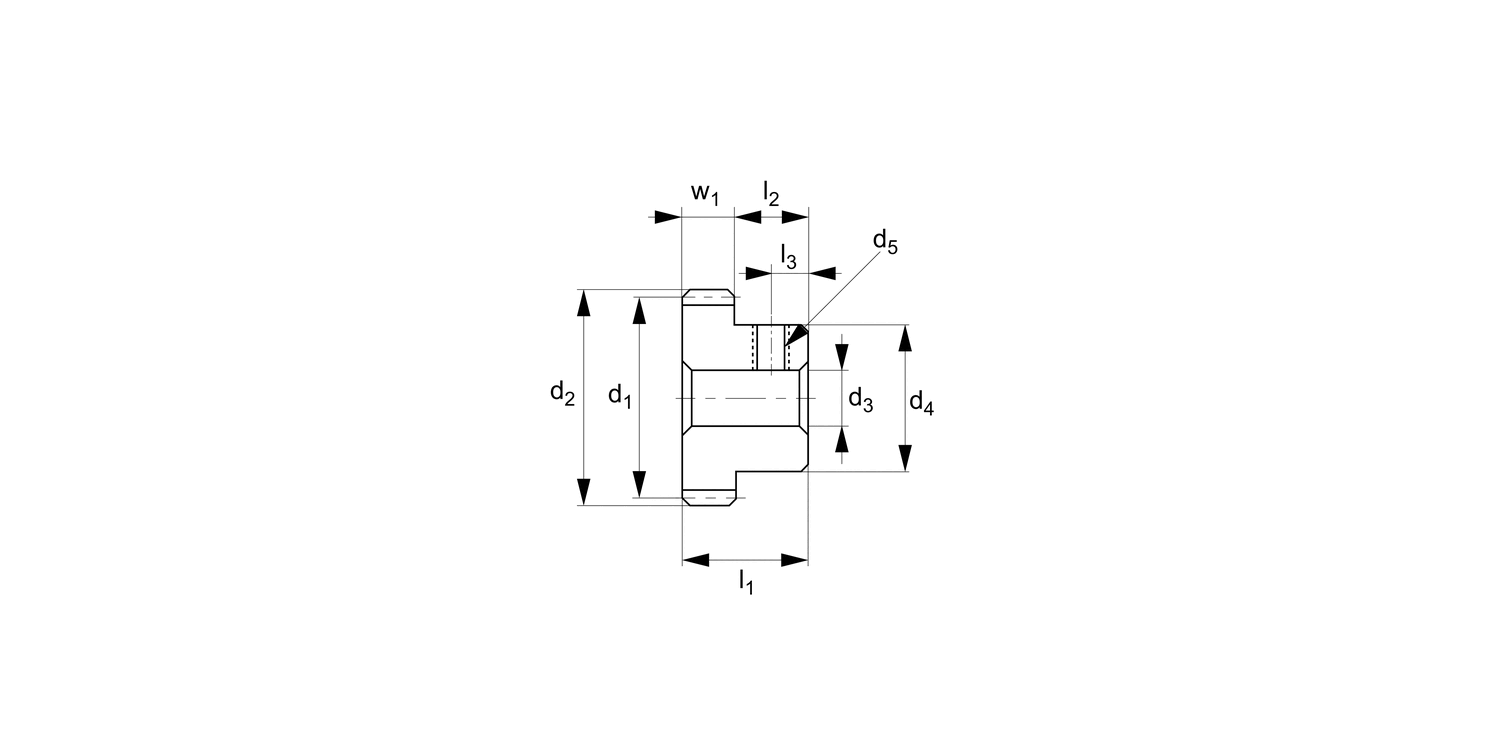

Module
No. of teeth z
35
Pitch dia. d1
26.3
d2
27.8
w1
3
d3
tol. H8
6
d4
18
l1
10
l2
7
l3
3.5
Thread d5
M 4
Torque
max.
Nm
0.55
Weight
g
24.9
£ 25.92 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 25.92 | 0% |
| 5-19 | £ 23.33 | 10% |
| 20-39 | £ 20.74 | 20% |
| 40-99 | £ 18.14 | 30% |
| 100+ | £ 15.55 | 40% |
Technical & Application
Material
Brass (C3604B). Accuracy to JIS B 1702-1 (ISO) class 9.
Technical Notes
20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,015 - 0,045mm.
Tips
For module 0.75 brass gears with 10-12 teeth or 14-20 teeth, see R5130 & R5132;

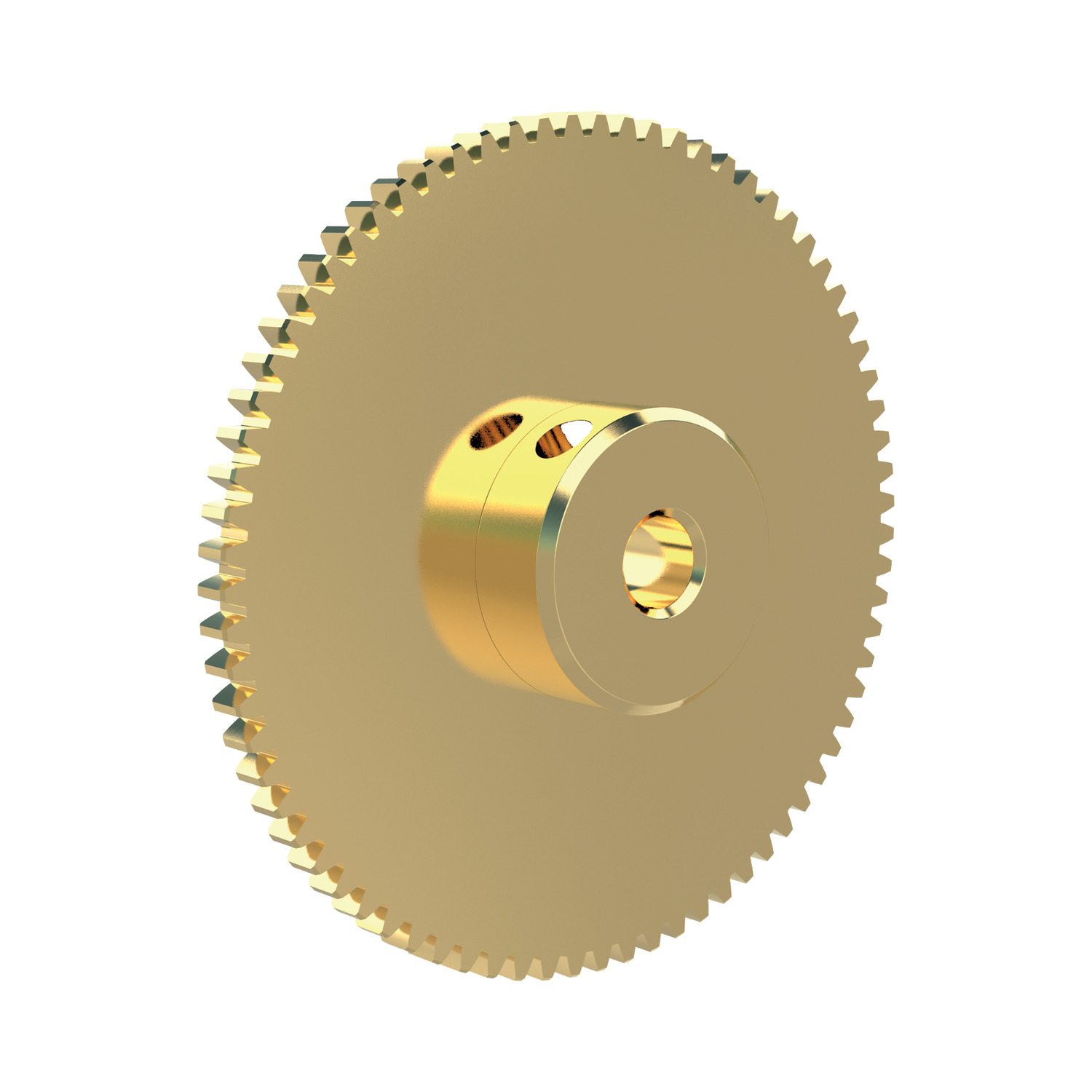

for 50-120 teeth see R5135 (hubless) & R5136.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
