R5108 Spur Gears - Module 0.5

Name: R5108.050-080
Brand: WC
SKU: R5108.050-080
Price: 99.97 EUR
Availability: OutOfStock

stainless steel - 32-120 teeth, material: Stainless steel

Article properties

Order No.

R5108.050-080

Module

m 0.5

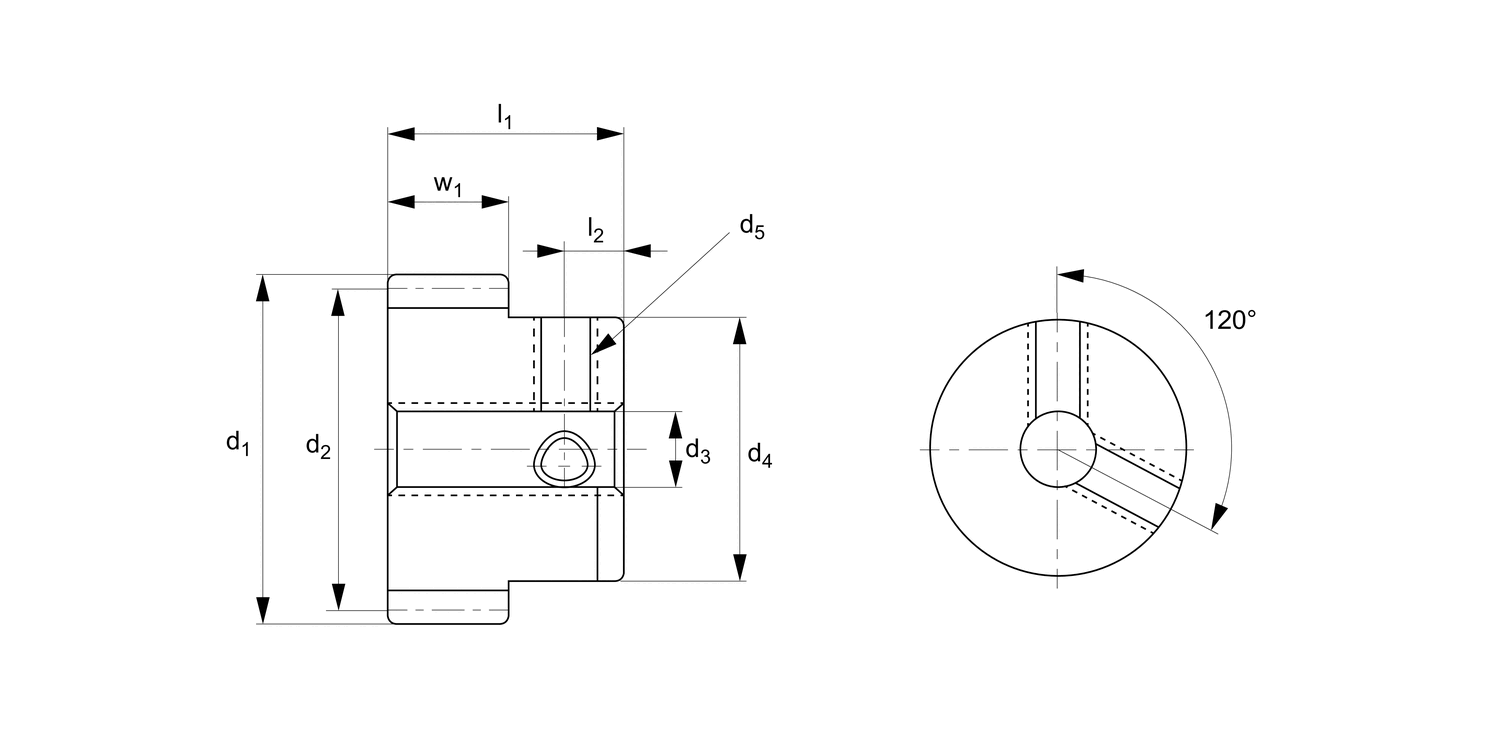

No. of teeth z

Pitch dia. d₁

40.0

d₂

41.0

w₁

d₃ tol. H8

d₄

l₁

l₃

Thread d₅

2xM 5

Torque max. Nm

2.78

Weight g

64.3

See full product selection

£ 99.97 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-1	£ 99.97	0%
2-2	£ 89.97	10%
3-4	£ 84.97	15%
5+	£ 79.98	20%

Download product datasheet

Technical & Application

Material

Stainless steel (SUS 304, JIS G 4303). Accuracy to JIS B 1702-1 (ISO) class 9.

Technical Notes

20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,01 - 0,03 mm.

Tips

Module 0.5 for gears with 10-15 teeth see R5104,
for gears with 16-30 teeth see R5105,
for gears with 16-20 teeth see R5106- long spur gear.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
