R5104 Spur Gears - Module 0.5

Name: R5104.050-012
Brand: WC
SKU: R5104.050-012
Price: 27.73 EUR
Availability: OutOfStock

stainless steel - 10-15 teeth, material: Stainless steel

Article properties

Order No.

R5104.050-012

Module

m 0.5

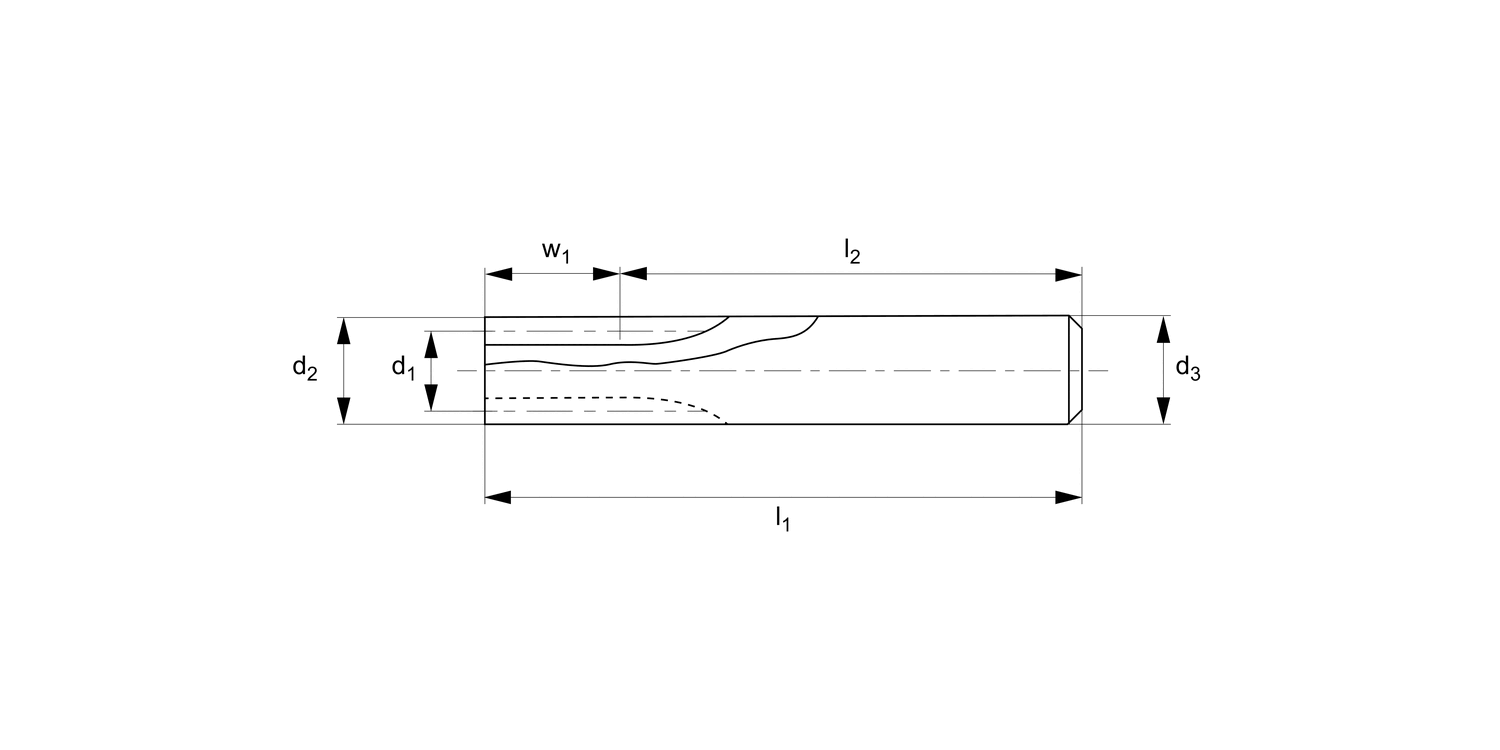

No. of teeth z

Pitch dia. d₁

6.0

d₂

7.0

w₁

d₃ tol. H8

7.0

l₁

l₂

Torque max. Nm

0.40

Weight g

16.0

See full product selection

£ 27.73 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 27.73	0%
5-19	£ 24.96	10%
20-39	£ 22.18	20%
40-99	£ 19.41	30%
100+	£ 16.64	40%

Download product datasheet

Technical & Application

Material

Stainless steel (SUS 304, JIS G 4303). Accuracy to JIS B 1702-1 (ISO) class 9.

Technical Notes

20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,01 - 0,03mm.

Tips

For module 0,5 stainless gears with 16-120 teeth see R5105, R5106 and R5108. Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
