Hexagonal Turnbuckle
Steel
R3826 Hexagonal Body Turnbuckles
stainless steel, material: Stainless steel
Order No.
R3826.006-A4
d1
M 6
l1
30
l2
22.5
A/F
10
Adjustment
15
Weight
kg
0.02
£ 2.35 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 2.35 | 0% |
| 10-19 | £ 2.12 | 10% |
| 20-39 | £ 2.00 | 15% |
| 40-49 | £ 1.76 | 25% |
| 50-99 | £ 1.65 | 30% |
| 100+ | £ 1.41 | 40% |
Technical & Application
Material
Stainless steel (A4).
Technical Notes
To DIN 1479.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes

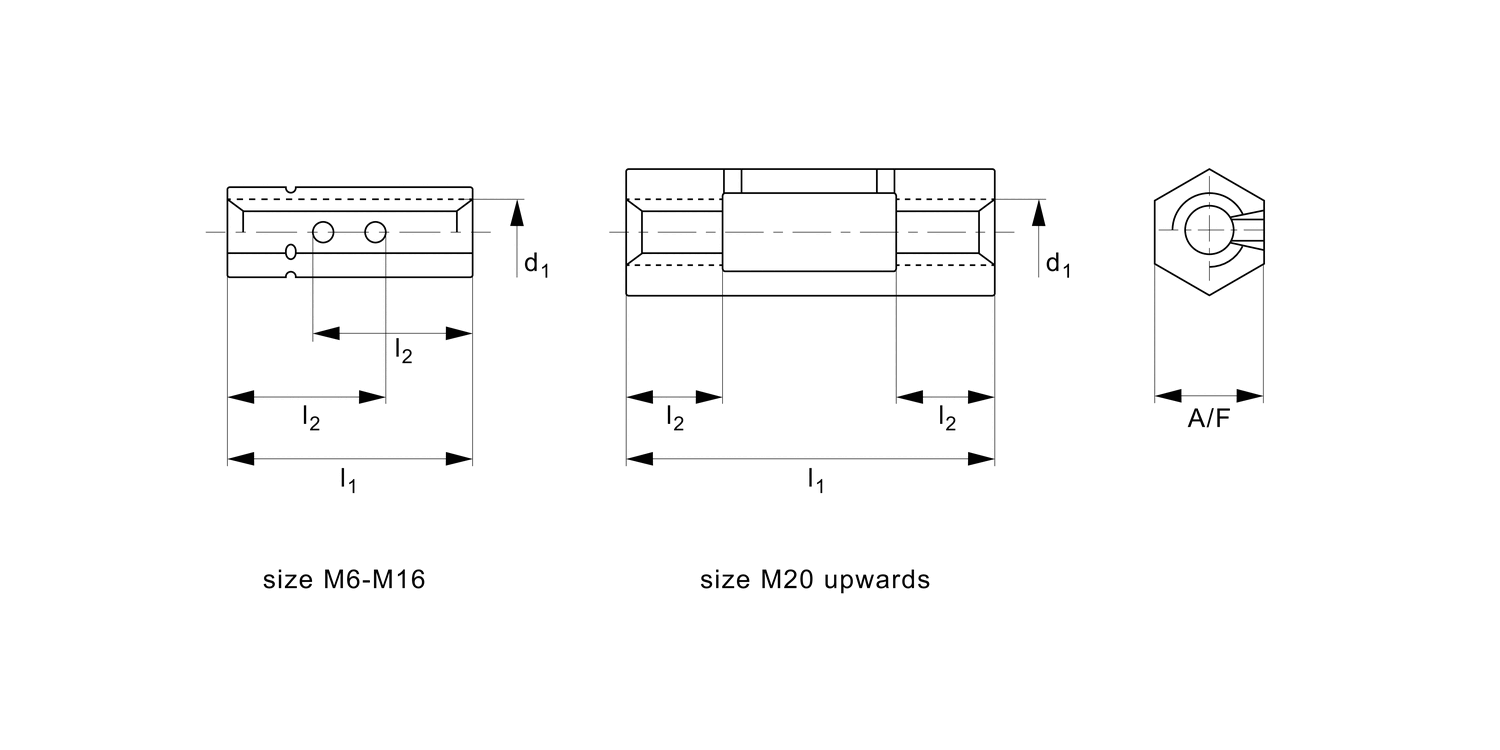

L2 dimension indicates the length of thread from each end that has been overcut.
This means you can screw from one end a total of length l2. Please note if screwing in from both ends the length of thread is half l2.
Sizes M6-M16, have overlapping thread, from M20 middle part is relieved.
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
