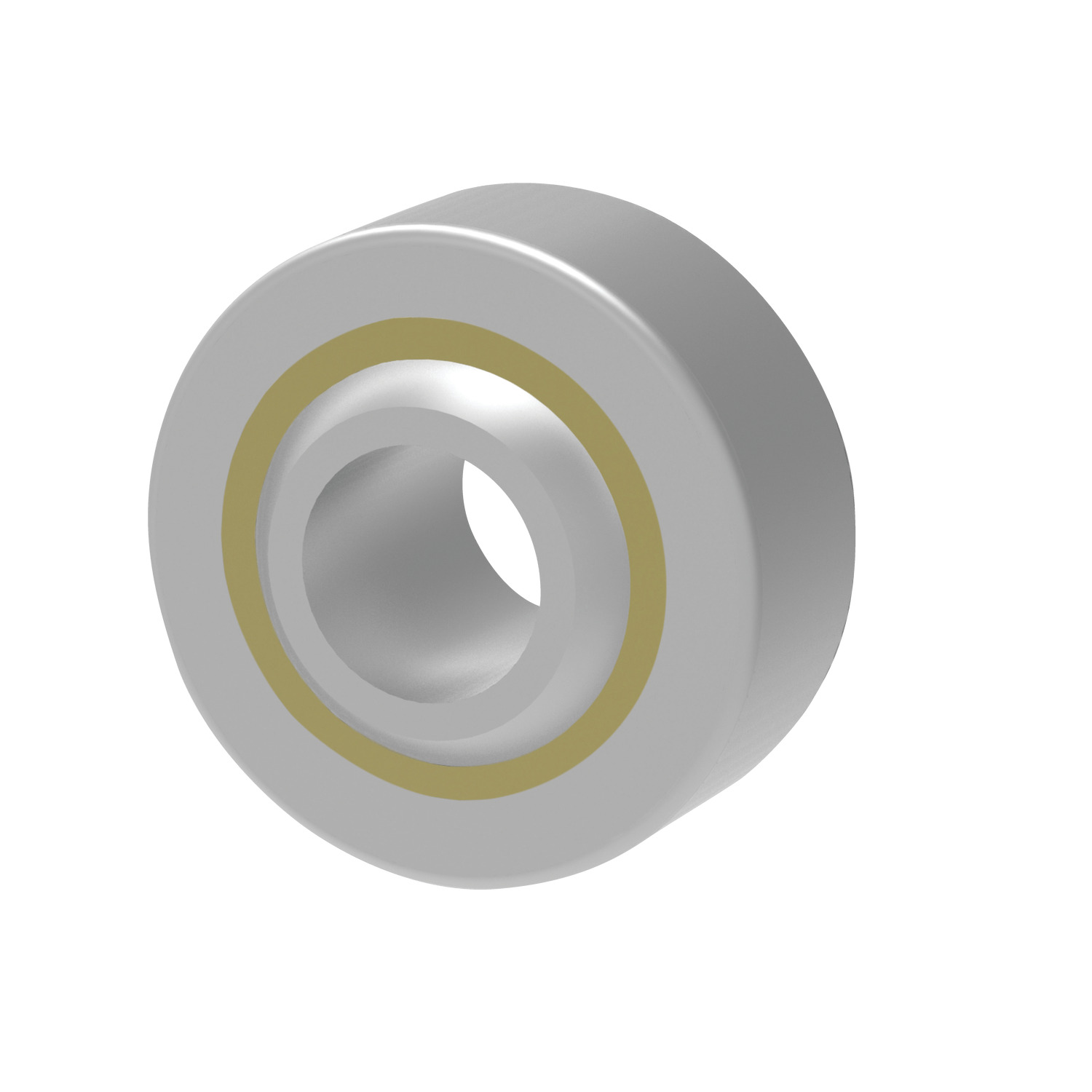

R3640.i Imperial Spherical Plain Bearings

Name: R3640.0438
Brand: WC
SKU: R3640.0438
Price: 38.42 EUR
Availability: OutOfStock

Article properties

Order No.

R3640.0438

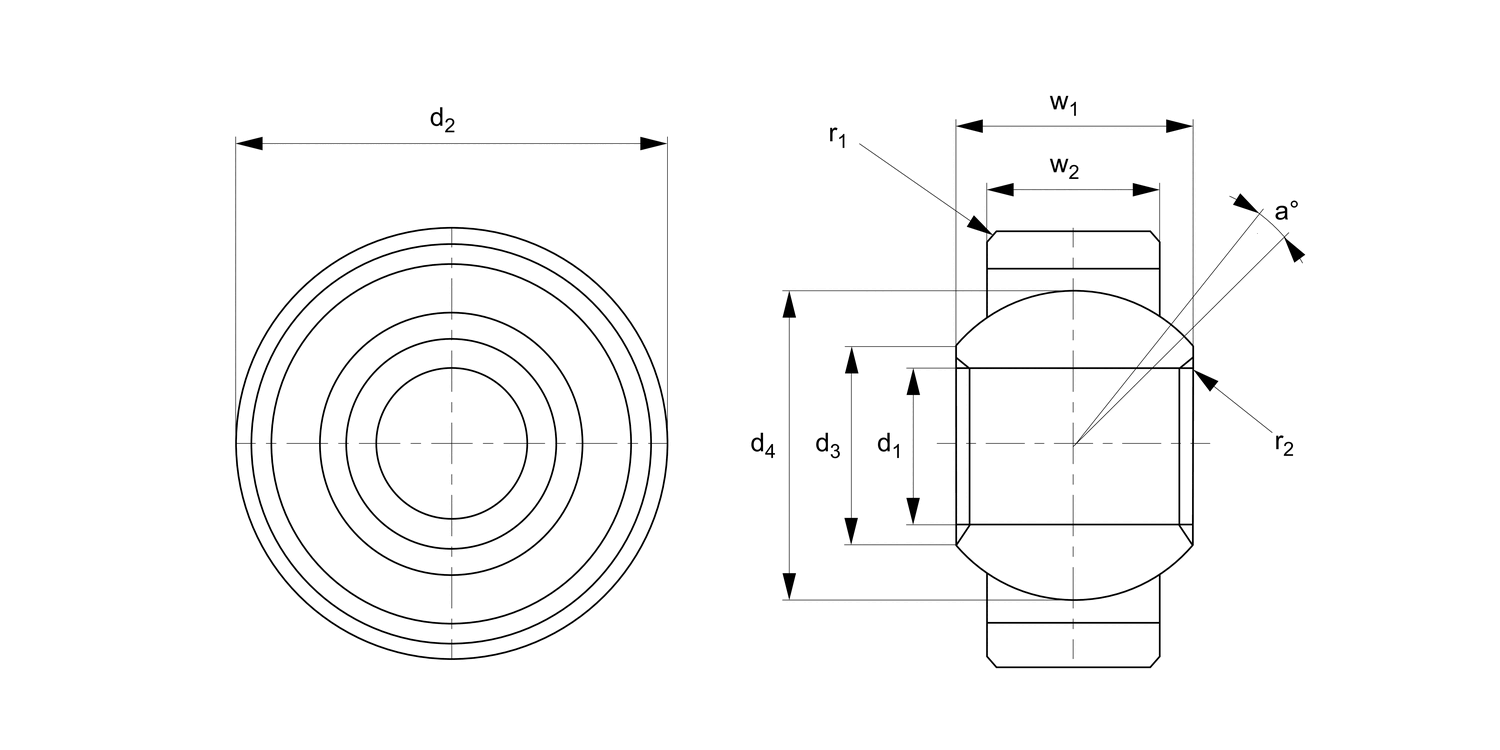

a °

8,0°

d₁

0.4375

d₂

0.9062

d₃

0.53

d₄

0.687

r₁

0.032

w₁

0.437

w₂

0.343

Radial static load max. kN

63.0

Weight g

£ 38.42 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 5 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Zinc - plated steel, Teflon or PTFE bearing race.

Spherical Plain BearingsJanuary 3, 2025, 3:17 PM / 1022.15 kB

Rod EndsJanuary 3, 2025, 3:17 PM / 3.25 MB

Universal Joints & Rod EndsJanuary 3, 2025, 3:17 PM / 4.34 MB

Linkages & Rotary ComponentsJanuary 3, 2025, 3:17 PM / 22.92 MB
