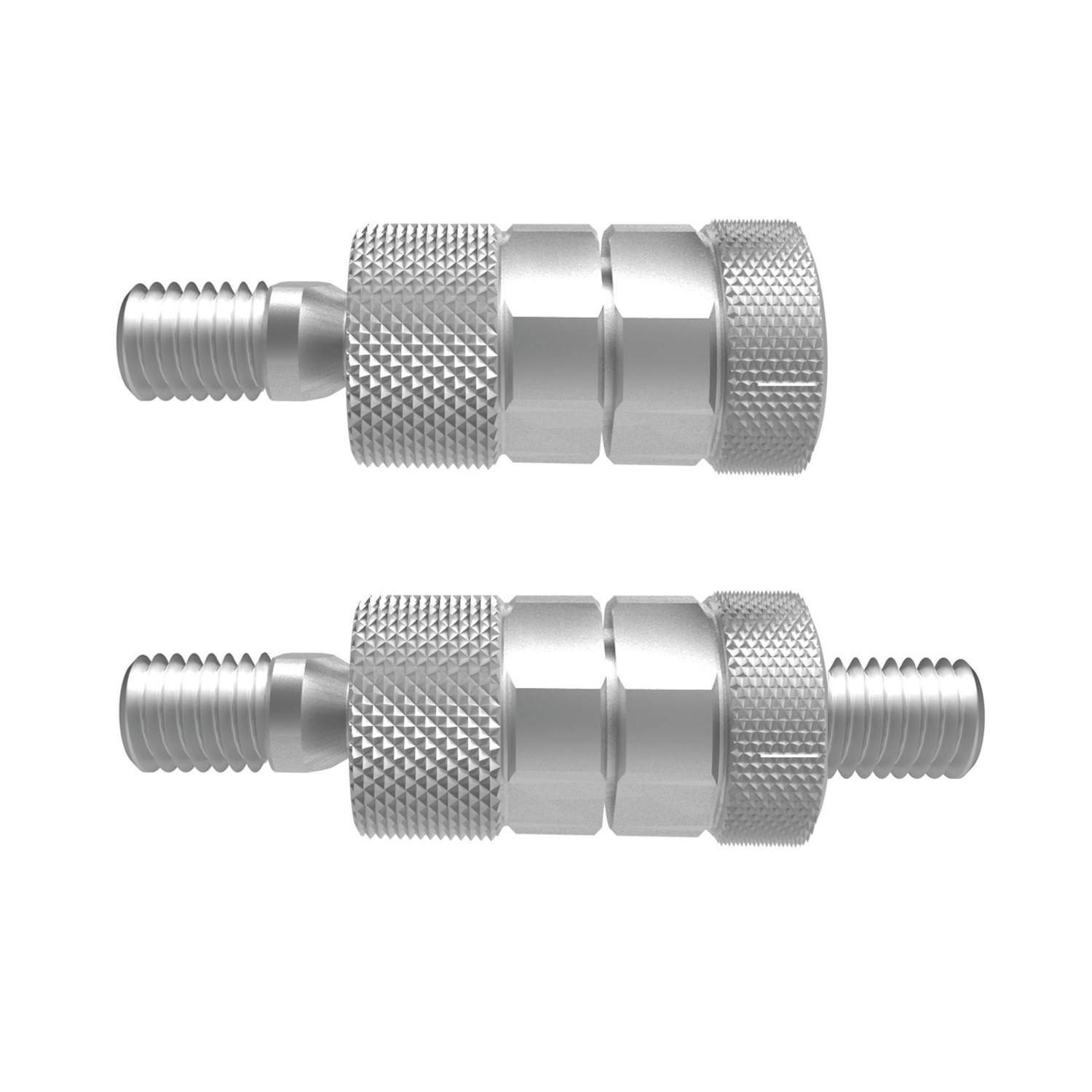

R3540 Lockable Ball joint

Name: R3540.FF010
Brand: WC
SKU: R3540.FF010
Price: 28.53 EUR
Availability: OutOfStock

material: Steel

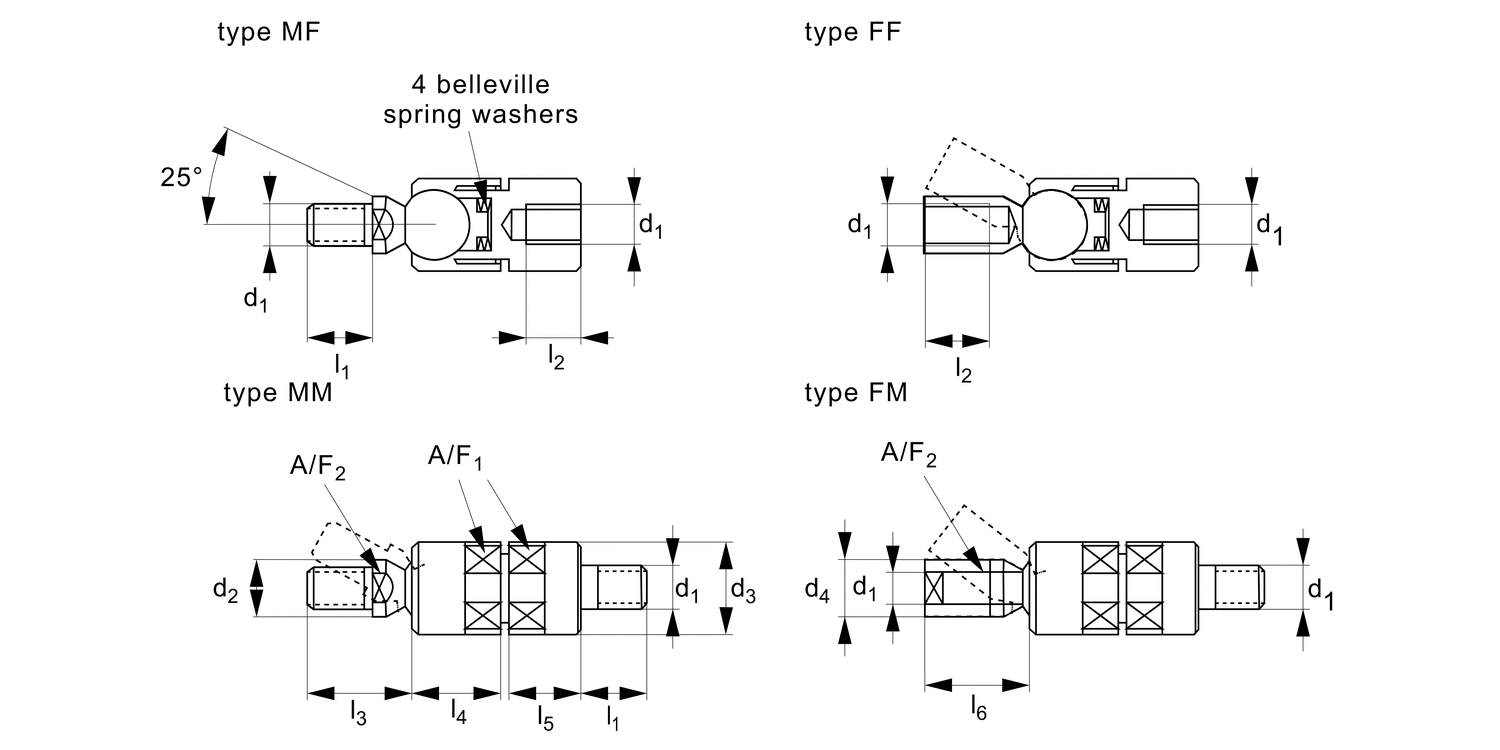

Article properties

Order No.

R3540.FF010

Type

d₁

M10

l₁

d₂

d₃

l₂

l₃

23.5

l₄

21.5

l₅

l₆

A/F₁

A/F₂

See full product selection

£ 28.53 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 28.53	0%
10-19	£ 25.68	10%
20-49	£ 24.25	15%
50-99	£ 22.82	20%
100+	£ 19.97	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, (silver zinc plated). Brake piece technopolymer (polyamide PA).

Technical Notes

The clamping nut can be set to give a required thrust on the Belleville spring washers,
in order to increase resistance to the movement of the ball stud, the spring washers act as safety washers for the screws.
Once the max. thrust to the spring washers is reached the ball stud is firmly fixed in position.
