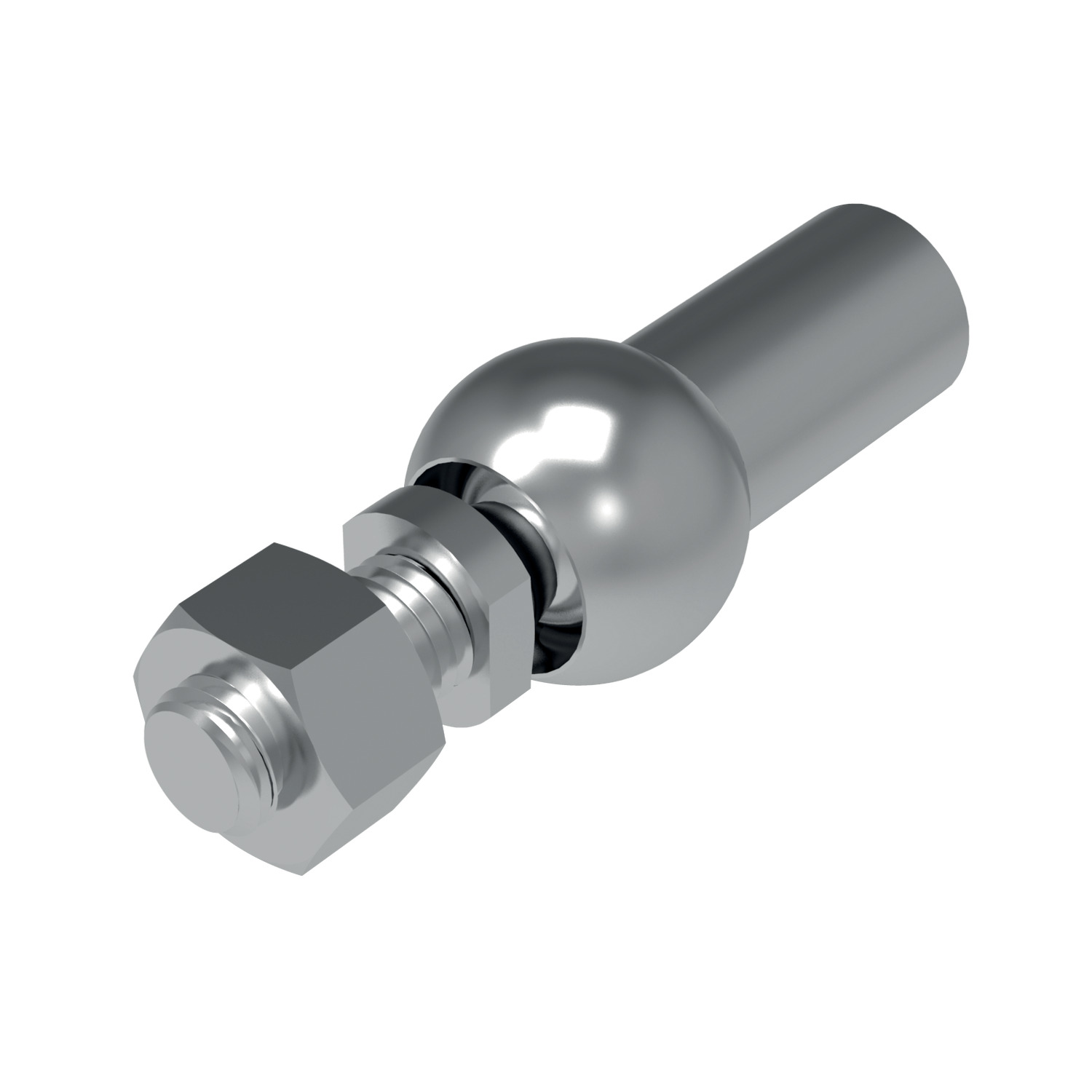

R3507 Stainless Axial Ball and Socket Joints

Name: R3507.L014
Brand: WC
SKU: R3507.L014
Price: 46.13 EUR
Availability: InStock

left hand thread, material: Stainless steel

Article properties

Order No.

R3507.L014

Thread hand

Left

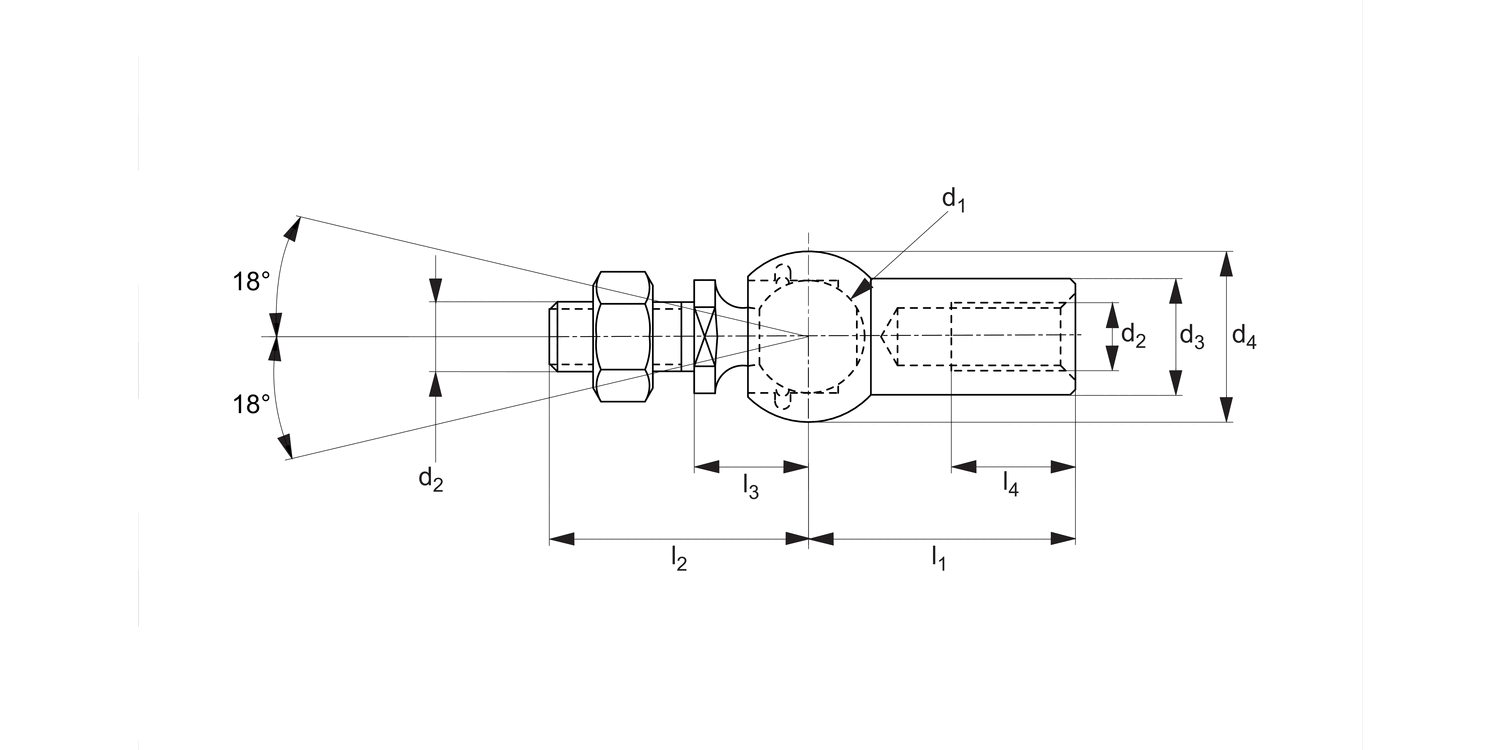

d₁ tol. h9

d₂

M14x1,5*

l₁

d₃ ±0.5

d₄ ±0.5

30.0

l₂

48.0

l₃

l₄

21.5

Extraction force N

100

Weight g

220.9

See full product selection

£ 46.13 per unit (click for quantity discounts)

Ready to despatch 8
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 46.13	0%
50-99	£ 36.90	20%
100-199	£ 34.60	25%
200-499	£ 32.29	30%
500-999	£ 29.98	35%
1000+	£ 27.68	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (AISI 303).

Technical Notes

Similar to DIN 71802, *M14x1,5 is a fine pitch thread.

Product Datasheets

R3507 Stainless Axial Ball and Socket JointsJanuary 3, 2025, 3:31 PM / 70.05 kB

Axial Ball & Socket JointsJanuary 3, 2025, 3:16 PM / 213.43 kB

Ball & Socket JointsJanuary 3, 2025, 3:16 PM / 1.35 MB

Clevis Joints, Turnbuckles & Ball & Socket JointJanuary 3, 2025, 3:16 PM / 3.86 MB

Linkages & Rotary ComponentsJanuary 3, 2025, 3:17 PM / 22.92 MB

CAD files

R3507 AcisJune 12, 2011, 10:17 AM / 217.86 kB

R3507 IGESJune 12, 2011, 10:17 AM / 348.62 kB

R3507 ParasolidJune 12, 2011, 10:17 AM / 87.40 kB

R3507 ProEJune 12, 2011, 10:17 AM / 377.45 kB

R3507 SolidWorksJune 12, 2011, 10:17 AM / 1.24 MB

R3507 StepJune 12, 2011, 10:17 AM / 171.07 kB
