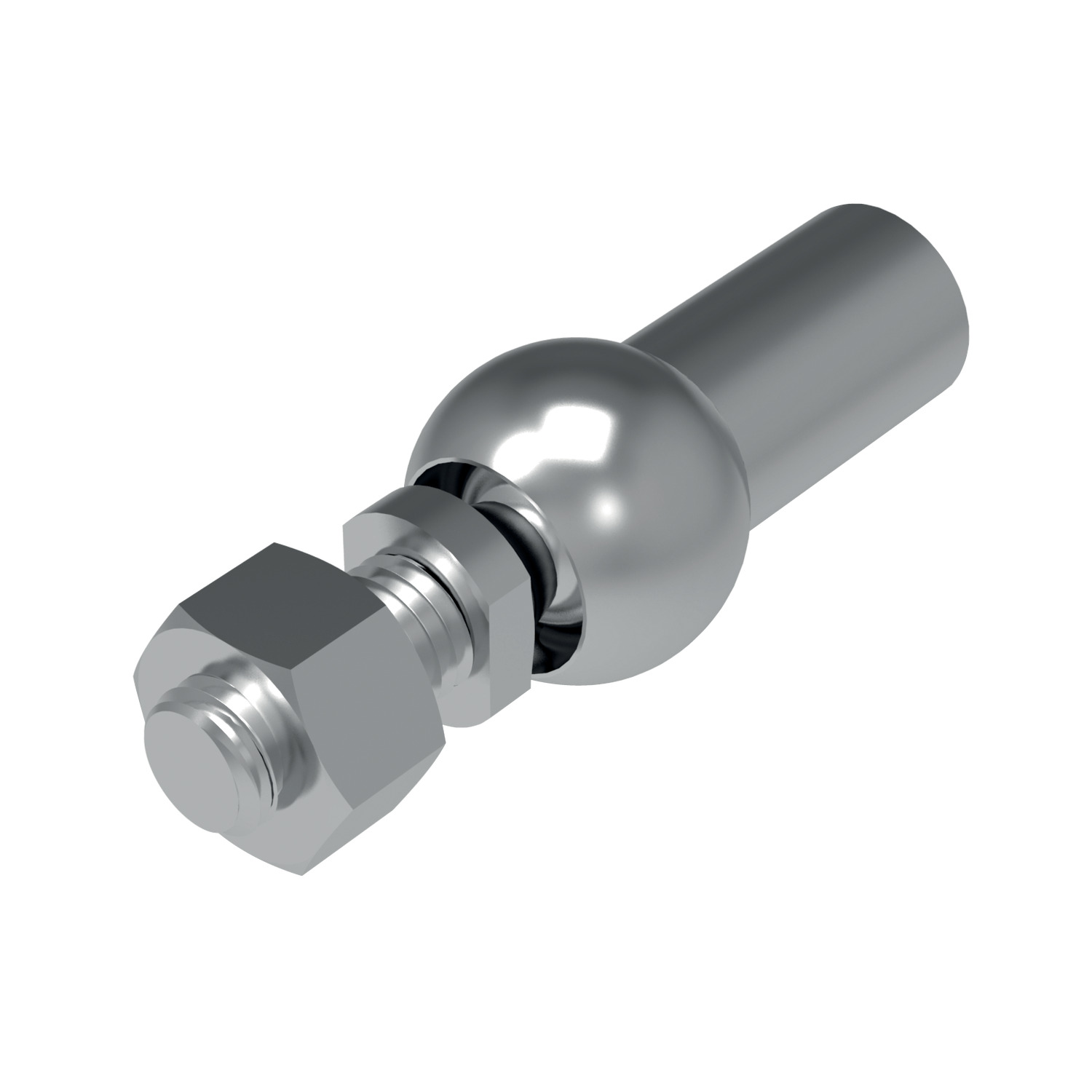

R3506 Stainless Axial Ball and Socket Joints

Name: R3506.R005
Brand: WC
SKU: R3506.R005
Price: 7.33 EUR
Availability: InStock

material: Stainless steel

Article properties

Order No.

R3506.R005

Thread hand

Right

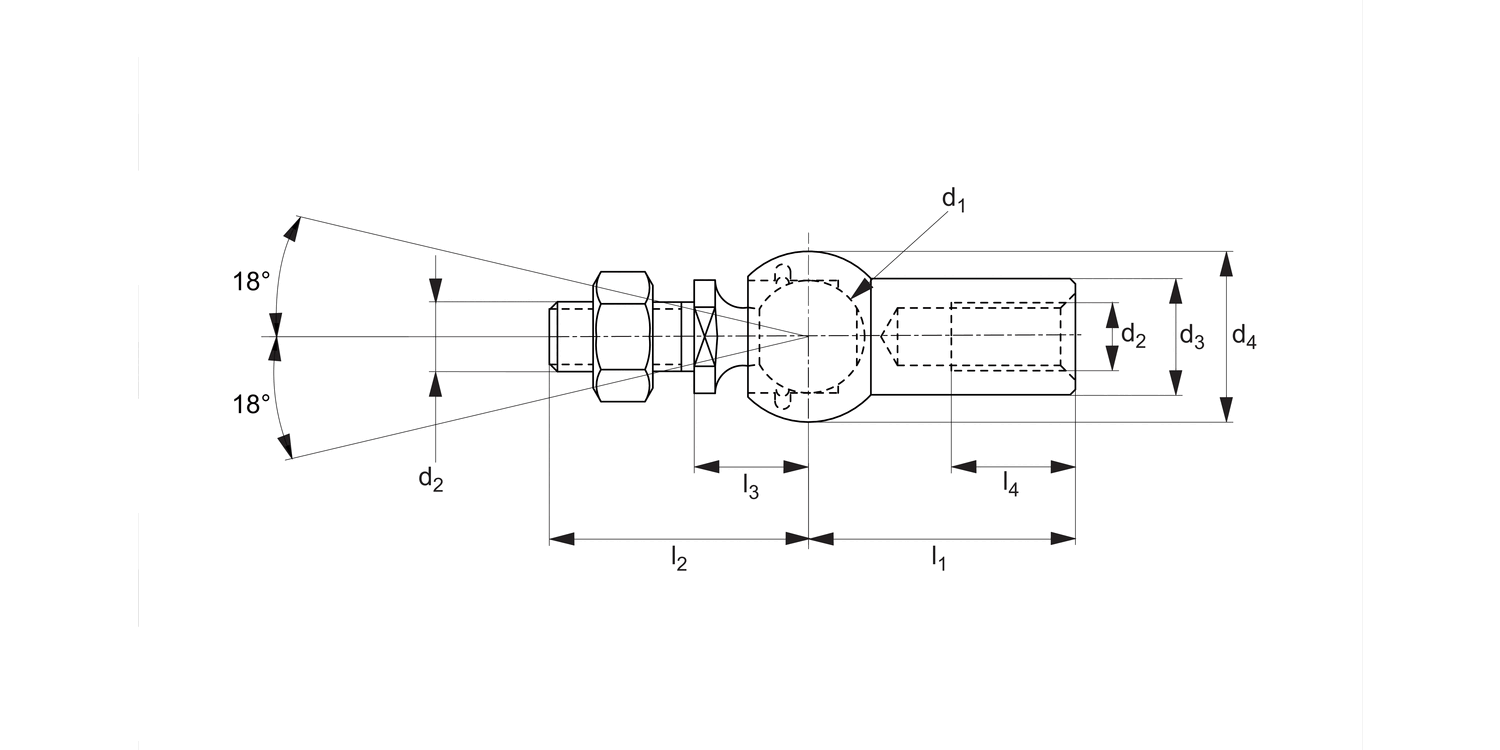

d₁ tol. h9

d₂

l₁

d₃ ±0.5

d₄ ±0.5

12.8

l₂

19.2

l₃

l₄

10.2

Extraction force N

Weight g

15.2

See full product selection

£ 7.33 per unit (click for quantity discounts)

Ready to despatch 200
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 7.33	0%
50-99	£ 5.86	20%
100-199	£ 5.50	25%
200-499	£ 5.13	30%
500-999	£ 4.76	35%
1000+	£ 4.40	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (AISI 303).

Technical Notes

Similar to DIN 71802, *M14x1,5 is a fine pitch thread.

Tips

Standard thread is right hand, (for left hand thread see R3507).
