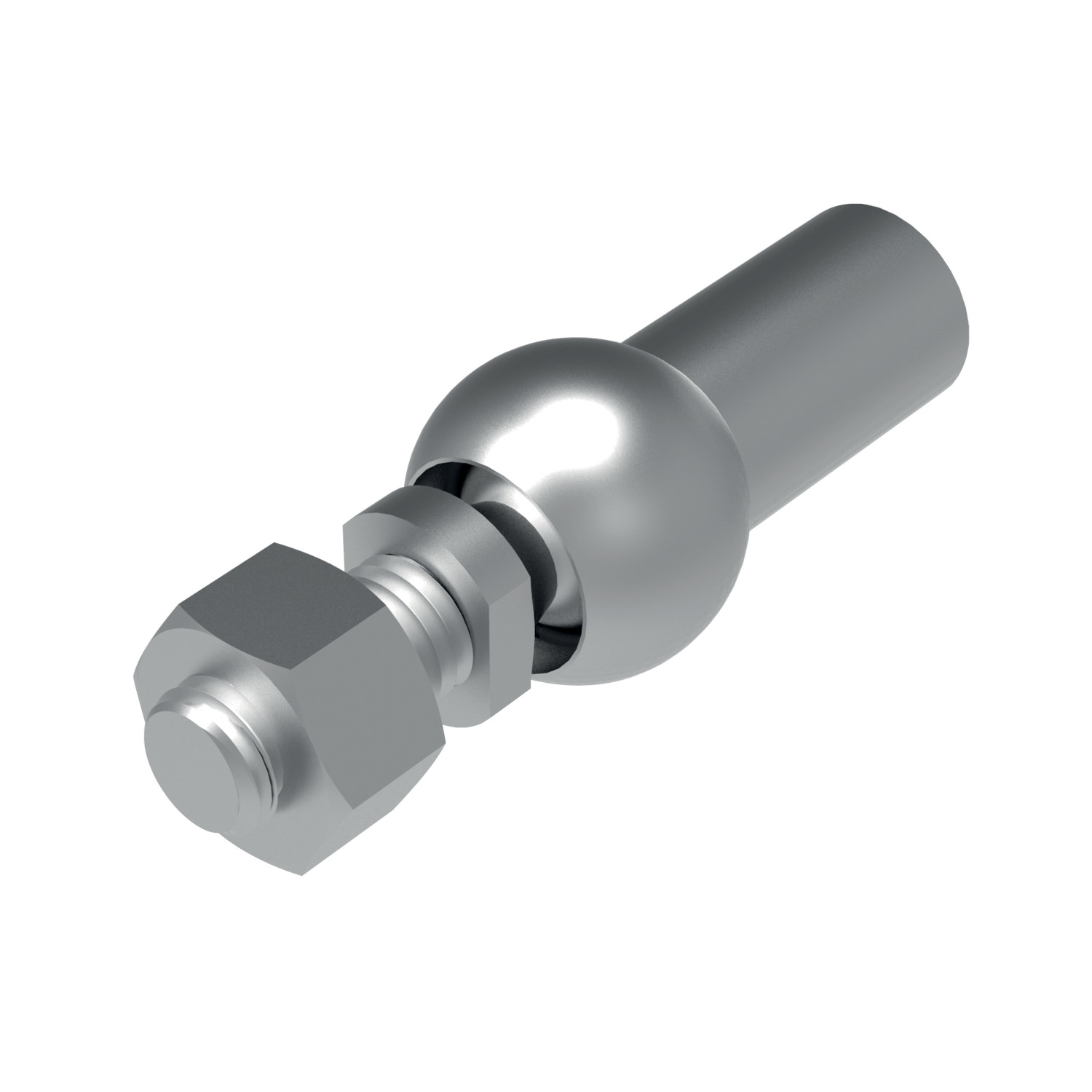

R3500 Axial Ball and Socket Joints

Name: R3500.R006
Brand: WC
SKU: R3500.R006
Price: 6.55 EUR
Availability: InStock

material: Steel

Article properties

Order No.

R3500.R006

Thread hand

Right

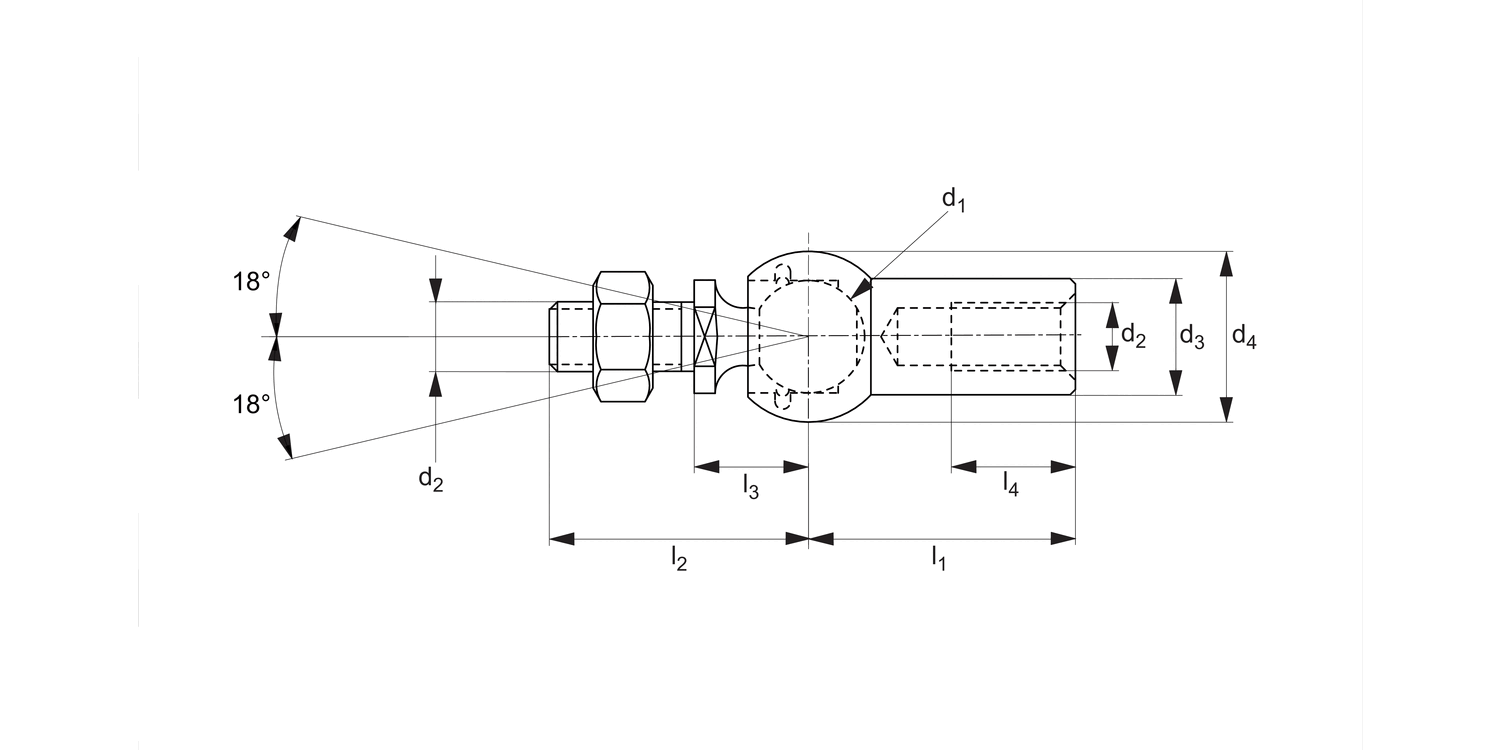

d₁ tol. h9

d₂

M 6

l₁

d₃ ±0.5

d₄ ±0.5

14.8

l₂

23.5

l₃

l₄

11.5

Extraction force N

Weight g

25.2

See full product selection

£ 6.55 per unit (click for quantity discounts)

Ready to despatch 376
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 6.55	0%
50-99	£ 5.24	20%
100-199	£ 4.91	25%
200-499	£ 4.59	30%
500-999	£ 4.26	35%
1000+	£ 3.93	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, silver zinc plated, ball stud: minimum tensile strength Rm=600N/mm².
Housing: minimum tensile strength Rm=500N/mm².

Technical Notes

Similar to DIN 71802, *M14x1,5 is a fine pitch thread.

Tips

Standard thread is right hand, (for left hand thread see R3501).
For stainless steel version see R3506.

Product Datasheets

R3500 Axial Ball and Socket JointsJune 19, 2025, 4:57 PM / 207.06 kB

Axial Ball & Socket JointsJune 19, 2025, 4:51 PM / 1.02 MB

Ball & Socket JointsJune 19, 2025, 4:46 PM / 6.33 MB

Clevis Joints, Turnbuckles & Ball & Socket JointJune 19, 2025, 4:41 PM / 21.48 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3500 AcisJune 12, 2011, 9:43 AM / 217.93 kB

R3500 IGESJune 12, 2011, 9:43 AM / 350.50 kB

R3500 ParasolidJune 12, 2011, 9:43 AM / 87.64 kB

R3500 ProEJune 12, 2011, 9:43 AM / 378.52 kB

R3500 SolidWorksJune 12, 2011, 9:43 AM / 1.17 MB

R3500 StepJune 12, 2011, 9:43 AM / 170.60 kB
