Stainless Steel Ball & Socket Joint
A4 stainless

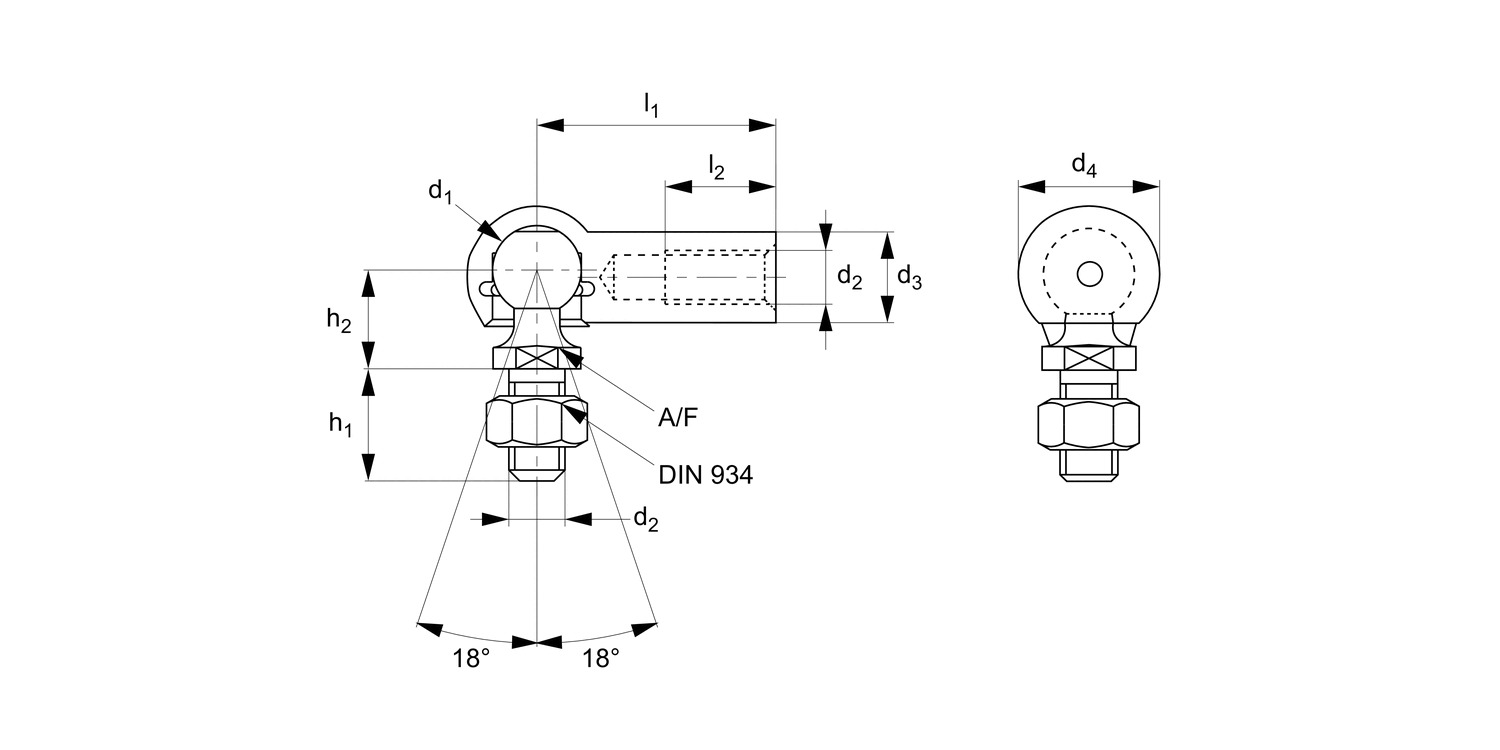

R3477 Stainless Ball and Socket Joint
with sealing cap - left hand thread, material: Stainless steel
Order No.
R3477.L006
Thread hand
Left
d1
10
l1
±0.3
25
d2
M 6
d3
10
d4
14.8
h1
±0.3
12.5
Weight
g
25.2
h2
±0.3
11
h3
max.
4.0
l2
min.
11.5
A/F
tol. h14
8
Extraction force
min.
kg
4
Static load
max.
kg
100
Dyn. load C
max.
kg
40
Force required for movement
max.
kg
4
£ 8.41 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 8.41 | 0% |
| 50-99 | £ 7.57 | 10% |
| 100-199 | £ 6.73 | 20% |
| 200-499 | £ 6.31 | 25% |
| 500-999 | £ 5.89 | 30% |
| 1000+ | £ 5.05 | 40% |
Technical & Application
Material
Stainless steel (A2, AISI 303), sealing cap: neoprene.
Technical Notes
Supplied with hexagon nut. Safety ring aids the retention of the ball stud in the housing. *M14x1.5 is a fine pitch thread. Male stud part is to DIN 71803 form C.
Tips
Stud: right hand thread.
Housing: left hand thread
Important Notes
Thread is not full length. There is a min 1.5mm unthreaded shank. If using part without the supplied nut, then please consider a counterbore to accommodate the unthreaded shank.
