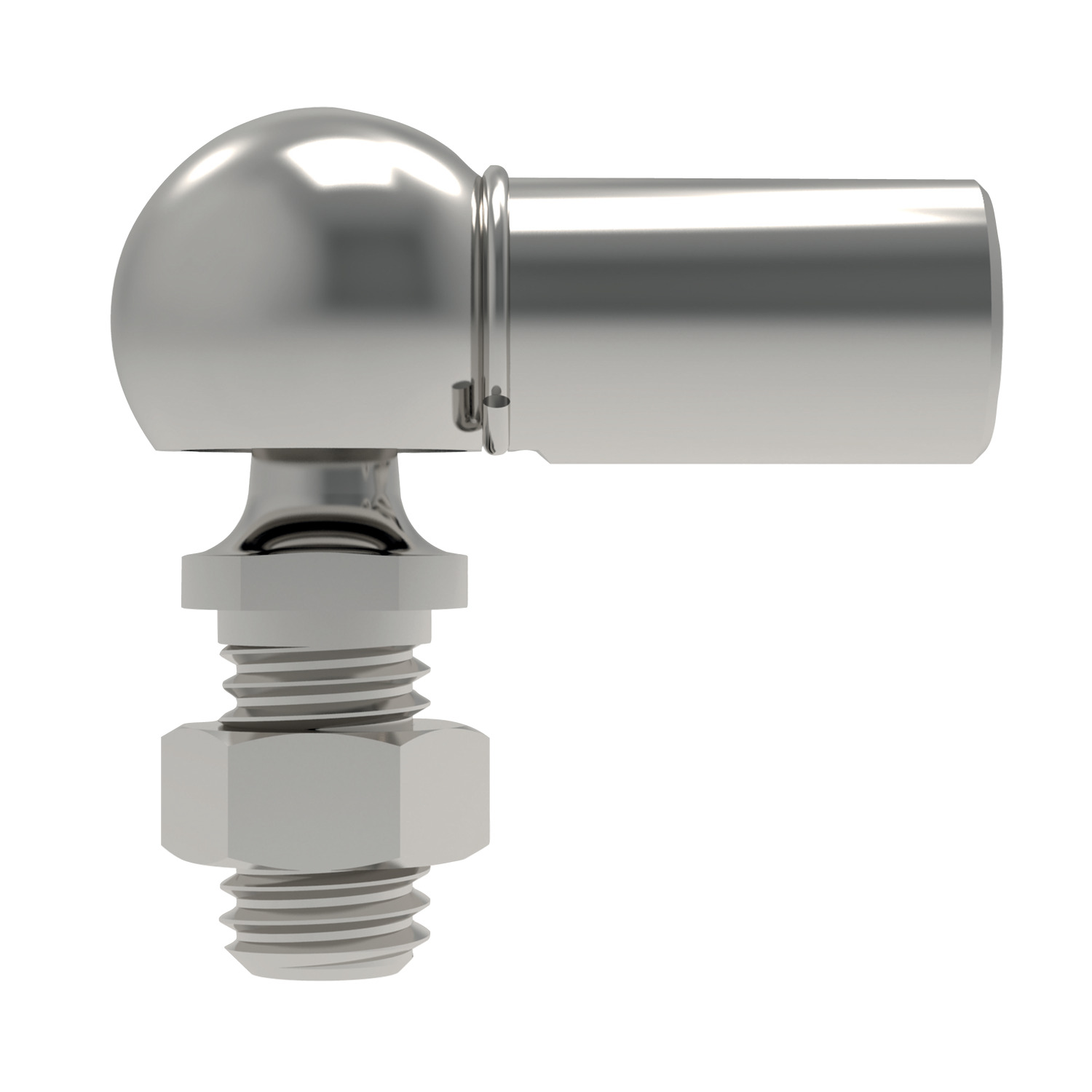

Steel Ball & Socket Joint
R3468 Stainless Ball and Socket Joints
A4 stainless steel, material: Stainless steel
Order No.
R3468.R008
Thread hand
Right

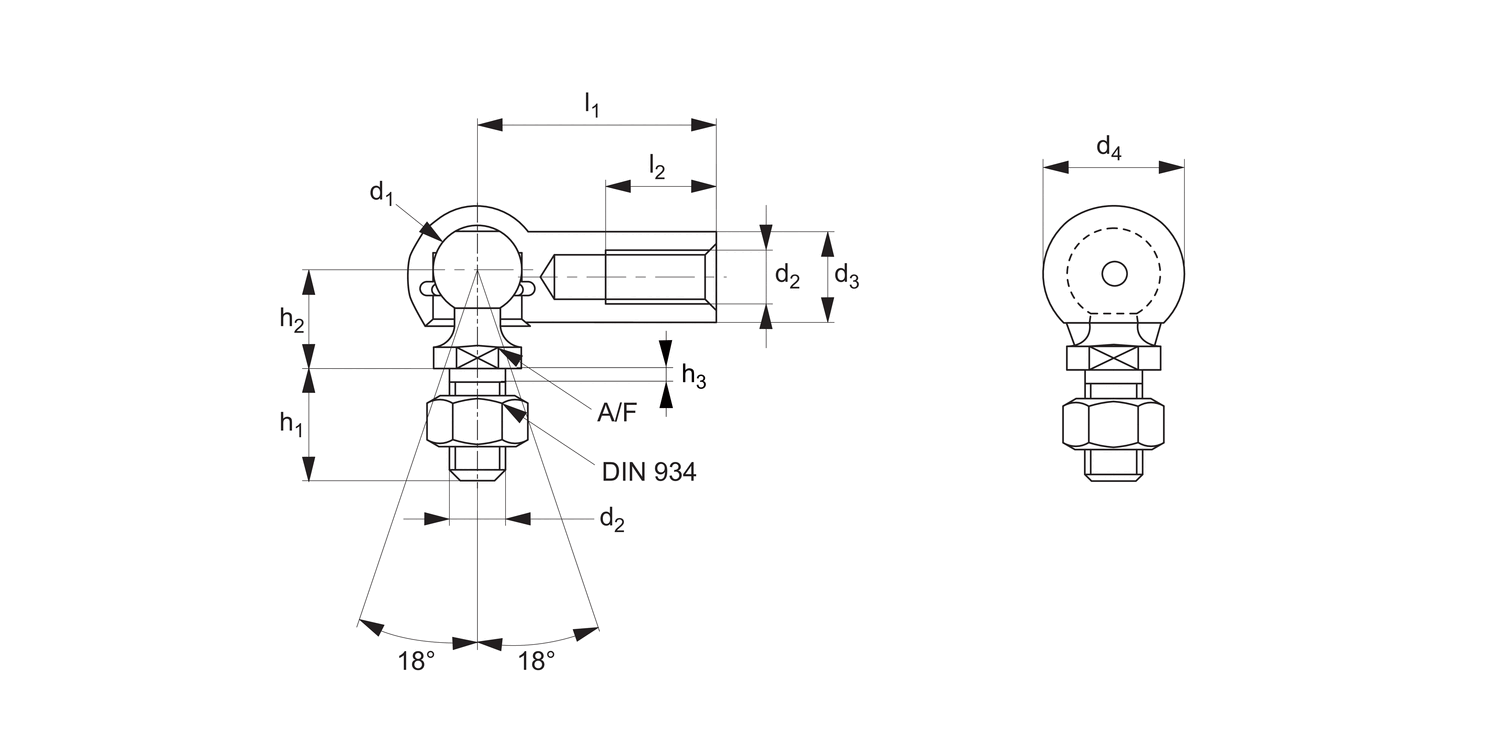

d1
13
l1
±0.3
30
d2
M 8
d3
13
d4
19.3
h1
±0.3
16.5
Weight
g
53.1
h2
±0.3
13
l2
min.
14.0
A/F
tol. h14
11
Extraction force
min.
kg
6
Static load
max.
kg
200
Dyn. load C
max.
kg
80
Force required for movement
max.
kg
6
£ 17.69 per unit (click for quantity discounts)
Ready to despatch 169
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 17.69 | 0% |
| 50-99 | £ 14.15 | 20% |
| 100-199 | £ 13.27 | 25% |
| 200-499 | £ 12.38 | 30% |
| 500-999 | £ 11.50 | 35% |
| 1000+ | £ 10.61 | 40% |
Technical & Application
Material
Stainless steel (A4, AISI 316).
Technical Notes
To DIN 71802 form CS, supplied with hexagon nut.
Safety ring aids the retention of the ball stud in the housing.
Tips
For sealing cap version, see R3476, standard thread is right hand, (for left hand thread see R3467).
Important Notes
Thread is not full length. There is a min 1.5mm unthreaded shank. If using part without the supplied nut, then please consider a counterbore to accommodate the unthreaded shank.
