R3245 Gear and Sprocket Hubs

Name: R3245.075
Brand: WC
SKU: R3245.075

stainless, material: Stainless steel

Article properties

Order No.

R3245.075

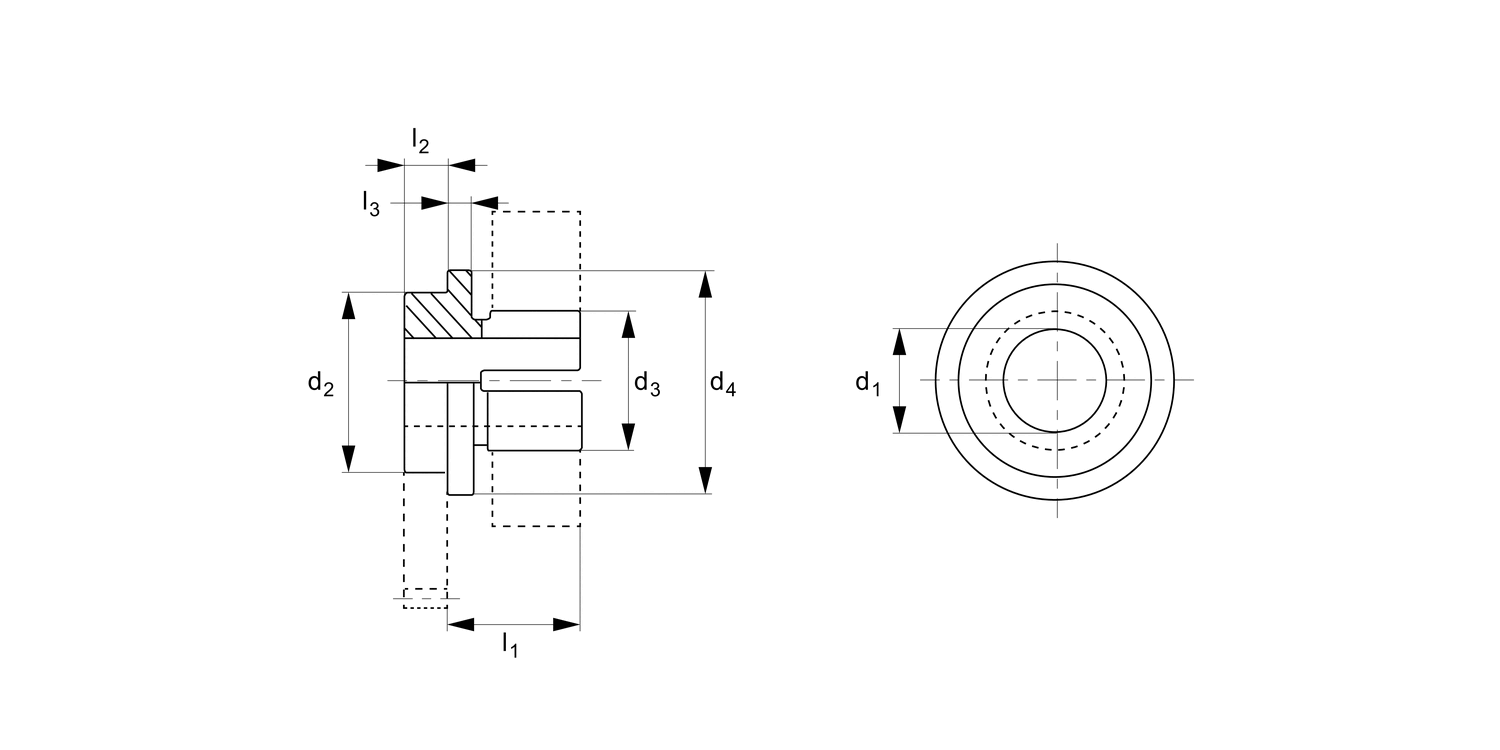

d₁ tol. h8

d₂ tol. S8

d₃

8.6

d₄

l₁

6.6

l₂

9.5

l₃

1.6

Clamp no. (R3250)

R3250.075

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	-	0%
5-9	-	10%
10-19	-	15%
20-49	-	25%
50+	-	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (DIN 1,4305).

Technical Notes

Concentric to bore within 0,013mm.
For clamps see part no. R3250.

Product Datasheets

R3245 Gear and Sprocket HubsJune 19, 2025, 4:57 PM / 206.26 kB

Gear HubsJune 19, 2025, 4:50 PM / 383.10 kB

Rigid CouplingsJune 19, 2025, 4:45 PM / 7.71 MB

CouplingsJune 19, 2025, 4:41 PM / 18.51 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB
