R3242 Gear, Sprocket and Dial Hubs

Name: R3242.123
Brand: WC
SKU: R3242.123

Article properties

Order No.

R3242.123

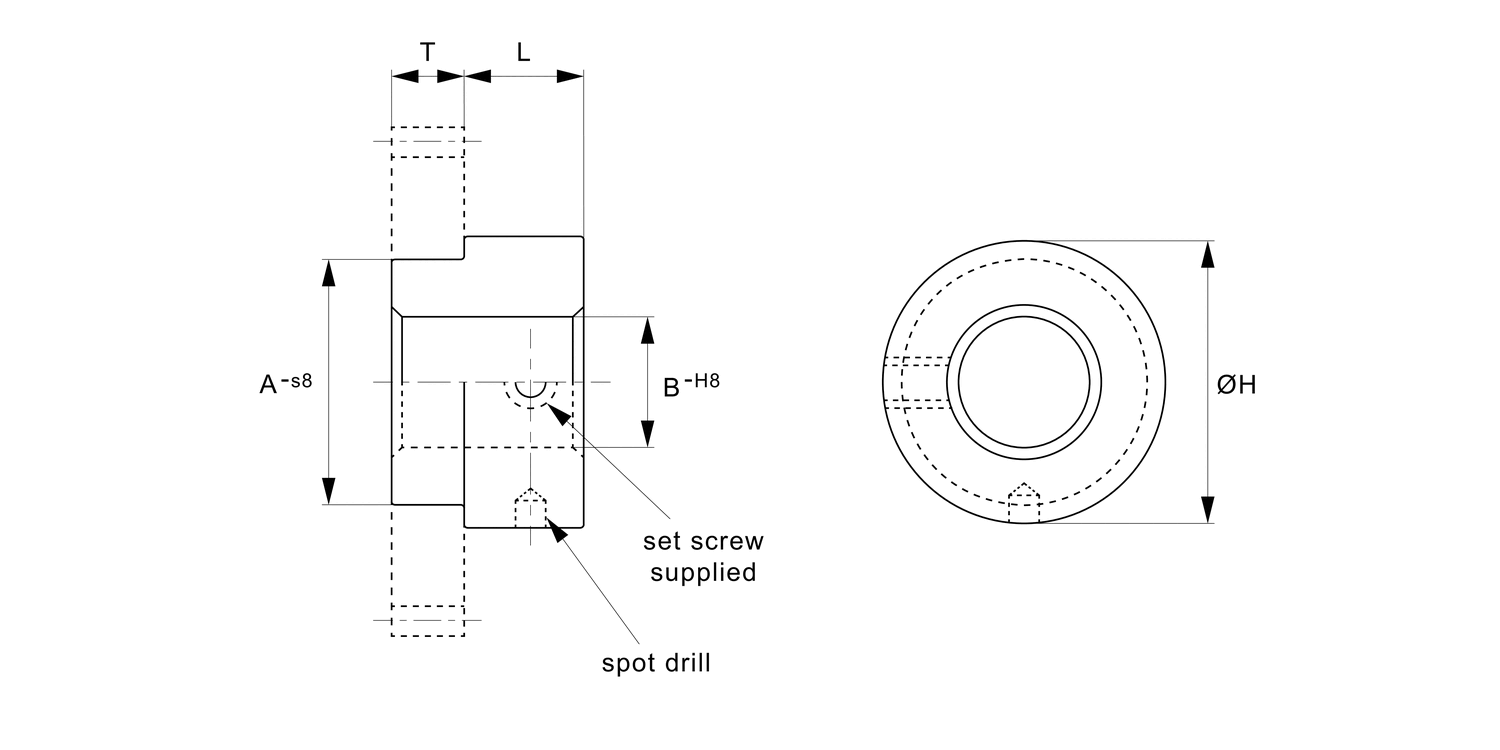

Bore dia. B

Ø A

Ø H

6.4

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Technical & Application

Stainless steel DIN 1,4305.

Diameters A & B are concentric within 0,013mm.
Fasten component to hub with epxoy cement or stake and dutch pin.

Gear HubsJune 19, 2025, 4:50 PM / 383.10 kB

Rigid CouplingsJune 19, 2025, 4:45 PM / 7.71 MB

CouplingsJune 19, 2025, 4:41 PM / 18.51 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

R3242 AcisSeptember 17, 2019, 8:51 PM / 890.45 kB

R3242 IGESSeptember 17, 2019, 8:51 PM / 1.17 MB

R3242 ParasolidSeptember 17, 2019, 8:51 PM / 301.40 kB

R3242 ProESeptember 17, 2019, 8:51 PM / 4.86 MB

R3242 SolidWorksSeptember 17, 2019, 8:51 PM / 3.38 MB

R3242 StepSeptember 17, 2019, 8:51 PM / 732.04 kB
