A-V Mounts
Steel

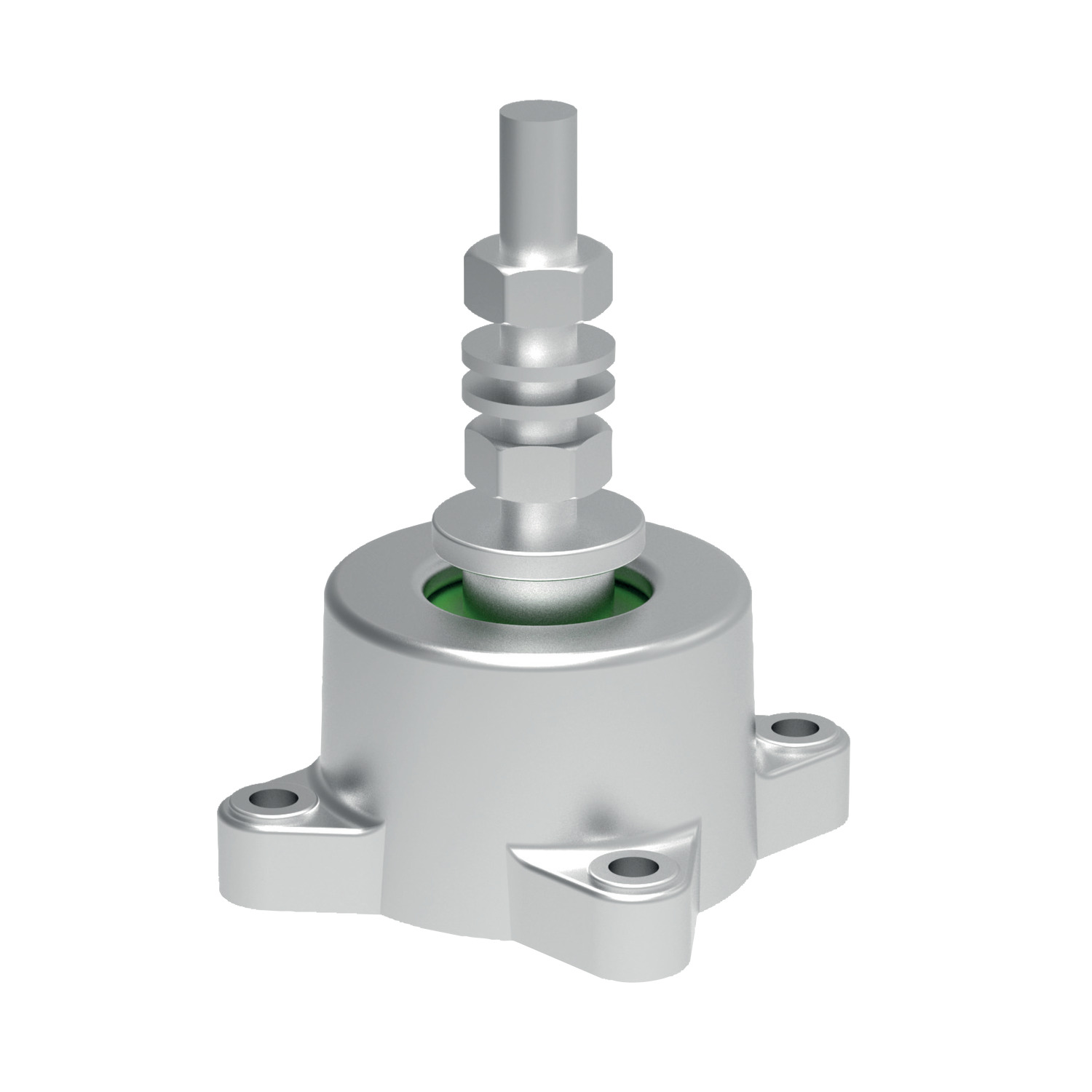

P2110 Anti-vibration Mounts
fz sylomer mounts, material: Aluminium
Order No.
P2110.012-0200

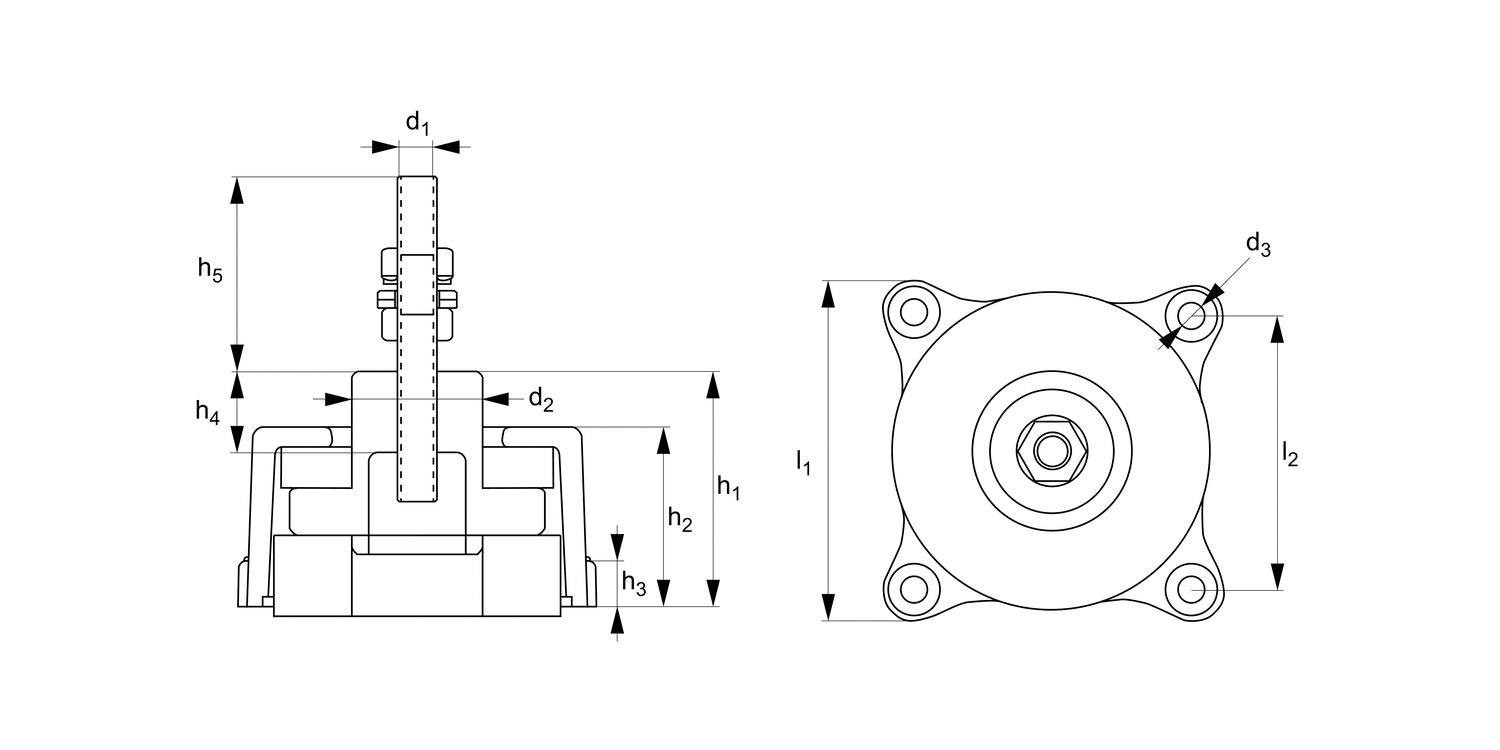

d1
M12
d2
25
h5
60
l1
80
l2
67
d3
6.5
h1
56.0
h2
48
h3
13
h4
40
Load
kg
150-200
Weight
kg
0.46
£ 47.70 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 47.70 | 0% |
| 10-19 | £ 42.93 | 10% |
| 20-49 | £ 38.16 | 20% |
| 50-99 | £ 33.39 | 30% |
| 100+ | £ 28.62 | 40% |
Technical & Application
Material
Aluminium body with anti-corrosion coating, zinc plated steel thread.
Polyurethane compound, (Sylomer), resistant to oil.
Technical Notes
The Sylomer compound offers high isolation capacity with small static deformation in all medium- high frequency ranges.
This mount incorporates an interlocking metal component that provide a fail-safe protection for mobile applicants.
The metal has anti-corrosive treatment for outdoor applications.
Temperature range -30°C to +70 °C.
