A-V Mounts
Steel

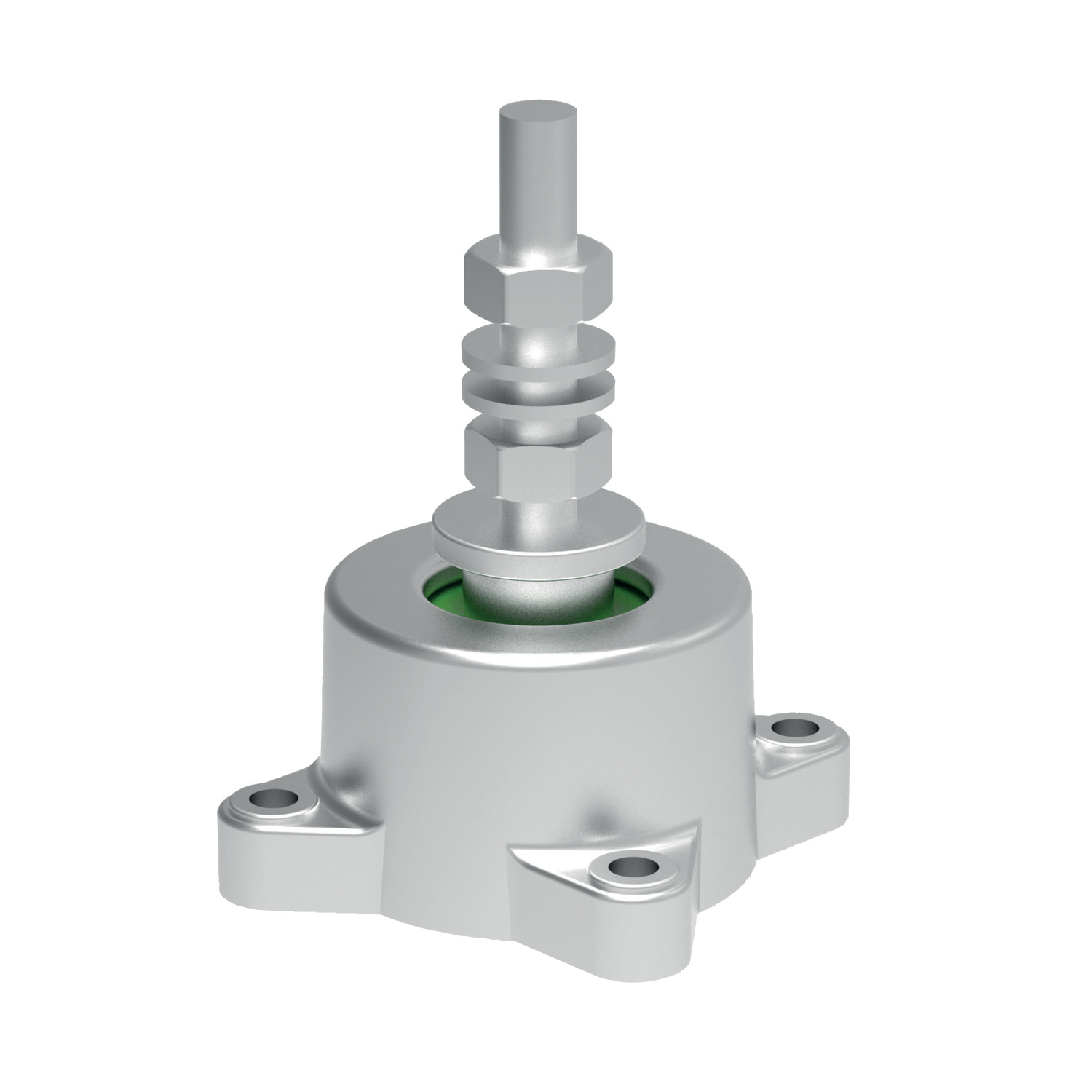

P2110 Anti-vibration Mounts
fz sylomer mounts, material: Aluminium
Order No.
P2110.010-0100

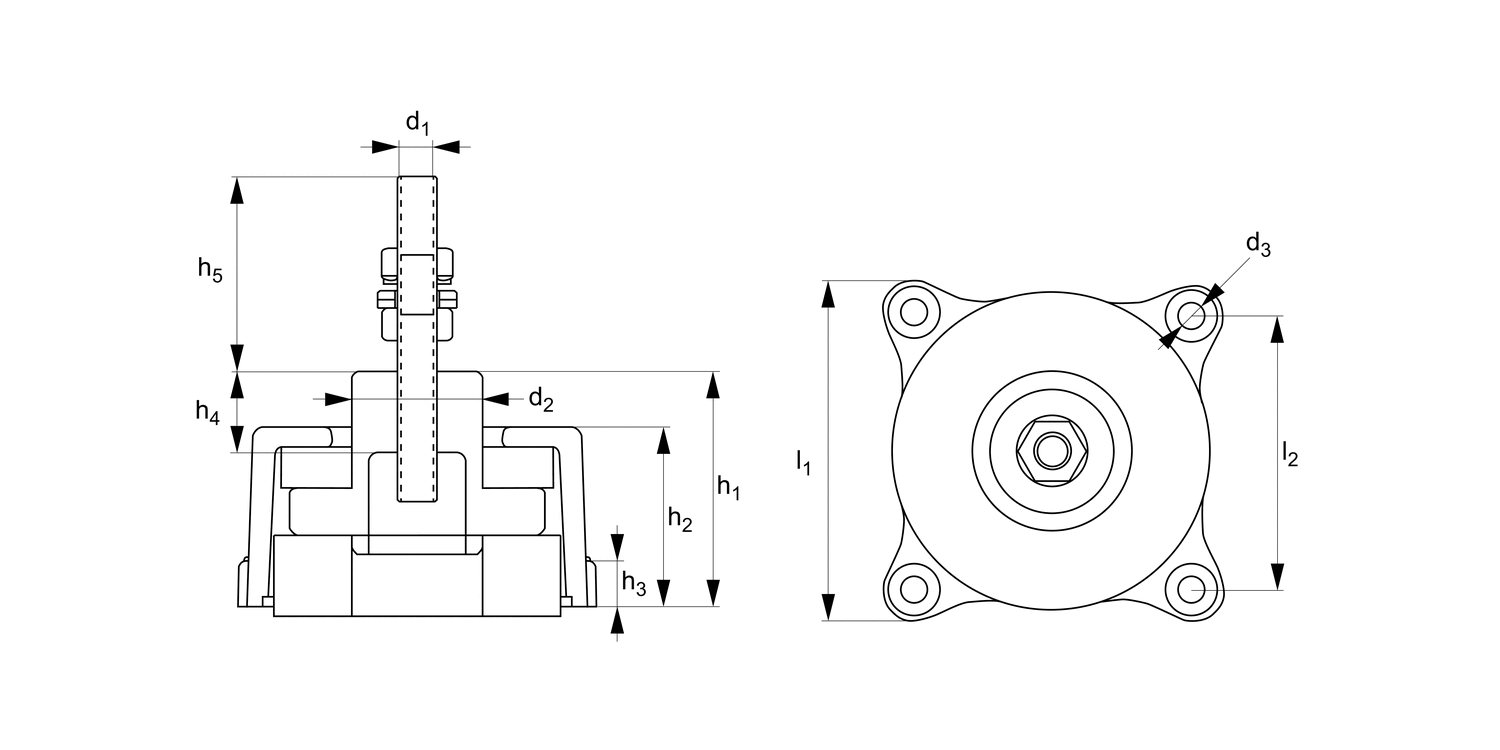

d1
M10
d2
28
h5
60
l1
67
l2
52
d3
6.5
h1
45.5
h2
38
h3
13
h4
26
Load
kg
50-100
Weight
kg
0.31
£ 50.48 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 50.48 | 0% |
| 10-19 | £ 45.43 | 10% |
| 20-49 | £ 40.38 | 20% |
| 50-99 | £ 35.34 | 30% |
| 100+ | £ 30.29 | 40% |
Technical & Application
Material
Aluminium body with anti-corrosion coating, zinc plated steel thread.
Polyurethane compound, (Sylomer), resistant to oil.
Technical Notes
The Sylomer compound offers high isolation capacity with small static deformation in all medium- high frequency ranges.
This mount incorporates an interlocking metal component that provide a fail-safe protection for mobile applicants.
The metal has anti-corrosive treatment for outdoor applications.
Temperature range -30°C to +70 °C.
