P0821.AL Countersunk Insert Nuts

Name: P0821.060-065-AL
Brand: WC
SKU: P0821.060-065-AL

Aluminium, material: Aluminium

Article properties

Order No.

P0821.060-065-AL

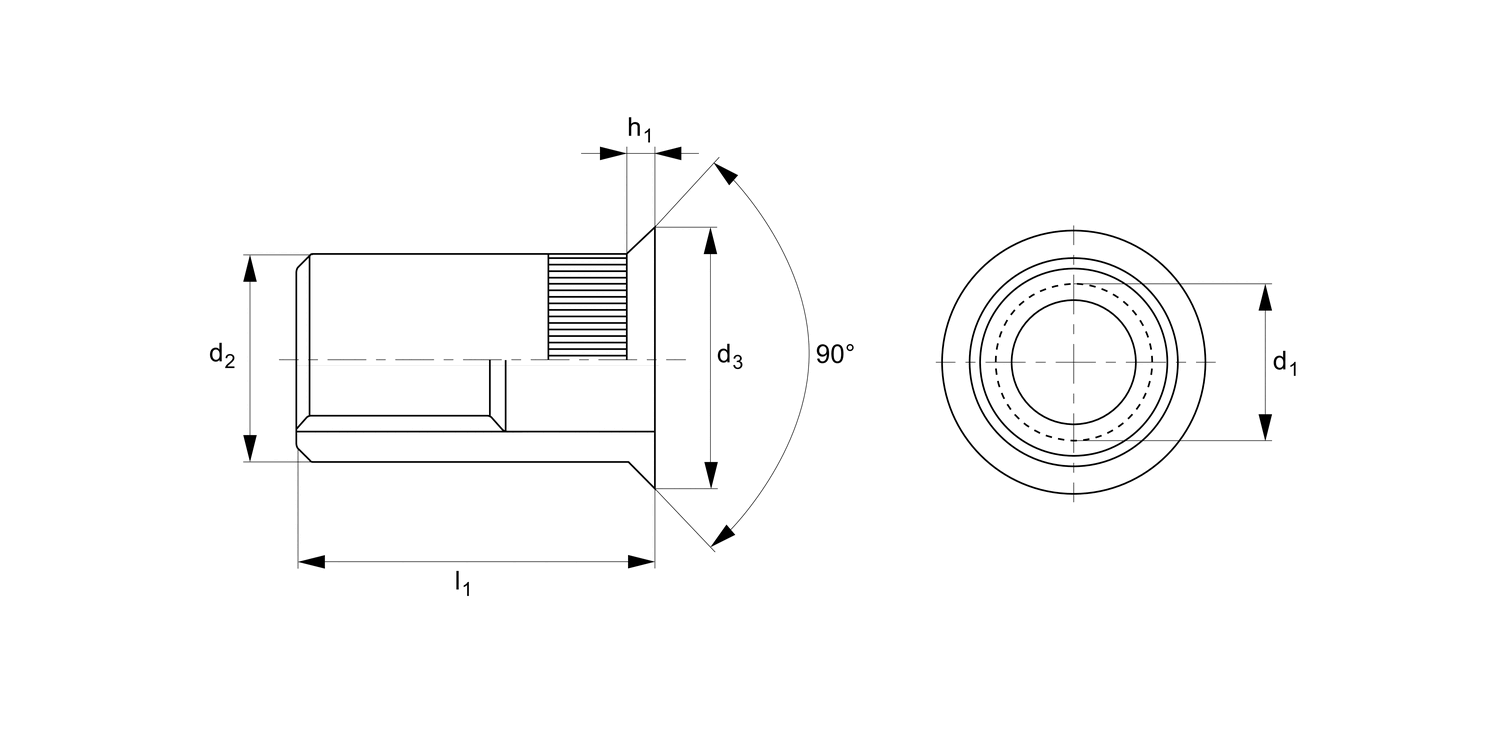

d₁

M 6

Grip range

4,0-6,5

d₂ +0|-0.2

8.9

d₃

11.5

h₁

1.5

l₁

18.0

See full product selection

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Aluminium.

Technical Notes

Knurled body type, plain available on request.
The countersunk head is a stronger type of head and will ensure a flush finish in a countersunk hole. The knurled body provides extra turning resistance.

Tips

Also known as blind rivet nuts or grip nuts.

Important Notes

Lip Height:
M3-M8: 0<1.5
M10:1.5<1.7
M12: 1.7<1.9
