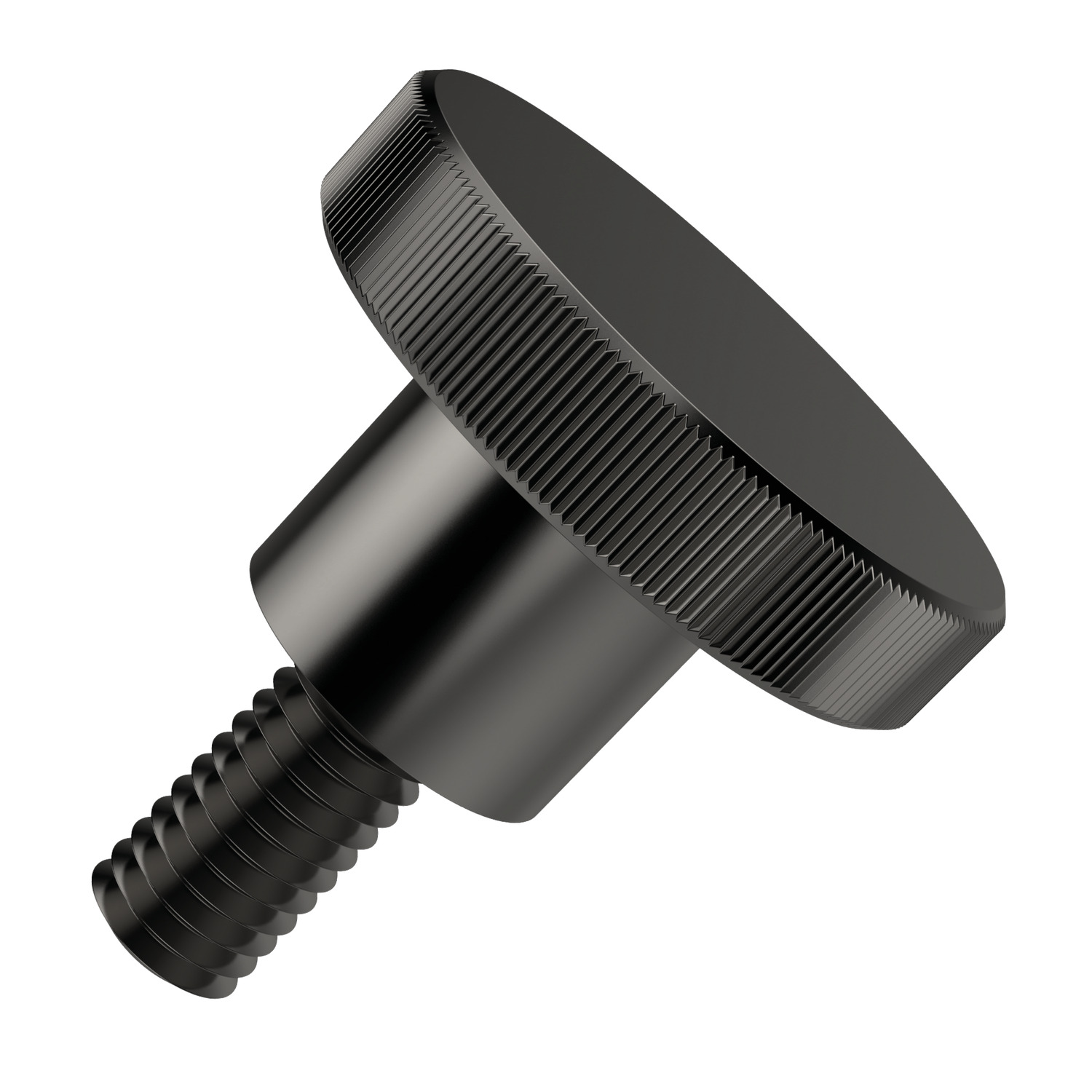

P0400.BL Knurled Thumb Screws

Name: P0400.060-012-BL
Brand: WC
SKU: P0400.060-012-BL
Price: 3.44 EUR
Availability: InStock

DIN 464, material: Steel

Article properties

Order No.

P0400.060-012-BL

d₁

M 6

d₂

d₃

15.0

5.0

Weight g

28.0

See full product selection

£ 3.44 per unit (click for quantity discounts)

Ready to despatch 4
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 3.44	0%
10-19	£ 3.10	10%
20-49	£ 2.92	15%
50-99	£ 2.75	20%
100+	£ 2.58	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, quality 5.8, blackened. Turned, visible face, good finish.

Technical Notes

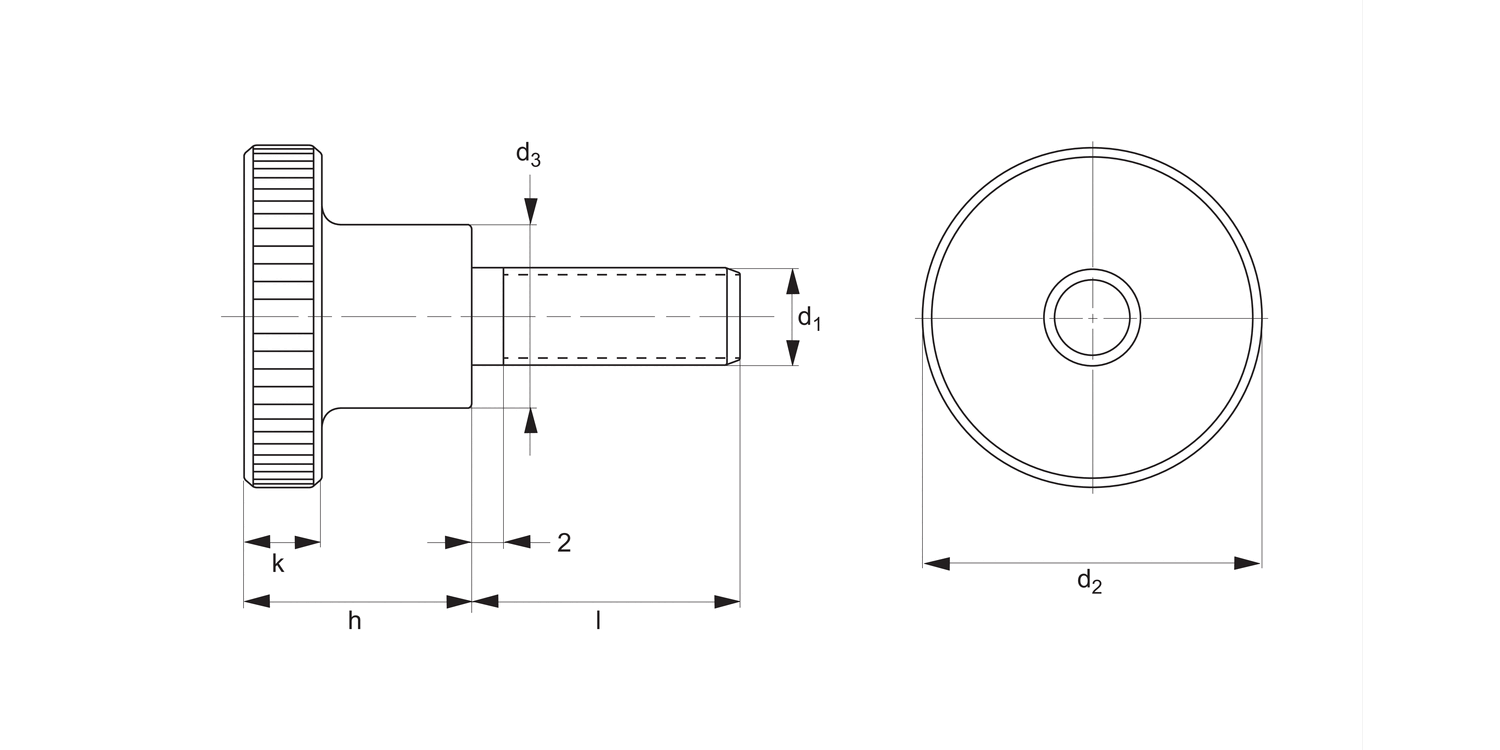

All knurled screws are one-piece manufactured. Contrary to the Official Standard Sheet, they all have a thread up to the head, as shown, but no recess at the thread end.

Product Datasheets

P0400.BL Knurled Thumb ScrewsJune 19, 2025, 5:00 PM / 345.16 kB

Collared Thumb Screws- SteelJune 19, 2025, 4:51 PM / 679.87 kB

Thumb ScrewsJune 19, 2025, 4:46 PM / 9.00 MB

Thread Inserts & Specialist ScrewsJune 19, 2025, 4:42 PM / 44.15 MB

Mechanical ComponentsJune 19, 2025, 4:38 PM / 43.59 MB

CAD files

P0400.BL AcisSeptember 24, 2015, 7:17 PM / 5.11 MB

P0400.BL IGESSeptember 24, 2015, 7:18 PM / 13.65 MB

P0400.BL ParasolidSeptember 24, 2015, 7:18 PM / 9.85 MB

P0400.BL ProESeptember 24, 2015, 7:18 PM / 4.86 MB

P0400.BL SolidWorksSeptember 24, 2015, 7:18 PM / 20.60 MB

P0400.BL StepSeptember 24, 2015, 7:16 PM / 8.07 MB
