P0145.B2
HomeProductsMechanical ComponentsShoulder Screws, Captive Screws & Sealing ScrewsShoulder ScrewsBlackened Stainless Shoulder ScrewsP0145.B2P0145.080-010-B2

P0145.B2 Shoulder Screws - Cap Head

TX drive - 303 stainless - blackened, material: 303 stainless, blackened
P0145.B2 Shoulder Screws - Cap Head
P0145.B2 Shoulder Screws - Cap Head
Article properties
Order No.
P0145.080-010-B2

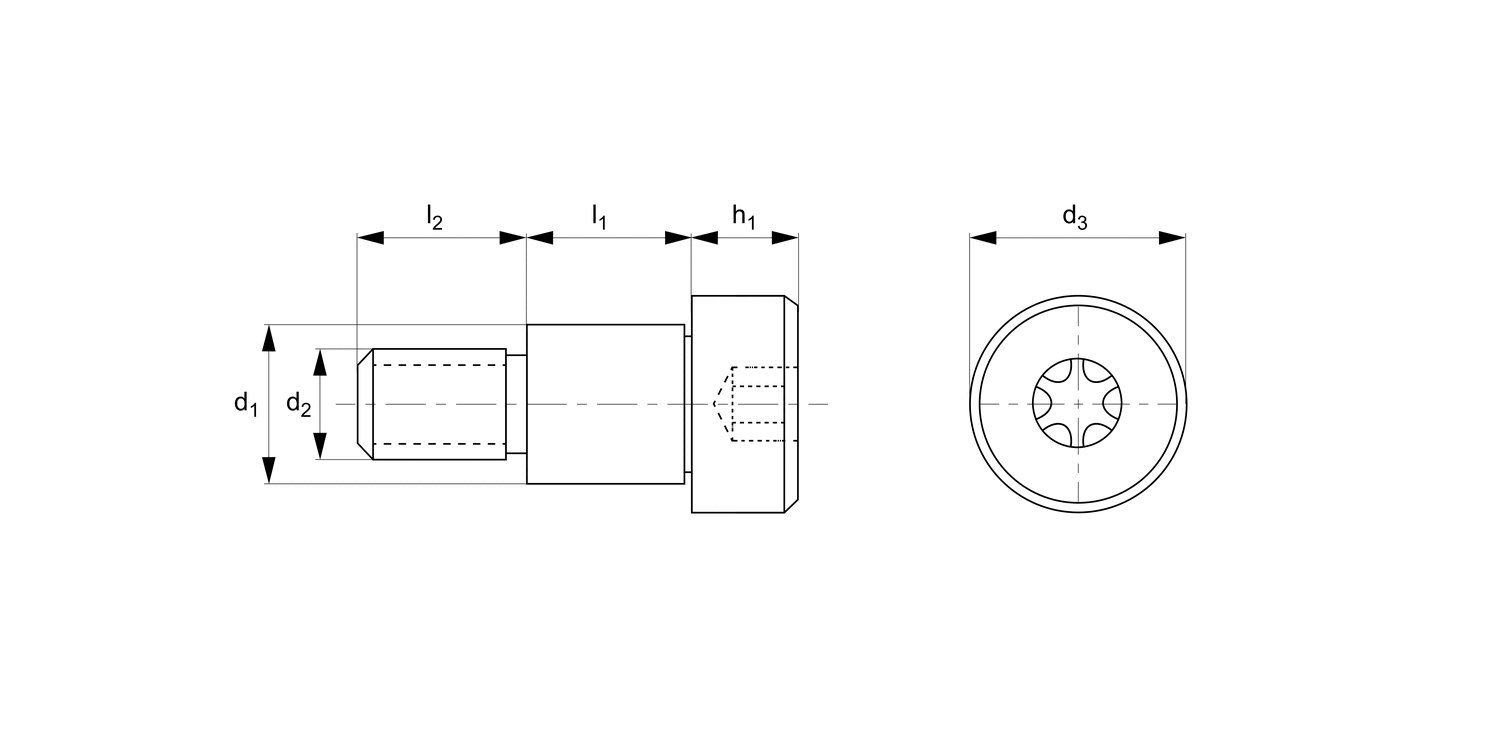

d1 +0|-0.025
8
l1 +0.05|-0.0
10
d2
M 6
d3
12
l2
11
h1
6
TX size
TX-30
See full product selection
£ 5.97 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-99£ 5.970%
100-249£ 5.3710%
250-749£ 4.7820%
750+£ 4.1830%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Stainless steel (AISI 303, 1.4305) black oxide coating.
Tensile strength 550 N/mm2.
Proof stress min. 190 N/mm2, austenitic stainless steel.

Technical Notes

303 series stainless steel provides good resistance to corrosion. It is mildly magnetic.

Product Datasheets

P0145.B2 Shoulder Screws - Cap HeadJune 19, 2025, 5:02 PM / 504.25 kB
Blackened Stainless Shoulder ScrewsJune 19, 2025, 4:52 PM / 4.18 MB
Shoulder ScrewsJune 19, 2025, 4:47 PM / 17.59 MB
Shoulder Screws, Captive Screws & Sealing ScrewsJune 19, 2025, 4:42 PM / 50.67 MB
Mechanical ComponentsJune 19, 2025, 4:38 PM / 43.59 MB

CAD files

P0145.B2 AcisJanuary 13, 2022, 8:19 PM / 1.64 MB
P0145.B2 IGESJanuary 13, 2022, 8:19 PM / 4.56 MB
P0145.B2 ParasolidJanuary 13, 2022, 8:19 PM / 1.55 MB
P0145.B2 ProEJanuary 13, 2022, 8:19 PM / 10.18 MB
P0145.B2 SolidWorksJanuary 13, 2022, 8:19 PM / 49.71 MB
P0145.B2 StepJanuary 13, 2022, 8:19 PM / 2.28 MB
