Shock Absorber
Rubber

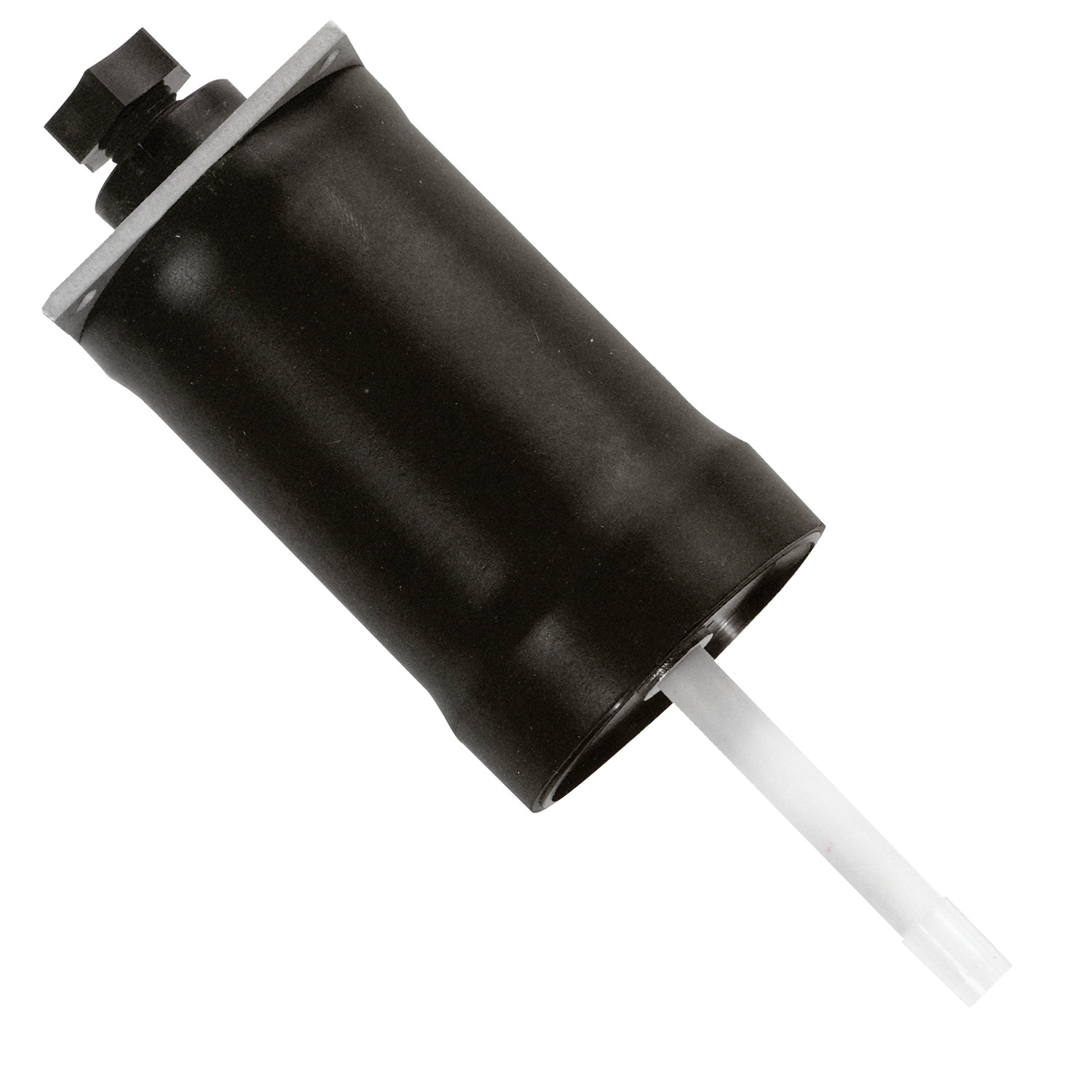

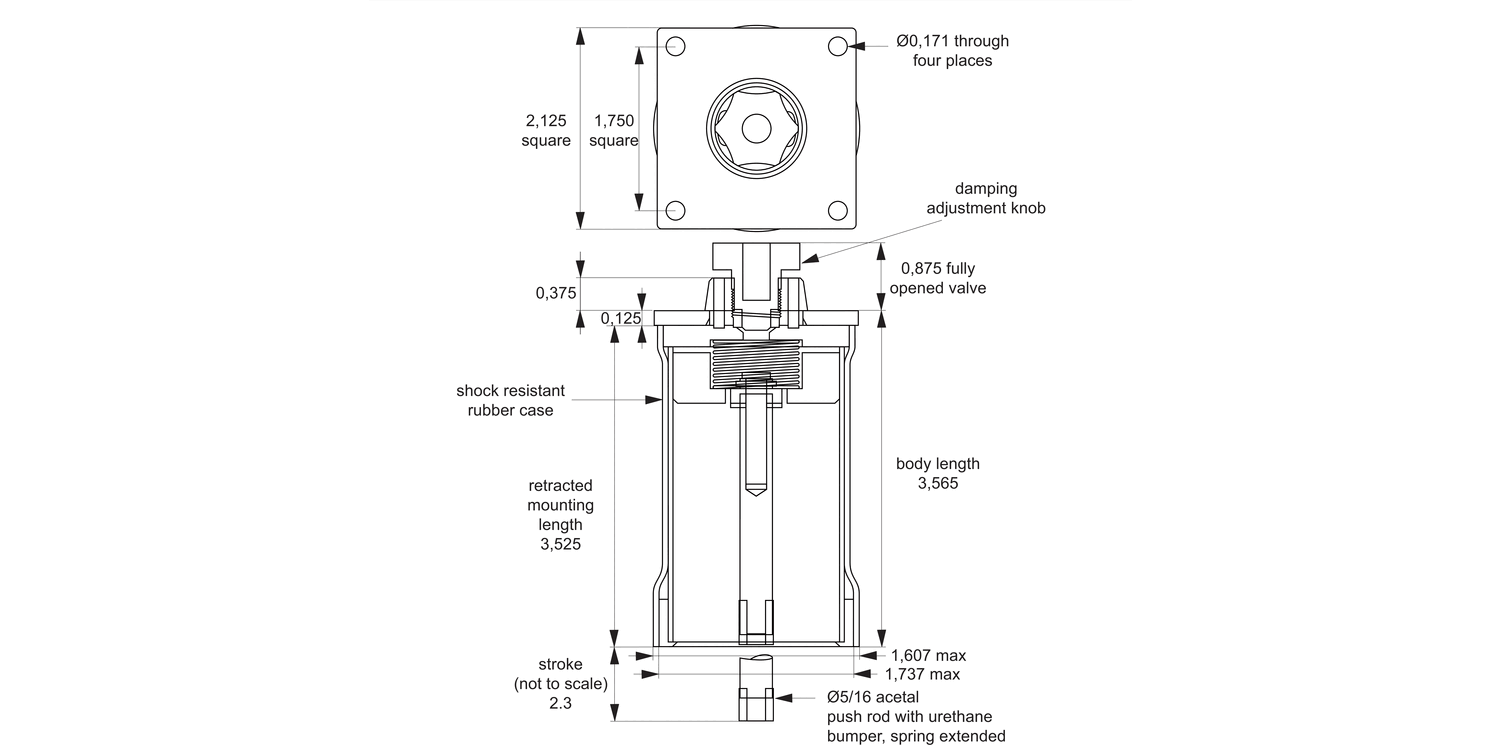

L4626 Shock Absorber
1,750 bore, material: Urethane
Order No.
L4626.1750
Stroke
2,3"
Energy capacity
ft·lb
0-7
Spring force extended
lb
0.25
Spring force retracted
lb
0.5
Push rod reset time with valve fully open
m/s
161
Push rod reset time with valve fully closed
m/s
430
Friction coefficient
0.2
£ 303.75 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 303.75 | 0% |
| 5-19 | £ 273.38 | 10% |
| 20-39 | £ 243.00 | 20% |
| 40-99 | £ 212.63 | 30% |
| 100+ | £ 182.25 | 40% |
Technical & Application
Material
Shock resistant rubber case.
Urethane push rod.
Pyrex glass cylinder.
Technical Notes
Max operating temperature: -55°c to +150°c.
(Please advise if operating at temperatures over +70°c).
Piston friction force without side load = less than 8 gram.
Level of shock absorption adjustable by hand.
