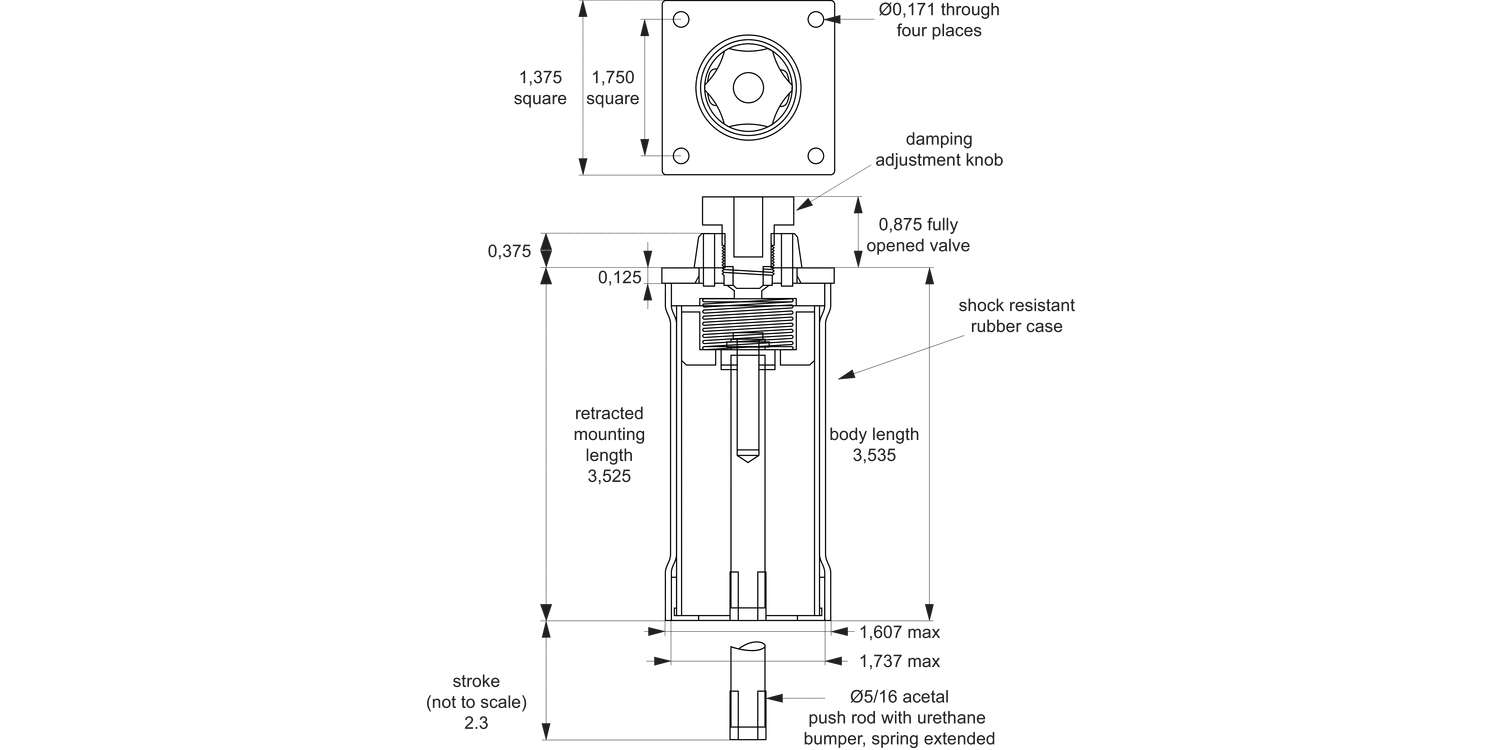

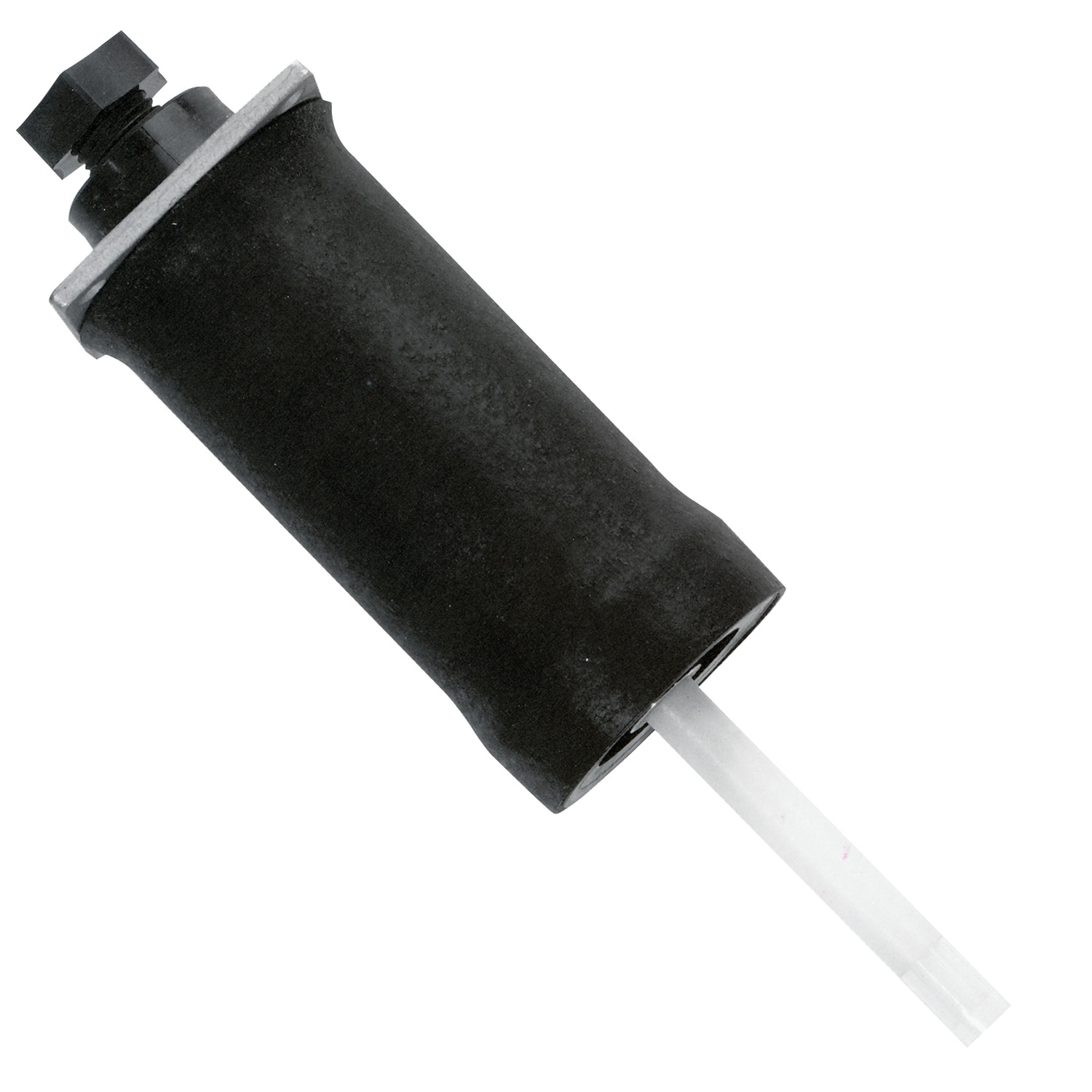

L4624 Shock Absorber

Name: L4624.1281
Brand: WC
SKU: L4624.1281

1.281" bore, material: Urethane

Article properties

Order No.

L4624.1281

Stroke

2,3"

Energy capacity ft·lb

0-3

Spring force extended lb

0.25

Spring force retracted lb

0.5

Push rod reset time with valve fully open m/s

Push rod reset time with valve fully closed m/s

150

Friction coefficient

0.2

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Shock resistant rubber case.
Urethane push rod.
Pyrex glass cylinder.

Technical Notes

Max operating temperature: -55°c to +150°c.
(Please advise if operating at temperatures over +70°c).
Piston friction force without side load = less than 4 grams.

Level of shock absorption adjustable by hand.
