Shock Absorber
Rubber

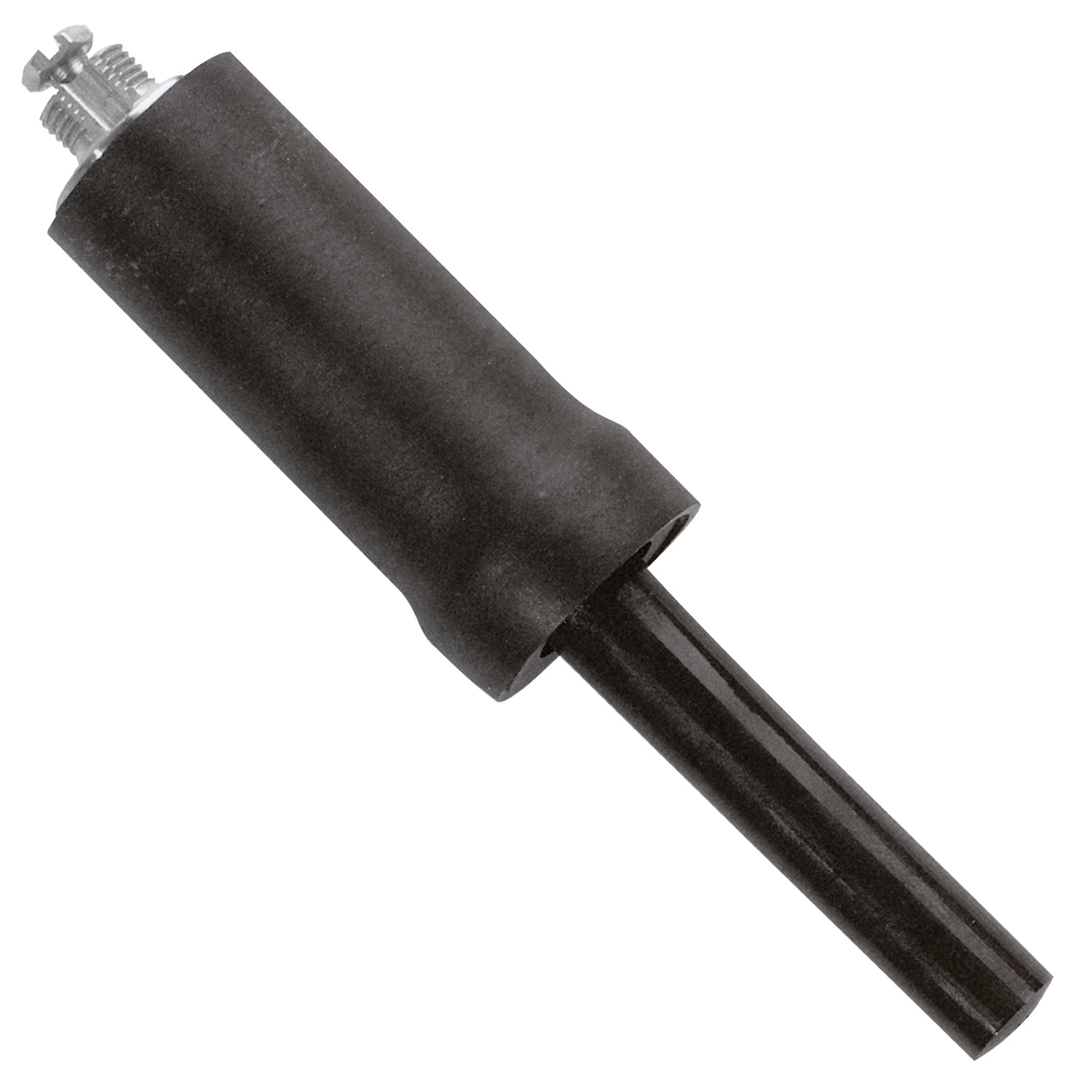

L4620 Shock Absorber
0.627" bore, material: Urethane
Order No.
L4620.627
Stroke
1,1"
Energy capacity
ft·lb
0-0,3
Spring force extended
lb
0.16
Spring force retracted
lb
0.28
Push rod reset time with valve fully open
m/s
30
Push rod reset time with valve fully closed
m/s
50
Friction coefficient
0.2
£ 160.45 per unit (click for quantity discounts)
Ready to despatch 15
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 160.45 | 0% |
| 5-19 | £ 144.41 | 10% |
| 20-39 | £ 128.36 | 20% |
| 40-99 | £ 112.32 | 30% |
| 100+ | £ 96.27 | 40% |
Technical & Application
Material
Shock resistant rubber case.
Urethane push rod.
Pyrex glass cylinder.
Technical Notes
Max operating temperature: -55°c to +150°c.
(Please advise if operating at temperatures over +70°c).
Piston friction force without side load = less than 1 gram.

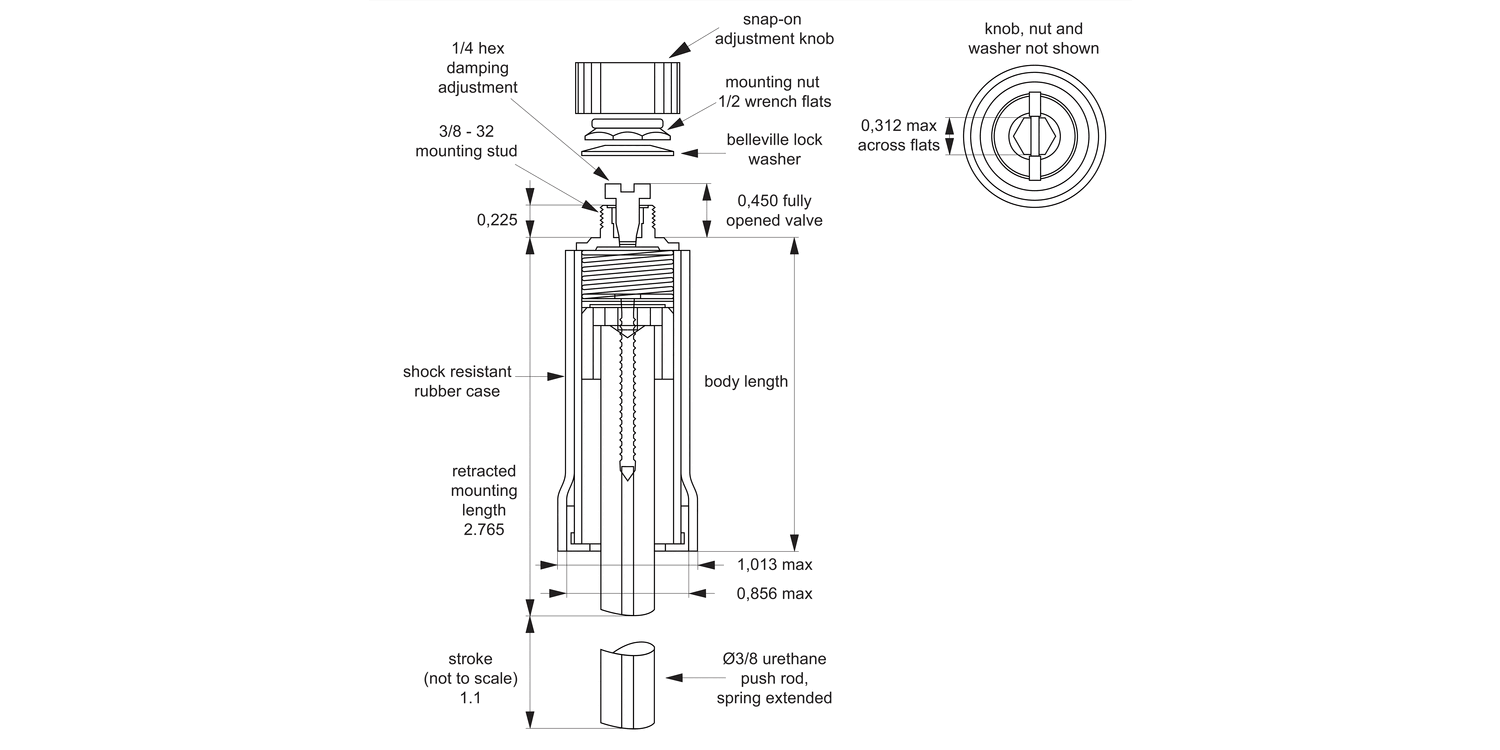

Mounting data:
Mounting hole:
Rectangular: 0.312" x 0.375" (8mm x 10mm)
Round: 0.375" (10mm)
Suggested mounting bracket thickness: 0.060" - 0.125" (1.52 - 3.18mm)
Mounting nut torque:
Head: 4-8 in-lb (0.45 to 0.90 Nm)
Level of shock absorption adjustable by hand.
